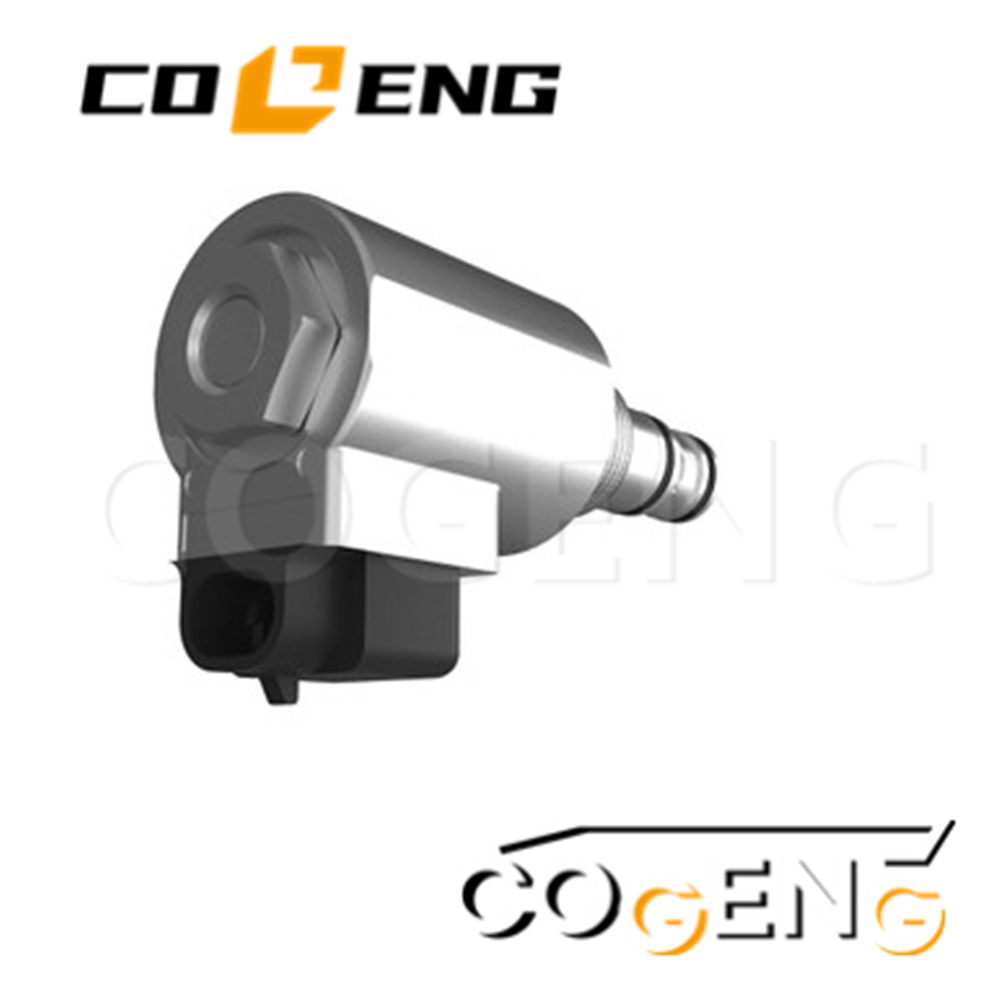

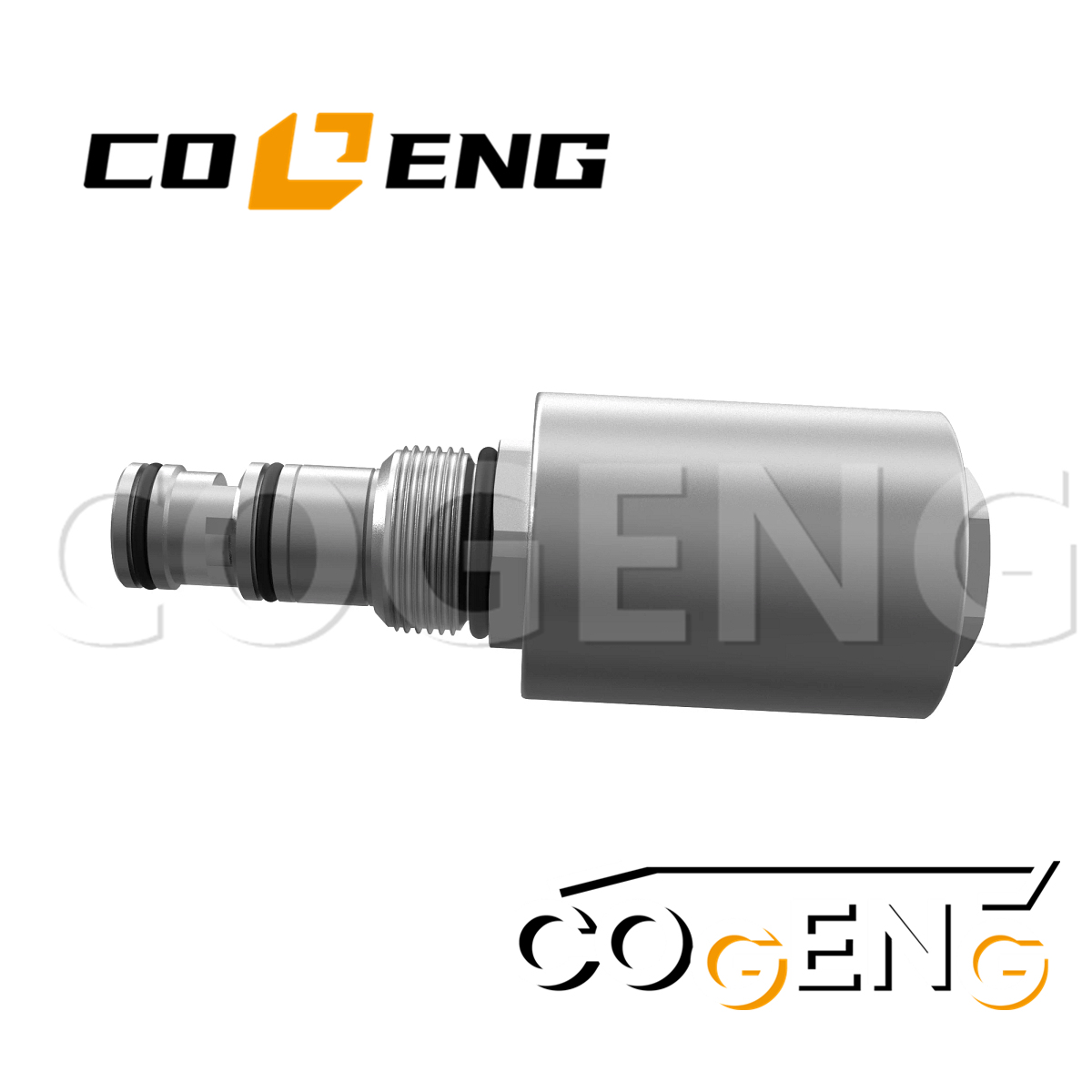

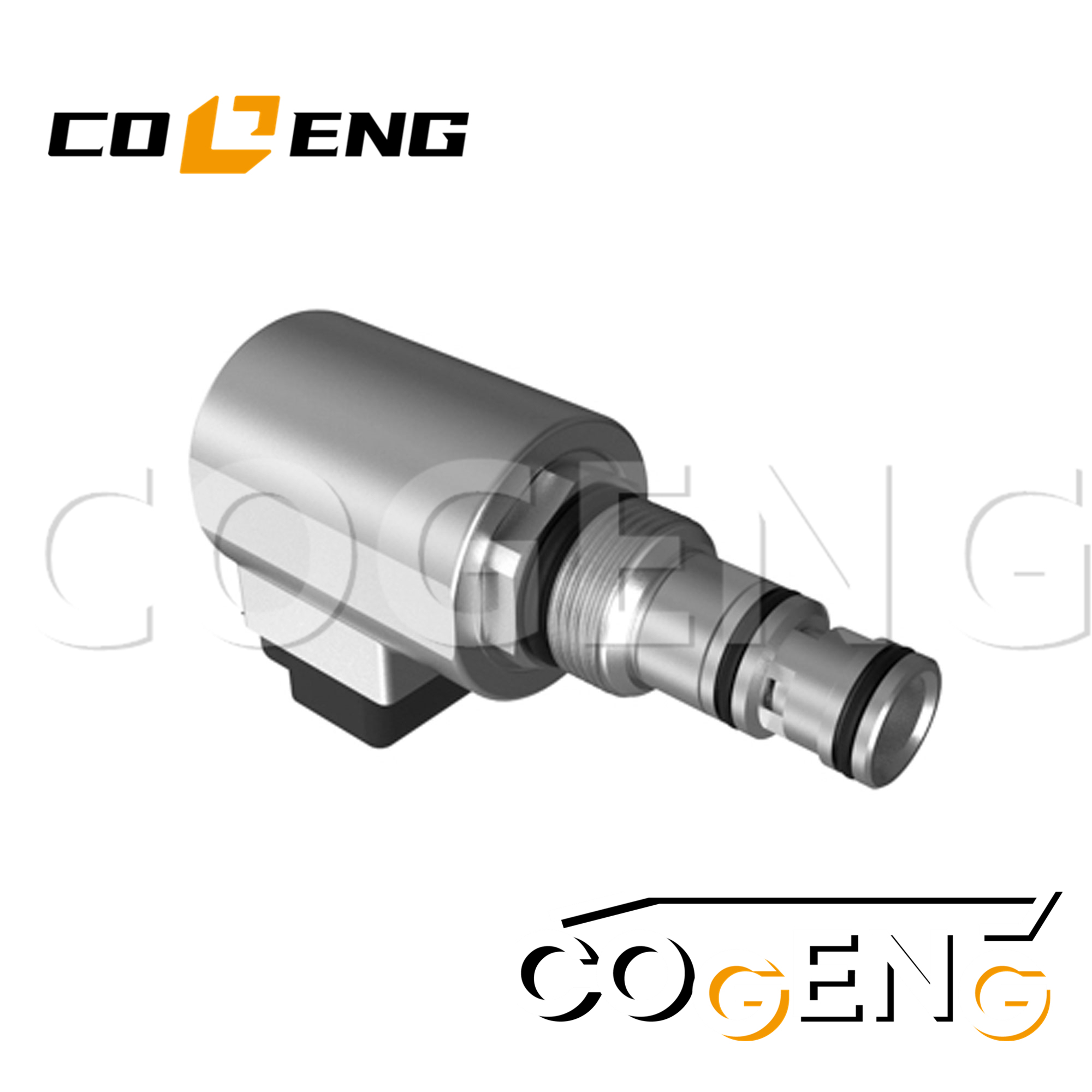

Product name: John Deere Solenoid Valve
Part No: YZ502360
Model Number:For 50G , 60G , 85G ,135G,210G LC,250GLC
Additional Compatible Equipment: 333G ,325G , 333G,324G
System Applications: Hydraulic Control Circuits, Attachment Control Systems, Implement Hydraulic Functions, Auxiliary Hydraulic Circuits
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Parameter |
Specification |
Details |
| COGENG Part Number |
COGENG-502360-SV |
"SV" denotes Solenoid Valve |
| Replaces OEM Part No. |
John Deere YZ502360 |
Direct OEM replacement |
| Voltage Rating |
12V/24V DC (±10%) |
Dual voltage capability |
| Current Draw |
1.8A @ 12V, 0.9A @ 24V |
Low power consumption design |
| Insulation Class |
Class H (180°C) |
High temperature resistance |
| Protection Rating |
IP67 |
Dust and water resistant |
| Cycle Rate |
Up to 120 cycles/minute |
High frequency operation capable |
| Operating Temperature |
-40°C to +120°C (-40°F to +248°F) |
Wide temperature range operation |
| Pressure Rating |
Up to 350 bar (5076 PSI) |
Meets John Deere hydraulic system requirements |
| Connector Type |
DIN 43650 Form A |
Standard industrial connector |
| Body Material |
Stainless Steel |
Corrosion resistant |
| Coil Material |
Copper windings with epoxy encapsulation |
Moisture and vibration resistant |
| Dimensional Specifications |
|
|
| Dimension |
Value |
Tolerance |
| Overall Length |
125 mm |
±1.0 mm |
| Body Diameter |
42 mm |
±0.5 mm |
| Mounting Thread |
M20 x 1.5 |
Standard |
| Port Size |
1/4" NPT |
Standard |
| Electrical Lead Length |
300 mm |
±10 mm |
| Connector Type |
2-pin Deutsch DT04-2P |
Industry standard |
Pre-Installation Checks
Verify correct voltage specification for your equipment
Check electrical connector for corrosion or damage
Inspect hydraulic ports and threads
Ensure work area is clean and dry
Removal of Old Valve
Disconnect battery negative terminal
Label and disconnect electrical connector
Depressurize hydraulic system
Carefully remove old solenoid valve
Installation Steps
Clean mounting surface and port connections
Apply appropriate thread sealant
Install new solenoid valve and torque to specifications
Connect electrical connector securely
Reconnect battery terminal
Post-Installation Testing
Check for hydraulic leaks
Verify proper electrical operation
Test valve function through complete cycle
Monitor performance during initial operation
Torque Specifications:
Mounting threads: 35-40 Nm (26-30 ft-lbs)
Port connections: 20-25 Nm (15-18 ft-lbs)
Electrical connector: Hand-tighten until click
Frequently Asked QuestionsA. When will get the items after I place order?
Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?
A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.
A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.
A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?
A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.
A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.
A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
