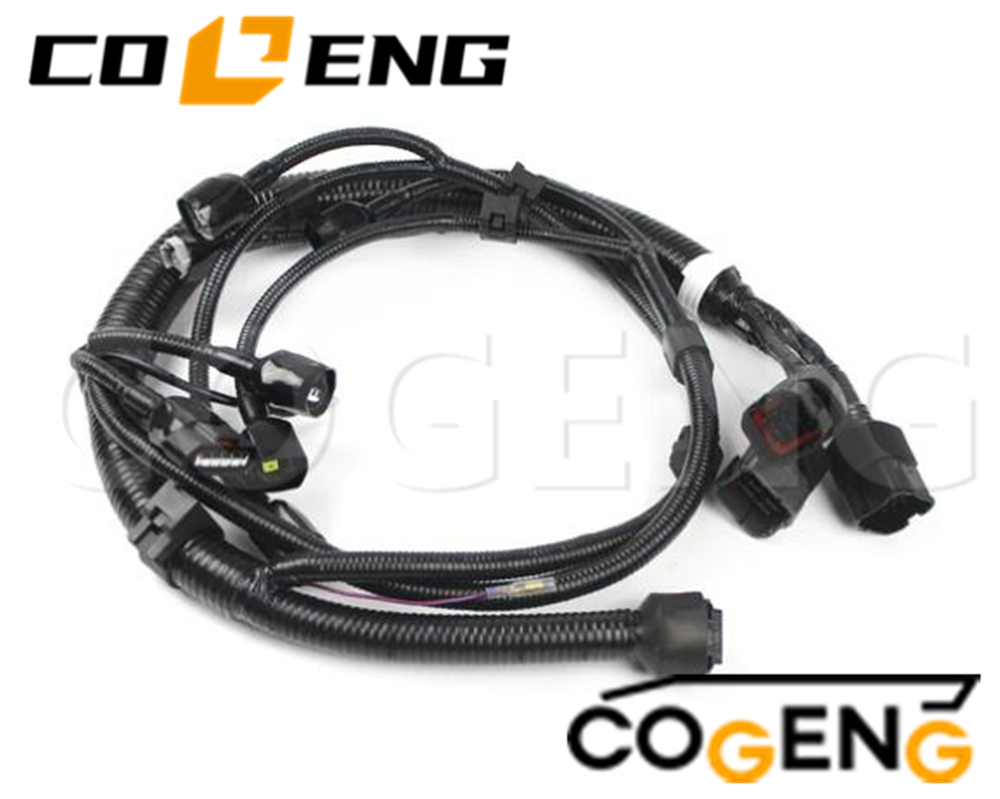

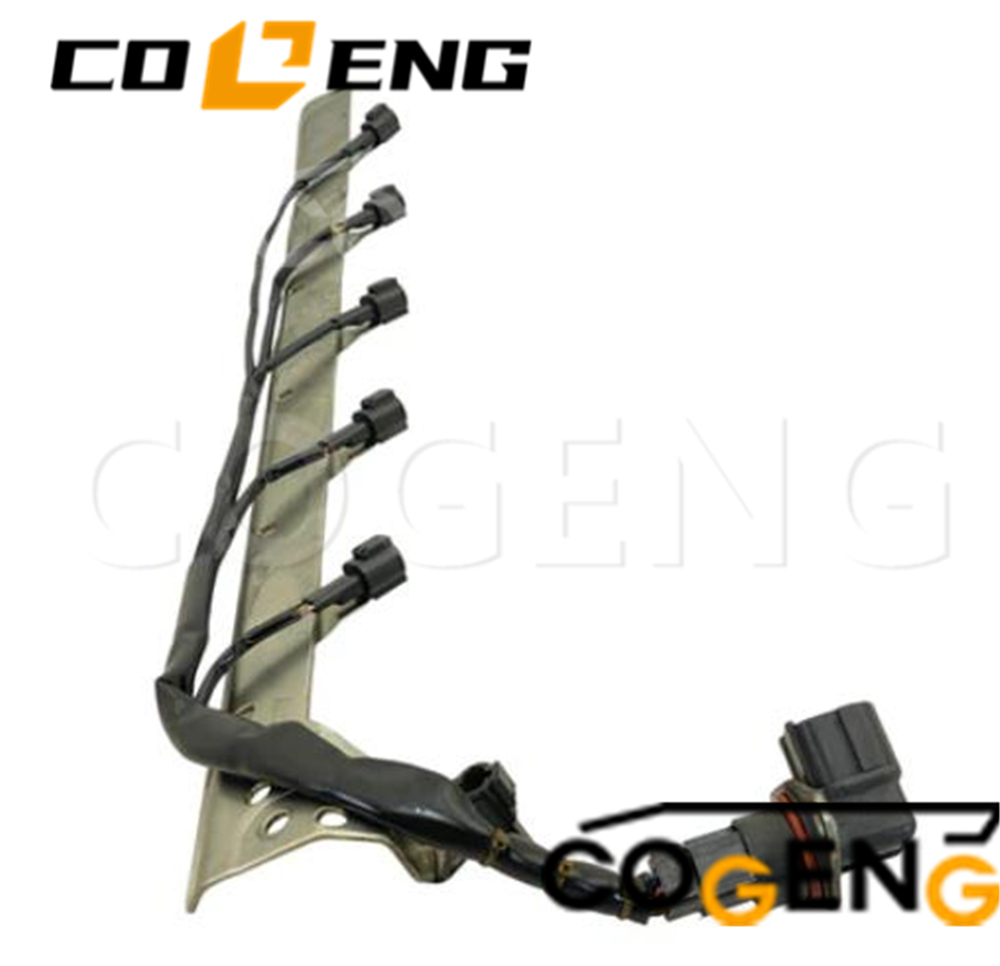

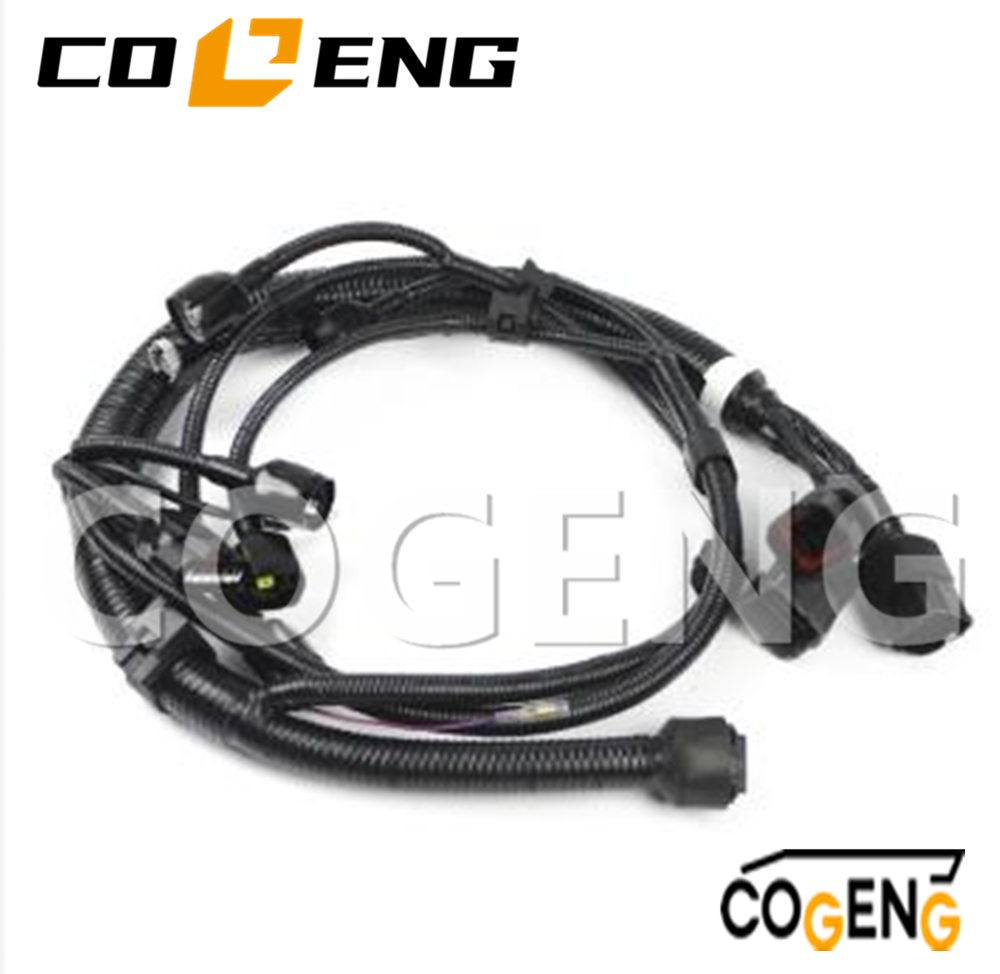

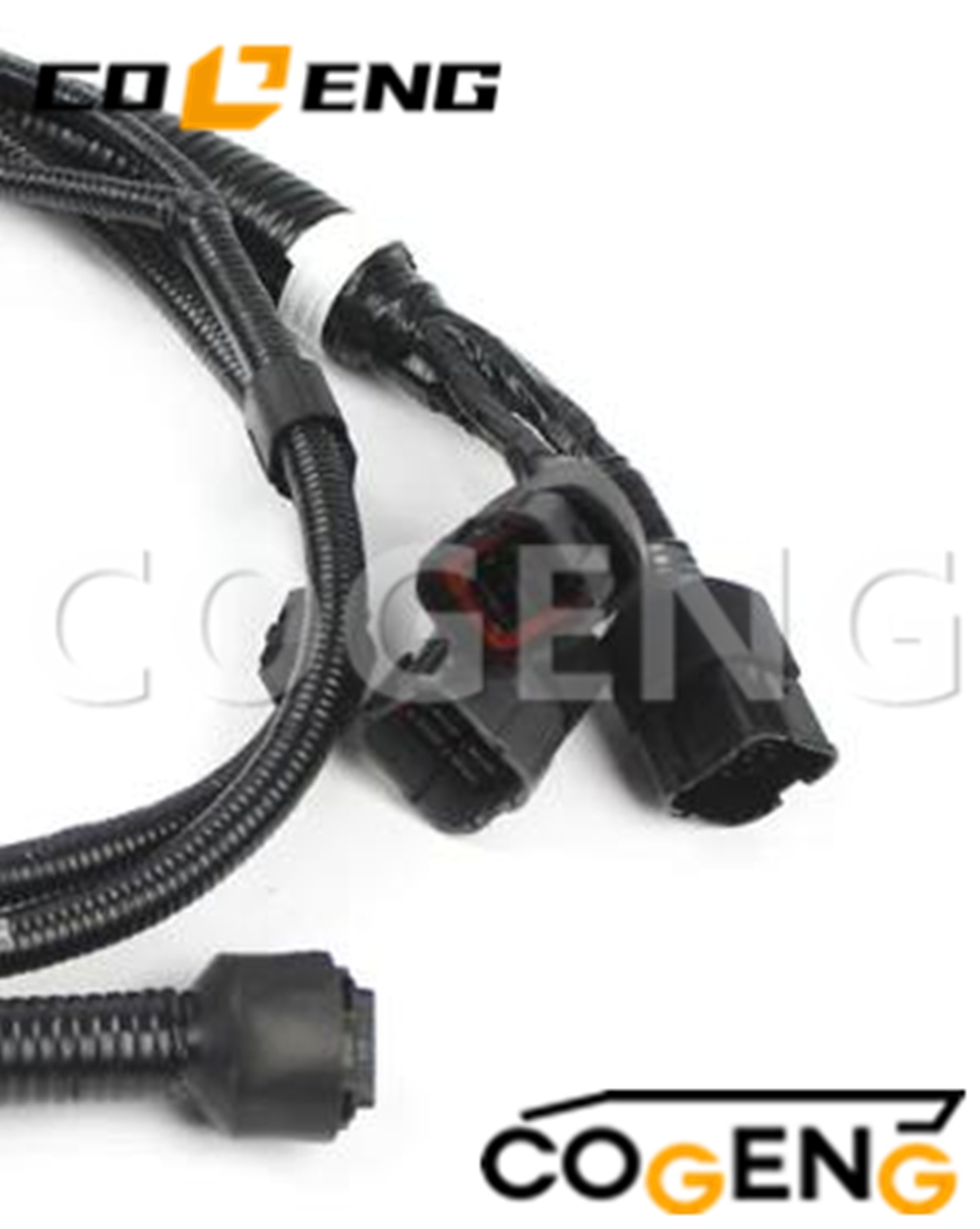

Product name: Kobelco Wiring harness
Part No: VH82051E0011
Model Number:For SK250-8 SK235SRLC-2
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
Purchase: From one piece
Key Features & Benefits:
Precise OEM Replacement: Manufactured to exact OEM specifications (replaces OEM part number YN13E01137P4), guaranteeing a perfect fit and seamless integration with your Kobelco SK200-6 or SK210-6 excavator. No modifications are required for installation.
Superior Durability: Constructed with high-grade, weather-resistant materials that protect against abrasion, moisture, fuel, chemicals, and extreme temperature fluctuations, ensuring long-term reliability in harsh construction environments.
Optimal Electrical Performance: Features high-conductivity copper wires with precise gauging and robust terminals to ensure stable current flow, minimize voltage drop, and prevent electrical failures, communication errors, and intermittent signals.
| Parameter | Specification |
|---|---|
| COGENG Part Number | VH82051E0011 |
| OEM Equivalent | Kobelco VH82051E0011 |
| Product Type | Main Wiring Harness Assembly |
| Application | Complete machine electrical system |
| Harness Type | Main machine harness (cab + chassis + engine + hydraulics) |
| Compatible Models | Kobelco SK250-8, Kobelco SK235SRLC-2 |
| Series | Dash 8 (Tier 4 / Stage IIIB) |

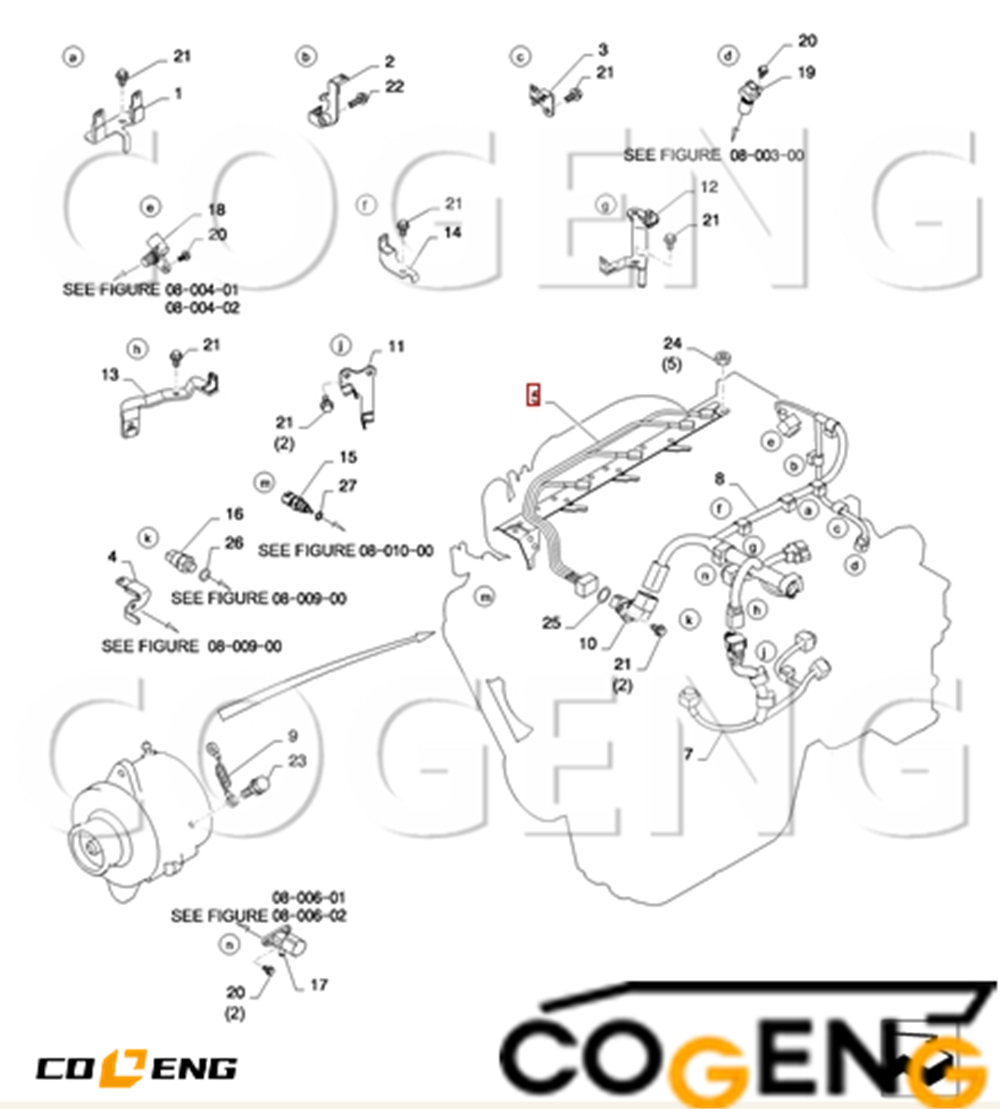

Decompose pictures
Parts list
| NO | Number | Name | Qty |
| 27 | 1 | VH965910111A | WASHER Soft |
| 26 | 1 | VH965914103A | WASHER Soft |
| 25 | 1 | VH964403136A | O-RING |
| 24 | 5 | VH924008087A | NUT |
| 23 | 1 | VH919006121A | BOLT |
| 22 | 1 | VH906808250A | BOLT Flange |
| 21 | 9 | VH906808160A | BOLT Flange |
| 20 | 4 | VH906106140A | BOLT |
| 19 | 1 | VH894111280A | SENSOR Assy., Speed |
| 18 | 1 | VH894101570A | SENSOR Assy., Speed |
| 17 | 1 | VH893901080A | SENSOR Assy., Pressure |
| 16 | 1 | VH83530E0220 | PRESSURE SWITCH Assy., Oil |
| 15 | 1 | VH834201250A | SENSOR Assy., Water Temp Sender |
| 14 | 1 | VH82715E0C60 | BRACKET Wiring Harness Clamp |
| 13 | 1 | VH82702E0200 | BRACKET Sub-Assy., Wiring Harness |
| 12 | 1 | VH82702E0240 | BRACKET Sub-Assy., Wiring Harness |
| 11 | 1 | VH82702E0230 | BRACKET Sub-Assy., Wiring Harness |
| 10 | 1 | VH825601200A | ELEC CONNECTOR Assy. |
| 9 | 1 | VH82121E0D60 | WIRE Engine |
| 8 | 1 | VH82121E0G60 | WIRE Engine |
| 7 | 1 | VH82121E0842 | WIRE Engine |
| 6 | 1 | VH820646621A | HARNESS Sub Assy., Eng. |
| 5 | 1 | VH82051E0011 | HARNESS Wiring Sub-Assy, Fuel Control |
| 4 | 1 | VH120172600A | BRACKET Sub Assy. |
| 3 | 1 | VH120173531A | BRACKET Sub Assy. |
| 2 | 1 | VH120173520A | BRACKET Sub Assy. |
| 1 | 1 | VH120172220A | BRACKET Sub Assy. |
Installation decomposition diagram
Pre-Installation Safety Protocol:
Park excavator on solid, level ground with attachment fully lowered
Engage all safety locks and parking brakes
Turn ignition key to OFF position and remove
Disconnect negative (-) battery terminal first, then positive (+)
Wait minimum 15 minutes for complete system capacitor discharge
System Documentation & Removal:
Photograph entire existing harness routing from multiple angles
Label every connector with waterproof tags identifying components
Use appropriate terminal release tools - never pull on wire conductors
Carefully document routing through complex engine compartments
Note clearance from turbocharger, exhaust manifold, and moving components
Pre-Installation Verification:
Conduct point-by-point comparison with original harness
Verify all connector types, keying, and terminal configurations match
Inspect engine connection points for corrosion or damage
Confirm adequate protection from heat sources and sharp edges
Precision Installation Procedure:
Route new harness following exact documented path
Secure all factory mounting clamps and retention points
Connect sensor and component connections first
Engage ECU and main power connections last
Verify all connector locks engage with audible click
Ensure proper slack allowance for engine movement
System Commissioning & Testing:
Reconnect battery terminals (positive first, then negative)
Turn key to ON position (do not start) for 3-minute system initialization
Perform comprehensive diagnostic scan for trouble codes
Start engine and monitor all system parameters
Verify proper communication across all engine systems
Conduct full operational testing under working conditions
Frequently Asked Questions
A. When will get the items after I place order?
Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?
A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.
A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.
A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?
A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.
A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.
A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
