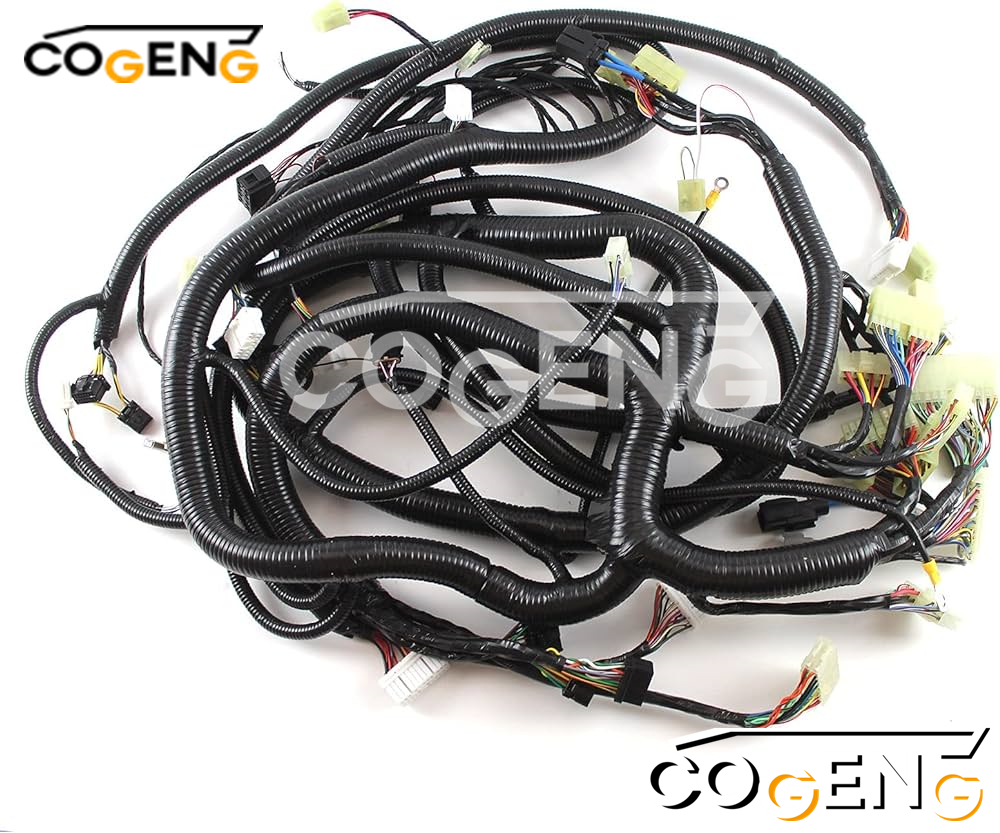

K1001371G 310207-00417B 310207-00417C 3102027-03191 310207-03191A Doosan Wiring Harness DX220A DX300LCA DX500LC
Product name: Doosan Wiring Harness
Part No: K1001371G 310207-00417B 310207-00417C 3102027-03191 310207-03191A
Model Number:For DX220A DX220AF DX225LC DX225LCA DX300LCA
DX340LCA DX420LC DX420LCA DX480LCA DX500LC DX500LCG DX500LCA
DX520LCA
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| COGENG Part Number |
Replaces OEM Number |
Primary Application |
Key Features |
| CG-WH-DOO-11371 |
K1001371G |
Main Power Harness |
High-current distribution, main controllers |
| CG-WH-DOO-30417B |
310207-00417B |
Control System Harness |
Sensor circuits, operator controls |
| CG-WH-DOO-30417C |
310207-00417C |
Monitoring Harness |
Display systems, warning lights |
| CG-WH-DOO-30319A |
310207-03191 |
Engine Management Harness |
ECM connections, sensor inputs |
| CG-WH-DOO-30319B |
310207-03191A |
Auxiliary Systems Harness |
Lighting, accessories, options |

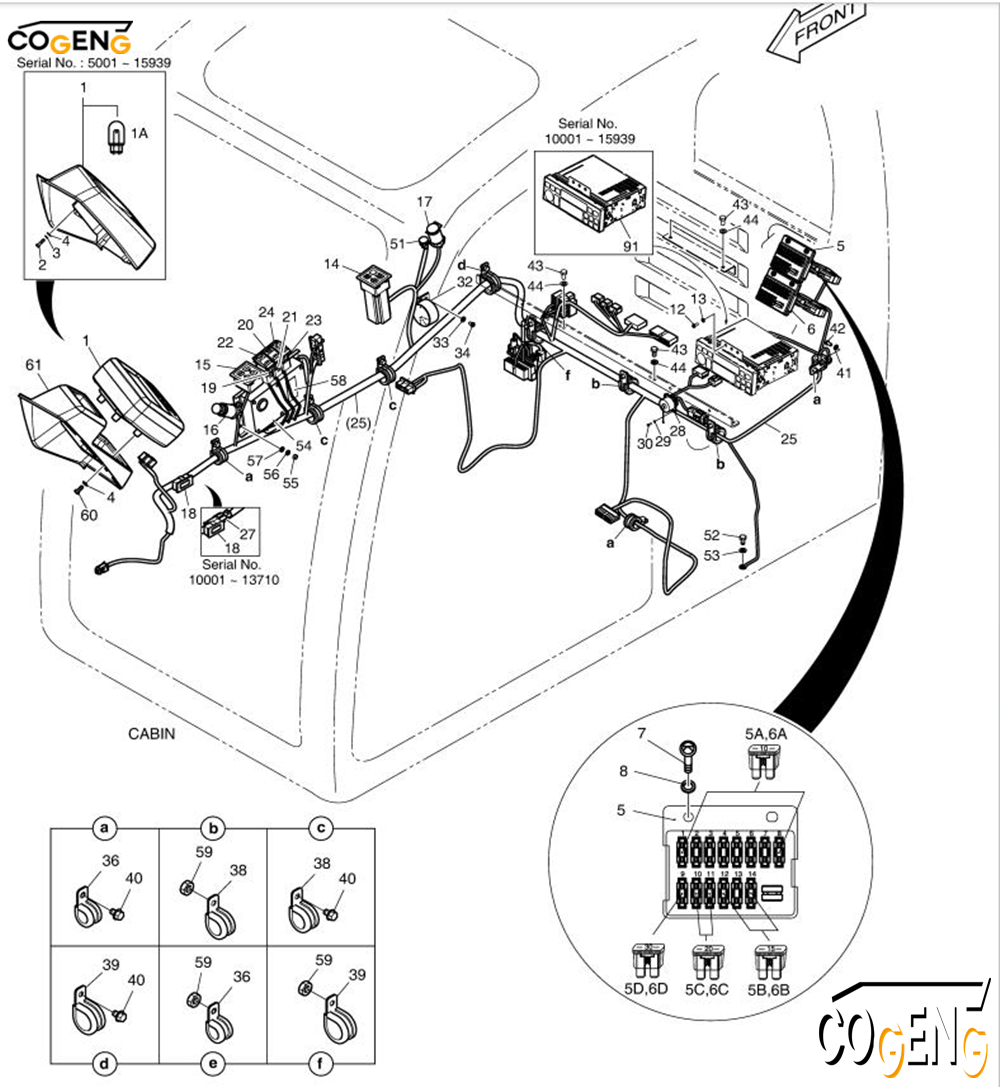

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| - |
K1001325Q |
ELECTRIC PARTS-CABIN |
|
| - |
300619-00056 |
ELECTRIC ASSY;CABIN |
|
| - |
300619-00056A |
ELECTRIC ASSY;CABIN |
|
| - |
300619-00056B |
ELECTRIC ASSY;CABIN |
|
| - |
300619-00056C |
ELECTRIC ASSY;CABIN |
|
| - |
300619-00056E |
ELECTRIC ASSY;CABIN |
|
| - |
300619-00056G |
ELECTRIC ASSY,CABIN |
|
| - |
300619-00056H |
ELECTRIC ASSY,CABIN |
|
| - |
300619-00056K |
ELECTRIC ASSY,CABIN |
|
| - |
300619-00056N |
ELECTRIC ASSY,CABIN |
|
| - |
300619-00056P |
ELECTRIC ASSY;CABIN |
|
| 1 |
539-00076E |
PANEL;GAUGE |
1 |
|
K1051986 |
PANEL;GAUGE |
1 |
|
300426-00012 |
PANEL,GAUGE;3.8INCH |
1 |
|
300426-00012A |
PANEL,GAUGE;3.8INCH |
1 |
|
300426-00206 |
PANEL,GAUGE;7INCH |
1 |
|
300426-00202 |
PANEL,GAUGE |
1 |
| 1A |
515-00012A |
BULB |
6 |
| 2 |
S3450863 |
SCREW |
4 |
| 3 |
S5100203 |
WASHER |
4 |
| 4 |
S5000213 |
WASHER |
4 |
|
S5010313 |
WASHER |
4 |
| 5 |
K1001263A |
BOX,FUSE |
1 |
| 5A |
2527-1016 |
FUSE,BLADE 10A |
8 |
| 5B |
2527-1017 |
FUSE,BLADE 15A |
3 |
| 5C |
2527-1018 |
FUSE,BLADE 20A |
2 |
| 5D |
2527-1025 |
FUSE,BLADE 30A |
1 |
| 6 |
K1001263A |
BOX,FUSE |
1 |
| 6A |
2527-1016 |
FUSE,BLADE 10A |
8 |
| 6B |
2527-1017 |
FUSE,BLADE 15A |
3 |
| 6C |
2527-1018 |
FUSE,BLADE 20A |
2 |
| 6D |
2527-1025 |
FUSE,BLADE 30A |
1 |
| 7 |
S3450983 |
SCREW |
4 |
| 8 |
S5102303 |
WASHER |
4 |
| 12 |
S3450833 |
SCREW |
4 |
| 13 |
S5100203 |
WASHER |
4 |
| 14 |
543-00095 |
PANEL ASS'Y,WIPER CONTROL |
1 |
| 15 |
543-00096 |
RADIO CONTROL PANEL ASSY |
1 |
| 16 |
545-00001 |
LIGHTER;CIGAR |
1 |
|
300730-00006 |
LIGHTER,CIGAR |
1 |
| 17 |
527-00006 |
SOCKET;12V POWER |
1 |
|
K1053423 |
SOCKET,12V POWER |
1 |
| 18 |
2528-9040 |
METER;HOUR |
1 |
| 18 |
800224-00011 |
METER,HOUR |
1 |
| 19 |
549-00103 |
SWITCH |
1 |
| 20 |
K1002406D11 |
ACTUATOR,SWITCH(LAMP) |
1 |
| 21 |
549-00103 |
SWITCH |
1 |
| 22 |
K1002406D12 |
ACTUATOR,SWITCH |
1 |
| 23 |
K1006572 |
SWITCH,BREAKER/SHEAR |
1 |
| 24 |
K1002406D21 |
ACTUATOR,SWITCH(SHEAR) |
1 |
| 25 |
K1001371G |
HARNESS |
1 |
|
310207-00417B |
HARNESS |
1 |
|
310207-00417C |
HARNESS |
1 |
|
310207-03191 |
HARNESS |
1 |
|
310207-03191A |
HARNESS |
1 |
| 27 |
530-00434B |
HARNESS,HOUR METER |
1 |
| 28 |
530-00477A |
HARNESS;CHECK CONNECTOR JOINT |
1 |
|
310207-00708 |
HARNESS |
1 |
| 29 |
S5100003 |
WASHER |
4 |
| 30 |
S3450343 |
SCREW |
4 |
| 32 |
2516-1116 |
BUZZER |
1 |
| 33 |
S5102303 |
WASHER |
2 |
| 34 |
S3450943 |
SCREW |
2 |
| 36 |
124-00208D3 |
CLIP |
3 |
| 38 |
124-00208D4 |
CLIP |
4 |
| 39 |
124-00208D5 |
CLIP |
2 |
| 40 |
K1001029 |
BOLT |
5 |
| 41 |
S5102303 |
WASHER |
1 |
| 42 |
S3450953 |
SCREW |
1 |
| 43 |
S0508653 |
BOLT |
4 |
| 44 |
S5102503 |
WASHER |
4 |
| 51 |
547-00023 |
SENSOR |
1 |
| 52 |
S0508653 |
BOLT |
1 |
| 53 |
S5102503 |
WASHER |
1 |
| 54 |
K1003111 |
CONTROLLER;ENGINE THROTTLE |
1 |
| 54 |
300611-00003 |
CONTROLLER,ENGINE THROTTLE |
1 |
|
300611-00138 |
CONTROLLER,ENGINE THROTTLE |
1 |
|
300611-00138A |
CONTROLLER |
1 |
| 55 |
S4012333 |
NUT |
4 |
| 56 |
S5102303 |
WASHER |
4 |
| 57 |
S5010313 |
WASHER |
4 |
| 58 |
K1003113D4 |
PLATE;NAME |
1 |
| 58 |
950209-05864 |
PLATE,NAME;RPM SET, THROTTLE |
1 |
| 59 |
2121-1305 |
NUT |
5 |
| 60 |
2120-2166D6 |
BOLT |
4 |
| 61 |
K1041204 |
COVER;NOZZLE |
1 |
| 91 |
K1026654 |
CAR STEREO |
1 |
Installation decomposition diagram
