COGENG 520-1347 247-5275 Joystick control device CAT Excavator

For Part Number: 520-1347 (5201347)

CAT Joystick Control Device — Caterpillar Mini & Medium Excavators

Document Version: 1.0
Date of Issue: October 26, 2023
Product Category: Hydraulic Components / Excavator Control Device
Brand: Aftermarket Replacement
Manufacturer Reference: Caterpillar OEM Reference
Application: Joystick Control Device (Pilot Control Valve)

1. PRODUCT OVERVIEW

1.1 Introduction

This document serves as the comprehensive technical specification for the joystick control device identified by part number 520-1347 (also formatted as 5201347). This part is a critical hydraulic control component used in Caterpillar mini and medium excavators, including the 301.7, 320GC, and 336G models. The joystick control device (also known as a pilot control valve or joystick valve) allows the operator to control various hydraulic functions using hand-operated levers, providing precise and intuitive control during machine operation.

The purpose of this document is to provide engineers, mechanics, procurement specialists, and maintenance teams with a complete understanding of the physical specifications, compatibility, installation protocols, and maintenance requirements for this specific joystick control device.

1.2 Product Description

The 520-1347 is a precision-engineered Joystick Control Device (Pilot Control Valve) designed as a direct replacement for the Caterpillar OEM part. This component is an integral part of the excavator's hydraulic control system, converting mechanical joystick lever movement into precise hydraulic pressure signals (pilot pressure) that control the main control valves, which in turn direct hydraulic flow to the boom, arm, bucket, swing, and travel functions.

The joystick control device is the primary interface between the operator and the machine. It is used for:

• Boom Control: Raise and lower the boom.

• Arm Control: Extend and retract the arm (stick).

• Bucket Control: Open and close the bucket.

• Swing Control: Rotate the upper structure left and right.

• Travel Control: Move the machine forward and backward (via travel levers or pedals).

This component is essential for safe and efficient machine operation, providing the operator with precise, proportional control over all machine functions. The joystick is engineered to withstand the demanding operating conditions of construction equipment, including high pressures, temperature extremes, vibration, and contamination.

Key Functional Characteristics:

• Precise Proportional Control: Provides smooth, proportional control of hydraulic functions.

• Ergonomic Design: Joystick grip and lever geometry designed for operator comfort and reduced fatigue.

• Durable Construction: Resistant to vibration, temperature extremes, and contamination.

• OEM-Compatible: Direct replacement for Caterpillar 520-1347 and related part numbers.

• Easy Installation: Designed for straightforward replacement with standard tools.

• Quality Assurance: Manufactured under ISO 9001 quality management system.

1.3 Key Technical Features

1. Direct OEM Replacement: Designed to replace Caterpillar 520-1347, 247-5275, 309-5808, and 307-3993 without modification.

2. Precision Manufacturing: All internal components (spools, bores, springs) machined to exacting tolerances.

3. High-Quality Seals: Durable seals resist hydraulic oil, temperature, and contamination.

4. Corrosion-Resistant Body: Constructed from high-grade steel or aluminum.

5. Smooth Operation: Precision-machined spool and bore for responsive joystick feel.

6. Ergonomic Grip: Comfortable grip design reduces operator fatigue during long shifts.

7. Easy Installation: Plug-and-play design for straightforward replacement.

8. Wide Compatibility: Fits multiple Caterpillar excavator models across different series.

2. PARTS LIST

The following list details the components included in or associated with the 520-1347 joystick control device. This part is typically a complete assembly, but the following table details the main components.

2.1 Main Assembly Components

Note: The specific components and part numbers may vary slightly based on the specific production batch. Always verify with the serial number of your machine.

2.2 Related Service Components

When replacing a joystick control device, the following components should be inspected and replaced if necessary:

• O-Rings and Seals: Always replace O-rings when installing a new joystick.

• Hydraulic Hoses: Inspect for cracks, leaks, or damage.

• Pilot Lines: Inspect for kinks, leaks, or damage.

• Joystick Boot: Inspect for tears or deterioration.

• Hydraulic Filter: Replace if contamination is suspected.

2.3 Material Specifications

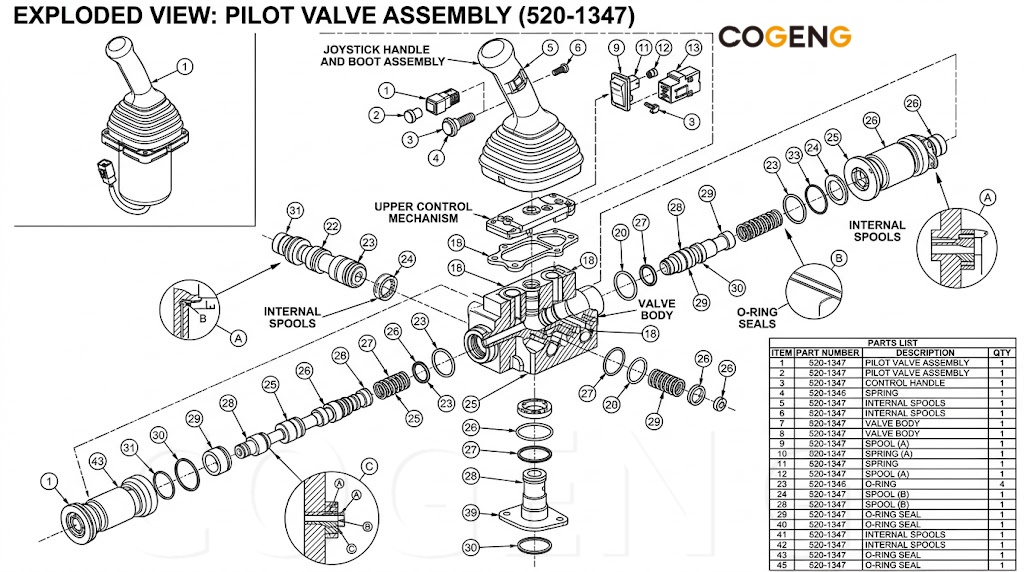

Decompose pictures


3. COMPATIBLE MODELS

The part number 520-1347 is primarily designed for Caterpillar mini and medium excavators. The following compatibility information is compiled from multiple industry sources.

3.1 Primary Compatibility (Caterpillar Excavators)

This part is most commonly found on the following machine models:

• Caterpillar 301.7 (Mini Excavator)

• Caterpillar 301.7 CR (Mini Excavator)

• Caterpillar 320GC (Medium Excavator)

• Caterpillar 336G (Medium Excavator)

• Caterpillar 336GC (Medium Excavator)

3.2 Additional Compatibility (Caterpillar Excavators)

Based on cross-reference data, the 520-1347 may also be compatible with:

• Caterpillar 302.7 (Mini Excavator)

• Caterpillar 303.5 (Mini Excavator)

• Caterpillar 304 (Mini Excavator)

• Caterpillar 305 (Mini Excavator)

• Caterpillar 306 (Mini Excavator)

• Caterpillar 307 (Mini Excavator)

• Caterpillar 308 (Mini Excavator)

• Caterpillar 310 (Mini Excavator)

• Caterpillar 313 (Medium Excavator)

• Caterpillar 315 (Medium Excavator)

• Caterpillar 318 (Medium Excavator)

• Caterpillar 320 (Medium Excavator)

• Caterpillar 323 (Medium Excavator)

• Caterpillar 326 (Medium Excavator)

• Caterpillar 330 (Medium Excavator)

• Caterpillar 340 (Medium Excavator)

• Caterpillar 349 (Medium Excavator)

• Caterpillar 352 (Medium Excavator)

• Caterpillar 374 (Large Excavator)

• Caterpillar 390 (Large Excavator)

• Caterpillar 395 (Large Excavator)

3.3 Cross-Reference Numbers

When searching for this part, you may encounter the following interchangeable or superseded part numbers :

• 520-1347
  5201347

• 247-5275
  2475275

• 309-5808
  3095808

• 307-3993
  3073993

• 561-7001
  5617001

Warning: While these numbers are often interchangeable, the specific suffix number usually denotes a specific revision or application. Always confirm the exact joystick specifications before ordering.

3.4 Related Part Numbers

The following part numbers are related to the 520-1347 and may be used in the same hydraulic control system:

• 520-1348 (Alternate configuration)

• 520-1349 (Alternate configuration)

• 520-1350 (Alternate configuration)

4. INSTALLATION PRECAUTIONS

Installing a joystick control device is a precision operation. Failure to follow these precautions can result in immediate damage to the joystick, hydraulic contamination, or personal injury.

4.1 Pre-Installation Checklist

1. Verify Part Number: Ensure the new joystick control device matches the old joystick exactly. Check the mounting configuration, port locations, and lever design.

2. Cleanliness: The hydraulic system is highly sensitive to contamination. Clean the area around the joystick before removal.

3. Hydraulic Oil: Check the hydraulic tank for debris or metallic particles. If the old joystick failed catastrophically, the entire hydraulic system must be flushed.

4. Inspect Mating Parts: Check the mounting bracket for wear or damage. Check the hydraulic hoses and pilot lines for cracks or leaks. Check the joystick lever for excessive play.

5. Check Electrical System: If the joystick includes electrical switches (e.g., horn, auxiliary function), verify the electrical connections.

6. Safety First: Ensure the machine is parked on level ground, the engine is off, and the hydraulic system is depressurized before beginning work. Lower all attachments to the ground.

4.2 Installation Procedure

1. Disassembly: Carefully disconnect the hydraulic hoses and pilot lines and remove the old joystick control device. Use proper tools to avoid damaging the mounting bracket or hydraulic fittings. Cap all hydraulic lines to prevent contamination.

2. Cleaning: Thoroughly clean the mounting area and hydraulic fittings. Remove any debris or old seal material.

3. Inspection: Inspect the mounting bracket for wear, cracks, or damage. If damaged, the bracket may need to be replaced or repaired.

4. Seal Installation: Install new O-rings on the new joystick fittings. Lubricate with clean hydraulic oil.

5. Joystick Installation: Carefully position the new joystick control device on the mounting bracket. Install and tighten mounting bolts to the specified torque.

6. Hydraulic Connection: Connect the hydraulic hoses and pilot lines to the new joystick. Ensure the fittings are tight and leak-free.

7. Electrical Connection: If applicable, connect the electrical switch connectors. Ensure they click into place and are secure.

8. Lever Adjustment: Adjust the joystick lever position to the operator's preference, if applicable.

4.3 Pre-Startup and Testing

This is the most critical step.

1. Fill Casing: Before starting the engine, ensure the hydraulic system is filled to the proper level.

2. Air Bleeding:

   • Start the engine at low idle.

   • Slowly operate the joystick to circulate oil through the valve.

   • Check for leaks around the joystick and fittings.

3. Functional Test:

   • Start the engine and operate the functions controlled by the joystick.

   • Verify smooth and responsive operation.

   • Check for proper return to neutral when the joystick is released.

4. Check for Leaks: Inspect all connections for leaks while the system is under pressure.

5. Final Check: Check the hydraulic oil level in the tank and top up if necessary.

4.4 Safety Warnings

• Crush Hazard: The joystick control device is part of a heavy hydraulic system. Ensure proper support is used.

• High Pressure: Hydraulic fluid under pressure can penetrate the skin. Relieve pressure before disconnecting lines.

• Hot Oil: Allow the system to cool before servicing.

• Pinch Points: Keep hands and fingers away from moving parts during installation.

• Falling Load Hazard: Always lower attachments to the ground before servicing hydraulic components.

• Sudden Movement Hazard: Ensure the machine cannot move unexpectedly during testing. Block tracks if necessary.

5. COMPATIBLE EXCAVATORS

This section provides a detailed breakdown of the excavators compatible with the 520-1347, including specific model years and regional variations.

5.1 Caterpillar Mini Excavators (Primary Application)

The 520-1347 joystick control device is commonly used in Caterpillar 301.7 and related mini excavators. These machines are ubiquitous in the construction, landscaping, and utility sectors.

• Caterpillar 301.7: Produced in the 2010s to present. This model is known for its compact size and versatility. The 520-1347 is a direct fit for the joystick control device.

• Caterpillar 301.7 CR: Compact radius version of the 301.7. The joystick specification remains consistent.

• Caterpillar 302.7: Slightly larger mini excavator. The 520-1347 is compatible.

• Caterpillar 303.5: Mid-size mini excavator. The 520-1347 is compatible.

• Caterpillar 304: Mini excavator. The 520-1347 is compatible.

• Caterpillar 305: Mini excavator. The 520-1347 is compatible.

• Caterpillar 306: Mini excavator. The 520-1347 is compatible.

• Caterpillar 307: Mini excavator. The 520-1347 is compatible.

• Caterpillar 308: Mini excavator. The 520-1347 is compatible.

• Caterpillar 310: Mini excavator. The 520-1347 is compatible.

5.2 Caterpillar Medium Excavators (Primary Application)

The 520-1347 joystick control device is also used in Caterpillar 320GC and 336G medium excavators. These machines are among the most popular excavators in the world.

• Caterpillar 320GC: Produced in the 2010s to present. The "GC" designation indicates a "General Construction" configuration. The 520-1347 is a direct fit for the joystick control device.

• Caterpillar 336G: Produced in the 2010s to present. The 520-1347 is a direct fit.

• Caterpillar 336GC: General Construction version of the 336. The 520-1347 is compatible.

• Caterpillar 313: Medium excavator. The 520-1347 is compatible.

• Caterpillar 315: Medium excavator. The 520-1347 is compatible.

• Caterpillar 318: Medium excavator. The 520-1347 is compatible.

• Caterpillar 320: Medium excavator. The 520-1347 is compatible.

• Caterpillar 323: Medium excavator. The 520-1347 is compatible.

• Caterpillar 326: Medium excavator. The 520-1347 is compatible.

• Caterpillar 330: Medium excavator. The 520-1347 is compatible.

• Caterpillar 340: Medium excavator. The 520-1347 is compatible.

• Caterpillar 349: Medium excavator. The 520-1347 is compatible.

• Caterpillar 352: Medium excavator. The 520-1347 is compatible.

5.3 Caterpillar Large Excavators

• Caterpillar 374: Large excavator. The 520-1347 is compatible.

• Caterpillar 390: Large excavator. The 520-1347 is compatible.

• Caterpillar 395: Large excavator. The 520-1347 is compatible.

5.4 Verification Guide

To ensure compatibility with your specific machine:

1. Locate the Serial Number: Find the machine's serial number plate (usually in the cab).

2. Check the Parts Manual: Consult the official Caterpillar parts manual for your specific serial number range.

3. Visual Inspection: Compare the old joystick control device with the new joystick. Check the mounting configuration, port locations, and lever design.

4. Check the Hydraulic System: Verify the operating pressure and pilot pressure requirements of your machine's hydraulic system.

5. Cross-Reference the Part Number: Use the Caterpillar parts catalog to confirm the 520-1347 is the correct part for your machine.

6. FREQUENTLY ASKED QUESTIONS (FAQ)

Q1: What is the part number 520-1347 exactly?
A: The 520-1347 is a Joystick Control Device (also known as a Pilot Control Valve or Joystick Valve) used in Caterpillar mini and medium excavators, including the 301.7, 320GC, and 336G. It is a hydraulic control component that allows the operator to control various machine functions using hand-operated levers.

Q2: What does a joystick control device do?
A: A joystick control device converts mechanical joystick lever movement into hydraulic pilot pressure signals. These pilot signals control the main control valves, which in turn direct hydraulic flow to the boom, arm, bucket, swing, and travel functions. The joystick is the primary interface between the operator and the machine.

Q3: What are the symptoms of a bad joystick control device?
A: Symptoms of a bad joystick control device include:

• Loss of function: One or more hydraulic functions do not operate.

• Erratic operation: Functions operate inconsistently or jerkily.

• Sticking joystick: The joystick does not return to neutral when released.

• Leaks: Hydraulic fluid may leak from the joystick.

• Excessive play: The joystick has excessive free play.

• Noisy operation: Whining or groaning sounds.

• Drifting: Functions drift when the joystick is in neutral.

Q4: Is this a direct replacement for the original Caterpillar part?
A: Yes, the 520-1347 is designed as a direct replacement for the Caterpillar OEM part. It is also cross-compatible with 247-5275, 309-5808, 307-3993, and 561-7001 .

Q5: What is the warranty period for this part?
A: Standard warranty for these hydraulic components is typically 6 to 12 months, depending on the supplier. However, warranty is void if the unit is disassembled, if the system was not flushed after a previous failure, or if the wrong hydraulic oil was used.

Q6: Can I use this joystick control device on a different brand of excavator?
A: It is not recommended unless you are a qualified hydraulic engineer. While the joystick might physically fit, the hydraulic characteristics and pilot pressure requirements may not match the host machine's system, leading to poor performance or failure.

Q7: What type of hydraulic oil should I use?
A: Always use the oil specified by the excavator manufacturer. Typically, this is an ISO VG 46 anti-wear hydraulic oil. Using the wrong viscosity can cause overheating and internal damage.

Q8: Do I need to replace the hydraulic filter after installing a new joystick control device?
A: Yes. It is highly recommended to replace the return filter and the suction filter immediately after installation. If the old joystick failed, the system should be flushed with a flushing fluid, and the filters replaced again after 50 hours of operation.

Q9: What is the typical lead time for this part?
A: Lead times vary. Standard stock items may ship within 24-48 hours. Custom or non-stock items may take 15-30 days for manufacturing or sourcing.

Q10: How do I identify if I have a genuine OEM part or an aftermarket replacement?
A: Genuine OEM parts will have the Caterpillar logo and part number cast or stamped into the metal. Aftermarket parts may have the part number but lack the logo. Aftermarket parts can be of high quality (e.g., from reputable manufacturers) or low quality. Always source from a trusted supplier.

Q11: What is the difference between 520-1347 and other 520-13 numbers?
A: The base number "520-13" indicates the series. The suffix (e.g., -47) indicates the specific revision, configuration, or application. Always match the complete part number.

Q12: Can I rebuild the joystick control device instead of replacing it?
A: Yes, joystick control devices are rebuildable in some cases. However, it requires specialized tools, a clean environment, and technical expertise. Rebuilding is often more cost-effective than replacement if the core is in good condition. However, replacing the complete joystick is often the more reliable option.

Q13: How do I test a joystick control device?
A: To test a joystick control device:

1. Visual Inspection: Check for external leaks, damaged lever, or excessive play.

2. Functional Test: Operate the joystick and observe the controlled functions.

3. Pressure Test: Use a pressure gauge to verify the pilot pressure is correct.

4. Leak Test: Inspect for external leaks.

Q14: What causes joystick control device failure?
A: Joystick control device failure can be caused by:

• Contamination: Dirt or debris in the hydraulic fluid.

• Wear: Internal wear of the spools or bores.

• Seal degradation: Age, heat, or chemical attack.

• Spring fatigue: Broken or weakened return springs.

• Lever damage: Bent or broken joystick lever.

• Boot damage: Torn or deteriorated dust boot allowing contamination.

Q15: Can I install this joystick control device myself?
A: Yes, if you have mechanical experience and the proper tools. However, hydraulic systems are complex and can be dangerous. If you are unsure, consult a qualified mechanic.

7. TECHNICAL SPECIFICATIONS SUMMARY

8. 🚚 SHIPPING DETAILS & RETURN POLICY

8.1 Shipping Details

We offer worldwide shipping for all our hydraulic components and spare parts. Our shipping partners include DHL, FedEx, UPS, and EMS to ensure fast and reliable delivery.

• Shipping Methods:

  • Express Shipping: 3-7 business days for urgent orders.

  • Standard Shipping: 7-15 business days for regular orders.

  • Economy Shipping: 15-30 business days for bulk orders.

• Shipping Costs:

  • Shipping costs are calculated based on the weight, dimensions, and destination of the package.

  • For bulk orders, please contact us for a customized shipping quote.

• Packaging:

  • All parts are carefully packaged in protective materials to prevent damage during transit.

  • Each package is labeled with the part number and quantity for easy identification.

• Tracking:

  • Once your order is shipped, you will receive a tracking number via email.

  • You can track your order on the carrier's website.

8.2 Return Policy

We are committed to ensuring your satisfaction with our products. If you are not completely satisfied with your purchase, we offer a hassle-free return policy.

• Return Eligibility:

  • Returns are accepted within 30 days of delivery.

  • The item must be unused, in its original packaging, and in the same condition as received.

  • A valid proof of purchase (order number or receipt) is required.

• Non-Returnable Items:

  • Custom-made or special-order parts.

  • Parts that have been installed or used.

  • Parts that have been damaged due to improper installation or handling.

• Return Process:

  1. Contact our customer service team to request a return authorization (RA) number.

  2. Pack the item securely in its original packaging.

  3. Ship the item back to the address provided by our customer service team.

  4. Once we receive and inspect the item, we will process your refund or exchange.

• Refunds:

  • Refunds will be processed within 5-7 business days after we receive the returned item.

  • Refunds will be issued to the original payment method.

  • Shipping costs are non-refundable unless the return is due to our error.

• Exchanges:

  • If you need to exchange an item, please contact our customer service team.

  • Exchanges are subject to product availability.

9. 📞 CONTACT & ORDERING

For orders, inquiries, or technical support, please contact us using the following details:

Email: hugo@cogeng.net
Phone: +86 18529131515
WhatsApp: +86 18529131515
Website: cogeng.net

9.1 How to Order

1. Identify Your Part Number: Use your machine's parts manual or contact us for assistance.

2. Request a Quote: Send us an email or WhatsApp message with the part number and quantity.

3. Confirm Your Order: We will provide a proforma invoice for your confirmation.

4. Make Payment: We accept T/T, Western Union, and other payment methods.

5. Receive Your Order: We will ship your order promptly and provide tracking information.

9.2 Customer Support

Our team of experienced professionals is available to assist you with:

• Part identification and compatibility verification.

• Technical support and installation guidance.

• Shipping and logistics inquiries.

• Warranty and return requests.

Business Hours: Monday to Saturday, 9:00 AM – 6:00 PM (GMT+8)

End of Document

Disclaimer: This document is for informational purposes only. The manufacturer reserves the right to change specifications without notice. Always consult the official service manual for your specific machine before performing any repairs. Part numbers and compatibility are based on industry cross-reference data and may vary by region and production year. This document is for an aftermarket replacement part and is not affiliated with Caterpillar.
