COGENG 418-7614 Injector Harness CAT 345C 349D C13

PRODUCT OVERVIEW

The COGENG Wiring Harness, identified by primary part number 418-7614 (also listed as 4187614) and its interchangeable cross-reference number 372-4548 (3724548), is a mission-critical electrical distribution assembly engineered specifically for the Caterpillar 345D, 349D, E345C, E345D, and E349D large hydraulic excavator platforms. This is not a simple bundle of wires; it is the central nervous system of the excavator's engine and main hydraulic control architecture. It provides the physical electrical pathways for power distribution, sensor signal transmission, and CAN bus data communication between the machine's primary Engine Control Module (ECM), the hydraulic system's solenoid valves, and the operator interface.

In a 40-ton class excavator, the engine bay and main chassis environments represent an extreme challenge for any electrical component. Temperatures can soar above 100°C during peak load, while high-pressure washing, immersion in mud, and constant high-frequency vibration from the diesel engine and hydraulic pumps subject the wiring harness to relentless physical stress. The failure of even a single sensor wire or a corroded power terminal within the harness can trigger a cascade of fault codes, derate the engine power, disable hydraulic functions, or stop the machine entirely. The OEM 418-7614 harness is a known service item due to issues like chafing-induced shorts, connector pin fretting corrosion, and heat-embrittled insulation cracking. COGENG's aftermarket replacement directly addresses these failure modes. Our harness is manufactured using wire with upgraded XLPE insulation that offers superior resistance to heat aging and abrasion compared to standard PVC. Every branch point is reinforced with high-temperature self-fusing silicone tape and protected with heavy-duty split-loom nylon conduit. All connector terminations use solid-barrel, closed-entry contact pins that are crimped with automated, calibrated machinery and then soldered in critical high-current paths, guaranteeing a gas-tight connection that resists vibration-induced fretting. This is a direct, form-fit-function replacement for the original harness; every connector, branch length, and mounting clip position is jig-built to OEM specifications, ensuring a straightforward installation without the need to cut, splice, or re-route any circuit. Restoring your machine's electrical integrity with a COGENG harness eliminates intermittent faults and brings the machine back to full operational reliability.

COMPATIBLE EXCAVATORS

This engine and main chassis wiring harness is engineered for the D-Series and E-Series large Caterpillar excavator platforms. Verify your machine's serial number prefix for guaranteed compatibility.

PARTS LIST (Included in Package)

Each 418-7614 Wiring Harness package includes:

1. Main Wiring Harness Assembly (1 unit): The complete engine-to-chassis harness, pre-assembled with all connectors, terminals, branch conduits, and mounting clips. The harness is laid out on a jig board for dimensional accuracy before shipment.

2. Pre-Installed Connector Seals and Cavity Plugs: All Deutsch, Ampseal, and other connectors come with their integral green or orange silicone wire seals and unused cavity sealing plugs pre-installed to maintain the IP67 environmental rating.

3. Protective Polyethylene Bag: The entire harness is coiled to a diameter that prevents kinking and sealed inside a heavy-gauge polyethylene bag to prevent moisture and dirt ingress during transit.

4. Heavy-Duty Export Carton: A double-wall corrugated box sized to allow the harness to lie flat without tight bends, minimizing stress on the wire insulation during shipping.

DECOMPOSE PICTURES (VISUAL REFERENCE GUIDE)

Note: The following provides a detailed technical description of accompanying high-resolution product images.

Image 1: Full Harness Layout — Overhead Jig Board View
This image shows the complete 418-7614 harness laid out flat on a white-gridded engineering jig board. The overall shape is a tree-like branching structure. The main trunk of the harness is the heaviest section, containing thick 4 AWG and 8 AWG power and ground cables wrapped in a high-temperature, abrasion-resistant split-loom nylon conduit. Branch lines for individual fuel injectors, temperature sensors, and pressure transducers split off at precisely measured points. Colored identification tape markers with printed circuit numbers are visible at each connector, allowing the technician to match each plug to its corresponding sensor or actuator quickly.

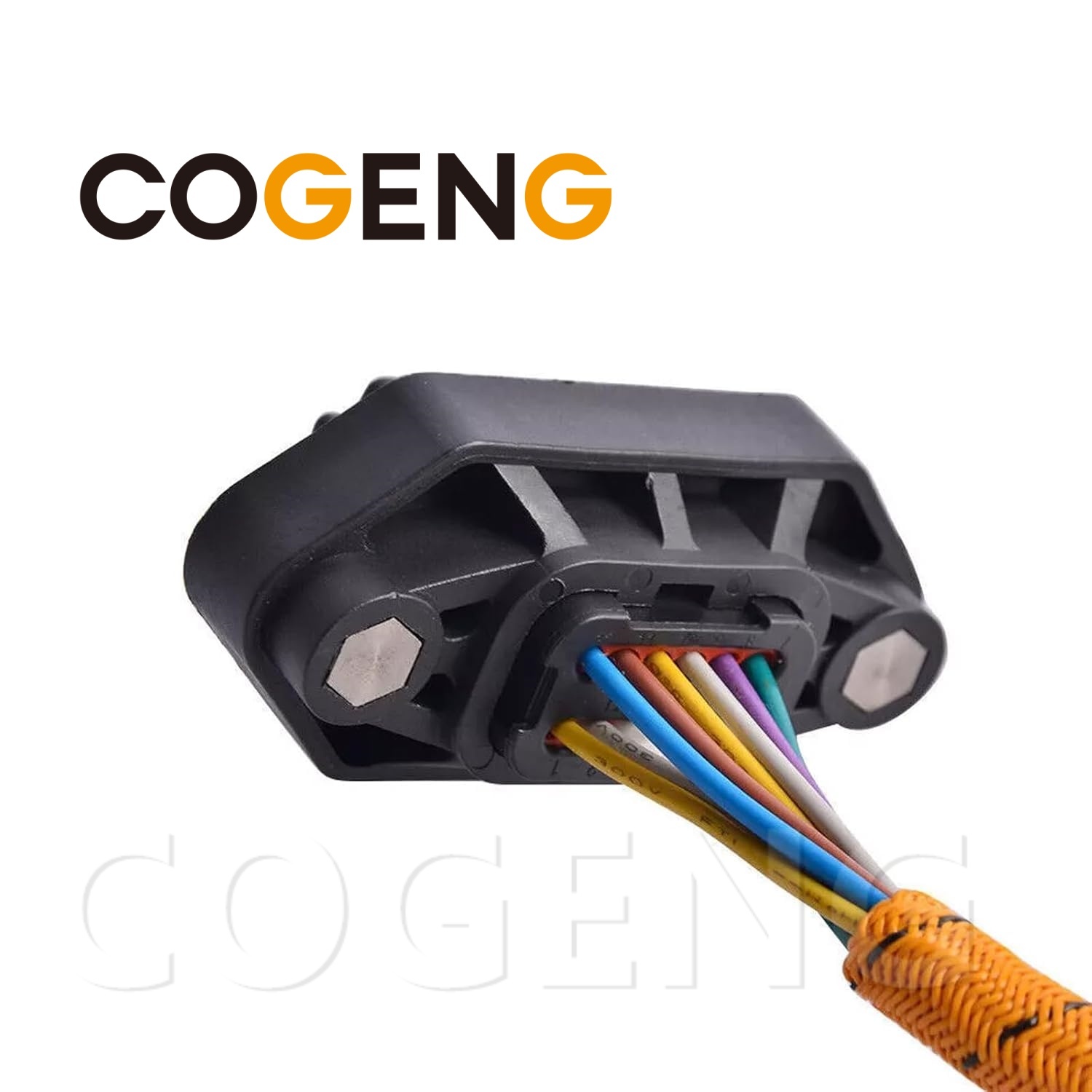

Image 2: Main ECM Connector — Detail View
A macro close-up focuses on the primary 70-pin or similar ECM connector, the heart of the harness. The image shows the robust, glass-filled nylon connector body with its integrated locking lever. The backshell of the connector is sealed with a thick, heat-shrinkable polyolefin boot that transitions smoothly into the main harness trunk, providing strain relief and preventing moisture from wicking down the wires. Gold-plated terminals are visible within the connector face.

Image 3: Sensor Branch — Abrasion Protection Detail
This image highlights a branch leg that connects to a critical sensor, such as the fuel rail pressure sensor or turbocharger speed sensor. The image demonstrates the triple-layer protection system at the branch point: the inner wires are taped with high-temperature self-fusing silicone tape (grey), over-wrapped with a tight spiral of PET braided sleeving, and finally enclosed in a rigid, corrugated split-loom conduit. A Deutsch DT-series connector with its signature wedge lock is shown at the branch terminus, with a yellow identification tag labeled with the OEM circuit number.

Image 4: High-Current Eyelet Terminal — Battery/Alternator Connection
This image shows the termination point for the main power supply cables. A heavy-gauge 4 AWG cable, with black or red XLPE insulation, ends in a tin-plated copper ring terminal. The close-up reveals the crimp barrel, which has been precisely compressed in a hexagonal die to create a cold-welded, gas-tight connection between the copper wire strands and the terminal. The crimp barrel is then sealed with dual-wall adhesive-lined heat shrink tubing, which provides both electrical insulation and a moisture-proof environmental seal, preventing the corrosive capillary action that causes "green wire syndrome."

COMPATIBILITY NOTES: CRITICAL VERIFICATION GUIDE

1. Part Number Relationship: 418-7614 is the primary Caterpillar service part number, and 372-4548 is an earlier or derivative part number for the same harness family. Both numbers reference the engine bay and main chassis harness for the D-series excavator platform. They are functionally interchangeable, but slight variations in sensor connector pin-outs may exist for different engine emissions tiers (Tier 3 vs. Tier 4 Interim). Always cross-reference visually.

2. Serial Number Break Verification is Mandatory: Caterpillar machines are defined by their serial number prefix, not just the model number. A 345D with prefix "JAP" may have a different harness configuration than a 345D with prefix "PJW." Providing your machine's complete 17-character Product Identification Number (PIN) or at least the three-letter serial number prefix is essential for confirming the exact harness variant you require.

3. E345C vs. E345D Distinction: The E345C is an older, legacy model designation often falling under a different emissions regulation. The 372-4548 number is more commonly associated with the C-series. If you have an E345C, please verify your existing harness label against our pre-shipment photo of the 418-7614 to confirm the connector count and ECM plug shape are identical.

4. Installation Responsibility: Installing an excavator engine harness is a complex task requiring methodical routing, proper support clip placement, and correct torque on all connector locking rings. It is strongly recommended that this work be performed by a qualified heavy equipment technician. Route the new harness exactly as the original was routed, securing it with every factory P-clip and standoff to prevent chafing against the engine block, hydraulic lines, and sharp frame edges.

INSTALLATION DECOMPOSITION DIAGRAM

Note: This is a textual walkthrough of a visual step-by-step installation guide.

Step 1: Documentation and Disconnection
The first diagram panel emphasizes a critical pre-removal step: "PHOTOGRAPH the routing of the existing harness before disconnecting a single connector." Take multiple digital pictures from different angles, focusing on how the harness branches around the engine, under brackets, and across the frame. The diagram then shows the battery disconnect switch being placed in the OFF position and locked out.

Step 2: Old Harness Systematic Removal
The diagram shows a schematic engine and chassis, with numbered steps for disconnection:

• Disconnect all sensor connectors first, labeling each one with a piece of tape if its identity is uncertain.

• Disconnect the main ECM connector by releasing the locking lever.

• Remove the heavy-gauge ring terminals from the alternator, starter motor, and main battery positive studs.

• Finally, cut all zip ties and release all P-clips and routing brackets, carefully pulling the old harness free.

Step 3: New Harness Layout and Inspection
The new COGENG harness is shown laid out next to the removed harness on a clean workbench. The diagram instructs the technician to visually compare branch lengths, connector types, and ring terminal lug sizes. "Verify every connector cavity is populated correctly and no pins are bent."

Step 4: Routing and Connection
The diagram illustrates routing the new harness into the engine bay, starting from the main ECM bulkhead connector. Arrows indicate following the exact photographic path recorded in Step 1. Secure the harness with new, heavy-duty UV-resistant zip ties at every original mounting point. Reconnect all sensors, actuators, and power terminals. A magnified call-out shows a Deutsch connector being pushed together until an audible "click" is heard, and the wedge lock being seated.

Step 5: Final Verification and Functional Test
The final panel shows the battery being reconnected. A laptop icon is shown connected to the machine's diagnostic service port, with a screen displaying "No Active Fault Codes." The instructions state: "Crank engine and allow to reach operating temperature. Monitor all engine parameters (oil pressure, coolant temp, fuel pressure) for nominal values. Cycle all hydraulic functions to ensure no CAN bus communication errors are generated."

🚚 SHIPPING DETAILS & RETURN POLICY

Shipping Details

Return Policy

FREQUENTLY ASKED QUESTIONS

Q1: How do I know if my machine needs a new harness vs. just a single sensor repair?
A: Common failure symptoms include multiple, seemingly unrelated fault codes appearing simultaneously; intermittent ECM communication loss or "no data" on the monitor; burnt, melted, or corroded wiring visible near the engine or exhaust components; and a machine that runs but has persistent electrical gremlins that resist diagnosis. If you find chafed-through wires, green corrosion wicking up wires under the insulation, or melted connector backshells, the harness must be replaced.

Q2: Is this the complete machine harness or just the engine harness?
A: The 418-7614 part number typically refers to the engine and main chassis harness assembly that connects the engine-mounted sensors, injectors, and actuators to the main ECM, and often continues through the frame bulkhead. It does not typically include the cab harness or the implement joystick harness. Please verify with our sales team by describing the part of the machine your failed harness covers.

Q3: Can you modify the harness to add a connector for an aftermarket attachment?
A: No. This is an exact OEM-specification replacement harness. We do not offer custom modifications. Any modification to add auxiliary circuits should be done as a standalone overlay harness to avoid compromising the integrity of the main machine control system.

Q4: The part number 372-4548 is on my old harness. Will the 418-7614 definitely work?
A: In the vast majority of cases, yes. The 418-7614 is the number that superseded the 372-4548 in Caterpillar's service parts system. However, we will always verify by asking you to send a photo of your old harness's main ECM connector face. This simple check takes 60 seconds and provides absolute certainty.

Q5: What is your shipping procedure for a harness to prevent damage?
A: Harnesses are not folded; they are coiled in a large radius. They are packed flat in a generously sized, rigid carton. We use special "DO NOT CUT" labels and handling instructions on the carton to prevent the all-too-common problem of a mechanic in a warehouse accidentally slicing into the box and damaging the wires within.

📞 CONTACT & ORDERING

For pricing, urgent machine-down support, bulk fleet orders, or pre-sales technical verification, contact your COGENG supplier today.

Sales Price: Contact COGENG sales customer service for the most current pricing. We offer significant discounts for dealer and fleet quantities. Request a personalized quotation.
Shipping Method & Cost: We will recommend and quote the best logistics solution based on your location and timeline. Expedited courier service with DDP terms is available for hassle-free delivery.
Estimated Delivery Time: Delivery timelines are based on the chosen carrier's published service standards. The tracking number will be provided within one business day of dispatch.

✅ Direct OEM Replacement — Jig-Built for Perfect Fit, No Splicing Required.
✅ Extreme Environment Rated — Upgraded XLPE Insulation and Sealed Connectors.
✅ In Stock & Ready to Ship — Minimize Expensive Downtime, Order with Confidence.

Critical Next Step: To proceed, please provide the complete machine model (e.g., 345D) and the three-letter serial number prefix (e.g., JAP). A photo of your old harness label and the ECM connector face is required for 100% compatibility certification.
Merchant Return Policy: All products shipped are not returnable or exchangeable. Please ensure all compatibility checks are completed before purchase.
