| Parameter | Specification |
|---|---|
| Product Name | Caterpillar Engine Wiring Harness / ECM to Engine & Machine Interface Harness |
| Primary Part Number | 324-0695 (3240695) |
| Associated Part Number | CA3240695 324-0696 |
| Brand | COGENG (Premium Aftermarket Replacement) |
| Condition | Brand New, 100% Continuity & Dielectric Withstand Tested |
| Engine Compatibility | Caterpillar C7 ACERT Diesel Engine (All Ratings) |
| Machine Model Compatibility | CAT 950H, 962H Wheel Loaders; CAT IT62H Integrated Toolcarrier |
| Harness Type | Complete Engine Management Harness — ECM Interconnect, Full Sensor Network, Actuator Control, Injector Harness Interface, and Machine System Communication |
| Wire Insulation | Cross-Linked Polyethylene (XLPE) with PTFE Overwrap in High-Temperature Zones; SAE J1128 Type SXL/GXL; Rated -40°C to +125°C Continuous, +150°C Intermittent |
| Connector Systems | Deutsch DT, Deutsch DTM, Ampseal 16, Integrated 70-Pin ECM Connector with Gold-Plated Machined Socket Contacts |
| Protective Sheathing | High-Temperature Corrugated Nylon Split-Loom Conduit; Self-Fusing Silicone Tape at All Branch Junctions; Adhesive-Lined Dual-Wall Heat Shrink Boots at All Connector Backshells; Reflective Aluminized Fiberglass Sleeving in Exhaust and Turbocharger Proximate Zones |
| Voltage Rating | 24V DC System (12V Compatible for Starter Circuit), 600V Insulation Rating |
| Environmental Sealing | IP67 / IP69K Rated Mated Connectors with Silicone Interfacial Seals, Peripheral Gaskets, and Cavity Plugs in All Unused Positions |
| Chemical & Abrasion Resistance | Resistant to Diesel Fuel, Engine Oil, Hydraulic Fluid, Engine Coolant, Urea (DEF), and Commercial Degreasing Solvents; Exceeds SAE J1128 Abrasion Standards |
| Quality Assurance | 100% Automated Pin-to-Pin Continuity Mapping Against OEM Schematic; 1000V AC HiPot Dielectric Withstand Test; Computer-Monitored Crimp Force Recording on Every Terminal; Visual Inspection Under 10x Magnification |
| Shipping Weight | 2.8 kg (Gross, approximate) |
| Package Dimensions | 58 x 45 x 15 cm (Coiled and Flat-Packed in Protective Carton) |
| Return Policy | Non-Returnable / Non-Exchangeable (Comprehensive DOA Guarantee Included) |
The COGENG Engine Wiring Harness, primary part number 324-0695 (3240695), is a precision-manufactured, comprehensive engine management electrical distribution harness engineered as a direct, form-fit-function replacement for the Caterpillar C7 ACERT diesel engine platform. This harness serves as the complete electrical backbone of the engine, providing every protected circuit pathway required for the Engine Control Module (ECM) to communicate with and control the engine's full complement of sensors, actuators, and fuel system components, as well as interfacing seamlessly with the machine's main chassis systems. The 324-0695 harness is specifically validated for the Cat 950H and 962H medium wheel loaders—machines that are the industry standard in quarry, aggregate, construction, and industrial material handling applications—and the Cat IT62H integrated toolcarrier, a specialized variant of the 962H platform optimized for fork and attachment versatility.
The Caterpillar C7 ACERT engine is a 7.2-liter, inline six-cylinder, electronically controlled diesel powerplant that has earned a reputation for robust performance and fuel efficiency across multiple machine platforms. The ACERT (Advanced Combustion Emissions Reduction Technology) system relies on precise electronic control of fuel injection timing, quantity, and pressure, as well as active management of the air intake and exhaust systems. The 324-0695 harness is the physical infrastructure that makes this precision control possible. It carries the low-voltage, high-accuracy analog signals from temperature and pressure sensors distributed across the engine; the high-frequency digital pulse trains from the camshaft and crankshaft position sensors that allow the ECM to calculate engine speed and piston position with microsecond precision; the high-current PWM drive signals that command the fuel injector solenoids and the turbocharger wastegate actuator; and the CAN bus data link that enables real-time, bidirectional communication between the engine ECM and the machine's implement and transmission controllers. The operating environment of a 950H or 962H wheel loader is relentlessly punishing. In a quarry application, the machine spends its working life in a cloud of abrasive limestone or granite dust that infiltrates every cavity in the engine bay. The engine compartment ambient temperature routinely exceeds 80°C, with localized hot spots near the exhaust manifold and turbocharger reaching surface temperatures capable of melting standard wire insulation. The constant vibration from the engine, coupled with the shock loads transmitted through the frame when the bucket strikes a rock face or a pile of aggregate, subjects the harness to continuous mechanical stress. The machine is cleaned with high-pressure hot water and aggressive degreasing chemicals, which force moisture into any compromised connector seal and chemically attack any degraded insulation.
The failure modes of the OEM 324-0695 harness are well-understood by fleet maintenance professionals and represent a significant and predictable source of machine downtime. The most common failure is heat-induced insulation degradation on the branches routed in proximity to the exhaust manifold and turbocharger. The OEM PVC-based insulation, after thousands of heating and cooling cycles, becomes brittle and develops microscopic cracks. These cracks allow humidity and wash water to penetrate, initiating a process of copper corrosion that wicks along the wire strands beneath the insulation—a phenomenon known as "green wire" corrosion. The resulting increase in circuit resistance eventually causes the sensor signal to drift out of the ECM's acceptable range, triggering a diagnostic fault code and often forcing the engine into a low-power derate mode. A second major failure mode is fretting corrosion at the ECM connector interface. The microscopic, continuous vibration of the engine causes an almost imperceptible relative motion between the connector pin and socket. Over time, this micro-motion wears through the thin gold plating on the contacts, exposing the underlying copper alloy to oxidation. The resulting oxide layer is a semiconductor, creating an intermittent, vibration-sensitive, high-resistance connection that causes phantom ECM communication faults, intermittent engine misfires, and random shutdowns that are extremely difficult and time-consuming to diagnose. A third common failure is chafing damage where the harness contacts the engine block casting, a sharp bracket edge, or a hydraulic hose fitting. The protective nylon conduit is slowly worn through, followed by the wire insulation, creating a direct short circuit to engine ground.
COGENG's 324-0695 aftermarket harness is engineered from inception to definitively and permanently resolve these failure modes. We specify XLPE (cross-linked polyethylene) wire insulation with a continuous temperature rating of 125°C, which offers dramatically superior resistance to thermal aging, cut-through, abrasion, and chemical attack compared to the OEM PVC insulation. In the critical zones adjacent to the exhaust manifold and turbocharger turbine housing, we apply a multi-layer thermal protection protocol: an inner spiral wrap of high-temperature PTFE film tape; a reflective aluminized fiberglass sleeve that rejects radiant heat; and a final outer layer of flexible stainless steel overbraid that provides unmatched mechanical protection against abrasion and impact. At every wire branch junction—the most common point of moisture ingress in OEM harnesses—we implement a three-stage environmental sealing process: PTFE tape underlayer, a full overwrap of self-fusing silicone tape that cures into a solid, waterproof, rubber-like monolithic barrier, and a final covering of adhesive-lined dual-wall heat shrink tubing that provides structural strain relief and a permanent environmental lock. The main ECM connector is fitted with precision-machined, gold-plated socket contacts with a closed-entry design that maintains a high normal-force connection, completely eliminating the micro-motion that causes fretting corrosion. Every terminal in the harness is a solid-barrel, closed-entry design, crimped using automated, computer-calibrated presses that continuously monitor and record the force applied to each individual crimp, guaranteeing a cold-welded, gas-tight, low-resistance bond between the copper conductor and the terminal. The harness is built on a precision engineering jig that exactly duplicates the OEM routing geometry, branch lengths, connector clocking angles, and mounting clip positions. Installation is completely plug-and-play: remove the failed harness, route the COGENG harness using the existing factory mounting points, connect every sealed plug, and the C7 engine is restored to full, reliable, factory-specification performance.
The 324-0695 harness is specifically designed for Caterpillar C7 ACERT engine installations in the following machine platforms. Always provide your complete machine Product Identification Number (PIN) and engine serial number (ESN) for final compatibility verification.
| Brand | Model | Machine Type | Engine |
|---|---|---|---|
| Caterpillar | 950H | Medium Wheel Loader | Cat C7 ACERT |
| Caterpillar | 962H | Medium Wheel Loader | Cat C7 ACERT |
| Caterpillar | IT62H | Integrated Toolcarrier | Cat C7 ACERT |
Each COGENG 324-0695 Engine Wiring Harness package contains:
Complete Engine Wiring Harness Assembly (1 unit): The fully assembled, jig-built harness. All connectors, solid-barrel terminals, protective conduit sheathing, thermal shielding layers, factory-positioned rubber-lined P-clips, and heat-shrink printed circuit identification labels are pre-installed and verified. The harness is coiled to a safe minimum bend radius for transit.
Integrated ECM Connector Assembly: The primary 70-pin ECM connector body, fully populated with gold-plated machined socket contacts, the silicone interfacial environmental seal, and a thick-walled, adhesive-lined heat shrink strain relief boot pre-installed on the backshell.
All Sensor and Actuator Connectors: Every branch is pre-terminated with the correct solid-barrel contacts, silicone wire seals, and plastic cavity plugs installed in all unused positions. Connector types include Deutsch DT, Deutsch DTM, and Ampseal 16 series as specified per the application.
High-Current Power and Ground Terminals: Heavy-gauge alternator, starter motor, and battery power/ground cables terminated with tin-plated, closed-barrel copper ring terminals. Each crimp-to-insulation transition is fully encapsulated in dual-wall, adhesive-lined heat shrink tubing for permanent environmental sealing.
Anti-Static Protective Bag and Heavy-Duty Export Carton: The harness is sealed in a silver anti-static moisture barrier bag and flat-packed in a rigid, double-wall corrugated carton with reinforced corners and prominent "Do Not Cut — Electrical Harness Inside" and "Fragile — Handle with Care" handling labels.
Note: The following descriptions provide a detailed technical walkthrough of accompanying high-resolution product photographs.
Image 1: Complete Harness Assembly — Jig Board Layout
This wide-angle, high-resolution photograph shows the entire 324-0695 harness laid out on a calibrated precision engineering jig board. The harness displays a characteristic engine harness topology: a main trunk that routes along the engine block, with multiple lateral branches extending to specific sensor and actuator mounting locations. The main trunk is sheathed in heavy-duty black split-loom nylon conduit. Branches for the intake manifold temperature/pressure sensor, coolant temperature sensor, oil pressure sensor, camshaft position sensor, crankshaft speed sensor, fuel rail pressure sensor, HEUI pump control solenoid, and the six fuel injector pass-through connectors are all visible and individually labeled. The jig board's grid pattern and locator pins confirm the dimensional precision of the assembly.

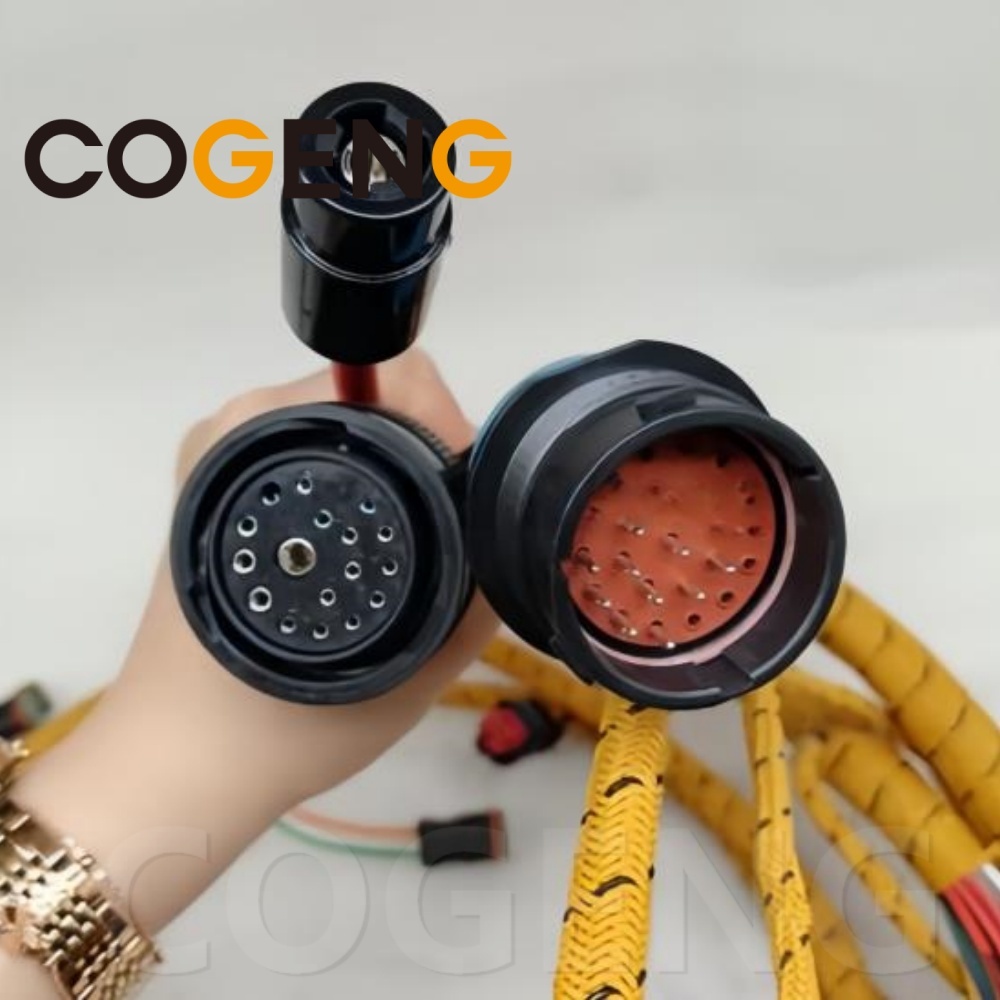

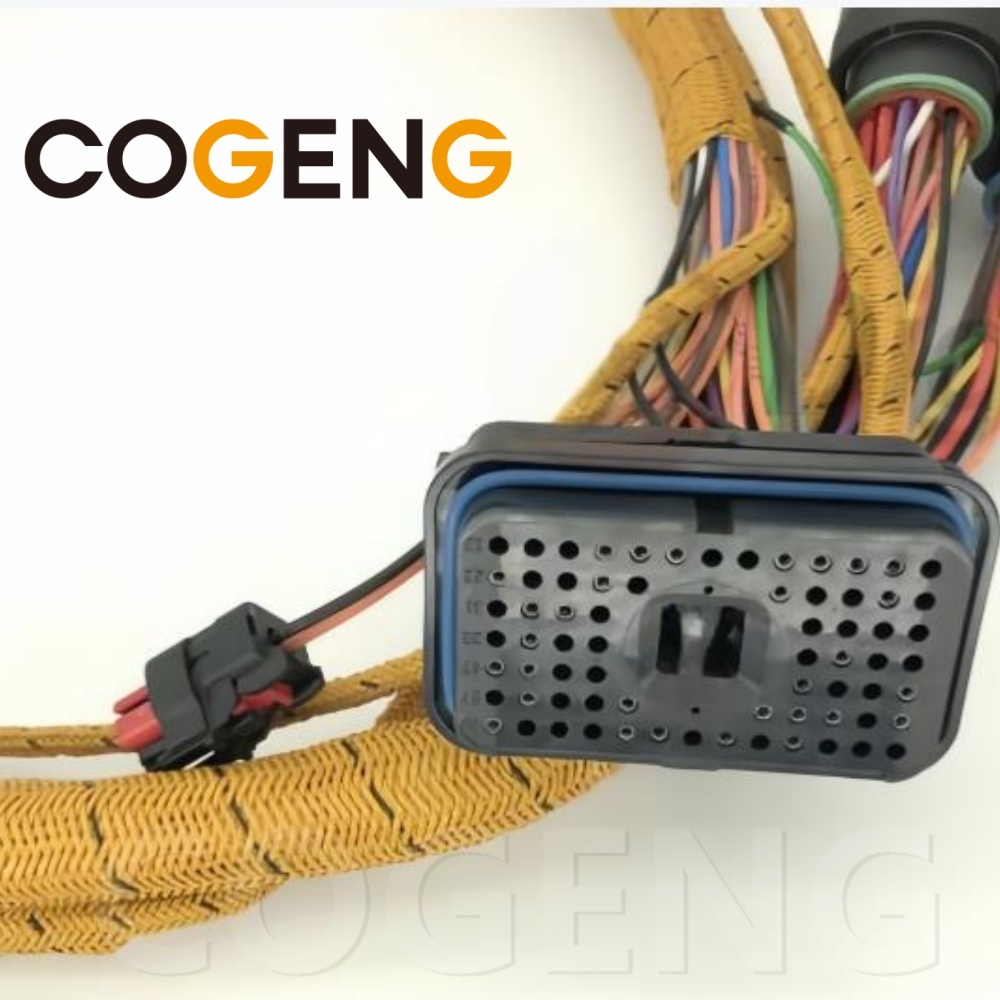

Image 2: Main ECM Connector — High-Magnification Macro Detail
A close-up, high-magnification image of the primary 70-pin ECM connector. The glass-filled nylon connector body is shown with the locking lever in the open position, revealing the high-density grid of precision-machined, gold-plated socket contacts. The green silicone interfacial seal that provides the primary environmental barrier is clearly visible surrounding the pin field. The connector backshell is completely encapsulated in a thick-walled, glossy, adhesive-lined polyolefin heat shrink boot that provides complete 360-degree environmental sealing and critical mechanical strain relief. Individual wire function labels, laser-etched on the insulation, are visible near the connector backshell.
Image 3: Exhaust-Proximate Branch — Multi-Layer Thermal Protection
This detailed image focuses on a branch leg designed to route near the exhaust manifold and turbocharger. A cross-sectional cutaway reveals the multi-layer thermal protection system: the inner wire bundle is tightly wrapped in high-temperature PTFE film tape (beige color); over this, a reflective aluminized fiberglass sleeve (silver) rejects radiant heat; and finally, a flexible stainless steel wire overbraid provides mechanical armor. The branch terminates in a high-temperature-rated, ceramic-insert Deutsch connector.
Image 4: HEUI Pump and Fuel System Branch — Chemical-Resistant Protection
This image highlights a branch that connects to the HEUI high-pressure oil pump control solenoid and the fuel rail pressure sensor. In this zone, the harness is exposed to hot engine oil mist and diesel fuel. The protective sheathing is a tight-weave, chemical-resistant PET braided sleeving over a self-fusing silicone tape underlayer. The branch is routed with a deliberate downward drip loop to prevent liquid from migrating along the harness into the connector bodies.
Image 5: Heavy-Gauge Power Terminal — Alternator Feed
This macro photograph shows the termination of a main 8 AWG alternator power supply cable. The red XLPE-insulated wire ends in a heavy-duty, tin-plated copper ring terminal. The image focuses sharply on the hexagonal die compression pattern on the crimp barrel that creates a cold-welded, gas-tight bond between terminal and copper conductor. The transition from crimp barrel to wire insulation is fully sealed with glossy, dual-wall adhesive-lined heat shrink, with a small, controlled adhesive bead visible at both edges, confirming a permanent, moisture-proof environmental seal.
C7 ACERT Engine Specificity: The 324-0695 harness is designed exclusively for machines powered by the electronic Caterpillar C7 ACERT diesel engine. It is not compatible with machines equipped with the earlier Caterpillar 3126B mechanical/electronic engine, the 3306 engine, or the later C7.1 engine used in the 950K and 962K models. Verify your engine serial number (ESN) prefix to confirm a C7 ACERT installation.
H-Series Model Specificity: This harness is for the H-Series wheel loader and toolcarrier platform. It is not backward-compatible with the G-Series (950G, 962G) or forward-compatible with the K-Series (950K, 962K) machines, which utilize different electrical architectures and ECM generations.
IT62H Integrated Toolcarrier: The IT62H is a specialized variant of the 962H wheel loader, featuring a parallel-lift linkage, integrated quick coupler hydraulics, and a dedicated implement control system. Despite these machine-level differences, the engine installation and C7 ACERT engine harness are identical to the standard 962H. The 324-0695 is the correct harness for the IT62H.
Emissions Tier: The C7 ACERT engine spans Tier 3 and Tier 4 Interim emissions configurations. The 324-0695 is typically configured for the Tier 3 / Stage IIIA emissions standard. If your 950H or 962H is a late-production Tier 4 Interim / Stage IIIB machine with an aftertreatment system, please verify by providing your machine's PIN for build sheet confirmation.
Professional Installation Required: This engine harness has multiple connection points and must be routed precisely through the engine bay to avoid contact with hot surfaces, moving linkages, and sharp edges. Installation should be performed by a qualified heavy equipment technician with access to the machine's service manual and Caterpillar Electronic Technician (ET) for post-installation system verification.
Note: This is a step-by-step textual guide corresponding to a numbered visual installation diagram.
Step 1: Safety Lockout and Documentation
The first diagram panel shows a 950H wheel loader with engine compartment doors open. A red lockout symbol over the battery: "Disconnect negative (-) and positive (+) battery cables. Lock out master disconnect switch. Wait 60 seconds for ECM capacitor discharge." A camera icon: "Photograph every aspect of the existing harness routing. Document all P-clip locations, routing around the turbocharger and exhaust manifold, and all connector clocking orientations. These photos are your installation guide."
Step 2: Old Harness Systematic Removal
A schematic engine view with a numbered sequence:
Label every connector with wire tags as it is disconnected.
Disconnect all sensors: intake manifold temp/pressure, coolant temp, oil pressure, fuel rail pressure, camshaft position, crankshaft speed, atmospheric pressure.
Disconnect actuators: HEUI pump control solenoid, turbocharger wastegate solenoid, six injector harness pass-through connectors.
Disconnect the main ECM connector by releasing the locking lever.
Disconnect power cables from alternator, starter motor, and battery junction stud.
Cut all zip ties, release all P-clips, and carefully remove the old harness.
Step 3: New Harness Side-by-Side Comparison
The new COGENG 324-0695 harness is uncoiled beside the old harness on a clean bench. Compare ECM connector, branch lengths, connector types, and ring terminal diameters. Verify every match before proceeding.
Step 4: New Harness Routing and Connection
The diagram shows the new harness being routed onto the engine, following the photographic reference.
Route first: Lay the harness into position, securing loosely at all P-clip locations.
Connect ECM first: Mate the ECM connector and lock the lever.
Systematic reconnection: Connect all sensor and actuator branches per the wire tags.
Power connection: Install and torque all power and ground ring terminals to OEM specifications.
Final securement: Tighten all P-clips. Install new high-temperature zip ties. Verify clearance from exhaust, turbocharger, and all moving parts.
Step 5: Power-Up and Full Functional Test
The final panel shows batteries reconnected. A laptop running Cat ET displays: "Active Diagnostic Codes: 0." Instructions: "Turn key ON. Observe instrument cluster self-test. Verify ECM communication on ET. Start engine. Verify immediate oil pressure. Monitor all engine parameters. Warm to operating temperature. Cycle all hydraulic and transmission functions. Confirm zero fault codes before releasing machine to service."
| Detail | Description |
|---|---|
| Shipping Methods | Express Courier (DHL, FedEx, UPS): 4-8 business days for machine-down emergencies. Economy Air Freight: 8-15 days, cost-effective for single units. Sea Freight (LCL/FCL): 30-45 days, most economical for bulk orders. Method optimized per destination and urgency. |
| Estimated Delivery Time | Transit times are governed by the carrier's schedule. The arrival date on the official tracking portal is the definitive reference. Tracking provided within one business day of dispatch. |
| Packing | Coiled to safe radius, sealed in anti-static bag, flat-packed in double-wall export carton with reinforced corners. Labeled "Do Not Cut — Electrical Harness Inside." |
| Payment Terms | T/T (30% deposit / 70% before shipment), Western Union, MoneyGram, Irrevocable L/C at Sight, Trade Assurance. |
| Policy Point | Terms |
|---|---|
| Merchant Return Policy | All sales are final. No returns or exchanges. Once a harness has left our controlled environment, we cannot verify it has not been partially installed, contaminated, or damaged. This ensures every customer receives a factory-fresh product. |
| DOA Quality Guarantee | Full replacement for manufacturing defects reported within 7 days of delivery. Harness must be in original, uninstalled condition. Physical damage from cutting, stretching, crushing, or incorrect installation voids the guarantee. |
| Pre-Shipment Confirmation | We send high-resolution photos of your exact harness for written approval before dispatch. No shipment is released without your confirmation. |
Q1: What are the symptoms of a failing 324-0695 engine harness?
A: Common symptoms include multiple unrelated fault codes appearing simultaneously, intermittent ECM communication loss, engine derate or shutdown that occurs when the machine vibrates or articulates, visible chafing or melted insulation on the harness, and a successful "wiggle test" where manipulating the harness causes sensor values to drop out on Cat ET.
Q2: Will this harness fit my IT62H toolcarrier?
A: Yes. The IT62H is a variant of the 962H platform. The engine installation and C7 ACERT engine harness are identical. The 324-0695 is the correct harness for the IT62H.
Q3: Does this harness include the injector wiring harness under the valve cover?
A: No. The 324-0695 is the external engine harness. The internal HEUI injector harness that runs under the valve cover is a separate component. Contact our sales team if you require that harness as well.
Q4: My 950H is an early model. Will this superseded part number work?
A: Yes. The 324-0695 is a service replacement harness that supersedes earlier part numbers for the C7 ACERT engine in H-Series wheel loaders. If your machine model and serial number match our compatibility list, this is the correct harness.
Q5: Do I need Cat ET to complete this installation?
A: Physical installation can be done with standard hand tools. However, Cat ET is essential for post-installation verification—checking for fault codes, monitoring live sensor data, and confirming proper ECM communication. We strongly recommend installation by a technician with ET access.
For pricing, machine-down emergency support, fleet quantity discounts, or pre-purchase compatibility verification, contact your COGENG supplier today.
Sales Price: Contact COGENG sales customer service for the most current pricing and volume discount structures.
Shipping Method & Cost: We will quote the optimal shipping solution for your location and urgency. DDP terms available for select countries.
Estimated Delivery Time: Based on the selected carrier. Tracking provided within one business day of dispatch.
✅ Direct OEM Replacement — Jig-Built for Guaranteed Fit, No Cutting or Splicing.
✅ C7 ACERT Engine Harness — Validated for 950H, 962H, and IT62H Platforms.
✅ Severe-Duty Construction — XLPE Wire, Gold-Plated ECM Terminals, Multi-Layer Heat Shielding.
✅ In Stock & Ready to Ship — Minimize Wheel Loader and Toolcarrier Downtime with Immediate Worldwide Dispatch.
Critical Action: To ensure 100% compatibility, please provide your machine's complete PIN, C7 engine serial number (ESN), and a clear photo of your existing harness label and ECM connector face. Our technical team will cross-reference your build configuration and provide written confirmation before you order.
Merchant Return Policy: All products shipped are not returnable or exchangeable. Please complete all compatibility checks before purchase.
Contact COGENG
📞 Phone: +86-185-2913-1515 🌐 Instagram
📧 Email: hugo@cogeng.net 🌐 Facebook：Excavator Parts Selection and Replacement Community
💬 WhatsApp +86-185-2913-1515 Facebook: Excavator Wiring Harness
💬 WeChat: +86-185-7865-1106 Facebook: Excavator Wire Harness
🌐 Website: cogeng.net
