COGENG 260-5542 Engine Harness CAT 320D 323D C6.6

Product Parameter Table

PRODUCT OVERVIEW

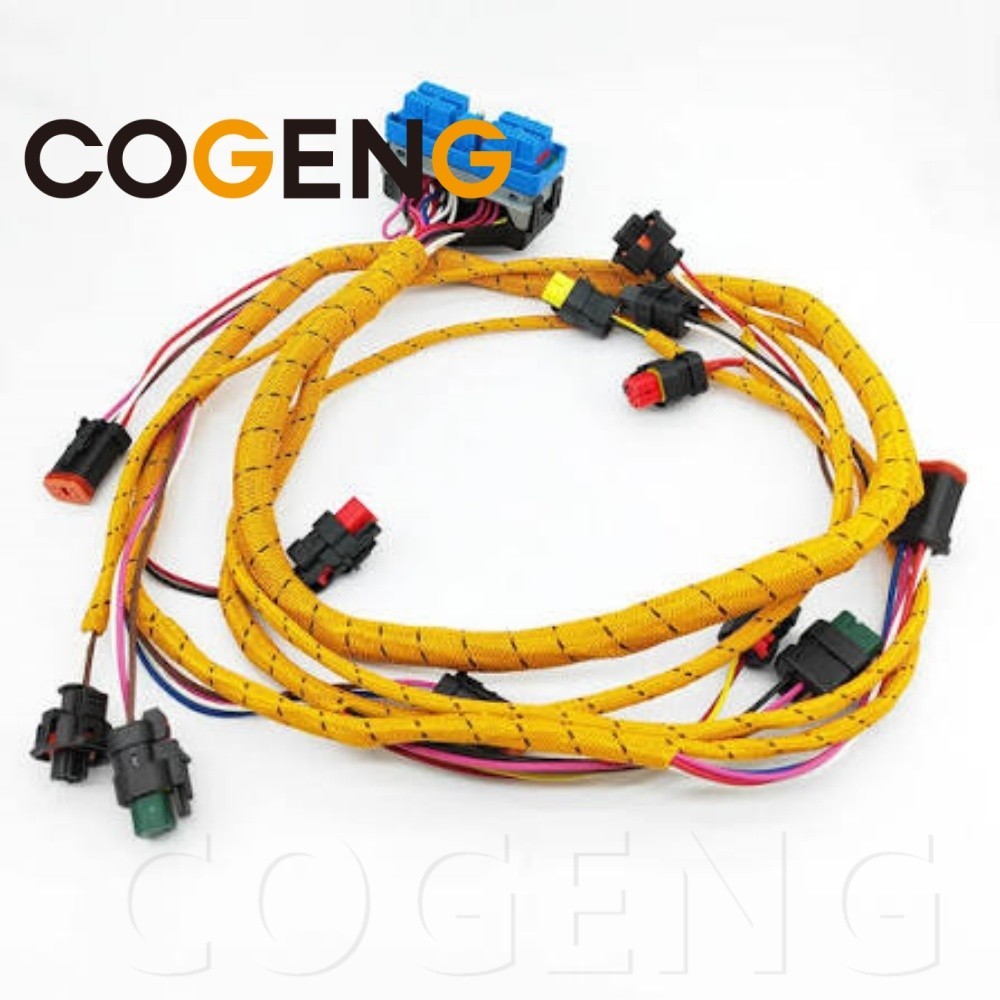

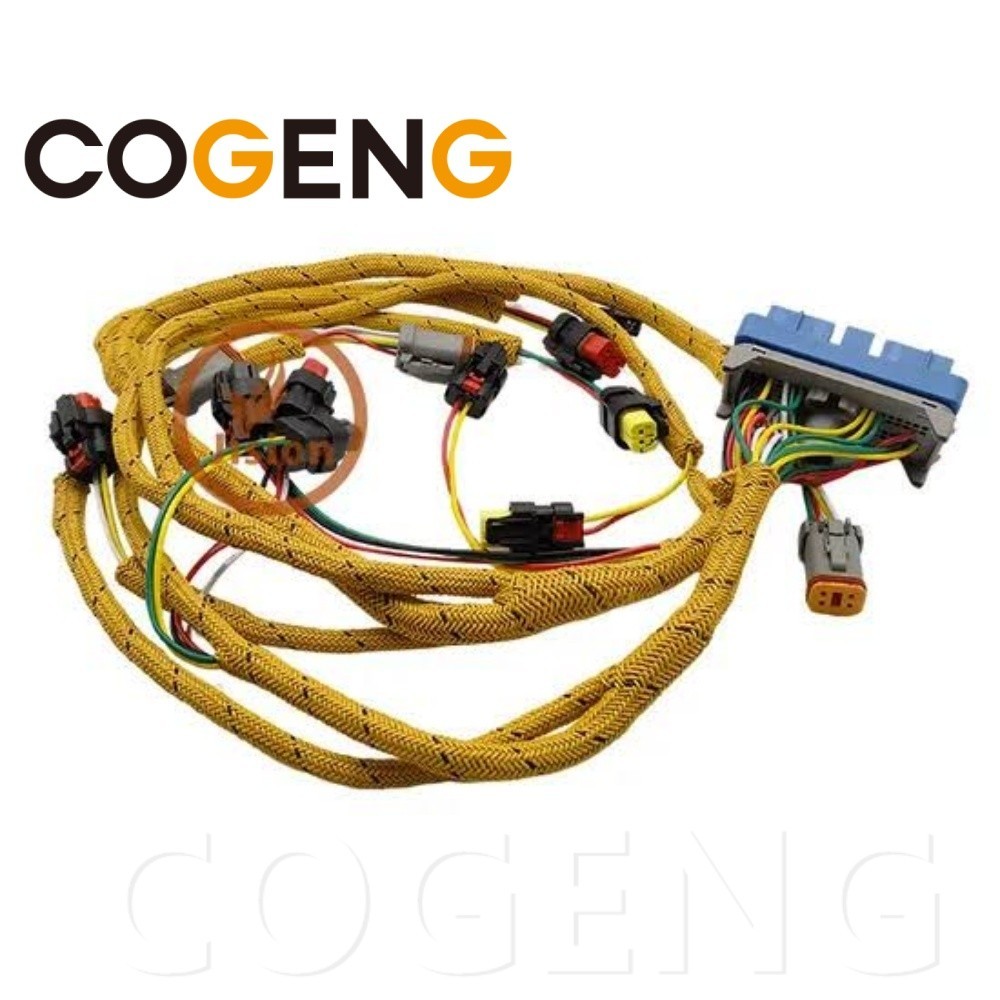

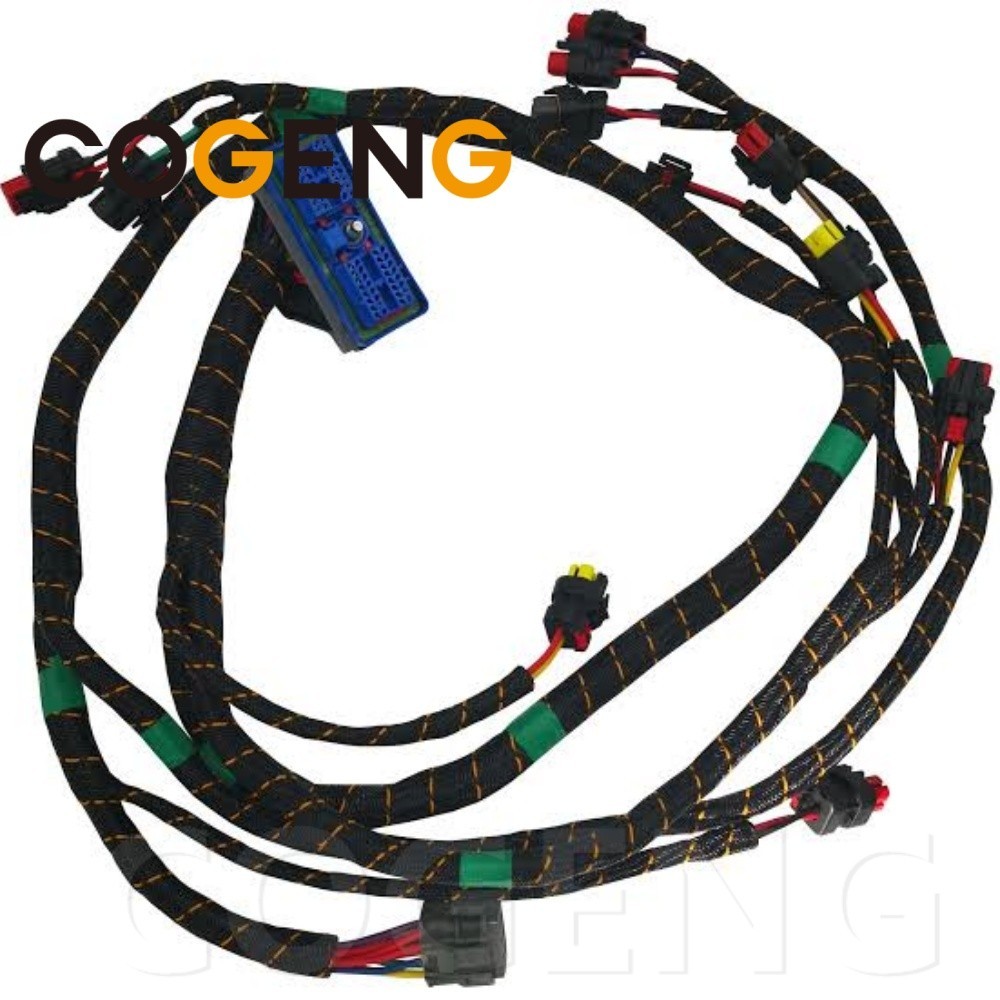

The COGENG Engine Wiring Harness, primary part number 260-5542 (2605542), is a precision-engineered, comprehensive engine management electrical distribution system designed as a direct, form-fit-function replacement for the Caterpillar C6.6 ACERT diesel engine platform. This harness is the central nervous system of the engine, providing the complete, protected electrical infrastructure that connects the Engine Control Module (ECM) to every sensor, actuator, fuel system component, and the machine's main chassis systems. The 260-5542 is validated for use across multiple Cat heavy equipment platforms, including the 320D, E320D, and 323D hydraulic excavators—the most popular 20-ton class excavators in the world—as well as the D6N track-type tractor, a mid-size dozer renowned for its versatility in earthmoving, forestry, and pipeline applications.

The Caterpillar C6.6 ACERT engine represents a significant technological advancement in mid-range diesel engine design, incorporating high-pressure common rail fuel injection, advanced electronic controls, and a sophisticated emissions management system. The 260-5542 harness is the physical layer that enables this technological sophistication, carrying precision analog signals from pressure and temperature sensors, high-speed digital data from crankshaft and camshaft position sensors, high-current Pulse Width Modulation (PWM) drive signals to fuel injectors and turbocharger actuators, and the critical CAN bus data link that facilitates real-time communication between the engine ECM and the machine's other electronic control units. The operating environment for this harness is exceptionally severe and multifaceted. In a 320D excavator working in a quarry, the harness is subjected to continuous, high-amplitude vibration from the engine and hydraulic pumps, ambient temperatures exceeding 50°C in the engine bay, and the constant abrasive assault of fine rock dust. In a D6N dozer operating in a landfill or forestry application, the harness must endure impact shock, exposure to corrosive gases, and the physical stress of branches and debris striking the engine compartment. Across all applications, the harness must survive the thermal cycling that occurs as the engine bay temperature rises from ambient to over 100°C and then cools again, a cycle that is repeated daily and which progressively embrittles standard wire insulation. The harness must also withstand high-pressure steam cleaning, which forces water into any compromised seal, and exposure to diesel fuel, hot engine oil, and hydraulic fluid that can degrade connector seals and wire insulation.

The failure modes of the OEM 260-5542 harness are well-characterized and represent a significant source of machine downtime. The most prevalent failure is insulation embrittlement and cracking on sensor branch wires routed near the exhaust manifold and turbocharger. Once the insulation cracks, moisture enters the wire bundle, and capillary action wicks the water along the copper strands, causing "green wire" corrosion that increases circuit resistance until the ECM detects an implausible sensor signal and sets a fault code, often derating the engine or triggering a complete shutdown. A second common failure is fretting corrosion at the ECM connector terminals. The microscopic vibration of the engine, transmitted through the harness, causes a micro-motion between the connector pin and socket, wearing through the gold plating and exposing the base metal to oxidation. This creates an intermittent, high-resistance connection that causes phantom communication faults and random engine shutdowns that are notoriously difficult to diagnose. A third failure mode is chafing damage where the harness contacts the engine block, a sharp bracket edge, or a hydraulic fitting. Over hundreds of hours, the protective conduit is worn through, then the wire insulation, creating a direct short to ground that can blow ECM driver circuits.

COGENG's 260-5542 aftermarket harness is engineered from the ground up to definitively solve these failure modes. We specify XLPE wire insulation with a continuous temperature rating of 125°C, which provides dramatically superior resistance to heat aging, cut-through, and chemical attack compared to the OEM PVC-based insulation. In all zones proximate to the exhaust manifold, turbocharger turbine housing, and EGR cooler, we add a multi-layer thermal protection system: an inner spiral wrap of high-temperature PTFE film tape, followed by a reflective aluminized fiberglass sleeve that rejects radiant heat, and a final outer layer of stainless steel overbraid for mechanical protection. At every branch junction, which is the most vulnerable point for moisture ingress, we apply a three-stage sealing protocol: PTFE tape wrap, a full overwrap of self-fusing silicone tape that vulcanizes into a solid, waterproof, rubber-like monolithic barrier, and a final covering of adhesive-lined dual-wall heat shrink tubing for mechanical strain relief. The main ECM connector is fitted with gold-plated, machined socket contacts that are precisely dimensioned to maintain a high normal-force gas-tight connection, completely eliminating the fretting corrosion problem. Every terminal is a solid-barrel, closed-entry design, crimped using automated, computer-calibrated presses that monitor and record the force for each crimp, guaranteeing a cold-welded, gas-tight bond between the copper conductor and the terminal. The complete harness is assembled on a precision jig that replicates the exact OEM routing, branch lengths, connector clocking angles, and mounting clip positions. This is a true drop-in replacement: no cutting, no splicing, no soldering, and no adapting is required. Simply remove the failed harness, route the COGENG harness using the original mounting points, connect every sealed plug, and the engine is ready to return to full, reliable production.

COMPATIBLE EXCAVATORS & TRACK-TYPE TRACTORS

The 260-5542 harness is specifically designed for Caterpillar C6.6 ACERT engine installations in the following machine platforms. Always provide your complete machine PIN and engine serial number (ESN) for final compatibility confirmation.

PARTS LIST (Included in Package)

Each COGENG 260-5542 Engine Wiring Harness package contains:

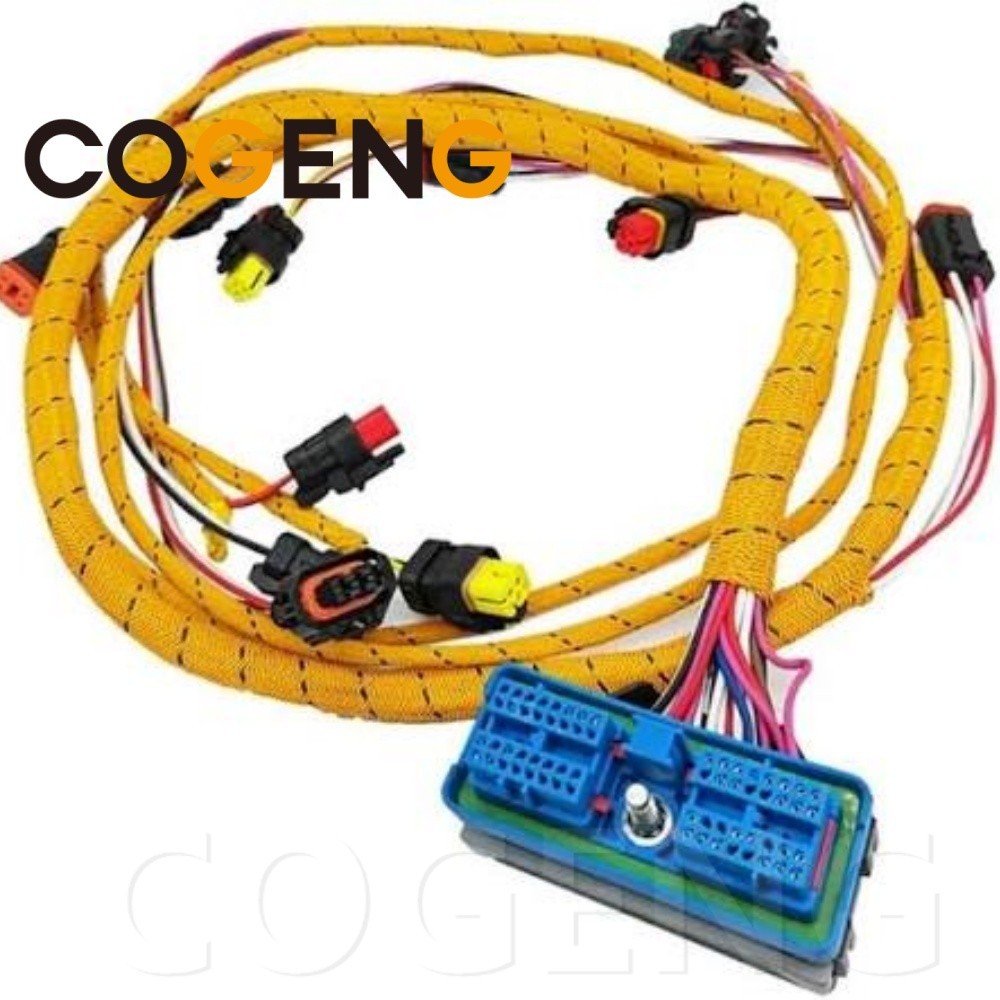

1. Complete Engine Wiring Harness Assembly (1 unit): The fully assembled, jig-built harness. All connectors, terminals, protective conduits, thermal shielding layers, factory-positioned rubber-lined P-clips, and heat-shrink printed identification labels are pre-installed. The harness is coiled to a safe minimum radius for transit.

2. Integrated ECM Connector Assembly: The primary ECM connector body (70-pin or 86-pin depending on machine configuration), complete with all gold-plated machined socket contacts, silicone interfacial seal, and a thick-walled, adhesive-lined heat shrink strain relief boot.

3. All Sensor and Actuator Connectors: Every branch is pre-terminated with the correct solid-barrel contacts, silicone wire seals, and plastic cavity plugs in all unused positions. Connector types include Deutsch DT, DTM, and Ampseal 16 series.

4. High-Current Power and Ground Terminals: Heavy-gauge alternator, starter motor, and battery cables terminated with tin-plated, closed-barrel copper ring terminals. Each crimp-to-insulation transition is fully encapsulated in dual-wall, adhesive-lined heat shrink.

5. Anti-Static Protective Bag and Heavy-Duty Export Carton: The entire harness is sealed in a silver anti-static moisture barrier bag and flat-packed in a rigid, double-wall corrugated carton with reinforced corners and prominent "Do Not Cut — Electrical Harness Inside" handling labels.

DECOMPOSE PICTURES (VISUAL REFERENCE GUIDE)

Note: The following descriptions provide a detailed technical walkthrough of accompanying high-resolution product photographs.

Image 1: Complete Harness Assembly — Jig Board Layout
This wide-angle, high-resolution photograph shows the complete 260-5542 harness laid out on a precision engineering jig board marked with a calibrated 10cm grid. The harness displays a complex, multi-branch tree topology. The main trunk, which routes along the engine block from the ECM mounting location to the front gear train, is wrapped in heavy-duty black split-loom nylon conduit. Multiple lateral branches of varying lengths extend to specific sensor and actuator locations: the common rail fuel pressure sensor, the high-pressure fuel pump inlet metering valve, the six fuel injector pass-through connectors, the turbocharger electronic wastegate actuator, the EGR valve and differential pressure sensor, the intake manifold temperature and pressure sensor, the coolant temperature sensor, the oil pressure and temperature sensors, and the camshaft and crankshaft position sensors. Each branch is tagged with a white, heat-shrink printed identification label. The jig board's locator pins are visible, confirming dimensional accuracy.

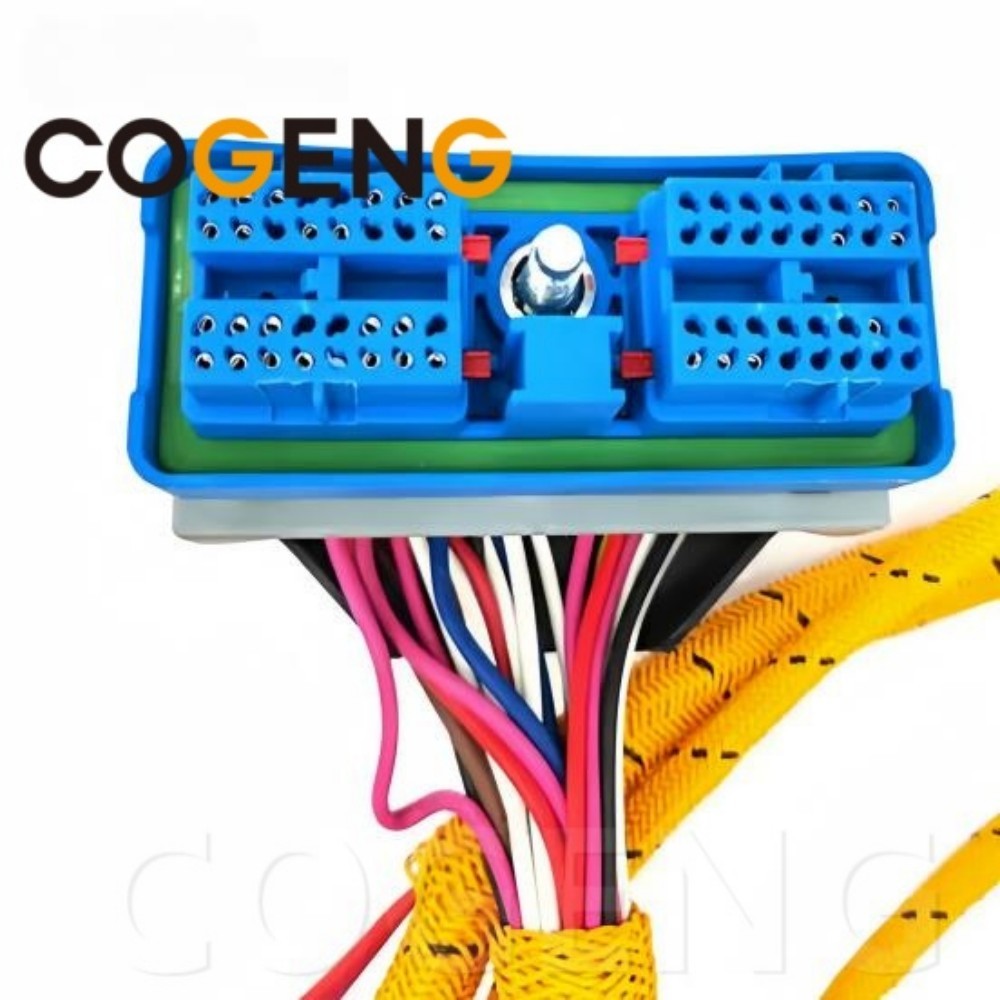

Image 2: Main ECM Connector — High-Magnification Macro Detail
A close-up, high-magnification image of the primary ECM connector body. The locking lever is shown in the open position, revealing the precisely aligned, high-density grid of gold-plated machined socket contacts. The green silicone interfacial seal, which provides the primary environmental barrier when the connector is mated, is clearly visible surrounding the pin field. The image highlights the robust, glass-filled nylon housing and the stainless steel jack-screws. The backshell of the connector is completely encapsulated in a thick-walled, glossy, adhesive-lined polyolefin heat shrink boot, providing a 360-degree environmental seal and critical mechanical strain relief. Individual wire identification numbers are laser-etched on the insulation near the connector backshell.

Image 3: Turbocharger & Exhaust Zone Branch — Multi-Layer Thermal Protection
This detailed image focuses on a branch leg designed for the extreme radiant heat environment adjacent to the turbocharger turbine housing and exhaust manifold. The image shows a cross-sectional cutaway of the protective layering system: the innermost wire bundle is tightly spiral-wrapped with high-temperature PTFE film tape (beige color), over which a reflective aluminized fiberglass sleeve (silver) is fitted to reject radiant heat, and finally an outer protective layer of flexible stainless steel wire overbraid. The branch terminates in a high-temperature-rated ceramic-insert Deutsch connector designed to maintain seal integrity at elevated exhaust-zone temperatures.

Image 4: High-Pressure Fuel System Branch — Chemical-Resistant Protection
This image highlights a branch that connects to the common rail fuel pressure sensor and the high-pressure pump inlet metering valve. In this zone, the harness is exposed to diesel fuel spillage and fuel vapor. The protective sheathing is a chemical-resistant, tight-weave PET braided sleeving over a self-fusing silicone tape underlayer. The branch is routed with a deliberate drip loop to prevent liquid fuel from running down the harness and into the connector. The connectors are Deutsch DT series with green wedge locks, providing positive terminal retention.

Image 5: Heavy-Gauge Power Terminal — Alternator Feed
This macro photograph shows the termination of a main 8 AWG alternator power supply cable. The wire has red XLPE insulation and ends in a heavy-duty, tin-plated copper ring terminal. The image focuses sharply on the crimp barrel, clearly displaying the precise hexagonal die compression pattern that creates a cold-welded, gas-tight bond between the terminal and the copper wire strands. The transition area from the terminal barrel to the wire insulation is completely sealed with a glossy, dual-wall adhesive-lined heat shrink tube. A small, controlled bead of melted adhesive is visible at both edges of the heat shrink, providing visual confirmation of a permanent, moisture-proof environmental seal.

COMPATIBILITY NOTES: CRITICAL VERIFICATION GUIDE

1. C6.6 ACERT Engine Specificity: The 260-5542 harness is designed exclusively for machines equipped with the Caterpillar C6.6 ACERT electronic diesel engine. It is not compatible with machines powered by the earlier Caterpillar 3066 mechanical engine, the 3056 engine, or the later C7.1 engine used in D-Series Series 2 excavators. Verify your engine serial number (ESN) prefix to confirm it is a C6.6 ACERT.

2. D-Series Model Specificity: This harness is for the D-Series excavator platform. It is not compatible with the earlier C-Series (e.g., 320C, 323C) or the later E-Series (e.g., 320E, 323E) machines, which use different electrical architectures and ECM connector configurations.

3. E320D Designation: The "E" prefix on E320D designates an export or specific regional market configuration. The electrical architecture and engine harness are identical to the standard 320D. The 260-5542 is the correct harness for the E320D.

4. D6N Application: The D6N track-type tractor was offered with the C6.6 engine in later production models. Earlier D6N models may be equipped with a Caterpillar 3126B or C9 engine, which use a completely different harness. Verifying the engine serial number is essential to confirm the C6.6 engine installation.

5. Emissions Tier and Model Year: The C6.6 ACERT engine spans Tier 3 and Tier 4 Interim emissions configurations. The 260-5542 harness is typically configured for the Tier 3 / Stage IIIA emissions standard. If your machine is a Tier 4 Interim / Stage IIIB configuration with a Diesel Particulate Filter (DPF) and additional aftertreatment sensors, a different harness part number may be required. Providing your complete machine PIN allows us to cross-reference the build sheet.

6. Professional Installation Required: This is a complex engine harness with over 40 connection points. Installation should be performed by a qualified heavy equipment technician with access to the machine's service manual and Caterpillar Electronic Technician (ET) diagnostic software. Post-installation, the technician must verify zero active fault codes, monitor all engine parameters for nominal values, and perform a complete functional test before releasing the machine to service.

INSTALLATION DECOMPOSITION DIAGRAM

Note: This is a detailed step-by-step textual guide that corresponds to a numbered, visual installation diagram.

Step 1: Safety Lockout and Comprehensive Documentation
The first diagram panel depicts a 320D excavator with the engine compartment doors open. A prominent red lockout symbol is superimposed over the battery compartment: "Disconnect negative (-) and positive (+) battery cables. Lock out master disconnect switch. Wait 60 seconds for ECM capacitive discharge." A digital camera icon accompanies critical text: "Photograph every centimeter of the existing harness routing. Document all P-clip locations, the exact path around the turbocharger and exhaust manifold, routing through the engine block valley, and all connector orientations. These photographs are your indispensable installation guide. Do not skip this step."

Step 2: Methodical Old Harness Disconnection
A schematic engine diagram shows a numbered disconnection sequence:

• Label Everything: Attach numbered wire tags to every connector as it is disconnected.

• Sensors: Disconnect the common rail fuel pressure sensor, intake manifold temperature/pressure, coolant temperature, oil pressure/temperature, camshaft position, crankshaft speed, atmospheric pressure, and EGR differential pressure sensor connectors.

• Actuators: Disconnect the six fuel injector harness pass-through connectors, the high-pressure pump inlet metering valve, the turbocharger electronic wastegate actuator, the EGR valve actuator, and the engine brake solenoids (if equipped).

• ECM: Release the locking lever on the main ECM connector and carefully pull straight out.

• Power: Loosen ring terminal nuts on the alternator B+, starter motor solenoid, and main battery positive junction stud.

• Free the Harness: Cut all zip ties, release all P-clips, and carefully extract the old harness.

Step 3: New Harness Visual Cross-Check
The new COGENG 260-5542 harness is uncoiled on a clean workbench beside the old harness. Arrows highlight comparison points: ECM connector shape and pin count, branch lengths, connector types, and ring terminal diameters. "Perform a meticulous connector-by-connector comparison. If any discrepancy is identified, stop and contact COGENG technical support immediately."

Step 4: New Harness Routing and Connection
The diagram shows the new harness being carefully routed into position, following the photographic reference.

• Route First: Lay the harness into its approximate position, securing loosely at P-clip and standoff locations.

• ECM Connection: Mate the ECM connector first, ensuring full seal seating, and lock the lever.

• Systematic Reconnection: Connect all sensor and actuator branches, checking each tag against the corresponding component.

• Power Connection: Install and torque all power and ground ring terminals to OEM specifications.

• Final Securement: Tighten all P-clips. Install new high-temperature, UV-resistant zip ties. Verify the harness has adequate clearance from the turbocharger, exhaust manifold, EGR cooler, and all moving linkages. Ensure the injector harness branches are routed with the correct drip loops.

Step 5: Power-Up, ECM Communication, and Full Functional Test
The final panel shows the batteries reconnected. A laptop running Cat ET is connected to the diagnostic port. The ET screen displays: "Active Diagnostic Codes: 0. Logged Codes: 0." Instructions: "Turn key ON. Verify instrument cluster self-test completes. Observe ECM status on ET — confirm CAN bus communication with no active faults. Start engine and verify immediate oil pressure. Monitor all parameters: fuel rail pressure, boost pressure, coolant temp, EGR operation. Warm engine to operating temperature. Cycle all hydraulic functions through full range. Perform a full hydraulic stall test while monitoring engine parameters. Confirm zero fault codes after complete test."

🚚 SHIPPING DETAILS & RETURN POLICY

Shipping Details

Return Policy

FREQUENTLY ASKED QUESTIONS

Q1: What are the symptoms of a failed 260-5542 engine harness?
A: The most common symptoms include: multiple unrelated diagnostic codes appearing simultaneously on the monitor; intermittent "No Communication" or "Data Erratic" messages from the ECM on Cat ET; engine derate or complete shutdown that occurs randomly or when the machine is operating under load or vibration; visible chafing, melted insulation, or green corrosion at connector backshells; and a successful "wiggle test" where manipulating a section of the harness while monitoring live data causes sensor values to drop out or become erratic.

Q2: Will this harness fit both the 320D excavator and the D6N dozer?
A: Yes. The 260-5542 is an engine-side harness for the C6.6 ACERT engine. Since the engine and its ECM platform are common across the 320D, 323D, and D6N, the engine harness is the same. However, the machine-side interface (the connectors that link the engine harness to the machine's main chassis harness) can vary by machine model. We verify this during the pre-shipment photo confirmation process by checking your machine's PIN.

Q3: Does this harness include the fuel injector wiring harness that runs under the valve cover?
A: No. The 260-5542 is the external engine wiring harness. The internal fuel injector harness, which passes through a sealed bulkhead connector in the cylinder head and connects to the six fuel injectors under the valve cover, is a separate component. If you require that harness as well, please contact our sales team for availability.

Q4: My machine has a Diesel Particulate Filter (DPF). Will this harness work?
A: The 260-5542 harness is typically configured for the Tier 3 / Stage IIIA emissions standard, which does not include a DPF. If your machine is a Tier 4 Interim / Stage IIIB configuration with a DPF, it will have additional sensors and actuators for the aftertreatment system (exhaust temperature sensors, differential pressure sensor, ARD fuel injector). A different harness part number may be required. Providing your machine's complete PIN allows us to check the build sheet and confirm.

Q5: Do I need Cat ET to complete the installation?
A: The harness can be physically installed with standard hand tools. However, Caterpillar Electronic Technician (ET) software and a communication adapter are essential for post-installation verification. ET allows the technician to check for active and logged diagnostic codes, monitor all engine sensor values in real-time, and confirm that the ECM is communicating correctly on the CAN bus. If you do not have access to Cat ET, we strongly recommend having the installation performed by a Cat dealer or an independent service provider who does.
