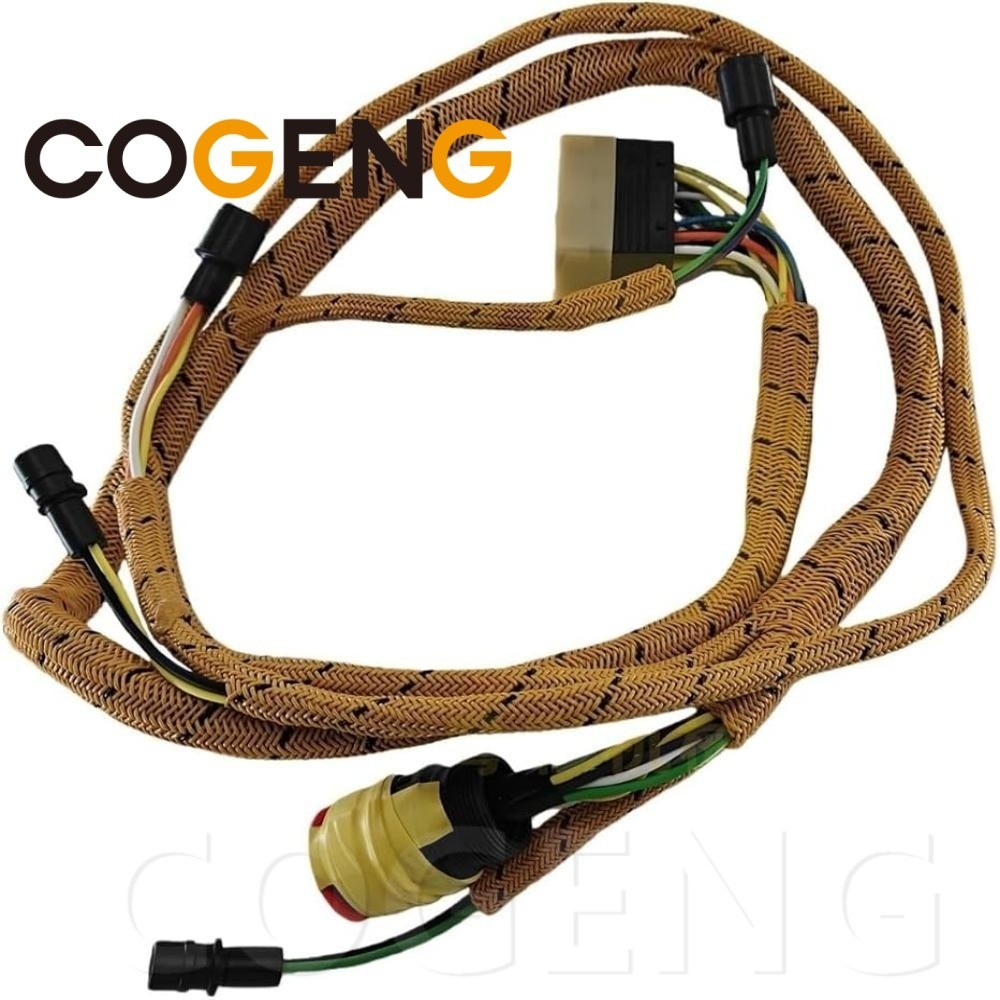

PRODUCT OVERVIEW

The COGENG Engine Wiring Harness, primary part number 103-6030 (1036030), is a precision-manufactured, comprehensive engine management electrical distribution system engineered as a direct, form-fit-function replacement for a broad family of Caterpillar hydraulic excavators powered by the C6.6 ACERT, C7 ACERT, and C9 diesel engine platforms. This harness is the complete electrical infrastructure that connects the Engine Control Module (ECM) to every engine-mounted sensor, actuator, and fuel system component, while simultaneously managing the critical data interface with the machine's implement and hydraulic control systems. The 103-6030 harness is validated across an extensive range of Cat excavator models spanning both the C-Series and D-Series generations, including the 325C, 325D, 328D, 330C, 330D, E330C, E330D, and M330D.

This remarkable cross-platform and cross-generational compatibility makes the 103-6030 one of the most versatile engine harnesses in the Cat excavator service parts system. The 325 and 330 class excavators represent the backbone of the global construction, mining, and heavy infrastructure industries. These 25- to 35-ton machines operate in the most demanding environments on earth: open-pit mines with constant abrasive dust and extreme ambient temperatures, demolition sites with impact shock and falling debris, deep excavation and trenching operations with constant exposure to groundwater and mud, and marine and port applications with corrosive salt spray. The engine harness in these machines must survive all of these conditions simultaneously. The engine bay of a 330D excavator working at full load in a mine is an environment of extreme thermal stress, with radiant heat from the exhaust manifold and turbocharger pushing surface temperatures well beyond the rating of standard automotive wire. The constant, high-amplitude vibration from the engine and the hydraulic pumps—which are mounted directly to the engine and driven at high pressure—subjects the harness to continuous mechanical fatigue. The fine, abrasive dust that permeates the engine compartment acts as a grinding compound on any unprotected wire surface. The frequent high-pressure washing required to keep the machine operational forces water and detergent into any connector seal that has lost its elasticity due to heat aging.

The failure modes of the OEM 103-6030 harness are systematic and well-documented. Heat-induced insulation embrittlement is the primary failure mechanism: the PVC-based wire insulation, after thousands of thermal cycles, loses its plasticizers and develops a network of microscopic cracks. Moisture enters these cracks, and capillary action draws it along the copper strands, causing "green wire" corrosion that progressively increases circuit resistance. The ECM, detecting an implausible sensor voltage, logs a fault code and often commands an engine derate. A second critical failure is fretting corrosion at the ECM connector: engine vibration causes microscopic relative motion between the connector pins and sockets, wearing through the thin gold plating and exposing the base copper to oxidation. This creates an intermittent, vibration-sensitive connection that causes random, phantom fault codes and unexpected engine shutdowns. A third failure is chafing at contact points where the harness rubs against the engine block, a hydraulic fitting, or a sharp frame edge, eventually wearing through the conduit and insulation to create a direct short to ground.

COGENG's 103-6030 aftermarket harness directly and definitively solves each of these failure mechanisms. We manufacture this harness using premium XLPE-insulated wire with a 125°C continuous temperature rating, providing dramatically superior resistance to heat aging, cut-through, and chemical degradation. In the exhaust and turbocharger proximate zones, we apply a multi-layer thermal protection system: an inner spiral wrap of PTFE high-temperature tape, a reflective aluminized fiberglass sleeve, and an outer armor of flexible stainless steel overbraid. At every branch junction, we implement a three-stage environmental sealing protocol: PTFE tape underlayer, self-fusing silicone tape overwrap that cures into a solid monolithic waterproof barrier, and adhesive-lined dual-wall heat shrink for structural strain relief. The ECM connector is fitted with precision-machined, gold-plated socket contacts with a closed-entry design that maintains consistent high normal force, completely preventing fretting corrosion. Every terminal is solid-barrel and crimped using computer-calibrated presses that monitor and record the force for each individual crimp, guaranteeing a gas-tight, cold-welded connection. The harness is built on a precision jig that replicates the exact OEM routing, branch lengths, and connector positions. Installation is a true drop-in replacement: no cutting, splicing, or adapting is necessary.

COMPATIBLE EXCAVATORS & ENGINES

The 103-6030 harness is validated across a wide range of Caterpillar excavator models. Always provide your complete machine PIN and engine serial number (ESN) for final confirmation.

PARTS LIST (Included in Package)

1. Complete Engine Wiring Harness Assembly (1 unit): Fully assembled, jig-built harness with all connectors, terminals, protective sheathing, thermal shielding, P-clips, and identification labels pre-installed.

2. Integrated ECM Connector Assembly: 70-pin ECM connector body with gold-plated machined socket contacts, silicone interfacial seal, and adhesive-lined heat shrink strain relief boot.

3. All Sensor and Actuator Connectors: Pre-terminated with solid-barrel contacts, silicone wire seals, and cavity plugs in unused positions. Deutsch DT, DTM, HD30, and Ampseal 16 series.

4. High-Current Power and Ground Terminals: Heavy-gauge ring terminals on alternator, starter, and battery cables, sealed with dual-wall adhesive-lined heat shrink.

5. Anti-Static Bag and Heavy-Duty Export Carton: Sealed in moisture barrier bag, flat-packed in double-wall corrugated carton with "Do Not Cut" handling labels.

DECOMPOSE PICTURES (VISUAL REFERENCE GUIDE)

Note: Detailed technical descriptions of accompanying high-resolution product images.

Image 1: Complete Harness Assembly — Jig Board Layout
Wide-angle overhead view of the entire 103-6030 harness on a calibrated precision jig board. The harness exhibits a complex multi-branch topology. The main trunk, wrapped in heavy-duty black nylon split-loom, routes along the engine block. Branches for the common rail pressure sensor, HEUI pump or high-pressure fuel pump, turbo actuator, EGR components, six injector pass-throughs, camshaft and crankshaft sensors, and all temperature/pressure sensors are visible and individually labeled with heat-shrink printed markers.

Image 2: Main ECM Connector — Macro Detail
High-magnification image of the 70-pin ECM connector with locking lever open, revealing the grid of gold-plated machined socket contacts. The green silicone interfacial seal surrounds the pin field. The backshell is fully encapsulated in a thick-walled, adhesive-lined heat shrink boot providing 360-degree environmental sealing and strain relief.

Image 3: Turbocharger & Exhaust Zone Branch — Thermal Protection
Cross-sectional view of a branch leg for the exhaust-adjacent zone. The multi-layer protection includes an inner PTFE tape wrap, a reflective aluminized fiberglass sleeve, and an outer stainless steel overbraid. The branch terminates in a high-temperature ceramic-insert Deutsch connector.

Image 4: High-Pressure Fuel System Branch — Chemical Protection
Branch connecting to the common rail pressure sensor and high-pressure pump metering valve. Protected with chemical-resistant PET braided sleeving over self-fusing silicone tape. Routed with a deliberate drip loop to prevent liquid migration into connectors.

Image 5: Heavy-Gauge Power Terminal Detail
Macro photograph of an 8 AWG alternator power cable termination. Shows the hexagonal crimp barrel compression pattern and the glossy, dual-wall adhesive-lined heat shrink seal with visible adhesive bead, confirming a permanent moisture-proof environmental seal.

COMPATIBILITY NOTES: CRITICAL VERIFICATION GUIDE

1. Cross-Platform Harness: The 103-6030 is an engine-side harness compatible across multiple excavator models and engine types (C6.6, C7, C9). This is possible because the engine ECM platform and sensor suite are standardized across these applications. However, the machine-side interface connectors can vary by model and serial number prefix. PIN verification is essential.

2. C-Series and D-Series Coverage: This harness spans both the C-Series and D-Series excavator generations. The C-Series models (325C, 330C) may have slightly different connector configurations from the D-Series (325D, 330D). The 103-6030 is the service replacement that accommodates both generations. We verify configuration during pre-shipment photo confirmation.

3. E-Series and M-Series Designations: The "E" prefix (E330C, E330D) designates export or regional market configurations. The electrical architecture is identical to standard models. The "M" prefix (M330D) designates a material handler variant with a raised cab and specialized hydraulic circuits. The engine installation and harness are the same as the standard 330D.

4. Engine Verification: The C6.6 ACERT, C7 ACERT, and C9 engines share a common ECM and sensor architecture. However, there are differences in injector pass-through connector count (6 for all) and sensor locations. Providing your engine serial number allows precise verification.

5. Professional Installation Required: This harness requires routing through the tight engine bay of an excavator, around the exhaust, turbo, and hydraulic pump stack. Installation should be performed by a qualified technician with access to Cat ET for post-installation ECM verification.

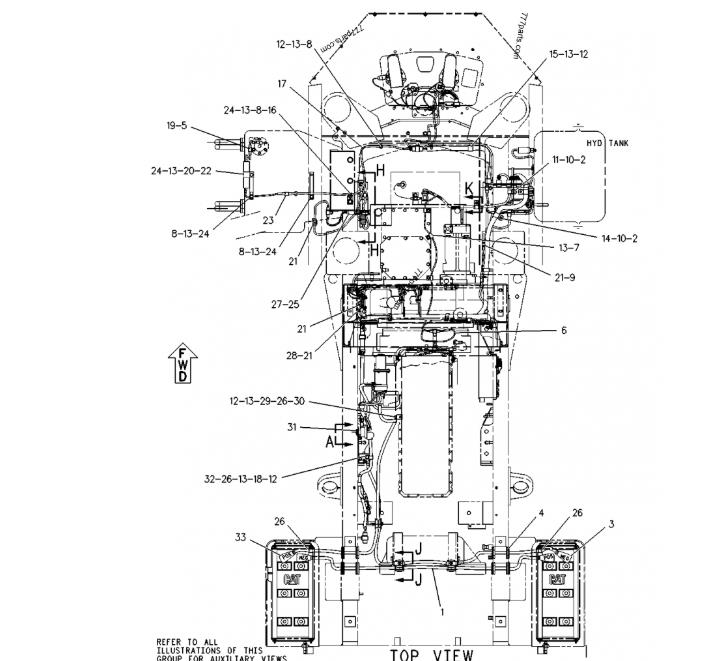

INSTALLATION DECOMPOSITION DIAGRAM

Note: Step-by-step textual guide corresponding to a numbered visual installation diagram.

Step 1: Safety Lockout and Documentation
Red lockout symbol over battery: "Disconnect negative (-) and positive (+) battery cables. Lock out master switch. Wait 60 seconds." Camera icon: "Photograph every aspect of existing harness routing. Document P-clip locations, routing around exhaust and turbo, and all connector orientations. These photos are your primary installation reference."

Step 2: Old Harness Systematic Removal

• Label every connector with numbered wire tags.

• Disconnect all sensors: fuel rail pressure, intake temp/pressure, coolant temp, oil pressure/temp, camshaft, crankshaft, atmospheric pressure, EGR sensors.

• Disconnect actuators: injector pass-throughs (6), high-pressure pump metering valve, turbo wastegate/electronic actuator, EGR valve, engine brake solenoids.

• Disconnect main ECM connector.

• Disconnect power cables from alternator, starter, battery junction.

• Cut zip ties, release P-clips, remove old harness.

Step 3: New Harness Visual Comparison
Uncoil new 103-6030 beside old harness. Compare ECM connector, branch lengths, connector types, and ring terminal diameters. Verify every match before proceeding.

Step 4: New Harness Routing and Connection

• Route harness into position following photographic reference.

• Secure loosely at all P-clip locations.

• Connect ECM connector first.

• Systematically reconnect all sensor and actuator branches per wire tags.

• Install and torque all power ring terminals to OEM specs.

• Tighten all P-clips. Install new high-temperature zip ties. Verify clearance from exhaust, turbo, hydraulic pump, and all moving parts.

Step 5: Power-Up and Full Functional Test
Reconnect batteries. Connect Cat ET. Verify "Active Diagnostic Codes: 0." Start engine. Verify immediate oil pressure. Monitor all parameters. Warm to operating temperature. Cycle all hydraulic functions, swing, and travel. Confirm zero fault codes after complete test.

🚚 SHIPPING DETAILS & RETURN POLICY

Shipping Details

Return Policy

FREQUENTLY ASKED QUESTIONS

Q1: Will this harness work for both my 325C and my 330D?
A: The 103-6030 is an engine-side harness compatible with the C6.6, C7, and C9 engine platforms used in these machines. While the engine harness is common, the machine-side interface connectors can vary between C-Series and D-Series models. We verify the correct configuration for your specific machine PIN during pre-shipment confirmation.

Q2: Does this harness include the injector wiring under the valve cover?
A: No. The 103-6030 is the external engine harness. The internal injector harness that runs under the valve cover is a separate component. Contact our sales team if you require that harness as well.

Q3: My machine is an M330D material handler. Will this fit?
A: Yes. The M330D material handler shares the same C9 ACERT engine platform and engine harness as the standard 330D excavator. The 103-6030 is the correct harness for the M330D.

Q4: What if my old harness part number is different from 103-6030?
A: The 103-6030 is a service replacement harness that supersedes several earlier and derivative part numbers. If your machine model and serial number match our compatibility list, this is the correct replacement, even if your old label shows a different number.

Q5: Do I need Cat ET to complete this installation?
A: Physical installation can be done with standard hand tools. However, Cat ET is essential for post-installation verification—checking fault codes, monitoring live sensor data, and confirming ECM communication. We strongly recommend installation by a technician with ET access.
