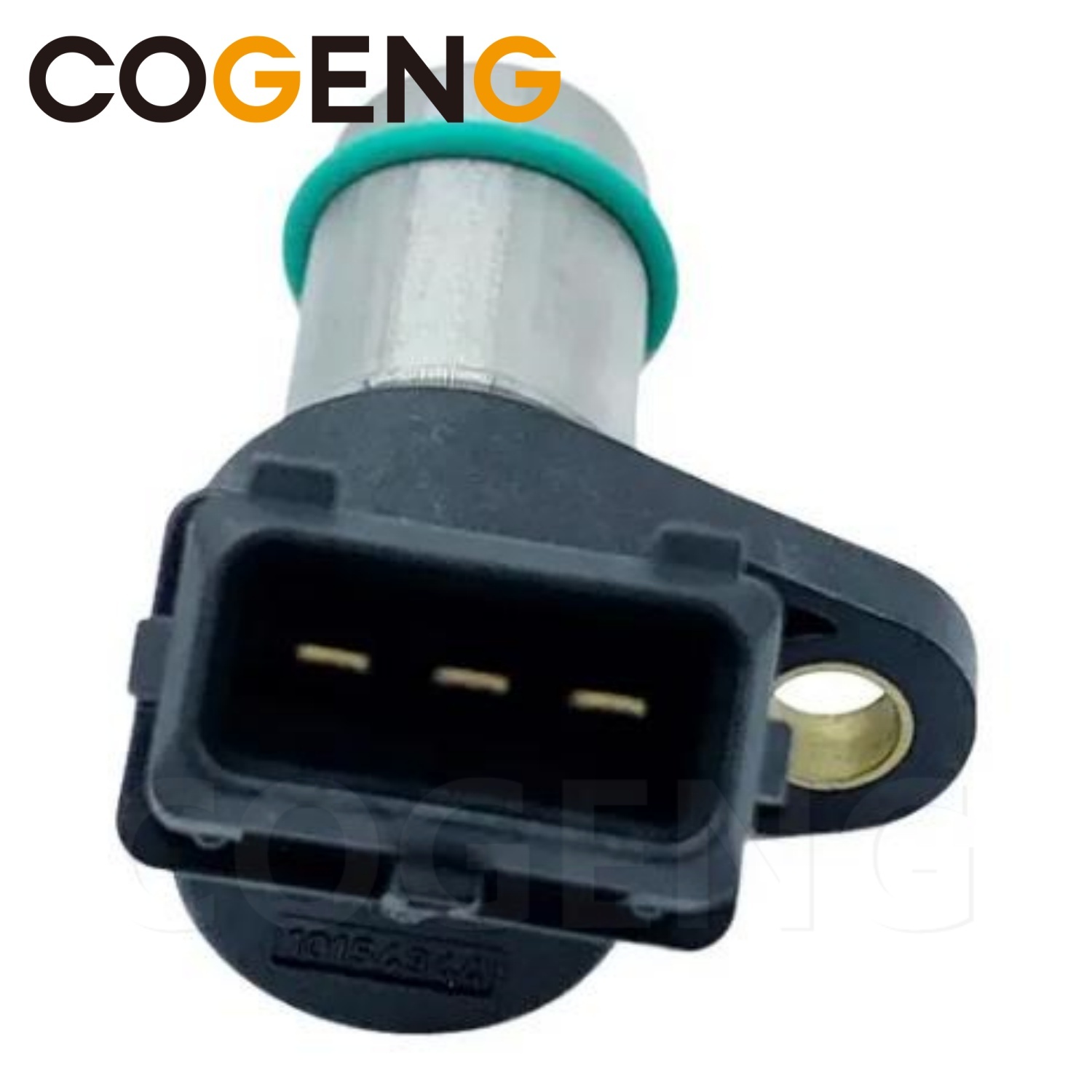

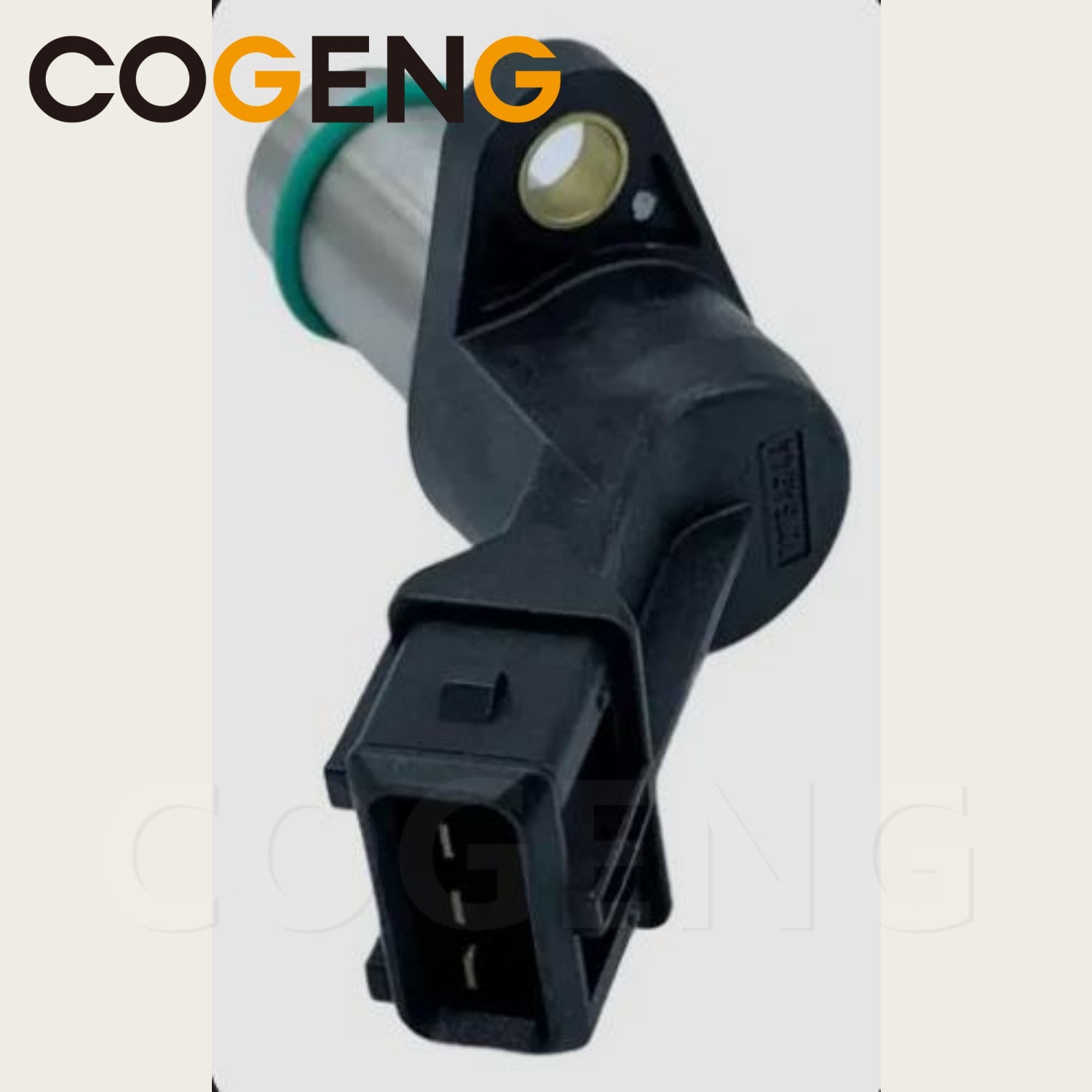

COGENG 10133077 liebherr Revolution Sensor

PRODUCT OVERVIEW

The COGENG 10133077 is a premium direct OEM replacement revolution speed sensor (engine speed sensor / crankshaft position sensor) specifically engineered for Liebherr R9200 and R944 mining and heavy excavators. This critical engine component monitors engine RPM (crankshaft speed) and provides essential timing signals to the ECU for fuel injection control, engine protection, and tachometer display. Manufactured to meet or exceed original Liebherr specifications, this durable, plug-and-play sensor ensures reliable speed detection, accurate readings, and long service life in demanding mining and heavy construction applications.

PRODUCT IDENTIFICATION

CROSS REFERENCE GUIDE

COMPATIBLE LIEBHERR EXCAVATORS

R9200 Mining Excavator

R944 Mining Excavator

Compatible Engines

Note: Verify compatibility with your equipment model, engine serial number, and production year before ordering. Contact COGENG with your machine details for exact application verification.

TECHNICAL SPECIFICATIONS

Electrical Specifications

Mechanical Specifications

Pinout Configuration

Environmental Ratings (Mining-Grade)

QUALITY FEATURES

Mining-Grade Durability

High Accuracy & Reliability

Testing & Certification

Test	Method	Acceptance Criteria
Coil Resistance	100% measurement	200-500 Ω
Output Voltage	Test stand with target wheel	1.0V min @ 200 RPM
Insulation Resistance	500V DC	≥100MΩ
Dielectric Strength	500V AC/60s	No breakdown
Temperature Cycle	-40°C to +125°C	No degradation
Vibration Test	20G @ 50-2000Hz	No intermittent output
Dust Test	IP6X	No dust ingress
Water Test	IPX7	No water ingress

Installation decomposition diagram

Preparation (Before Installation)

Tools required:

• 22 mm or 24 mm open-end wrench (depending on thread size)

• Multimeter (AC voltage and resistance measurement capability)

• Clean lint-free cloth

• Thread sealant or anti-seize compound (copper-based for steel sensors into aluminum housings)

• Dielectric grease for connector

• Feeler gauge set (for air gap measurement – if adjustable type)

Safety & machine preparation:

• Engine off, key removed, battery disconnected (negative terminal)

• Allow engine to cool completely – exhaust manifold and turbocharger remain hot for 30+ minutes

• Clean area around sensor mounting hole thoroughly – use brake cleaner and compressed air to prevent debris entry into engine timing case

New sensor inspection (critical for mining reliability):

• Measure coil resistance between two pins: typically 200–2,000 ohms (exact value depends on sensor design – consult original spec or measure new sensor at room temperature)

• Check for infinite resistance between either pin and sensor body (insulation test)

• Inspect sensor tip for damage – should be clean, no cracks or metal burrs

• Verify cable jacket integrity – no cuts, kinks, or exposed shielding

Identifying target gear (flywheel or timing gear):

• Remove old sensor and inspect its tip for wear pattern – missing metal indicates gear tooth contact (incorrect installation)

• Use a borescope to examine target gear through mounting hole – look for damaged, missing, or heavily rusted teeth

Installation

Critical parameters for Liebherr R9200 / R944:

Installation steps (adjustable type):

1. Apply anti-seize or thread sealant:

   • Only to first 2–3 threads of sensor body

   • Do not coat entire thread length – can hydraulically lock or alter grounding

2. Thread sensor into mounting bore:

   • Hand-tighten until sensor tip contacts gear tooth (you will feel resistance)

   • Do not force – gear teeth are hardened steel; sensor tip is softer

3. Set air gap:

   • Method A (feeler gauge): Back sensor out until specified gap achieved (e.g., 0.8 mm). Hold sensor in position while tightening lock nut.

   • Method B (gear tooth contact method – common for mining field repairs): Screw in until contact, then back out ½ to ¾ turn (approx. 0.5–1.0 mm gap). Tighten lock nut.

   • Verify by rotating engine manually (barring tool) – sensor tip should NOT contact any gear tooth

4. Tighten lock nut:

   • Use torque wrench – 15–25 Nm

   • Re-check air gap after tightening – nut torque can pull sensor slightly

5. Connect electrical connector:

   • Apply dielectric grease to pins (prevents corrosion in mining dust)

   • Push until audible click

   • Tug gently to verify lock

6. Route and secure cable:

   • Keep at least 25 mm (1 inch) away from exhaust manifold, turbocharger, and EGR pipes

   • Use original cable clips or zip-tie mounts – no tension on connector

   • Avoid sharp edges – use spiral wrap or loom if necessary

Installation steps (non-adjustable stop type – common on newer Liebherr engines):

1. Clean mounting bore thoroughly – stop-type sensors rely on precise bottoming

2. Apply light coat of oil to O-ring (if present)

3. Thread sensor in by hand until it bottoms against shoulder

4. Torque to specification (typically 20–30 Nm)

5. Connect and route cable as above

Final (Verification & Post-Installation)

Functional tests (perform on every machine after installation):

Diagnostic code clearing (Liebherr specific):

• Most Liebherr ECUs will auto-clear intermittent revolution sensor codes after 3 successful drive cycles

• For permanent codes: Use Liebherr Service Diagnos System (LIDI) or equivalent diagnostic tool

• Do not ignore stored codes – may affect engine protection limits (derates)

Documentation for fleet maintenance:

• Record sensor batch number and installation date in machine log

• Note measured air gap and torque value

• Save old sensor as reference for future purchases (confirm thread pitch and length)

Return to service:

• Reconnect battery negative terminal

• Start engine and verify no warning lights

• Check for oil leaks around sensor mounting (if applicable)

• Test machine through full operating range

Frequently Asked Questions

Q1: What is the difference between a revolution sensor and a position sensor on Liebherr R9200?
A: The revolution sensor (10133077) is a simple magnetic pick-up that detects gear teeth passing – it provides engine RPM only. A position sensor (e.g., camshaft or crankshaft position) provides exact angular position for injection timing. Some Liebherr engines use separate sensors; others combine functions. The R9200 typically uses dedicated revolution sensor for governor control.

Q2: My R944 shows "Engine Speed Sensor Plausibility" error after installation – what's wrong?
A: Three common causes:

1. Air gap too large (>1.5 mm) – low AC voltage at low RPM. Reduce gap to 0.6–0.8 mm.

2. Wrong sensor type – some R944 models use Hall effect sensor (3 wires: power, ground, signal). The 10133077 is 2-wire inductive. Check your original sensor wire count.

3. Target gear damage – missing or bent teeth cause irregular signal. Inspect through mounting hole with borescope.

Q3: Can I use this sensor on other Liebherr models (R9100, R9150, R9800)?
A: Possibly – many Liebherr mining excavators use similar M18 x 1.5 inductive sensors. However, verify:

• Thread length (some sensors are shorter to avoid deep bores)

• Output voltage requirements (some ECUs need minimum 2V AC at cranking)

• Connector type (R9800 often uses different pin orientation)
  Always compare original sensor dimensions before bulk ordering.

Q4: How do I test the COGENG 10133077 sensor without installing it?
A: Bench test method:

• Resistance test: Measure between pins – should be stable (no fluctuation when tapping sensor)

• Inductive output test: Pass a steel gear or ferrous bolt rapidly across sensor tip. Connect multimeter set to AC volts (200 mV scale). Rapid passes should generate brief voltage spikes (20–200 mV). If no output, coil is open or shorted.

• Insulation test: 500V megger between either pin and sensor body – result >100 MΩ (new sensor). Lower than 10 MΩ indicates internal moisture – reject.

Q5: My R9200 engine surges at low idle (600–800 RPM) but runs fine at high idle. Is it the revolution sensor?
A: Classic symptom of intermittent revolution sensor signal at low speeds. At low RPM, the AC voltage output is minimal (0.5–1.0 V). If air gap is slightly too large, voltage drops below ECU threshold, causing ECU to lose RPM reference, then default to a safe value, causing surging. Fix: Reduce air gap to minimum spec (e.g., 0.5 mm). If surging stops, replace sensor with new COGENG unit with tighter magnetic tolerance.

Q6: What is the bulk order MOQ for COGENG 10133077 for fleet use?
A: Standard bulk MOQ: 10 pieces. For mining fleet quantities (50–200+ pieces), contact COGENG for:

• Volume pricing (up to 30% discount vs single unit)

• Mixed pallets with R9200 and R944 variants (different cable lengths)

• Batch testing reports (5% sample tested)

• Custom packaging with fleet asset tags

Q7: How do I store bulk revolution sensors for a mining site?
A: Critical for remote sites:

• Keep in original anti-static bags – do not open until ready to install

• Store in climate-controlled container (10–30°C / 50–86°F) – high heat degrades coil insulation

• Keep away from strong magnetic fields (welding equipment, large electric motors) – can partially magnetize sensor, affecting output

• Rotate stock FIFO – shelf life 24 months

• Test one sensor per batch upon arrival (resistance and insulation) – reject batch if out of spec

Q8: The old sensor had a shim (washer) under the mounting flange – do I reuse it?
A: Only if the new sensor is identical length. The shim adjusts effective mounting depth to achieve correct air gap. Measure:

• Old sensor length (including tip) + shim thickness = total effective length

• New sensor length (without shim) should equal old total length
  If new sensor is shorter, add shims (available in 0.5 mm and 1.0 mm thickness). If longer, do not use shims but verify air gap – may require machining mounting boss (unlikely).

Q9: Can a bad revolution sensor damage the ECU on Liebherr R944?
A: Very rare – inductive sensors generate their own voltage (up to 50V AC at high RPM). Most ECUs have clamping diodes to protect inputs. However, a sensor with internal short between coil and body can ground the ECU signal line, causing damage. Test insulation before installation – if less than 10 MΩ at 500V, do not install.

Q10: My machine runs but shows "Engine RPM Signal Missing" intermittently – only when engine is hot.
A: Classic heat-related failure. As sensor heats up, internal coil insulation expands or breaks down, causing intermittent open circuit. Resistance measured cold (800 ohms) may read infinite or erratic when hot. Fix: Replace with COGENG 10133077 – manufactured with high-temperature magnet wire (Class H, 180°C / 356°F). Confirm installation keeps cable away from turbocharger heat shield.

Q11: What is the correct part number for the mating connector?
A: Depends on your machine's harness:

• Deutsch DT04-2P (most common on R9200/R944 after 2010) – order Deutsch part number DT06-2S (receptacle) or use existing harness pigtail

• AMP Junior Timer 2-pin (older machines) – TE Connectivity 282105-1

• Liebherr proprietary (rare) – contact COGENG with photo of your connector for cross-reference

Q12: Why does my new sensor read zero AC voltage when cranking, but engine starts and then shows RPM?
A: The sensor output at cranking speed (150–250 RPM) may be below ECU's threshold, but once engine fires and reaches 500+ RPM, voltage increases sufficiently. This indicates air gap is on the maximum limit. Reduce gap by 0.2–0.3 mm – cranking voltage will increase, improving cold start performance.
