Product Parameter Table
PRODUCT OVERVIEW
The COGENG Common Rail Fuel Injector, part number 095000-8901 (0950008901), is a precision-engineered, high-performance diesel fuel injection component designed as a direct, form-fit-function replacement for the original equipment injector used in Hitachi ZX series hydraulic excavators equipped with Isuzu common rail diesel engines. This injector is a critical component of the engine's common rail fuel injection system, responsible for delivering the precise quantity of atomized diesel fuel into the combustion chamber at exactly the right moment and with the exact spray pattern required for optimal combustion efficiency, power output, fuel economy, and emissions compliance.
The common rail fuel injection system represents the most advanced diesel fuel delivery technology in modern heavy equipment. Unlike older mechanical injection systems, where fuel pressure was generated at the moment of injection by a pump-driven plunger, a common rail system maintains a constant, extremely high fuel pressure in a central accumulator—the "common rail"—at all times. The engine's Electronic Control Unit (ECU) then commands each injector individually, via a high-speed solenoid valve, to open for a precisely controlled duration at a precisely controlled moment. This architecture gives the ECU complete authority over injection timing, injection quantity, and injection rate shape, allowing it to optimize combustion for any operating condition: cold start, idle, light load, full load, and transient acceleration. It also enables multiple injection events per combustion cycle—pilot injection to reduce combustion noise, main injection for power production, and post injection for emissions control. The 095000-8901 injector is the mechanical and electrical device that executes these ECU commands with microsecond precision.
Inside the injector, a high-speed solenoid valve controls the flow of fuel into and out of the injector's control chamber. When the solenoid is energized by the ECU, the control valve opens, allowing fuel to escape from the control chamber. The resulting pressure imbalance causes the injector needle to lift off its seat, and fuel is sprayed through the micro-machined nozzle holes into the combustion chamber. When the solenoid is de-energized, the control valve closes, pressure rebuilds in the control chamber, and the needle returns to its seat, ending injection. The entire sequence—from solenoid energization to needle lift to needle reseating—occurs in a fraction of a millisecond. The precision required in the manufacturing of this component is extraordinary: the nozzle holes are measured in microns, the needle-to-seat clearance is measured in microns, and the solenoid response time is measured in microseconds. Any deviation from specification—whether in flow rate, spray pattern, or response time—will result in degraded engine performance, increased fuel consumption, higher emissions, and potentially engine damage.
The operating environment for a common rail injector is uniquely extreme. The injector body is exposed to the full heat of the engine, with the nozzle tip directly exposed to combustion chamber temperatures that can exceed 2,000°C during combustion. Internally, the injector must contain and control fuel at pressures up to 180 MPa (1,800 bar)—approximately 100 times the pressure in a typical car tire—while maintaining zero leakage. It must survive millions of injection cycles over its service life, with the needle and seat experiencing microscopic impact wear on every cycle. It must be immune to contamination from microscopic particles in the fuel, which is why fuel filtration is so critical on common rail systems. The COGENG 095000-8901 injector is manufactured using premium materials and processes: a high-strength forged alloy steel body for structural integrity; a hardened, micro-machined nozzle assembly with a precision-ground needle for accurate spray control; a high-speed solenoid with a low-resistance, high-durability coil; and precision-lapped internal control valve components for leak-free operation. Every injector undergoes a complete, multi-point bench test protocol before shipment, verifying flow rate at multiple pressure points, spray pattern geometry, internal leak-down rate, solenoid resistance, and response time against OEM specifications.
Item | Description
Part Number Format: 095000-8901 (with hyphen) / 0950008901 (without separator) — both refer to the same product
Product Name: Common Rail Injector / Common Rail Fuel Injector
Compatible Brand: Hitachi
Compatible Equipment: Hitachi excavators (e.g., ZX series; specific model must be confirmed based on engine model)
Compatible Engine: Specific matching engine to be confirmed (e.g., Isuzu 4HK1, 6HK1, etc.; 095000-8901 is commonly found in Isuzu common rail systems)
Related Part Numbers: 095000-8900, 095000-8902, and other injectors in the same series — may be different configuration versions
Function Description: The common rail injector precisely controls fuel injection quantity, injection timing, and injection pressure based on ECU signals. It is a core component of the electronically controlled high-pressure common rail system.
Suggested Technical Parameters: It is recommended to include the following on the product detail page: injector type, voltage, connector type, flow parameters, etc.
The 095000-8901 injector is used on Hitachi ZX series excavators with Isuzu common rail engines. Specific model and engine verification is mandatory.
Note: To confirm exact compatibility, please provide the complete machine model, machine serial number, and engine serial number. A photo of the existing injector's identification markings is highly recommended for physical verification.
PARTS LIST (Included in Package)
-
Common Rail Injector Assembly (1 unit): The complete injector, including the forged alloy steel body, micro-machined nozzle assembly, high-speed solenoid, control valve assembly, and all internal components.
-
Protective Nozzle Cap: A protective plastic cap installed over the nozzle tip to prevent damage to the precision micro-machined holes and needle during shipping and handling.
-
Pre-Installed O-Rings and Seals: All external sealing elements required for leak-free installation, including the combustion seal (copper washer) and any injector body O-rings.
-
Anti-Static ESD Shielding Bag: The injector is sealed in a silver anti-static bag to prevent electrostatic discharge damage to the solenoid coil during transit and storage.
-
Heavy-Duty Export Carton with Protective Foam: The bagged injector is packed in a rigid, double-wall corrugated carton with a custom-cut high-density foam insert that immobilizes the injector and protects the nozzle, connector, and body from impact.
DECOMPOSE PICTURES (VISUAL REFERENCE GUIDE)
Note: The following descriptions provide a detailed technical walkthrough of accompanying high-resolution product photographs.

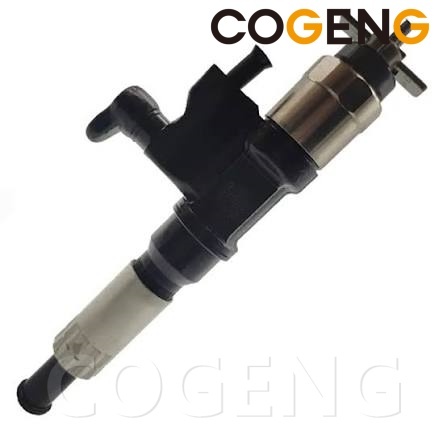

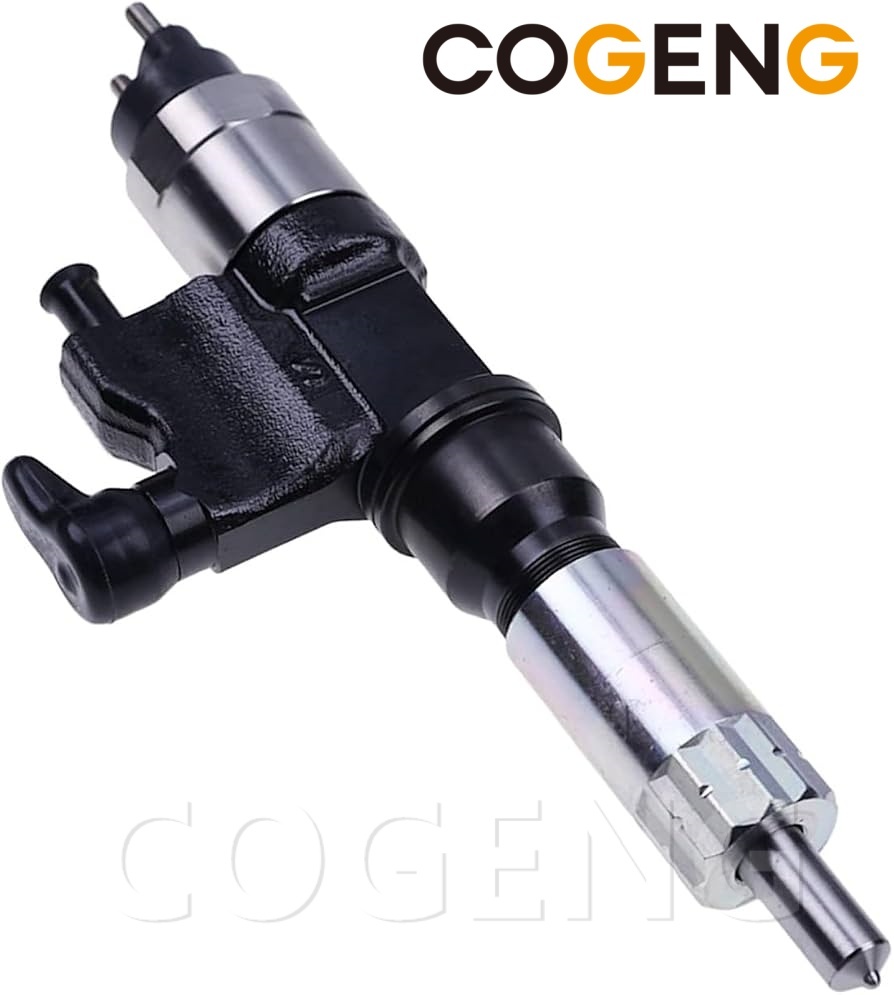

Image 1: Complete Injector Assembly — Isometric View
A high-resolution studio photograph of the 095000-8901 injector shown from a three-quarter isometric angle. The image clearly displays the injector's key features: the high-pressure fuel inlet port at the top, the electrical connector for the solenoid, the forged alloy steel body, the nozzle retaining nut, and the protective plastic cap over the nozzle tip.
Image 2: Nozzle Tip — High-Magnification Macro Detail
An extreme close-up macro photograph of the injector nozzle tip with the protective cap removed. The image reveals the micro-machined nozzle holes—typically 6 to 8 holes, each measured in microns—arranged in a precise pattern for optimal fuel atomization and spray distribution. The precision-ground needle tip is visible at the center.
Image 3: Electrical Connector — Pin Configuration
A head-on view of the injector's electrical connector. The sealed 2-pin connector with gold-plated terminals is clearly shown. The image includes a call-out confirming terminal assignments for the solenoid control circuit.

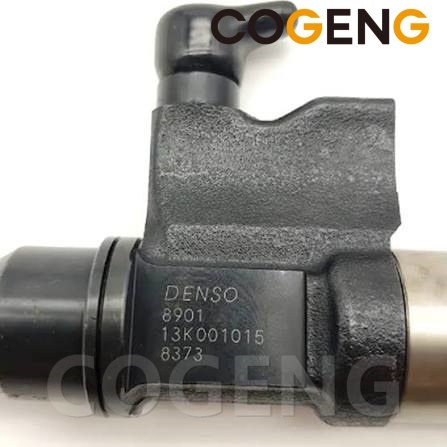

Image 4: Identification Markings and Serial Number
A close-up image of the injector body showing the permanent, laser-etched identification markings: the part number 095000-8901, the manufacturing serial number for traceability, and the COGENG brand logo.
Image 5: High-Pressure Inlet and Body Detail
A detailed image of the injector's high-pressure fuel inlet port, showing the precision-machined sealing surface and the threaded connection for the high-pressure fuel line. The robust construction of the forged body is evident.
COMPATIBILITY NOTES: CRITICAL VERIFICATION GUIDE
-
Serial Number Verification is Mandatory: The 095000-8901 injector may be used across multiple Hitachi models with different engine configurations. Providing your complete machine model and serial number, and the engine serial number, allows our technical team to verify the exact injector variant your engine requires.
-
Engine Configuration: This injector is designed for Isuzu common rail engines (4HK1 or 6HK1) as installed in Hitachi excavators. Verify your engine model before ordering.
-
Injector Class and Flow Rate: Common rail injectors are classified by flow rate and are matched to specific engine power ratings and emissions tiers. Installing an injector with an incorrect flow rate will cause poor performance, excessive smoke, or engine damage. Always verify the correct injector class for your engine.
-
Injector Coding and Programming: After installing new injectors, the injector codes (also called injector trim codes or IQA codes) must be programmed into the engine ECU using Hitachi diagnostic software. This allows the ECU to compensate for minor manufacturing variations between individual injectors. Failure to program the new injector codes will result in rough running and poor performance.
-
Fuel System Cleanliness: Common rail injectors are extremely sensitive to fuel contamination. Before installing new injectors, the entire fuel system—tank, lines, filter, and high-pressure pump—must be thoroughly flushed and inspected. Replacing the fuel filter is mandatory. Any debris in the system will damage the new injectors.
-
Professional Installation Required: Injector replacement involves working with the high-pressure fuel system. Installation should be performed by a qualified heavy equipment technician with access to Hitachi diagnostic software for injector coding and post-installation system verification.
INSTALLATION PROCEDURE
Note: This is a summarized procedural guide. Always follow the Hitachi service manual for your specific model.
Step 1: Safety Lockout and System Depressurization
Park the machine on level ground. Lower all attachments. Stop the engine. Disconnect battery cables. Allow the engine to cool completely. The common rail system retains pressure after shutdown—the system must be fully depressurized before any high-pressure line is opened.
Step 2: Old Injector Removal
Thoroughly clean the area around the injector. Remove the high-pressure fuel line and the fuel return line, capping all open connections immediately. Disconnect the electrical connector. Remove the injector clamp and carefully extract the old injector using an appropriate extraction tool.
Step 3: Injector Bore Cleaning
Clean the injector bore in the cylinder head thoroughly. Remove all carbon deposits, debris, and old combustion seal remnants. Inspect the bore for damage. Install a new combustion seal (copper washer) in the bore.
Step 4: New Injector Installation
Apply a light coating of clean engine oil or assembly grease to the injector body O-rings. Carefully insert the new COGENG injector into the bore, ensuring the combustion seal is properly seated. Install the injector clamp and torque to OEM specifications. Reconnect the high-pressure fuel line with a new sealing washer. Reconnect the fuel return line and the electrical connector.
Step 5: Injector Coding and System Verification
Connect Hitachi diagnostic software. Program the new injector codes into the engine ECU. Start the engine and allow it to idle. Check for fuel leaks at all connections. Monitor engine parameters. Perform a cylinder cut-out test to verify each injector is contributing correctly. Confirm no active diagnostic trouble codes before releasing the machine to service.
🚚 SHIPPING DETAILS & RETURN POLICY
Shipping Details
Return Policy
FREQUENTLY ASKED QUESTIONS
Q1: What are the symptoms of a failing common rail injector?
A: Common symptoms include: engine misfire or rough running, excessive black smoke or white smoke from the exhaust, reduced engine power and poor fuel economy, hard starting or no-start condition, increased engine noise (combustion knock), diagnostic trouble codes related to injector circuit faults or cylinder contribution imbalance, and fuel in the engine oil (indicating injector leakage).
Q2: Do I need to replace all injectors at once, or can I replace just one?
A: In most cases, a single failed injector can be replaced individually. However, if the other injectors have high operating hours, replacing them as a set is recommended for balanced performance and to avoid multiple repair events. Our technical team can advise based on your machine's hours and condition.
Q3: Do the new injectors need to be programmed into the ECU?
A: Yes. After installing new injectors, the injector codes (trim codes) must be programmed into the engine ECU using Hitachi diagnostic software. This allows the ECU to compensate for individual injector variations. Failure to program the codes will result in poor performance and possible fault codes.
Q4: What causes injector failure?
A: The primary causes of injector failure are fuel contamination (water, dirt, or debris in the fuel), fuel starvation (running the engine out of fuel or with a clogged filter), excessive heat, and normal wear of internal components over time. Clean fuel and regular filter replacement are the best prevention.
Q5: What is the warranty on this injector?
A: We provide a comprehensive DOA guarantee. If the injector is found to have a manufacturing defect within 7 days of delivery, we will replace it at no cost. The injector must be in original, uninstalled condition with the protective cap in place.
📞 CONTACT & ORDERING
For pricing, machine-down emergency support, trial orders, bulk quantity discounts, or pre-purchase compatibility verification, contact your COGENG supplier today.
Sales Price: Contact COGENG sales customer service directly for the most current competitive pricing. Trial orders welcome.
Shipping Method & Cost: We will quote the optimal shipping solution based on your location and urgency.
Estimated Delivery Time: Based on the selected carrier. Tracking provided within one business day of dispatch.
✅ Direct OEM Replacement — 100% Bench Tested, Calibrated, and Flow Verified.
✅ Hitachi Excavator Compatible — Precision-Engineered for Isuzu Common Rail Engines.
✅ High-Precision Manufacturing — Micro-Machined Nozzle, High-Speed Solenoid, Leak-Free Control Valve.
✅ ISO 9001 Certified — 100% Bench Tested, 500 Pieces Monthly Supply.
✅ Trial Orders Welcome — Single Unit Orders Accepted.
✅ In Stock & Ready to Ship — Minimize Excavator Downtime with Immediate Worldwide Dispatch.
Critical Action: To ensure 100% compatibility, please provide your Hitachi excavator's complete model and serial number, and the engine serial number. A photo of your existing injector's identification markings is recommended. Our technical team will cross-reference your engine's exact configuration and provide written confirmation before you order.
Merchant Return Policy: All products shipped are not returnable or exchangeable. Please complete all compatibility checks before purchase.
