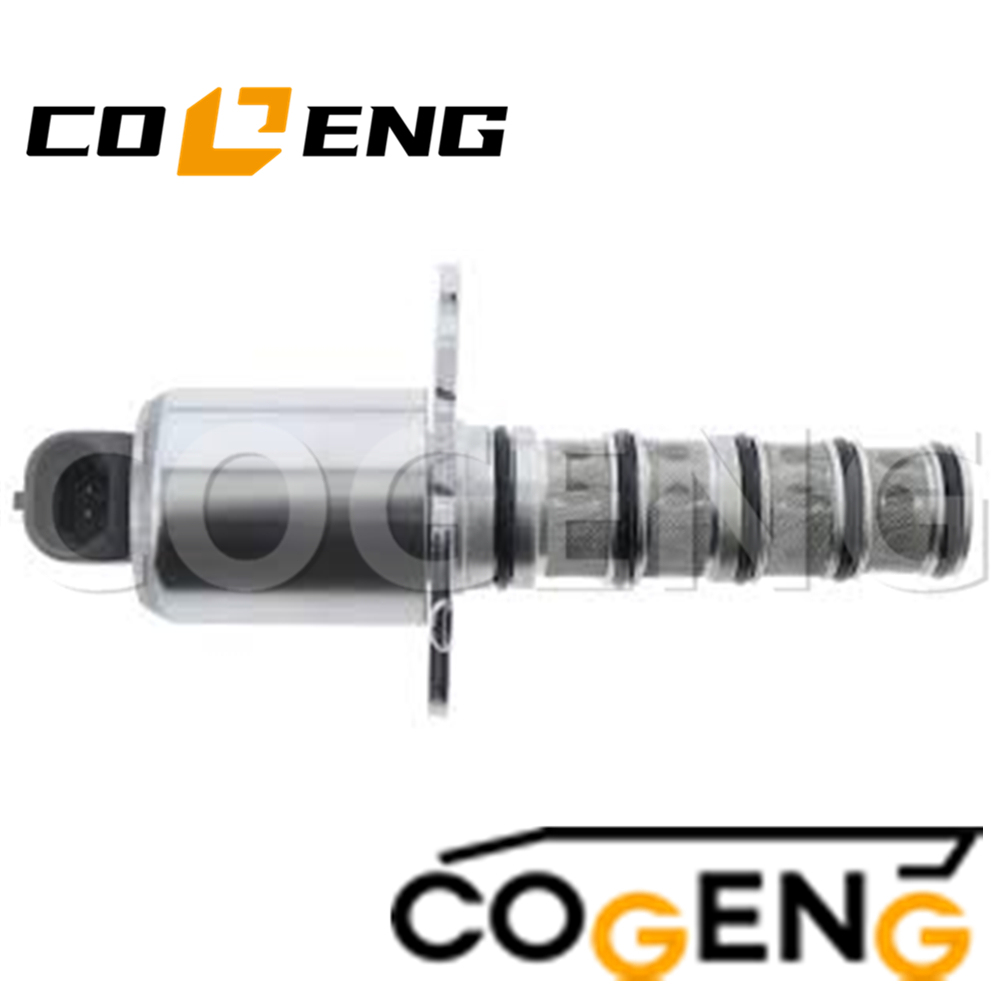

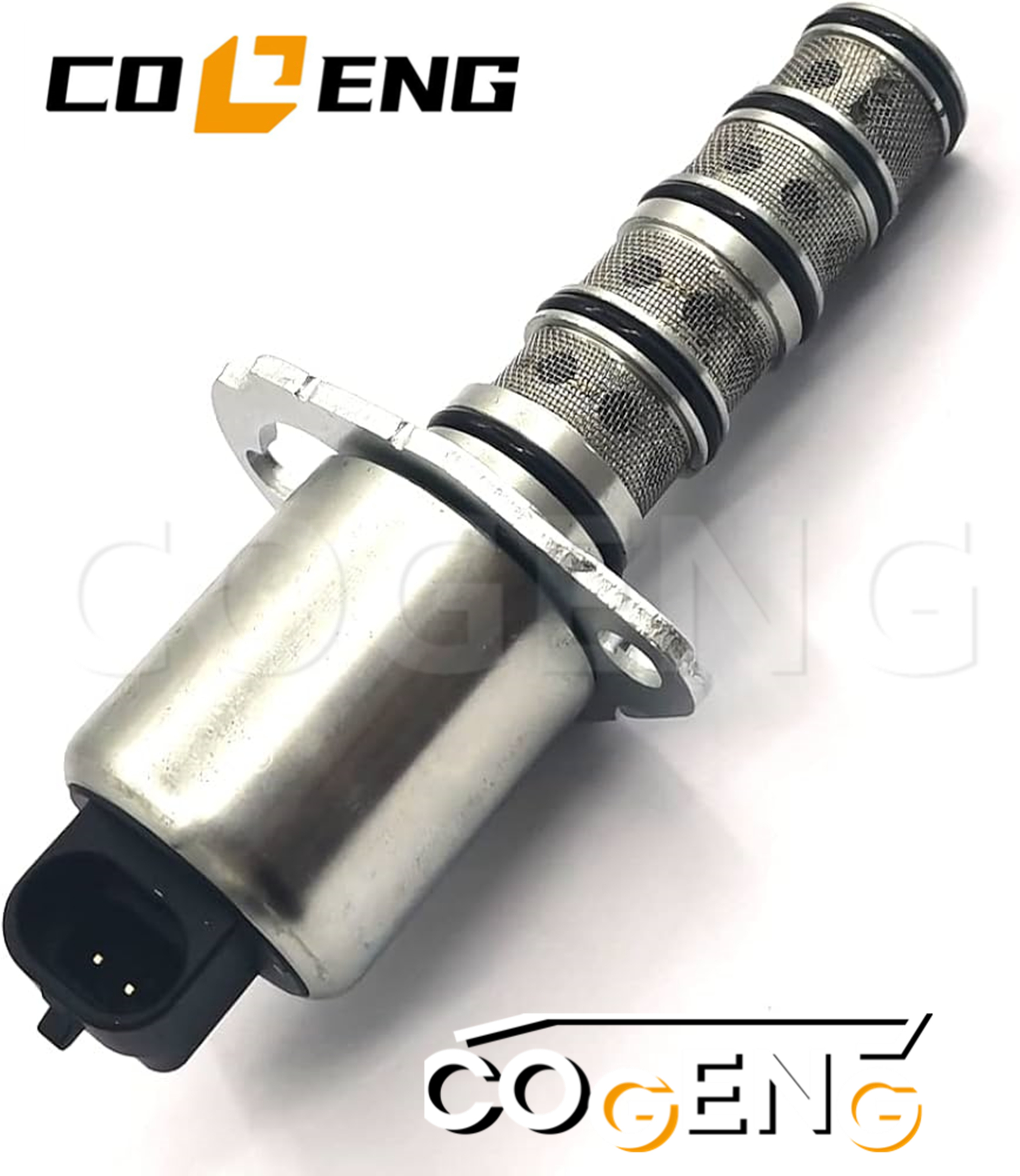

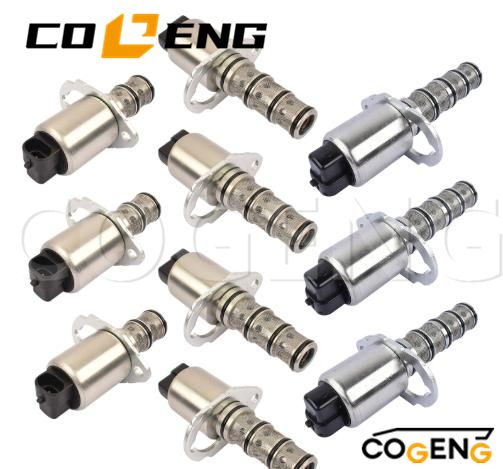

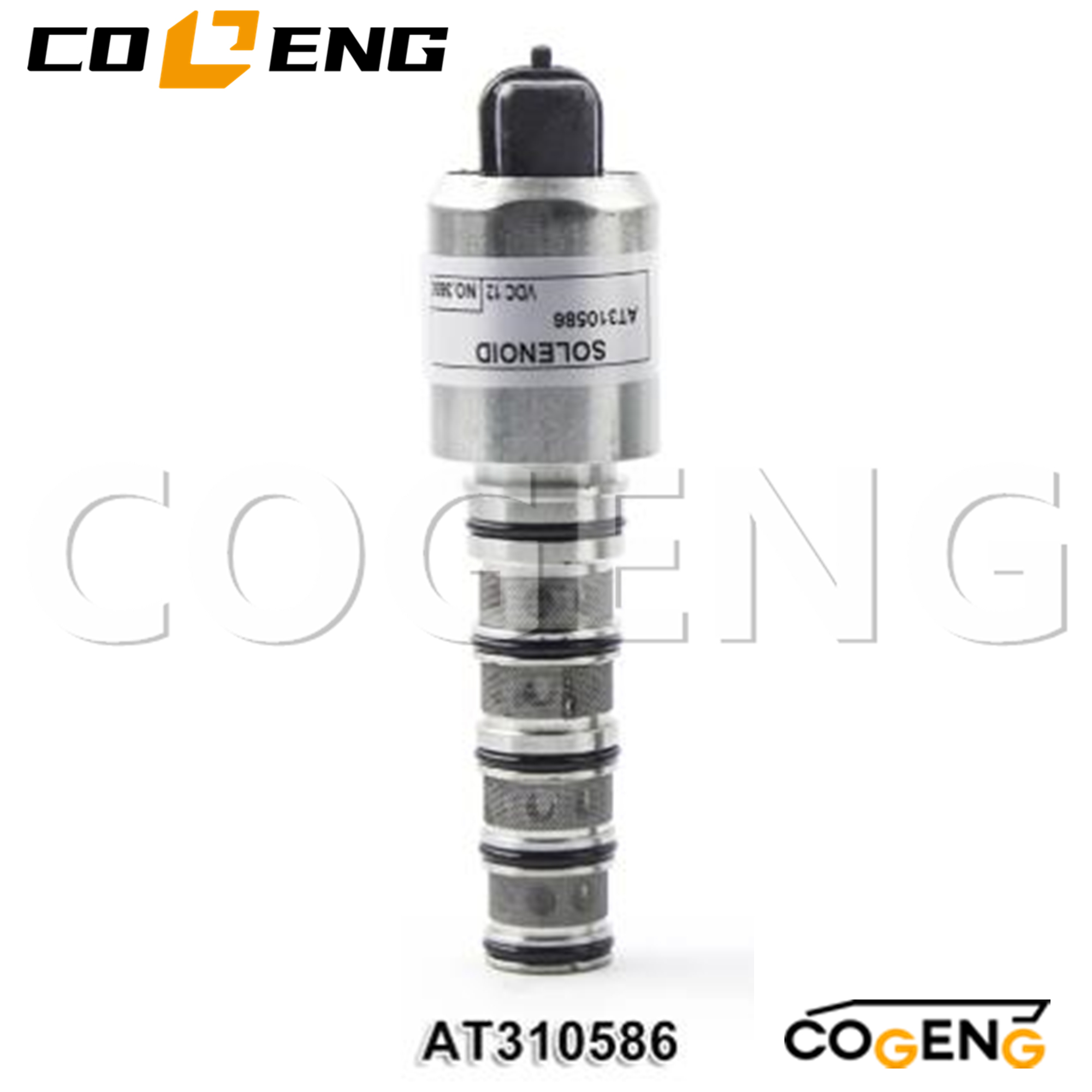

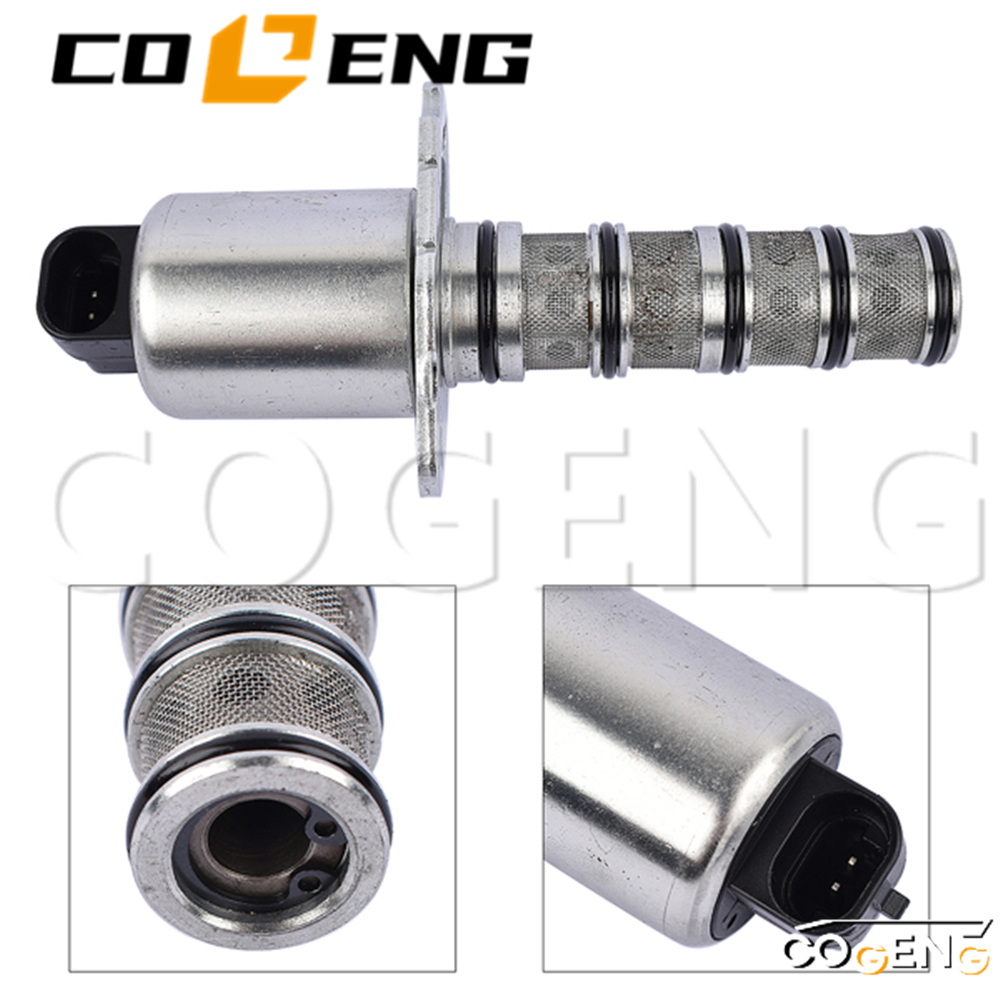

Product name: John Deere Solenoid Valve
Part No:AT310586
Model Number:For 210K 210LE 310K 310SJ 310SL 315 315SJ
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Parameter |
Specification |
Details |
| COGENG Part Number |
COGENG-AT310586-SV |
Quality-assured replacement solution |
| Replaces OEM Part No. |
John Deere AT310586 |
Direct OEM replacement |
| Voltage Rating |
12V/24V DC (±10%) |
Dual voltage operation capability |
| Current Draw |
1.8A @ 12V, 0.9A @ 24V |
Low power consumption design |
| Operating Pressure |
0-3600 PSI (0-248 bar) |
High-pressure capability for hydraulic systems |
| Temperature Range |
-40°C to +120°C (-40°F to +248°F) |
Wide operational temperature range |
| Insulation Class |
Class H (180°C) |
High-temperature resistant insulation |
| Protection Rating |
IP67 |
Dust and water resistant |
| Cycle Rate |
Up to 100 cycles/minute |
High-frequency operation capable |
| Fluid Compatibility |
Petroleum-based hydraulic oils, JD Hy-Gard |
Compatible with John Deere specifications |
| Body Material |
Brass with corrosion-resistant coating |
Durable and long-lasting |
| Coil Construction |
Copper windings with epoxy encapsulation |
Moisture and vibration resistant |
| Dimensional Specifications |
|
|
|
| Dimension |
Value |
Tolerance |
Application Reference |
| Overall Length |
146 mm |
±1.2 mm |
Including connector and mounting |
| Body Diameter |
52 mm |
±0.6 mm |
Main valve body dimension |
| Mounting Thread |
7/16"-20 UNF |
Standard |
Loader-specific mounting interface |
| Port Size |
1/2" NPT |
Standard |
Hydraulic connection ports |
| Electrical Connector |
2-pin Deutsch DT04-2P |
Industry standard |
Weatherproof connection |
| Wire Length |
450 mm |
±20 mm |
Harness length for flexible routing |
| Weight |
0.92 kg |
±0.06 kg |
Complete assembly weight |
Pre-Installation Checks
Verify correct voltage specification for your equipment
Check electrical connector for corrosion or damage
Inspect hydraulic ports and threads
Ensure work area is clean and dry
Removal of Old Valve
Disconnect battery negative terminal
Label and disconnect electrical connector
Depressurize hydraulic system
Carefully remove old solenoid valve
Installation Steps
Clean mounting surface and port connections
Apply appropriate thread sealant
Install new solenoid valve and torque to specifications
Connect electrical connector securely
Reconnect battery terminal
Post-Installation Testing
Check for hydraulic leaks
Verify proper electrical operation
Test valve function through complete cycle
Monitor performance during initial operation
Torque Specifications:
Mounting threads: 35-40 Nm (26-30 ft-lbs)
Port connections: 20-25 Nm (15-18 ft-lbs)
Electrical connector: Hand-tighten until click
