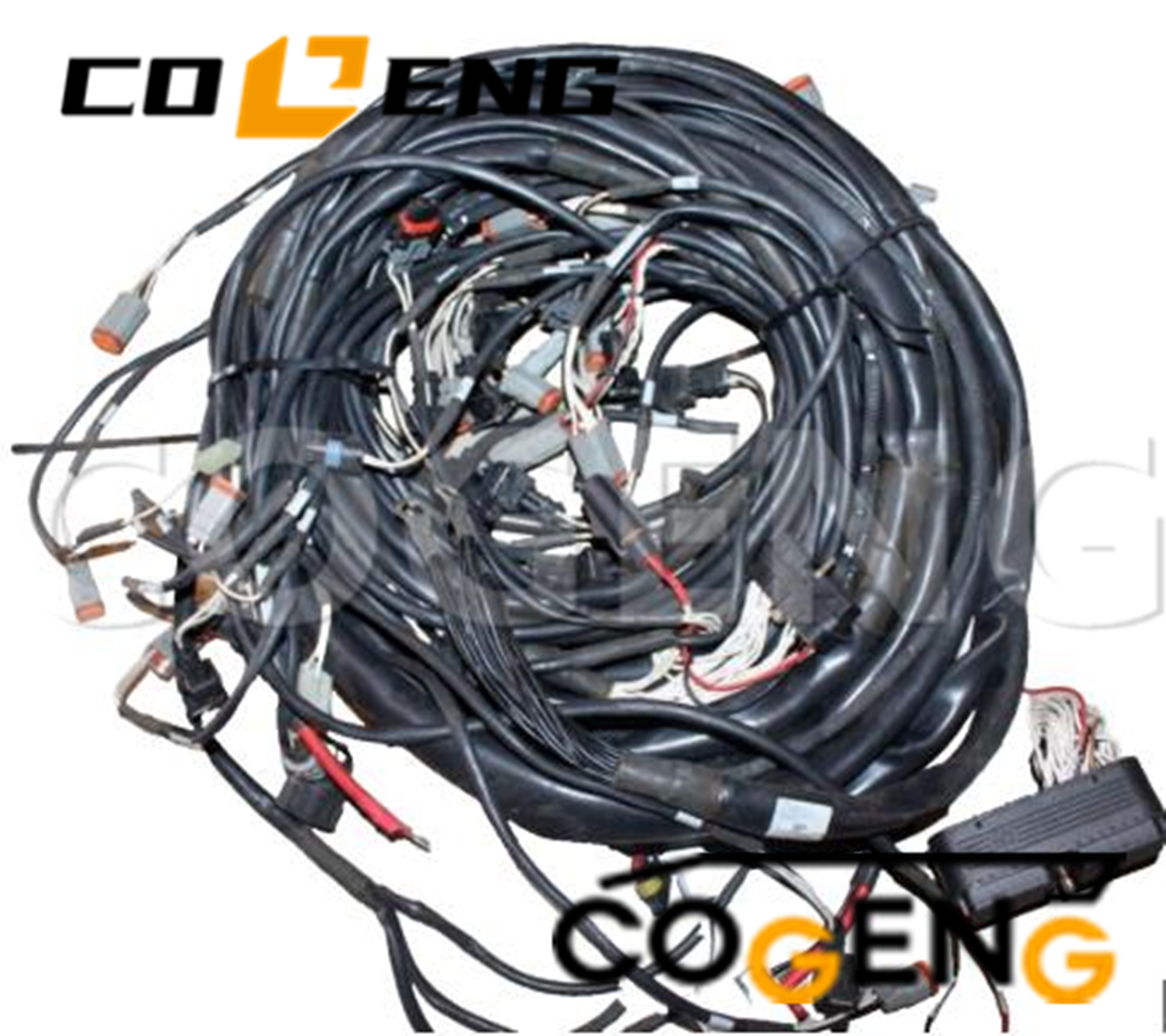

Product name: Liebherr Wiring Harness
Part No: 9842597
Model Number:For LH 30C 30D 40C 40D 50C 50D 60C 60D 80C 80D 100C 100D
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Parameter | Specification | Testing Standard |
|---|---|---|
| COGENG Part Number | COGENG-9842597-WH | Internal Quality Standard QS-493 |
| Replaces OEM Part No. | Liebherr 9842597 | Direct OEM Replacement |
| Wire Specification | FLRY-B 0.35 mm² - 16 mm² | DIN 72551 |
| Temperature Rating | -55°C to +200°C (-67°F to +392°F) | ISO 16750-4 |
| Insulation Material | Fluoroethylene-propylene | DIN 76720 |
| Protective Conduit | Corrugated PA66 | DIN 73378 |
| Voltage Rating | 60V DC | VDE 0472 |
| Current Capacity | 3A - 125A (circuit dependent) | DIN 43671 |
| Insulation Resistance | >500 MΩ at 1000V DC | VDE 0404 |
| Dielectric Strength | 3000V AC for 60 seconds | DIN 57435 |
| Connector System | Liebherr LSC (Liebherr System Connector) | DIN 43650 Form C |
| Environmental Rating | IP69K (connectors) | DIN 40050-9 |
| Vibration Resistance | 5-2000 Hz, 25G RMS | DIN 60068-2-6 |
| Circuit Function | Wire Gauge | Color Code | Connector Type | Liebherr System |
|---|---|---|---|---|
| Litronic Controller | 2.5 mm² | Red/Black | 40-pin LSC Gold | Main control system |
| Proportional Valves | 1.5 mm² | Blue/Yellow | 12-pin LSC HD | Hydraulic control |
| Engine ECU | 4.0 mm² | Orange/Black | 28-pin LSC | D96/D98 engines |
| Sensor Cluster | 0.5 mm² | Various | 8-pin LSC Mini | CAN-Bus sensors |
| Display System | 0.35 mm² | Gray/Violet | 16-pin LSC Flat | LCD displays |
| Lighting System | 2.5 mm² | White/Black | 6-pin LSC IP69K | LED work lights |
| Climate Control | 1.0 mm² | Brown/Blue | 12-pin LSC | HVAC system |
| Starter Circuit | 16 mm² | Red | M10 brass lugs | Heavy-duty starting |
| Alternator Output | 10 mm² | Black | M8 brass lugs | 150A charging system |
| CAN Bus System | 0.75 mm² | Orange/Brown | Twisted pair shielded | Data communication |
| Model Series | Specific Models | Manufacture Years | Serial Number Range |
|---|---|---|---|
| Liebherr LH 30 | LH 30 C, LH 30 D | 2012-2016 | S/N: 3012001-3016500 |
| Liebherr LH 40 | LH 40 C, LH 40 D | 2013-2017 | S/N: 4013001-4017200 |
| Liebherr LH 50 | LH 50 C, LH 50 D | 2014-2018 | S/N: 5014001-5017800 |
| Liebherr LH 60 | LH 60 C, LH 60 D | 2015-2019 | S/N: 6015001-6018200 |
| Liebherr LH 80 | LH 80 C, LH 80 D | 2016-2020 | S/N: 8016001-8018800 |
| Liebherr LH 100 | LH 100 C, LH 100 D | 2017-2021 | S/N: 10017001-10019200 |
Installation decomposition diagram
| Maintenance Activity | Interval | Parameters | Test Equipment |
|---|---|---|---|
| Visual Inspection | 500 hours | Check for abrasion, UV damage | Liebherr diagnostic tool |
| Connector Check | 1000 hours | Verify IP69K seal integrity | LSC test adapter |
| Resistance Test | 2000 hours | Circuit resistance < 0.2Ω | Digital micro-ohmmeter |
| Insulation Test | 4000 hours | >500 MΩ at 1000V DC | Hipot tester |
| CAN Bus Diagnostic | 8000 hours | Network quality analysis | CAN analyzer |
