Parts list
| NO |
Number |
Name |
Qty |
| 1 |
87676058 |
MANIFOLD |
[1] |
| 2 |
86597760 |
HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB |
[1] |
| 3 |
87723783 |

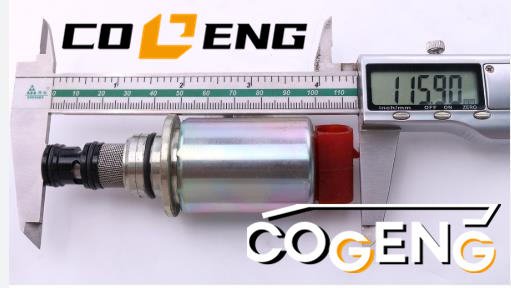

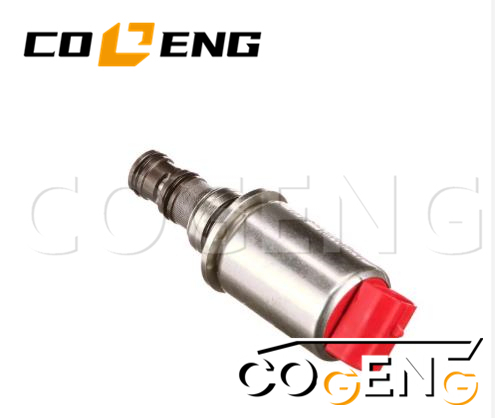

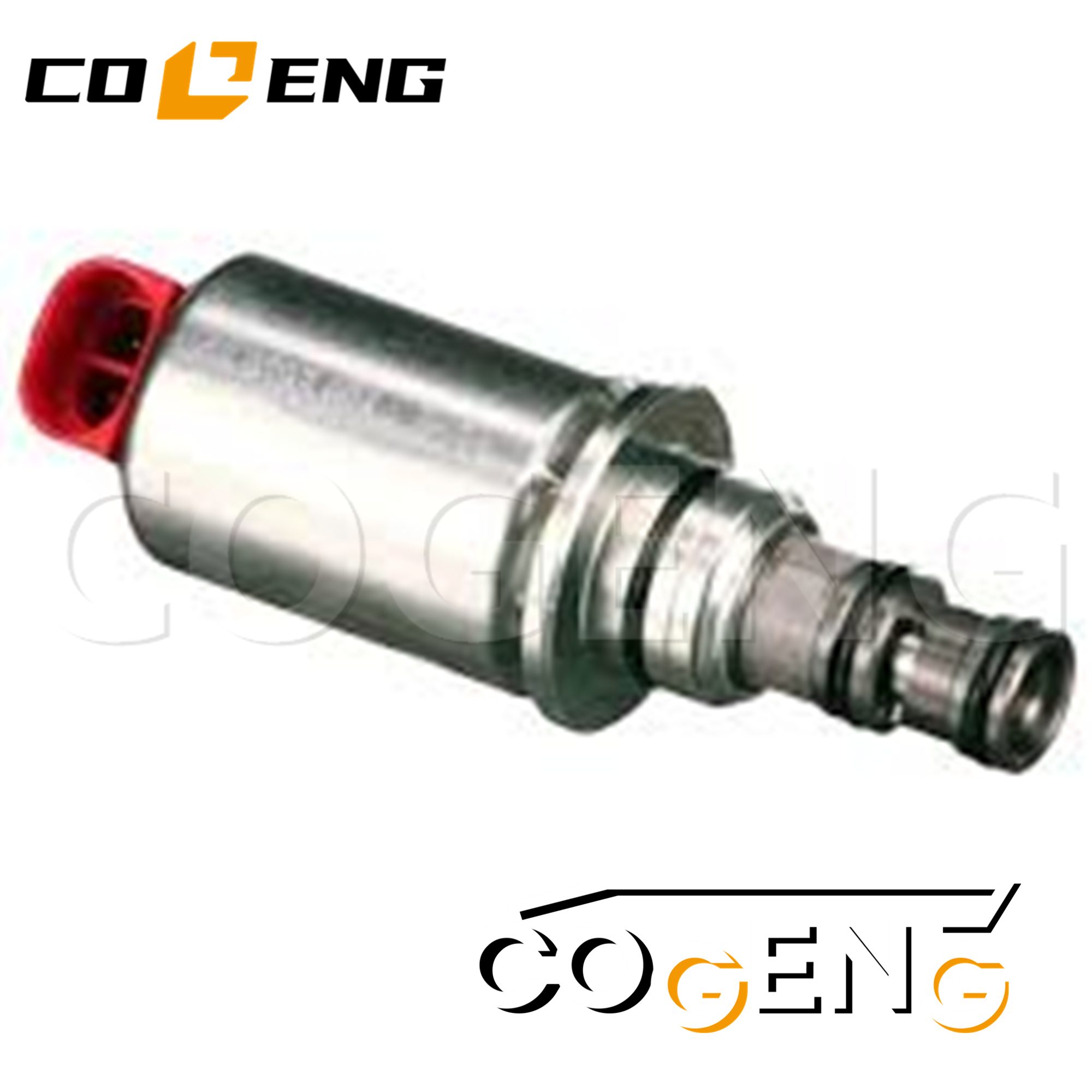

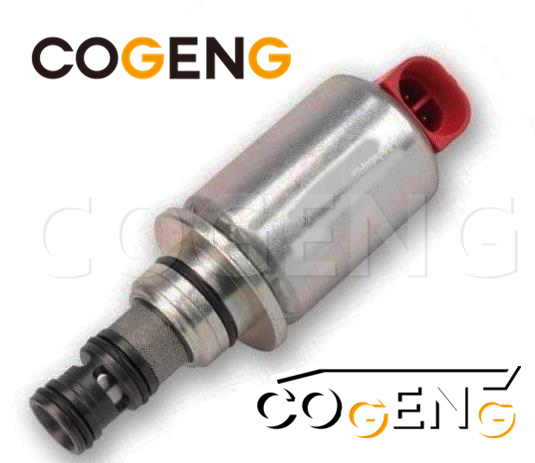

SOLENOID VALVE |
[1] |
| 4 |
87676315 |
TEE |
[1] |
| 5 |
865998043 |
PLUG,M12 x 1.5 ORB |
[2] |
| 6 |
9993143 |
HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB |
[1] |
| 7 |
8767103 |
HYD CONNECTOR |
[1] |
| 8 |
5194826 |
BRACKET |
[1] |
| 9 |
14305124 |
HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd |
[2] |
| 10 |
14457880 |
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro |
[1] |
| 11 |
5185512 |
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro |
[1] |
| 12 |
5185513 |
O-RING,1.78mm Thk x 18.77mm ID, 85 Duro |
[1] |
| 13 |
14438185 |
O-RING,24mm ID x 3mm |
[1] |
| 14 |
86598098 |
O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro |
[1] |
| 15 |
9617873 |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro |
[1] |
| 16 |
9993141 |
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro |
[1] |
| 17 |
5185511 |
O-RING,1.78mm Thk x 12.42mm ID, 85 Duro |
[1] |
| 18 |
86598103 |
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro |
[1] |
| 19 |
9992069 |
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro |
[1] |
| 20 |
5185423 |
COUPLING |
[1] |
| 21 |
8753222 |
PLUG,Hex, M10 x 1 x 13mm |
[4] |
| 22 |
87316678 |
SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk |
[4] |
| 23 |
84340724 |
STUD |
[1] |
| 24 |
84286799 |
SOLENOID VALVE |
[3] |
| 25 |
84537085 |

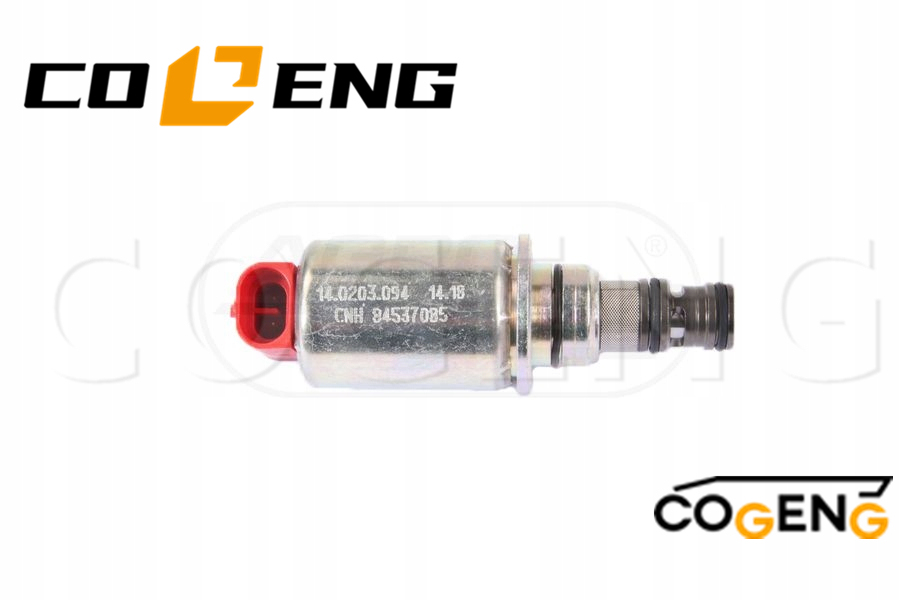

SOLENOID VALVE |
[1] |
Pre-Installation Preparation
Identify specific valve location and application
Clean work area around each valve location
Verify correct valve selection for each position
Gather appropriate tools and sealants
System Safety Depressurization
Cycle all hydraulic controls to relieve pressure
Slowly loosen hydraulic connections to release residual pressure
Cap open hydraulic lines immediately
Valve Replacement Process
Disconnect electrical connector
Remove old valve using proper tools
Clean mounting surface thoroughly
Install new valve with appropriate sealant
Torque to specified values (20-30 Nm / 15-22 ft-lbs)
System Testing & Commissioning
Reconnect all electrical connections
Reconnect battery
Start tractor and operate at idle
Check for leaks at each installation point
Verify proper function of all systems
Installation Specifications:
Mounting torque: 20-30 Nm (15-22 ft-lbs)
Thread sealant: Loctite 577 or Teflon tape
Fluid compatibility: Check manufacturer specifications
Electrical connection: Secure until audible click
