| Parameter |
Specification |
Technical Details |
| COGENG Part Number |
COGENG-CNH-SVKIT |
Comprehensive 4-valve replacement kit |
| Replaces OEM Part No. |
87723783, 84276869, 84537085, 84286799 |
Complete OEM replacement solution |
| Voltage Rating |
12V DC (±15%) |
Standard agricultural electrical system compatibility |
| Current Consumption |
2.0A - 2.5A @ 12V (varies by valve) |
Optimized for tractor electrical capacity |
| Operating Pressure |
0-3200 PSI (0-220 bar) |
Rated for high-pressure tractor hydraulic systems |
| Response Time |
< 35 milliseconds |
Rapid response for precise hydraulic control |
| Temperature Range |
-30C to +110C (-22F to +230F) |
Suitable for extreme agricultural environments |
| Insulation Class |
Class F (155C) |
Reliable thermal performance in demanding conditions |
| Protection Rating |
IP67 |
Superior protection against dust and moisture |
| Duty Cycle |
100% continuous duty |
Suitable for extended agricultural operations |
| Fluid Compatibility |
UTF, AW46, Hy-Gard, and other agricultural hydraulic oils |
Broad fluid compatibility |
| Body Material |
Brass with zinc-nickel plating |
Maximum corrosion resistance for farm use |
| Seal Materials |
Nitrile (Standard) / Viton(Optional) |
Compatible with agricultural fluids and environments |
|
|
|
| Dimensional Specifications |
|
|
| Dimension |
Value |
Tolerance |
| Overall Length |
128-152 mm |
±1.2 mm |
| Body Diameter |
42-55 mm |
±0.6 mm |
| Mounting Thread |
3/8" NPT - 1/2" NPT |
Standard |
| Port Size |
1/4" NPT - 3/8" NPT |
Standard |
| Electrical Connector |
2-pin Deutsch DT04 |
Industry standard |
| Wire Length |
350-500 mm |
±20 mm |
| Weight per Valve |
0.68-0.95 kg |
±0.06 kg |

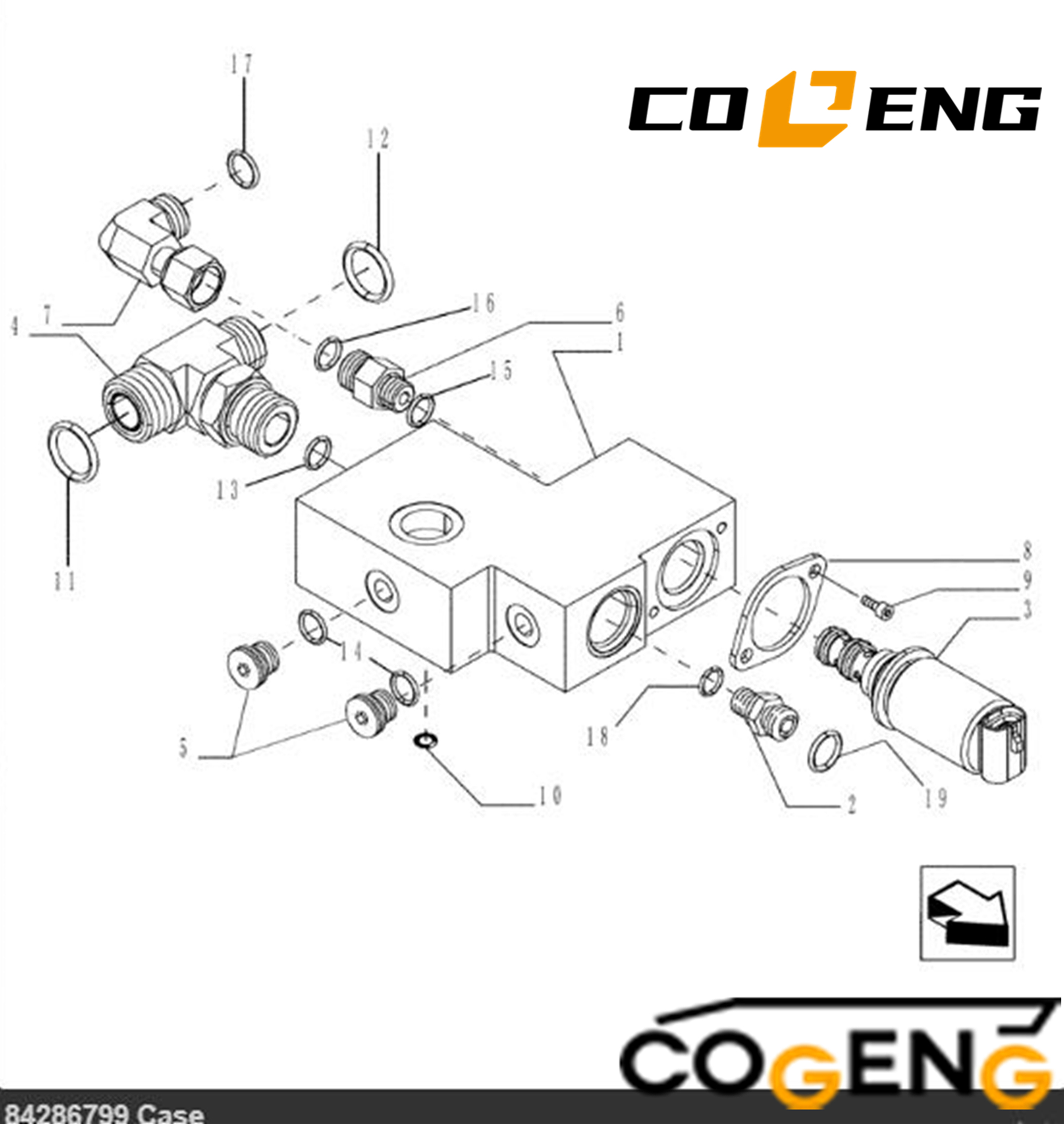

Parts list
| NO |
Number |
Name |
Qty |
| 1 |
87676058 |
MANIFOLD |
[1] |
| 2 |
86597760 |
HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB |
[1] |
| 3 |
84286799 |
SOLENOID VALVE |
[1] |
| 4 |
87676315 |
TEE |
[1] |
| 5 |
865998043 |
PLUG,M12 x 1.5 ORB |
[2] |
| 6 |
9993143 |
HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB |
[1] |
| 7 |
8767103 |
HYD CONNECTOR |
[1] |
| 8 |
5194826 |
BRACKET |
[1] |
| 9 |
14305124 |
HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd |
[2] |
| 10 |
14457880 |
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro |
[1] |
| 11 |
5185512 |
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro |
[1] |
| 12 |
5185513 |
O-RING,1.78mm Thk x 18.77mm ID, 85 Duro |
[1] |
| 13 |
14438185 |
O-RING,24mm ID x 3mm |
[1] |
| 14 |
86598098 |
O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro |
[1] |
| 15 |
9617873 |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro |
[1] |
| 16 |
9993141 |
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro |
[1] |
| 17 |
5185511 |
O-RING,1.78mm Thk x 12.42mm ID, 85 Duro |
[1] |
| 18 |
86598103 |
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro |
[1] |
| 19 |
9992069 |
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro |
[1] |
| 20 |
5185423 |
COUPLING |
[1] |
Pre-Installation Preparation
Identify specific valve location and application
Clean work area around each valve location
Verify correct valve selection for each position
Gather appropriate tools and sealants
System Safety Depressurization
Cycle all hydraulic controls to relieve pressure
Slowly loosen hydraulic connections to release residual pressure
Cap open hydraulic lines immediately
Valve Replacement Process
Disconnect electrical connector
Remove old valve using proper tools
Clean mounting surface thoroughly
Install new valve with appropriate sealant
Torque to specified values (20-30 Nm / 15-22 ft-lbs)
System Testing & Commissioning
Reconnect all electrical connections
Reconnect battery
Start tractor and operate at idle
Check for leaks at each installation point
Verify proper function of all systems
Installation Specifications:
Mounting torque: 20-30 Nm (15-22 ft-lbs)
Thread sealant: Loctite 577 or Teflon tape
Fluid compatibility: Check manufacturer specifications
Electrical connection: Secure until audible click
