Supply :500PCS
Decompose pictures
▶ Performance barriers
Parameter Value User Revenue
Pressure rating 31.5 MPa (315 bar) exceeds the limit of 20MPa of ordinary valves and adapts to the high-pressure impact conditions of excavators
Flow capacity 40 L/min @ΔP=0.5MPa Ensure fast response of the boom/travel motor and eliminate delayed operation
Sealing technology Viton (FKM) + nickel-plated spool Anti-oil temperature aging (-20°C~150°C), the service life is increased by 3 times
ISO 4401-05 certification standard for universal mounting hole spacing, replacement of original valves without modification
Parts list
| № |
Number |
Name |
Qty |
|
|
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. |
|
|
714-16-20001 |
TRANSMISSION ASS'Y THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-68A0 |
1 |
|
714-16-25030 |
• CONTROL VALVE ASS'Y,T/M ASS'Y THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-61A0 TO F4350-63A0A |
1 |
|
714-11-16200 |
•• VALVE ASS'Y,LOWER ASS THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-62A0 TO F4350-63A0A |
1 |
|
714-11-16900 |
••• VALVE ASS'Y,SOLENOID |
1 |
| 1 |
714-11-16800 |
••• BODY ASS'Y,SOLENOID |
1 |
| 2 |
714-11-16830 |
••• SOLENOID VALVE |
2 |
| 3 |

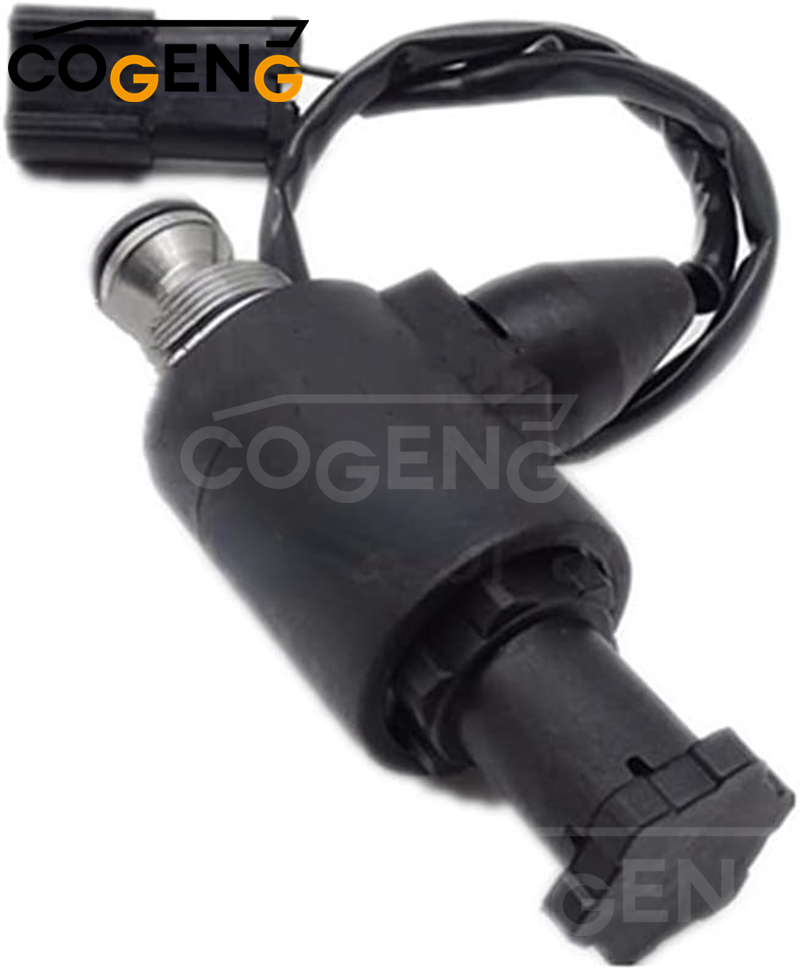

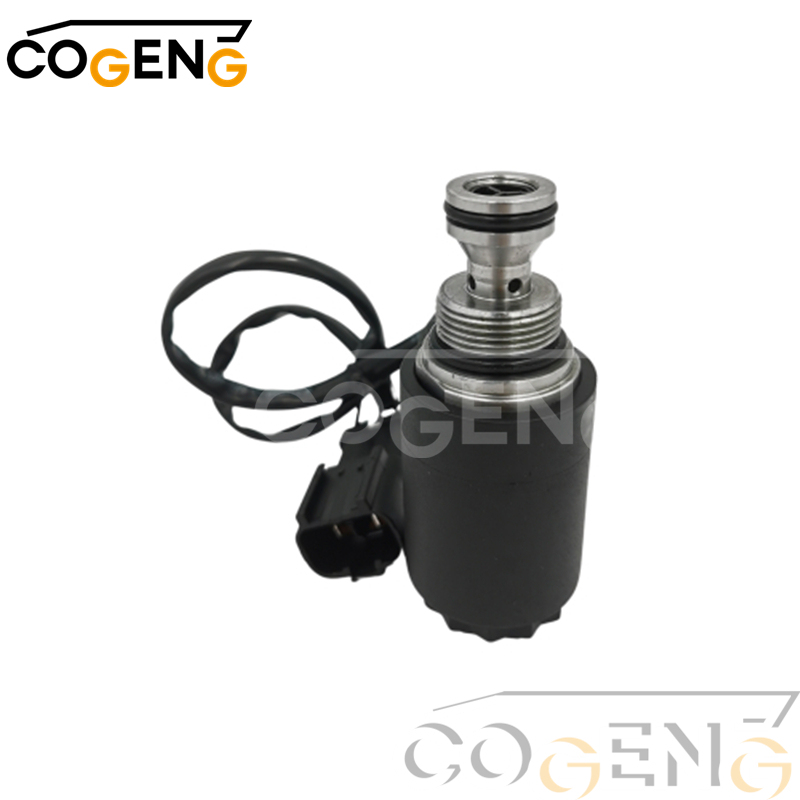

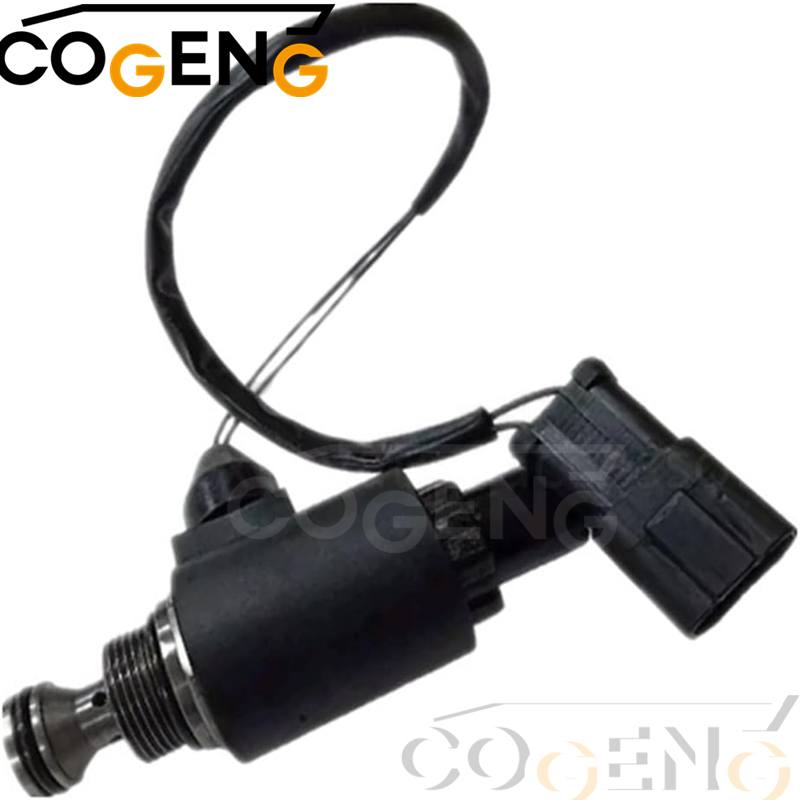

714-11-16840 |
••• SOLENOID VALVE |
2 |
| 4 |
714-11-16811 |
••• BRACKET |
1 |
| 5 |
01010-80816 |
••• BOLT |
2 |
| 6 |
01643-30823 |
••• WASHER |
2 |
| 7 |
08034-00414 |
••• BAND |
2 |
| 8 |
01010-81085 |
••• BOLT |
1 |
| 9 |
01011-81015 |
••• BOLT |
1 |
| 10 |
01011-81015 |
••• BOLT |
4 |
| 11 |
01010-81085 |
••• BOLT |
2 |
| 12 |
01010-81085 |
••• BOLT |
1 |
| 13 |
01643-31032 |
••• WASHER |
10 |
| 14 |
195-30-34260 |
••• WASHER |
1 |
| 15 |
419-06-12840 |
••• PLATE |
1 |
| 16 |
07043-70108 |
••• PLUG |
1 |
| 17 |
419-15-16811 |
•• GASKET,UPPER |
1 |
| 18 |
01010-80860 |
•• BOLT |
1 |
| 19 |
01010-80875 |
•• BOLT |
1 |
| 20 |
419-15-16660 |
•• FILTER ASS'Y |
1 |
|
419-15-16930 |
••• ELEMENT |
1 |
|
419-15-16940 |
••• HEAD |
1 |
|
419-15-16950 |
••• O-RING |
1 |
|
419-15-16960 |
••• CASE,FILTER |
1 |
| 21 |
07000-02014 |
•• O-RING |
2 |
| 22 |
01010-81035 |
•• BOLT |
2 |
| 23 |
01602-01030 |
•• WASHER |
2 |
| 24 |
01642-21016 |
•• WASHER |
2 |
| 29 |
708-1S-15350 |
•• SEAT |
|
| 30 |
708-1S-15360 |
•• SEAT |
|
| 31 |
708-3T-15811 |
•• ORIFICE |
|
| 32 |
702-21-60700 |
•• PILOT VALVE |
|
| 33 |
01252-60635 |
•• BOLT |
|
| 34 |
708-8E-16150 |
•• PLUG |
|
| 35 |
07002-11023 |
•• O-RING |
|
| 36 |
20B-27-11210 |
•• BLEEDER |
|
▶ Intelligent control
Three-position four-way valve spool (O-type median function): median unloading and pressure holding are optional, energy saving and consumption reduction
Electromagnetic pilot + hydraulic control drive: DC24V low-power coil (mainstream configuration), response speed < 0.1 seconds
Anti-stagnation design: spool mirror polishing + chamfer deburring to cope with hydraulic oil pollution conditions
