| Parameter | Specification | Testing Standard |
|---|---|---|
| Maximum Operating Pressure | 34 MPa (4,931 PSI) | ISO 10766 |
| Asymmetric Load Rating | 15% offset loading at 25 MPa | SAE J1516 modified |
| Temperature Range | -35°C to +120°C (-31°F to +248°F) | ASTM D2000 |
| Pressure Spike Handling | 50 MPa (7,252 PSI) for ≤0.3 seconds | ISO 10767-1 |
| Seal Material Density | 1.29-1.36 g/cm³ | ASTM D792 |
| Compression Set | ≤ 9% (70 hours @ 110°C) | ASTM D395 Method B |
| Tensile Strength | ≥ 19 MPa (2,756 PSI) | ASTM D412 |
| Elongation at Break | ≥ 310% | ASTM D412 |
| Tear Strength | ≥ 42 kN/m | ASTM D624 Die C |
| Volume Swell | ≤ 6.5% in AW46 hydraulic oil (168 hrs @ 100°C) | ASTM D471 |
| Asymmetric Friction | 0.10-0.20 (varies with side load) | COGENG Test Method CTM-24670 |
| Thermal Conductivity | 0.31 W/m·K | ASTM E1225 |
| Specific Heat Capacity | 1.88 kJ/kg·K | ASTM E1269 |
| Angular Misalignment | ±4° continuous operation | ISO 6020-2 |
| Equipment Type | Komatsu Models | Cylinder Position | Kit Variant | Notes |
|---|---|---|---|---|
| Crawler Dozers | D65EX/PX-12, D85EX/PX-12 | Blade Tilt (Left/Right) | 707-99-24670-A | Paired cylinders |
| D155AX, D275AX | Blade Tilt | 707-99-24670-B | Larger bore | |
| Wheel Loaders | WA320-5, WA320-6 | Bucket Tilt | 707-99-24670-C | High cycle rate |
| WA380-5, WA380-6 | Bucket Tilt | 707-99-24670-D | Mining applications | |
| Motor Graders | GD655-5, GD675-3 | Moldboard Tilt | 707-99-24670-E | Continuous angle changes |
| Excavators | PC300-7, PC300-8 | Tilt Bucket Option | 707-99-24670-F | Attachment specific |

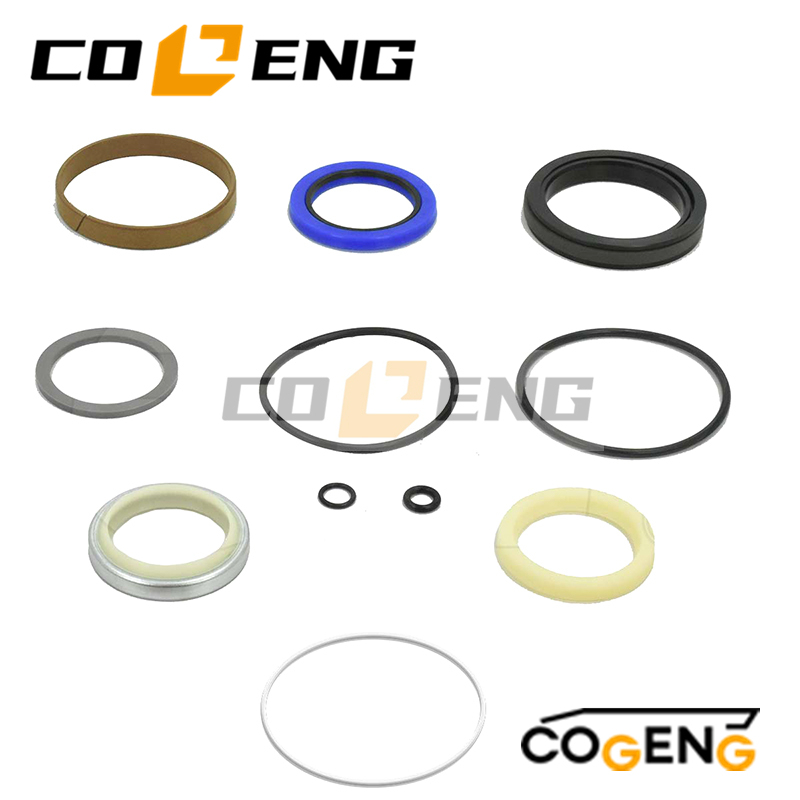

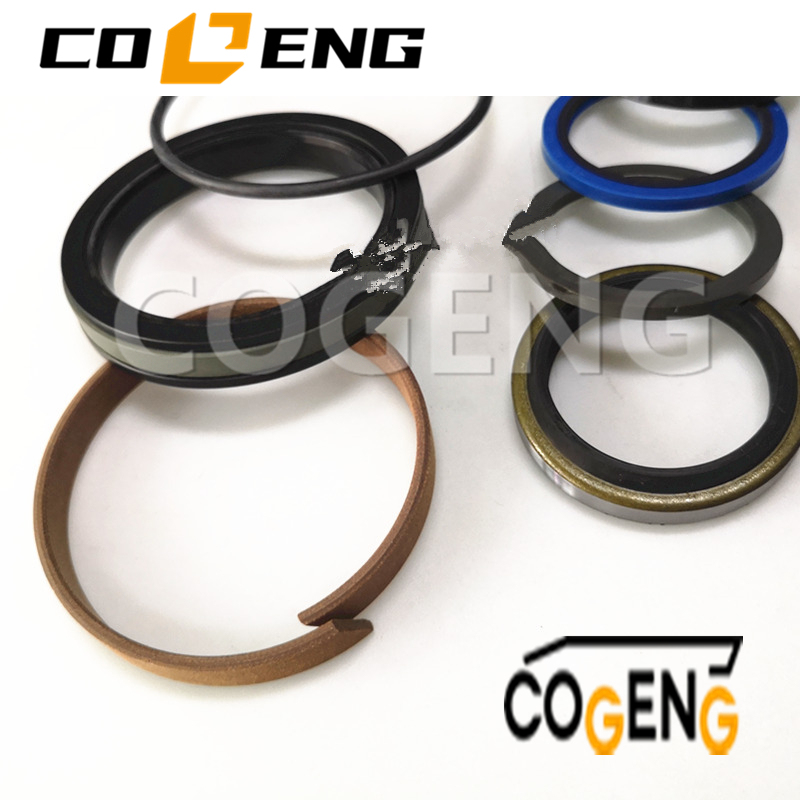

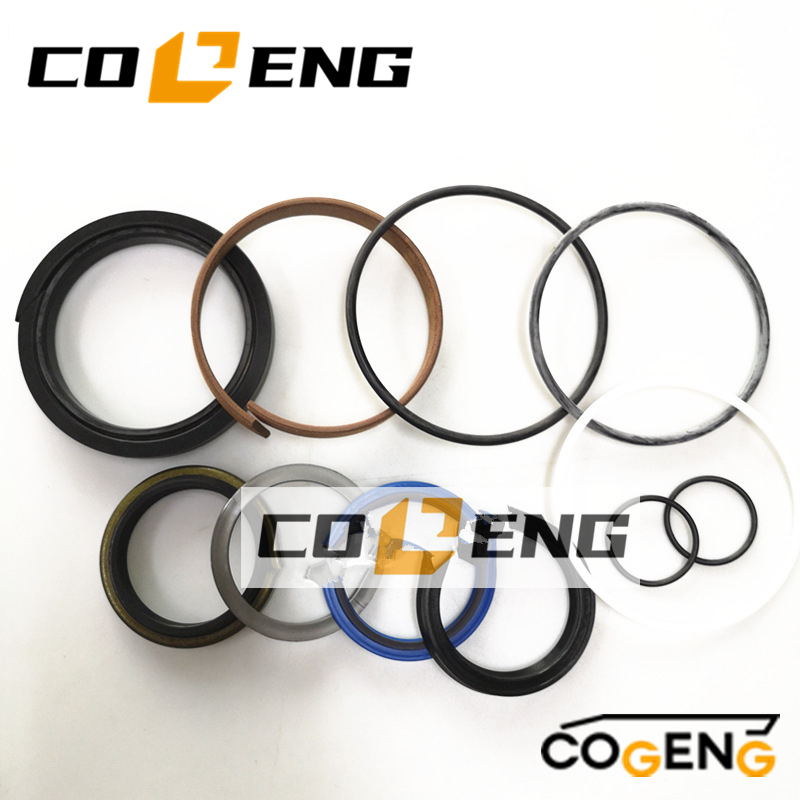

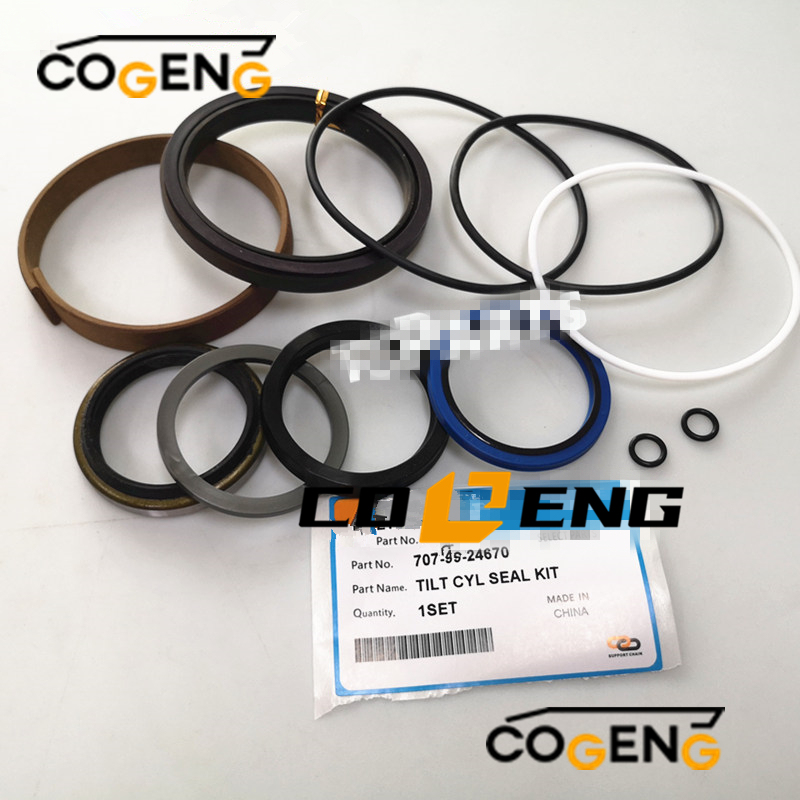

| Component | COGENG Part Number | Material Composition | Hardness | Special Features | Quantity |
|---|---|---|---|---|---|
| Asymmetric Piston Seal | CG-APS-24670-01 | HNBR with Aramax™ reinforcement | 91 ± 2 Shore A | Directional loading compensation | 2 |
| Multi-Angle Rod Seal | CG-MARS-24670-01 | Polyurethane (EU) with graphite | 93 ± 3 Shore A | Variable lip geometry | 2 |
| Angular Wiper Assembly | CG-AWA-24670-01 | PU with dual-density construction | 94/82 Shore A | Contaminant exclusion at all angles | 1 |
| Side-Load Wear Band | CG-SLWB-24670-01 | Bronze-PTFE-carbon composite | 62 ± 5 Shore D | Extra width (22mm) for stability | 2 |
| Pressure-Balanced Backup | CG-PBB-24670-01 | Glass-PEEK composite | 85 ± 5 Shore D | Variable thickness design | 4 |
| Gland Seal System | CG-GSS-24670-01 | HNBR with Nomex® carrier | 84 ± 3 Shore A | Integrated anti-rotation | 1 |
| Component | COGENG Part Number | Function | Material | Critical Specification |
|---|---|---|---|---|
| Angle Compensator Ring | CG-ACR-24670-01 | Maintains seal contact during tilt | Filled PTFE | ±5° continuous operation |
| Tilt Arc Guide | CG-TAG-24670-01 | Prevents rod scoring at extremes | Oil-impregnated bronze | 120° arc compatibility |
| Asymmetric Cushion | CG-ASC-24670-01 | Differentiated stroke-end protection | Microcellular PU | 15% variance end-to-end |
| Load Indicator Seal | CG-LIS-24670-01 | Visual wear indication | Color-changing HNBR | Changes at 75% wear life |
| Component Type | Material Grade | Hardness | Quantity | Application Notes |
|---|---|---|---|---|
| Static O-Rings | FKM (Grade 75) | 75 ± 5 Shore A | 10 | High-temperature areas |
| Port Seals | HNBR | 70 ± 5 Shore A | 6 | Pressure to 40 MPa |
| Breather Seals | NBR with filter media | 65 ± 5 Shore A | 2 | 10µm filtration |
| Thread Protectors | PTFE composite | N/A | 4 | Reusable design |
| NO | Number | Name | Qty |
| 707-99-24670 | SERVICE KIT | 1 | |
| 707-00-0A042 | CYLINDER ASS'Y | 1 | |
| 1 | 721-11-90360 | • CYLINDER | 1 |
| 2 | 02896-11008 | • O-RING (KIT) | 2 |
| 3 | 707-46-03020 | • BUSHING | 1 |
| 4 | 04065-07225 | • RING,SNAP | 2 |
| 5 | 07020-00675 | • FITTING,GREASE | 1 |
| 6 | 707-29-90601 | • HEAD,CYLINDER | 1 |
| 7 | 707-52-90220 | • BUSHING | 1 |
| 8 | 707-51-45030 | • PACKING,ROD (KIT) | 1 |
| 9 | 707-51-45640 | • RING,BUFFER (KIT) | 1 |
| 10 | 707-56-45580 | • SEAL,DUST (KIT) | 1 |
| 11 | 07179-12057 | • RING,SNAP | 1 |
| 12 | 07000-12085 | • O-RING (KIT) | 1 |
| 13 | 07146-02086 | • RING,BACK-UP (KIT) | 1 |
| 14 | 07000-12090 | • O-RING (KIT) | 1 |
| 15 | 707-58-45900 | • ROD,PISTON | 1 |
| 16 | 707-46-03020 | • BUSHING | 1 |
| 17 | 04065-07225 | • RING,SNAP | 2 |
| 18 | 07020-00900 | • FITTING,GREASE | 1 |
| 19 | 707-36-90360 | • PISTON | 1 |
| 20 | 707-44-90180 | • RING,PISTON (KIT) | 1 |
| 21 | 07156-00912 | • RING,WEAR (KIT) | 1 |
| 22 | 707-67-33010 | • NUT | 1 |
Functional Testing:
Full stroke cycles: 20 minimum
Angle sweep test: Full left to full right tilt
Drift test: ≤3mm/10 minutes at 25 MPa
Load test: Apply 80% rated load, check smooth operation
⚠️ TILT CYLINDER SPECIFIC REQUIREMENTS:
Asymmetric loading: Seals must be installed in correct orientation
Angle compensation: Must verify ± operational angle before installation
Pressure reversal: Some tilt systems reverse flow - verify circuit design
Side load consideration: Extra wear band clearance may be required
⚠️ ABSOLUTE PROHIBITIONS:
NEVER install standard cylinder seals in tilt applications
NEVER exceed 5° angular misalignment during installation
NEVER reuse old mounting hardware
NEVER mix seal types or materials in same cylinder
⚠️ FLUID & FILTRATION REQUIREMENTS:
System flush mandatory if ISO code > 17/15/12
Filtration: 3µm absolute before installation
Fluid compatibility: Must use fluid type specified in equipment manual
Temperature: Test at 50±5°C (122±9°F) fluid temperature
