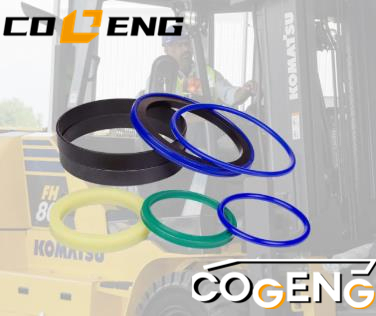

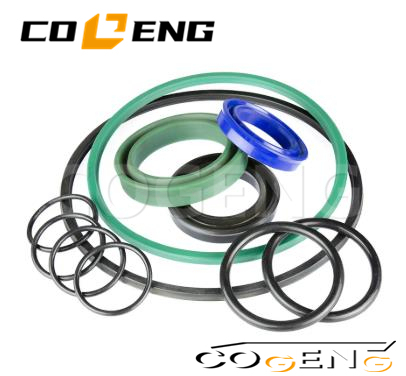

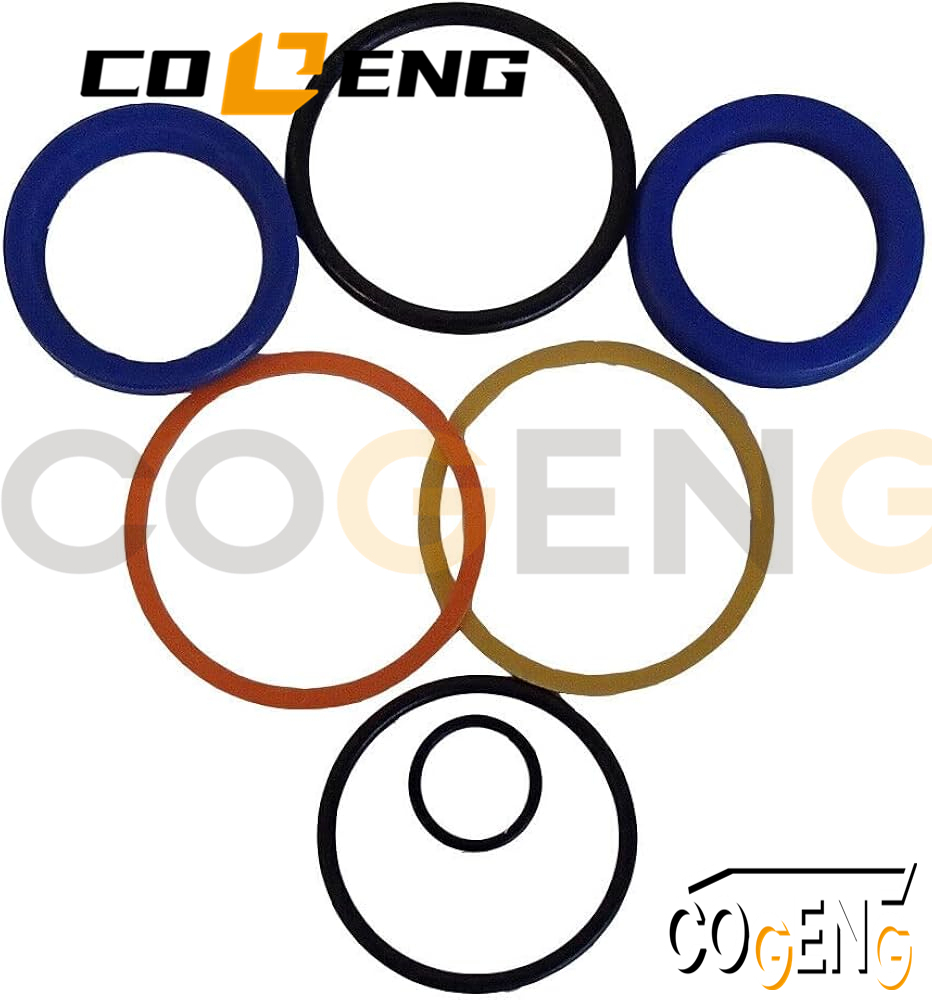

COGENG 707-99-22010 Komatsu Premium Hydraulic Cylinder Seal Kit

Technical Constants & Performance Data

Component Specifications Table

Compatible Machine Models

Parts list




Installation decomposition diagram

Pre-Installation Requirements

1. Workspace Preparation: Maintain ISO 4406 Class 8/7/5 cleanliness in assembly area

2. Tool Requirements: Use only non-metallic installation tools (plastic/brass)

3. Temperature Control: Store and install at 15-25°C (59-77°F) for optimal seal performance

4. Surface Finish Verification:

   • Cylinder bore: Ra ≤ 0.4 µm, Rz ≤ 3.2 µm

   • Piston rod: Ra ≤ 0.2 µm, Rz ≤ 1.6 µm

   • Hardness: ≥ 58 HRC for chrome-plated surfaces

Step-by-Step Installation

1. Component Inspection: Verify all parts against packing list CG-PL-22010

2. Surface Preparation:

   • Clean with solvent meeting ISO 11158:1997

   • Remove all burrs with 400-grit abrasive

   • Apply temporary corrosion inhibitor

3. Seal Installation Sequence:

   • Install wear bands first (heat to 80°C/176°F if necessary)

   • Install primary piston seals with COGENG installation cone P/N CG-IC-22010

   • Install rod seals with protective sleeve P/N CG-PS-22010

   • Torque gland nuts to 450-500 N·m (332-369 ft-lbs) in crisscross pattern

4. Post-Installation Procedures:

   • Pressure test at 5 MPa increments to 35 MPa

   • Cycle cylinder 10 times at 50% stroke

   • Final leak check at operating temperature (50-60°C)

Critical Warnings

⚠️ DO NOT use petroleum-based lubricants during installation
⚠️ DO NOT exceed 130°C operating temperature continuously
⚠️ REQUIRED: Install within 24 hours of opening vacuum-sealed packaging
⚠️ MANDATORY: Replace all bolts with new high-tensile fasteners (ISO 898-1 Class 10.9)
