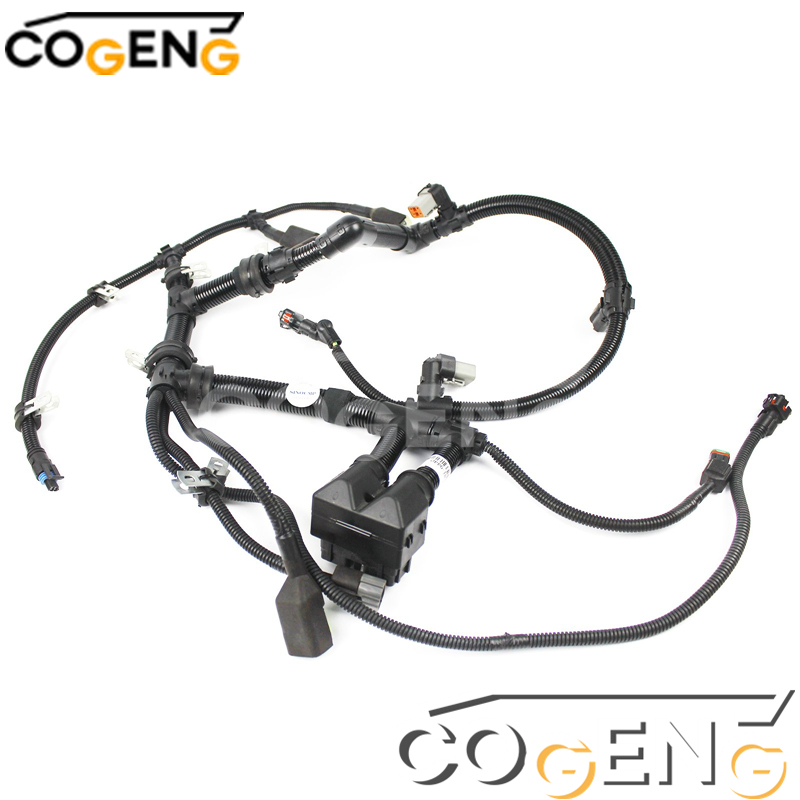

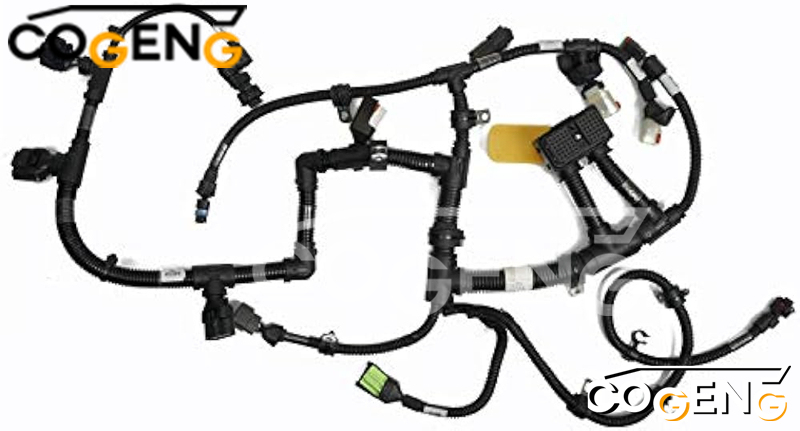

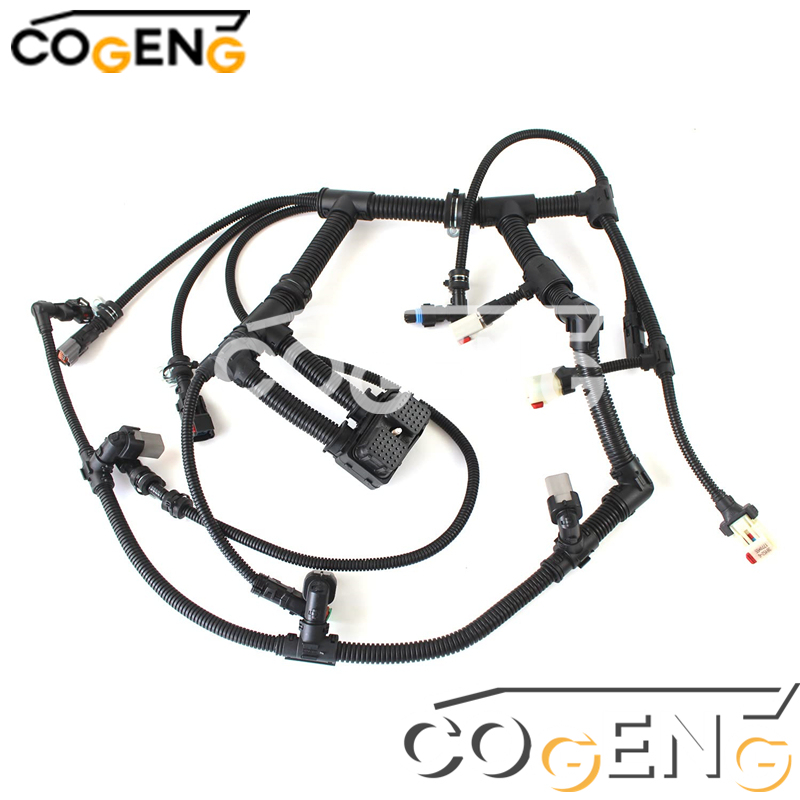

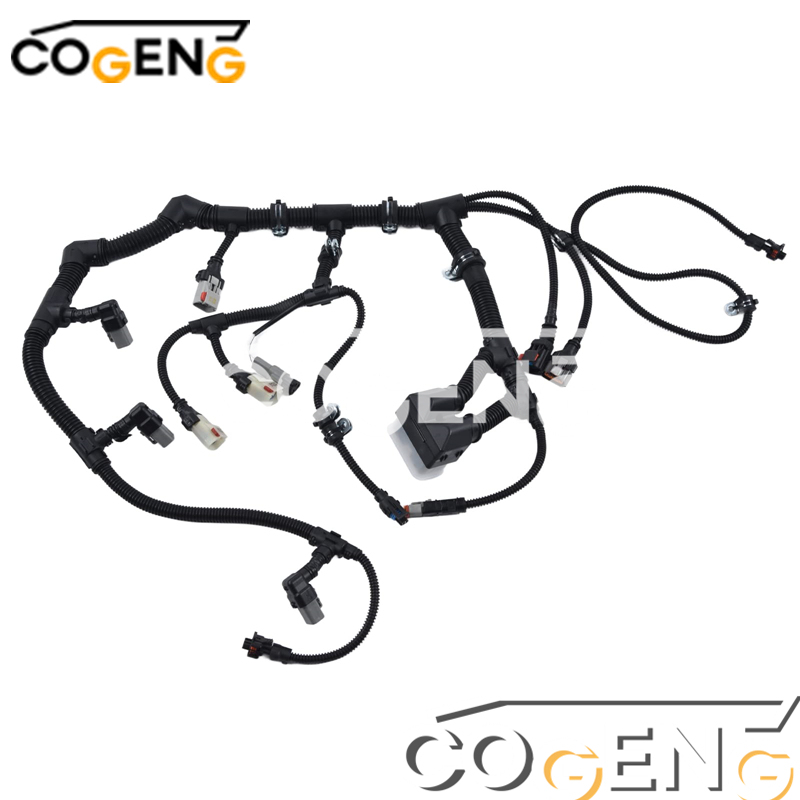

6754-81-9440 Komatsu Wiring Harness PC200-8 PC210-8 PC220-8
Product name: Komatsu Wiring Harness
Part No: 6754-81-9440 6754819440
Model Number:For PC200-8 PC210-8 PC220-8 SAA6D107/Eseries SAA6D107E-1B SAA6D107E-1C-W1 SAA6D107-1AA-W SAA6D107E-1 GD535-5 EX500
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
CertifiCATEEion:ISO9001
Supply :500PCS
| Specification Category |
Detailed Specification |
| COGENG Part Number |
CG-KOM-6754819440 |
| OEM Reference Number |
6754-81-9440 |
| Construction Standard |
Komatsu OEM Specifications |
| Wire Insulation Material |
Oil-Resistant Cross-Linked Polyethylene (XLPE) |
| Connector Protection Rating |
IP66 (Dust Tight & Powerful Water Jet Resistant) |
| Operating Temperature Range |
-40°C to 125°C |
| System Voltage Rating |
24V DC System |
| Wire Gauge Compliance |
Meets Komatsu Original Specifications |
| Quality Verification |
100% Circuit Continuity & Insulation Tested |
| Warranty Protection |
18-Month Limited Warranty |
Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
6754-81-9450 |
WIRE HARNESS |
1 |
| 1 |
6754-81-9210 |
WIRE HARNESS |
3 |
| 2 |
6754-81-9220 |
CLIP |
3 |
| 3 |
6754-81-9230 |
CLIP |
6 |
| 4 |
6754-81-9440 |
WIRE HARNESS |
1 |
| 4 |
6754-81-9310 |
WIRE HARNESS |
1 |
| 5 |
6732-21-4180 |
BOLT |
3 |
| 6 |
6162-23-5770 |
SPACER |
1 |
| 7 |
01435-60835 |
BOLT |
1 |
| 7 |
6732-61-6140 |
BOLT |
1 |
| 7 |
6754-81-9320 |
BOLT |
1 |
| 8 |
6754-81-9330 |
SPACER |
1 |
| 9 |
6731-61-1370 |
BOLT |
1 |
| 10 |
6216-74-6180 |
BOLT |
2 |
| 11 |
01584-00605 |
NUT |
3 |
| 12 |
6732-71-3210 |
NUT |
1 |
| 13 |
6754-71-5330 |
CLIP |
1 |
| 14 |
6754-81-9340 |
BRACKET |
2 |
| 15 |
6754-81-9230 |
CLIP |
2 |
| 16 |
6736-81-5110 |
BOLT |
2 |
| 17 |
6754-81-9280 |
BRACKET |
1 |
| 18 |
01435-60816 |
BOLT |
2 |
| 18 |
6732-21-3120 |
BOLT |
2 |
| 19 |
01435-60612 |
BOLT |
1 |
| 19 |
6733-71-5680 |
BOLT |
1 |
| 20 |
6754-81-9270 |
BRACKET |
1 |
| 21 |
6754-81-9390 |
BOLT |
1 |
| 22 |
04434-51308 |
CLIP |
1 |
| 23 |
6216-74-6180 |
BOLT |
1 |

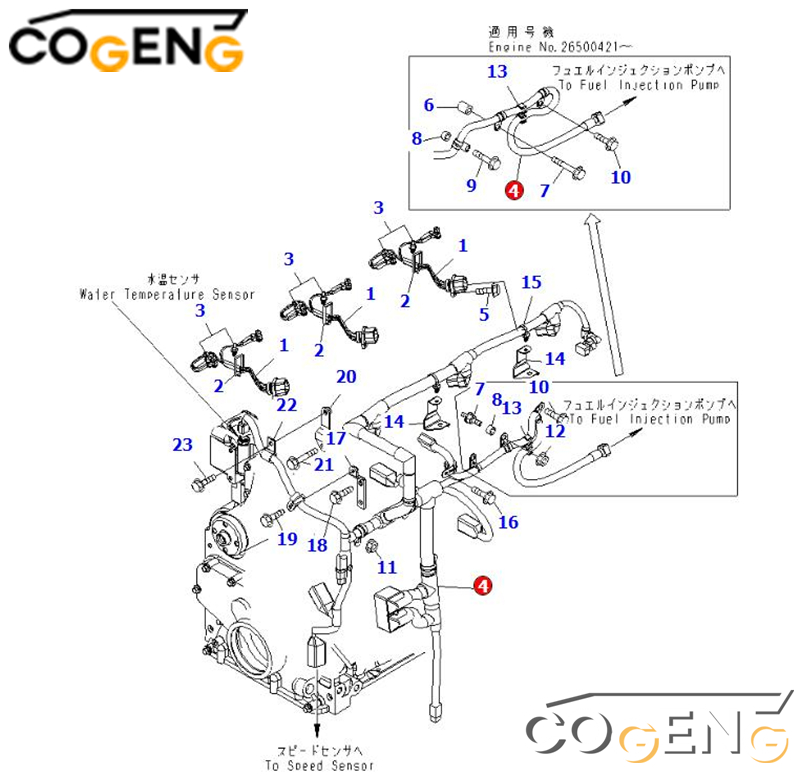

Installation decomposition diagram
-
Disconnect battery and main power sources before installation
-
Follow OEM routing paths and secure with original mounting hardware
-
Ensure all connectors are fully engaged and locking mechanisms secured
-
Verify proper clearance from moving parts and hot surfaces
-
Test all electrical functions and system diagnostics after installation
