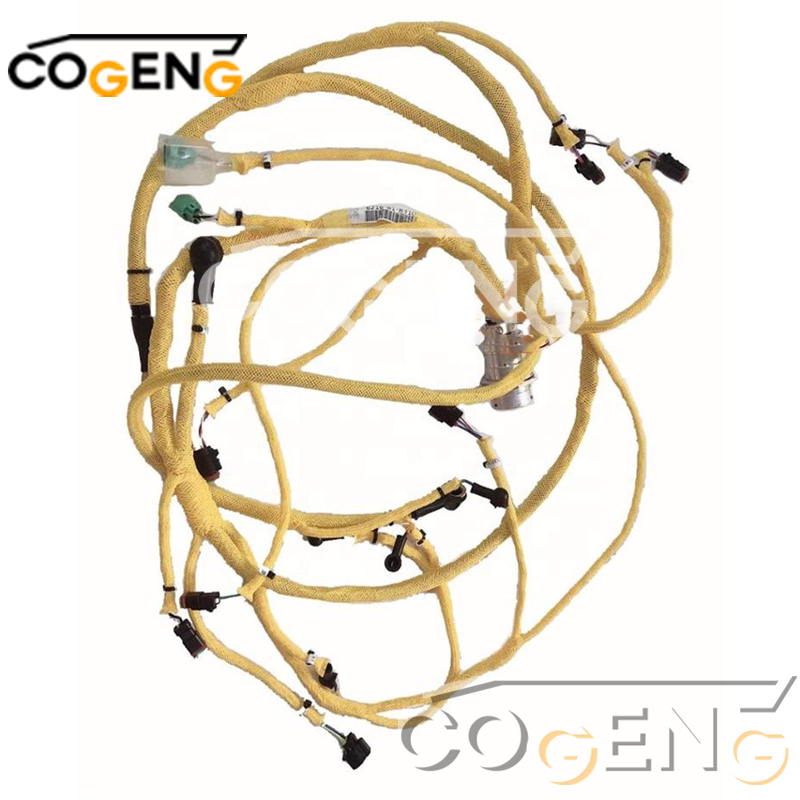

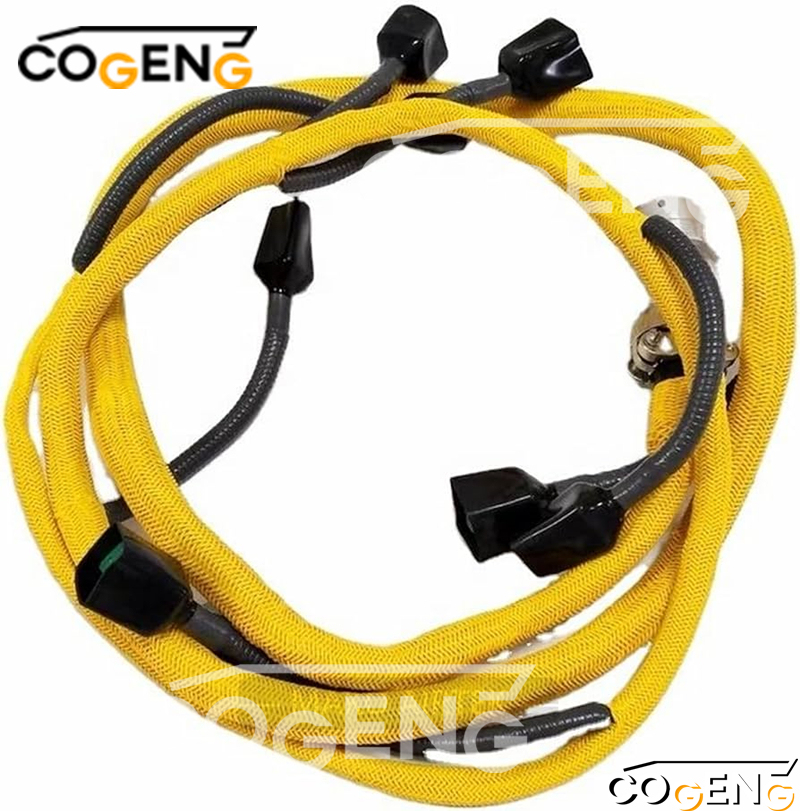

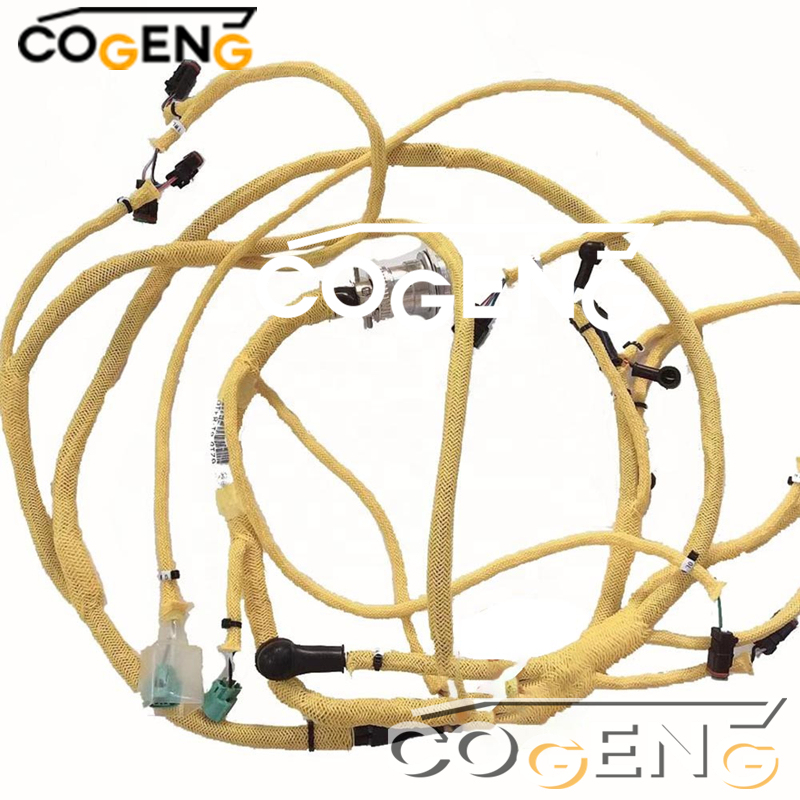

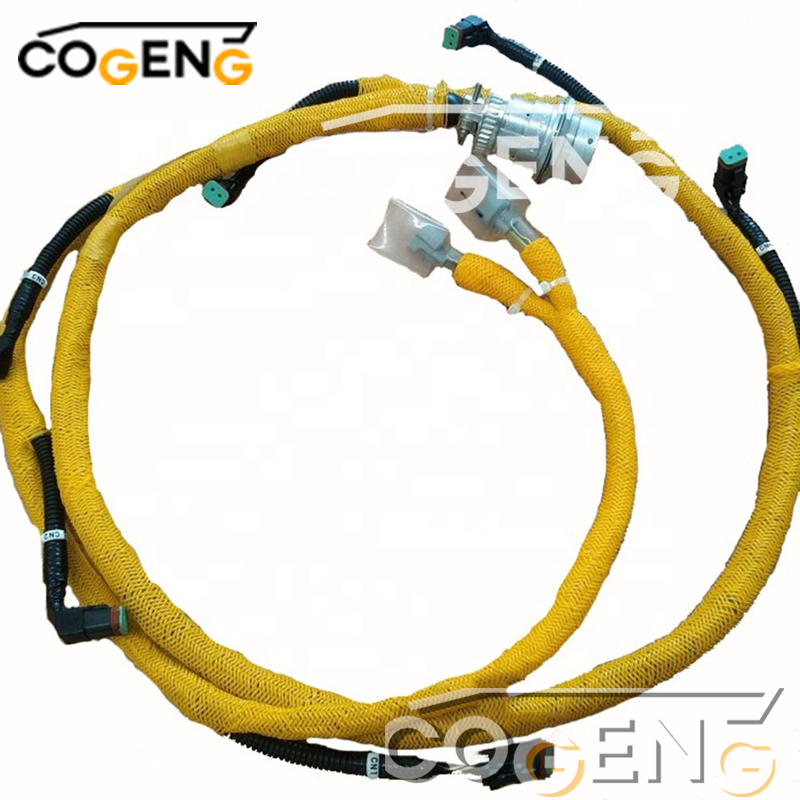

6217-81-8731 Komatsu Wiring Harness PC800-7 SAA6D140E-3G-8 SA6D140E-3H-7
Product name: Komatsu Wiring Harness
Part No: 6217818731 6217-81-8731
Model Number:For PC800-7SAA6D140E-3G-8 SA6D140E-3H-7 PC650-7 PC750-7 PC800-6 PC800SE-7
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
CertifiCATEEion:ISO9001
Supply :500PCS
| Specification Category |
Detailed Specification |
| COGENG Part Number |
CG-KOM-6217818731 |
| OEM Reference Number |
6217-81-8731 |
| Compatible Equipment |
Komatsu PC800-7 Excavator |
| Engine Compatibility |
SAA6D140E-3G-8, SA6D140E-3H-7 |
| Wire Insulation Material |
High-Temperature Oil-Resistant XLPE |
| Connector Protection Rating |
IP67 Rated (Submersible up to 1m, 30 minutes) |
| Operating Temperature Range |
-45°C to 165°C |
| System Voltage Rating |
24V DC System |
| Wire Gauge Compliance |
Meets Komatsu Original Specifications |
| Quality Verification |
100% Circuit & Sensor Continuity Tested |
Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
6217-81-8731 |
WIRING HARNESS |
1 |
| 2 |
04434-52110 |
CLIP |
3 |
| 3 |
04434-51810 |
CLIP |
2 |
| 4 |
144-874-7470 |
BOSS |
4 |
| 5 |
01435-01035 |
BOLT |
2 |
| 6 |
01435-01040 |
BOLT |
2 |
| 7 |
6691-41-8230 |
SPACER 10MM |
6 |
| 8 |
01435-00825 |
BOLT |
6 |
| 9 |
04434-51810 |
CLIP |
2 |
| 10 |
04434-51710 |
CLIP |
1 |
| 11 |
04434-51510 |
CLIP |
1 |
| 12 |
04434-51310 |
CLIP |
1 |
| 13 |
04434-51010 |
CLIP |
2 |
| 14 |
6217-81-8250 |
PLATE |
1 |
| 15 |
01435-01020 |
BOLT |
2 |
| 16 |
6217-81-8160 |
BRACKET |
1 |
| 17 |
01435-01014 |
BOLT |
2 |
| 18 |
6217-81-8261 |
COVER |
1 |
| 19 |
01435-01020 |
BOLT |
3 |
| 20 |
01643-31032 |
WASHER |
3 |

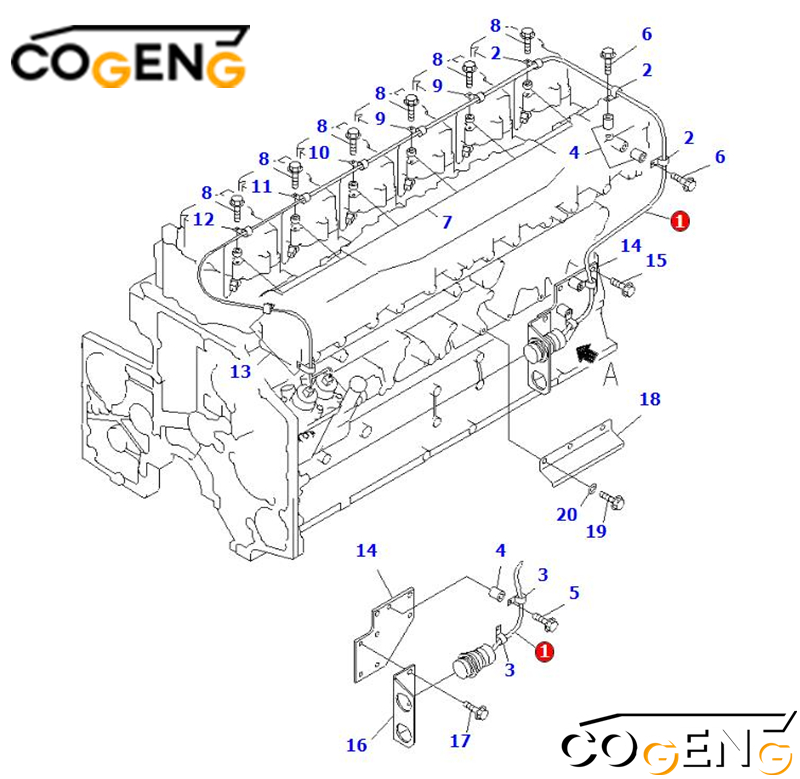

Installation decomposition diagram
-
Complete machine power shutdown required before installation
-
Follow exact OEM routing around engine components and through protective conduits
-
Secure all mounting points and protective covers according to factory specifications
-
Verify all sensor, injector, and actuator connectors are fully engaged and locked
-
Perform comprehensive engine system diagnostic after installation
