| Attribute | Specification |
|---|---|
| COGENG Part Number | CG-KWH-9211 |
| Replaces OEM Number | 6156-81-9211, 6156819211 |

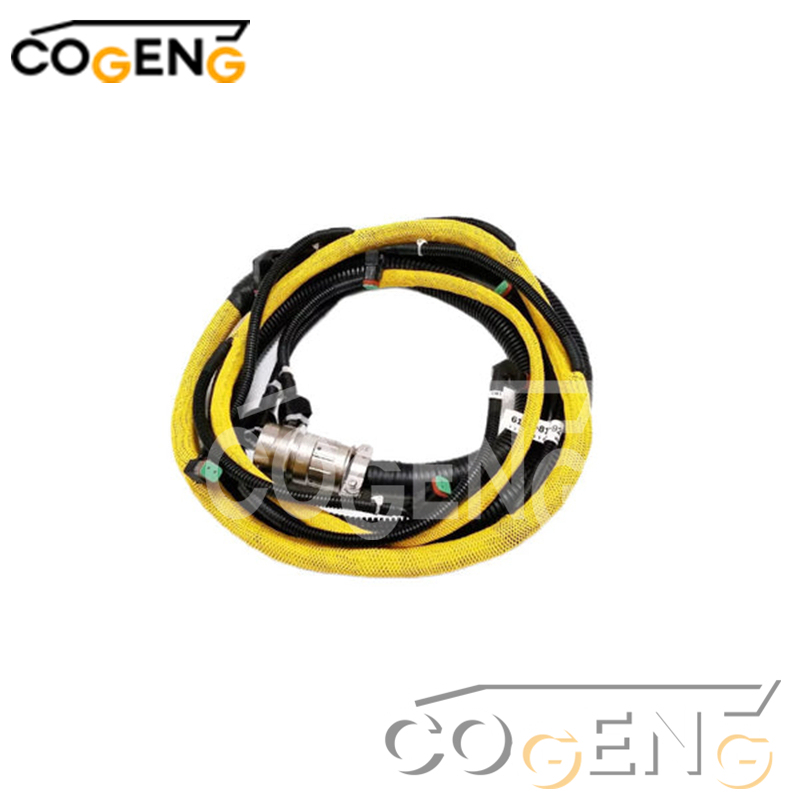

| Product Name | Komatsu Wiring Harness Assembly |
| Application | Compatible with various Komatsu models including (but not limited to) PC200, PC220 excavators and similar. Always confirm model-specific compatibility. |
| Harness Type | Main Chassis / Engine Compartment Harness |
| Connector Type | OEM-standard, sealed connectors |
| Wire Insulation | High-Temperature, Oil-Resistant (XLPE/PVC) |
| Color Coding | OEM-standard wire colors for easy installation |
| Quality Standard | ISO 9001, compliant with OEM electrical specifications |
| Warranty | COGENG Limited 12-Month Warranty |

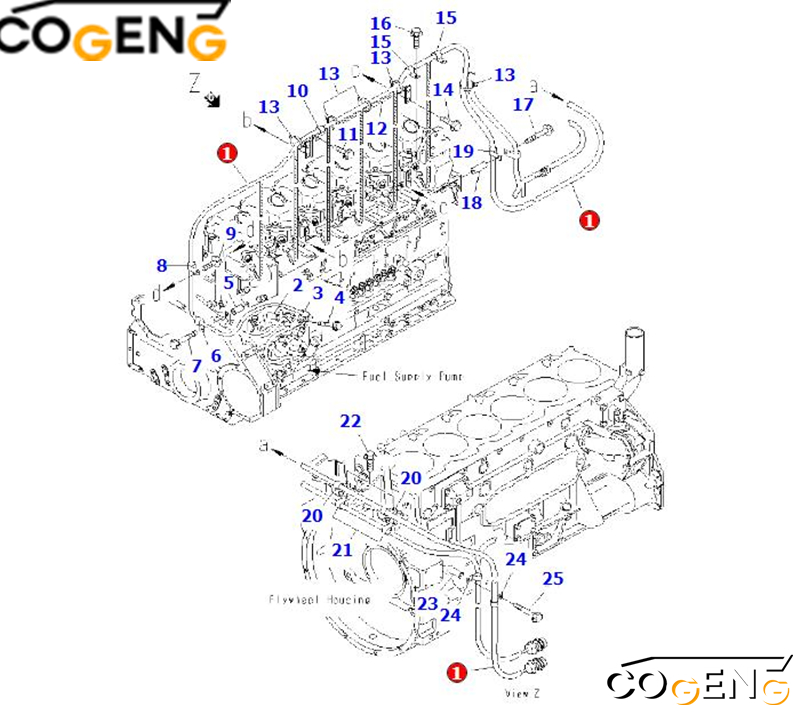

| NO | Number | Name | Qty |
| 1 | 6156-81-9211 | WIRING HARNESS | 1 |
| 2 | 6134-11-5120 | SPACER | 1 |
| 3 | 04434-51210 | CLIP | 1 |
| 4 | 01435-01060 | BOLT | 1 |
| 5 | 6142-22-4640 | SPACER | 1 |
| 6 | 04434-51210 | CLIP | 1 |
| 7 | 01435-01055 | BOLT | 1 |
| 8 | 04434-51210 | CLIP | 1 |
| 9 | 01435-01016 | BOLT | 1 |
| 10 | 04434-51410 | CLIP | 1 |
| 11 | 01435-01016 | BOLT | 1 |
| 12 | 6156-81-9230 | BRACKET | 1 |
| 13 | 08034-20519 | BAND | 5 |
| 14 | 01435-01016 | BOLT | 1 |
| 15 | 04434-52511 | CLIP | 2 |
| 16 | 01435-01025 | BOLT | 2 |
| 17 | 01435-01085 | BOLT | 1 |
| 18 | 6150-81-6940 | SPACER | 1 |
| 19 | 04434-52110 | CLIP | 1 |
| 20 | 04434-52511 | CLIP | 2 |
| 21 | 04434-51610 | CLIP | 2 |
| 22 | 01435-01020 | BOLT | 2 |
| 23 | 6150-81-6940 | SPACER | 1 |
| 24 | 04434-52511 | CLIP | 2 |
| 25 | 01435-01075 | BOLT | 1 |
