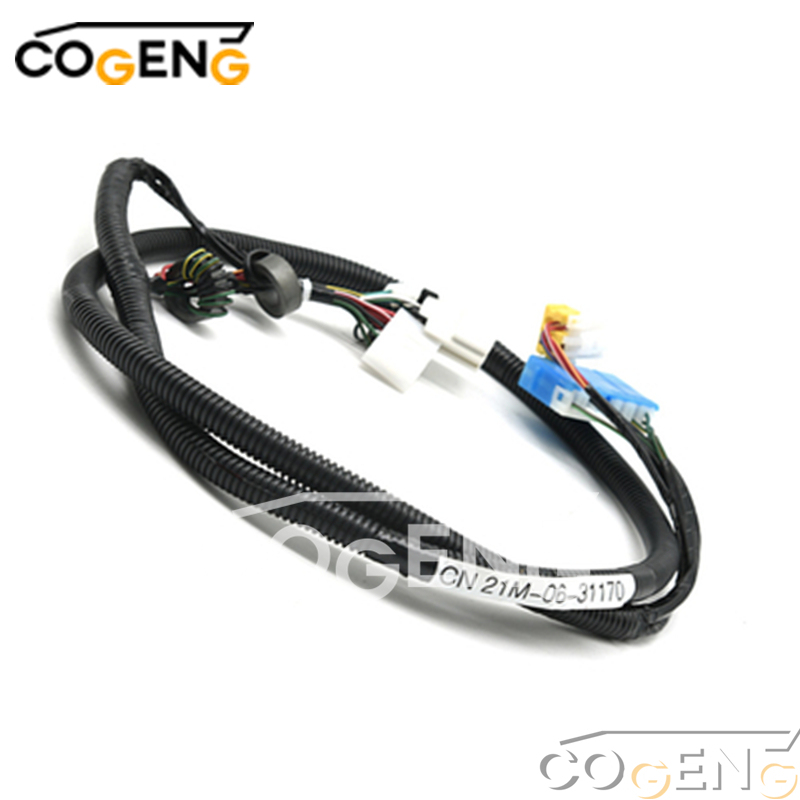

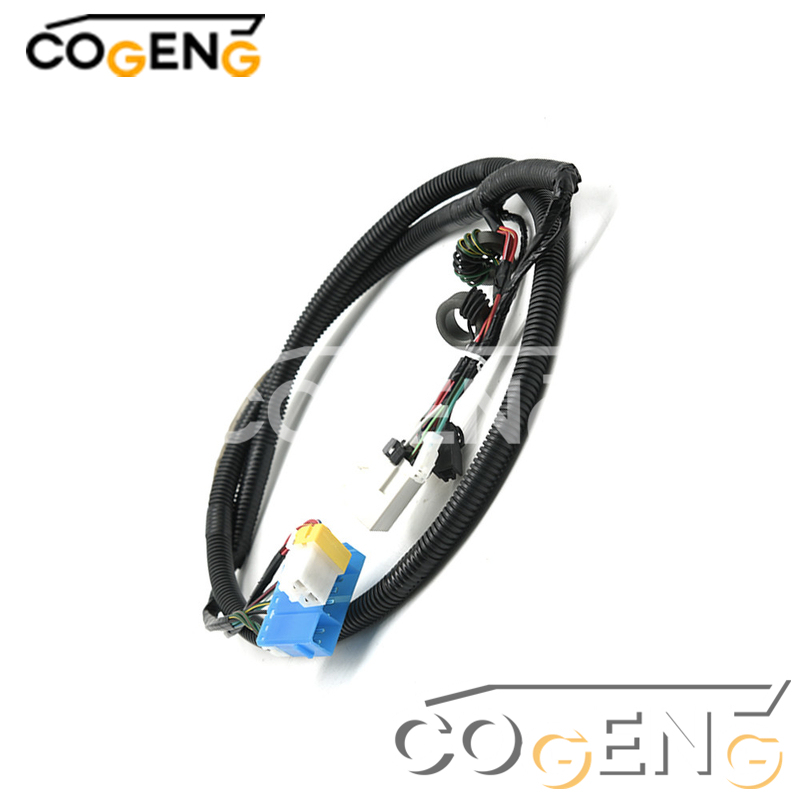

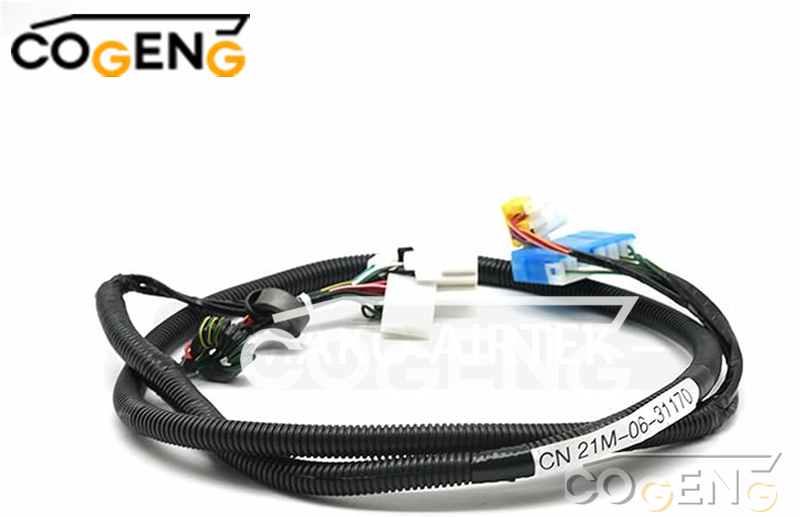

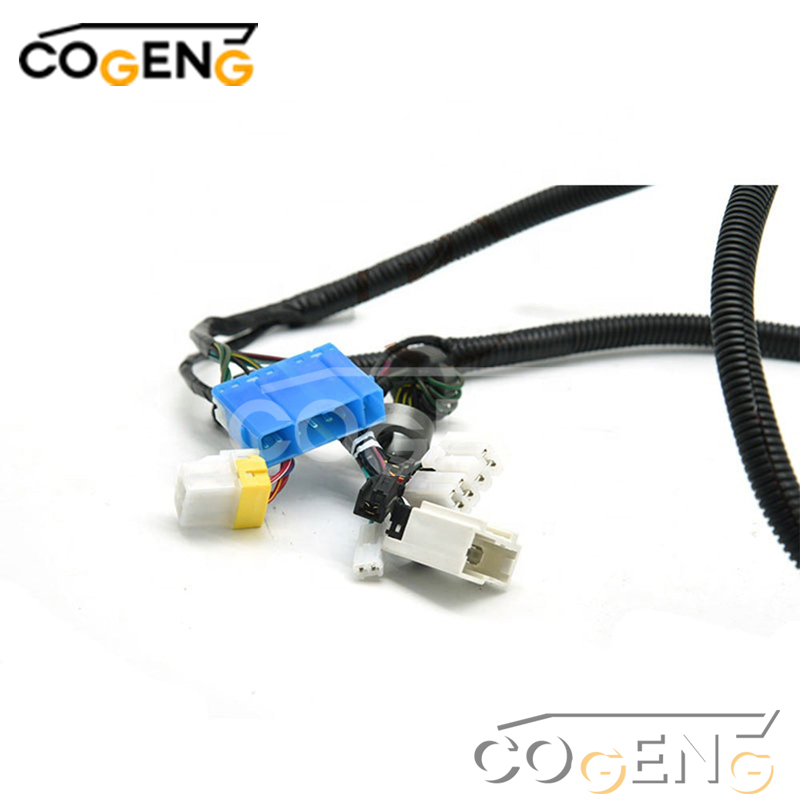

21M-06-31170 Komatsu Wiring Harness PC350-8 PC300-8 PC550LC-8
Product name: Komatsu Wiring Harness
Part No: 21M-06-31170 21M0631170
Model Number:For PC550LC-8 PC350-8 PC300-8 PC350LC-8 PC300LC-8
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Category |
Specification |
Benefit |
| COGENG Part Number |
CG-KOM-21M0631170 |
Easy Identification |
| OEM Reference |
21M-06-31170 |
Direct Replacement |
| Construction Standard |
Komatsu OEM Specifications |
Guaranteed Compatibility |
| Wire Insulation |
Oil-Resistant XLPE |
Extended Service Life |
| Connector Rating |
IP67 (Waterproof & Dustproof) |
Maximum Protection |
| Temperature Range |
-40°C to 125°C |
Wide Operating Range |
| Voltage Rating |
24V DC System |
Equipment Standard |
| Quality Validation |
100% Circuit Testing |
Reliability Assured |
| Warranty Coverage |
18-Month Limited Warranty |
Customer Protection |

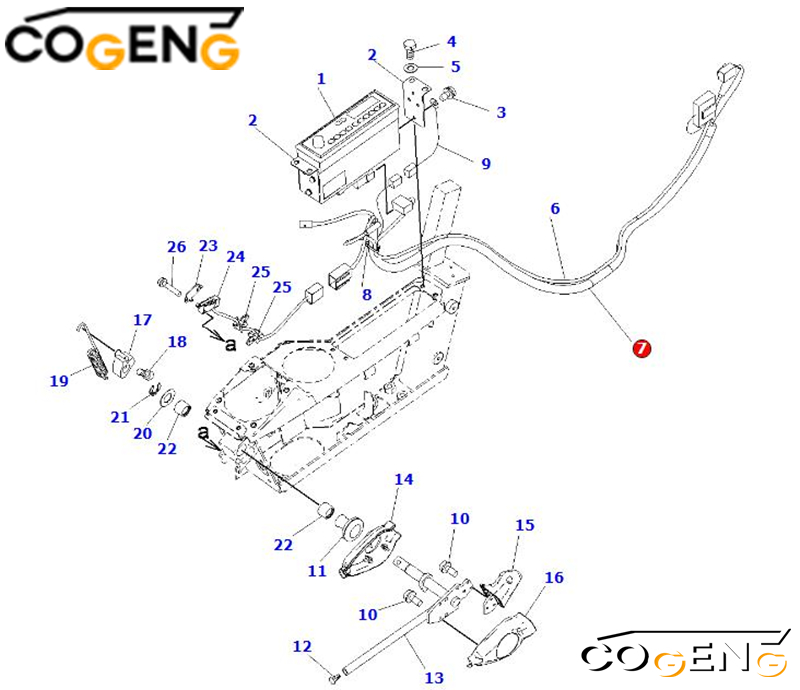

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
20Y-06-42430 |
Radio |
1 |
| 2 |
20Y-43-42130 |
Plate |
2 |
| 3 |
01023-60510 |
Screw |
6 |
| 4 |
01010-80616 |
Bolt |
4 |
| 5 |
01643-30623 |
Washer |
4 |
| 6 |
08912-51600 |
Cord |
1 |
| 7 |
21M-06-31170 |
Wiring Harness |
1 |
| 8 |
08034-20414 |
Band |
1 |
| 9 |
20Y-06-41830 |
Wiring Harness |
1 |
| 10 |
01023-60410 |
Screw |
6 |
| 11 |
08037-11425 |
Grommet |
1 |
| 12 |
208-53-12280 |
Cap |
1 |
| 13 |
20Y-43-31513 |
Lever |
1 |
| 14 |
20Y-43-31522 |
Cover |
1 |
| 15 |
20Y-43-31611 |
Knob |
1 |
| 16 |
20Y-43-31621 |
Cover |
1 |
| 17 |
20Y-43-31432 |
Cam |
1 |
| 18 |
01252-70816 |
Bolt |
1 |
| 19 |
20Y-43-31421 |
Spring |
1 |
| 20 |
20Y-43-31440 |
Ring |
1 |
| 21 |
20Y-43-31450 |
Plate |
1 |
| 22 |
06124-01616 |
Bearing |
2 |
| 23 |
22U-06-22490 |
Plate |
1 |
| 24 |
22U-06-22360 |
Switch Assembly |
1 |
| 25 |
22U-43-23260 |
Clip |
2 |
| 26 |
01023-60320 |
Screw |
1 |
Installation decomposition diagram
-
Complete power system shutdown required before installation
-
Follow OEM routing paths and secure with original mounting hardware
-
Ensure all connectors are fully engaged and locking mechanisms secured
-
Verify proper clearance from heat sources and moving components
-
Perform comprehensive system diagnostic after installation
