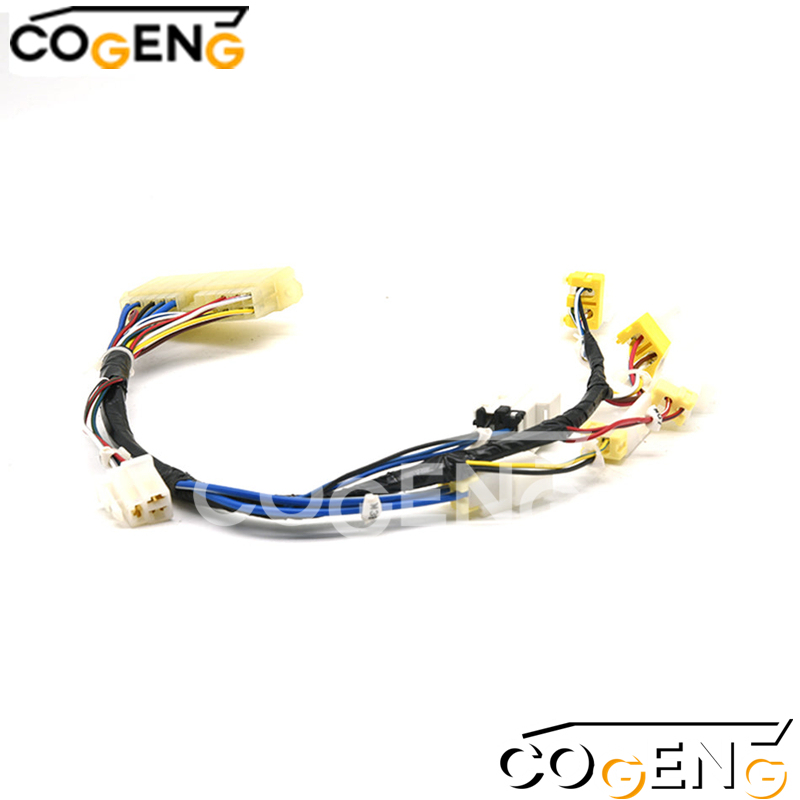

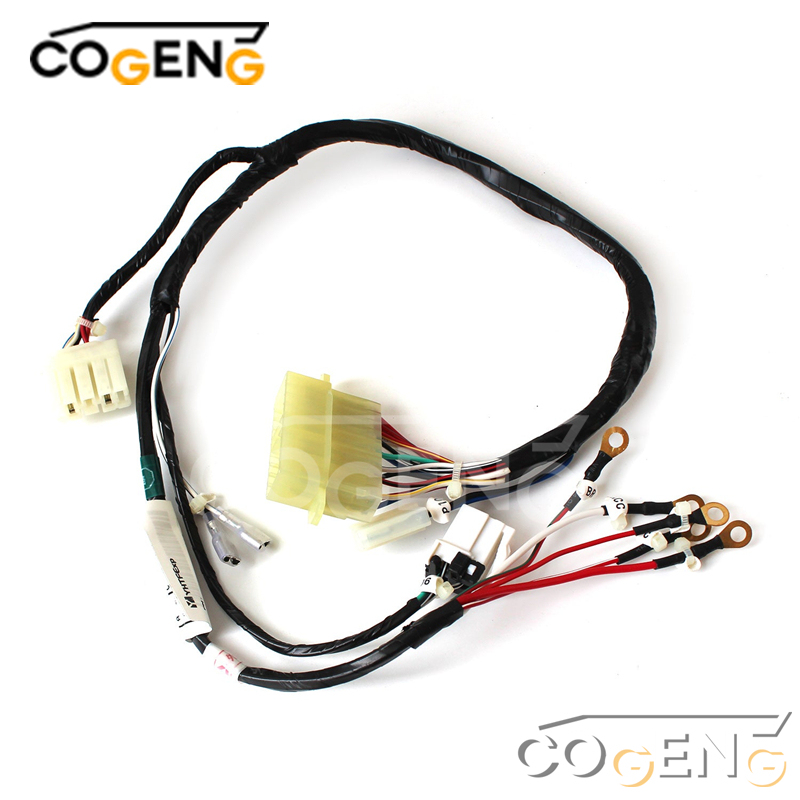

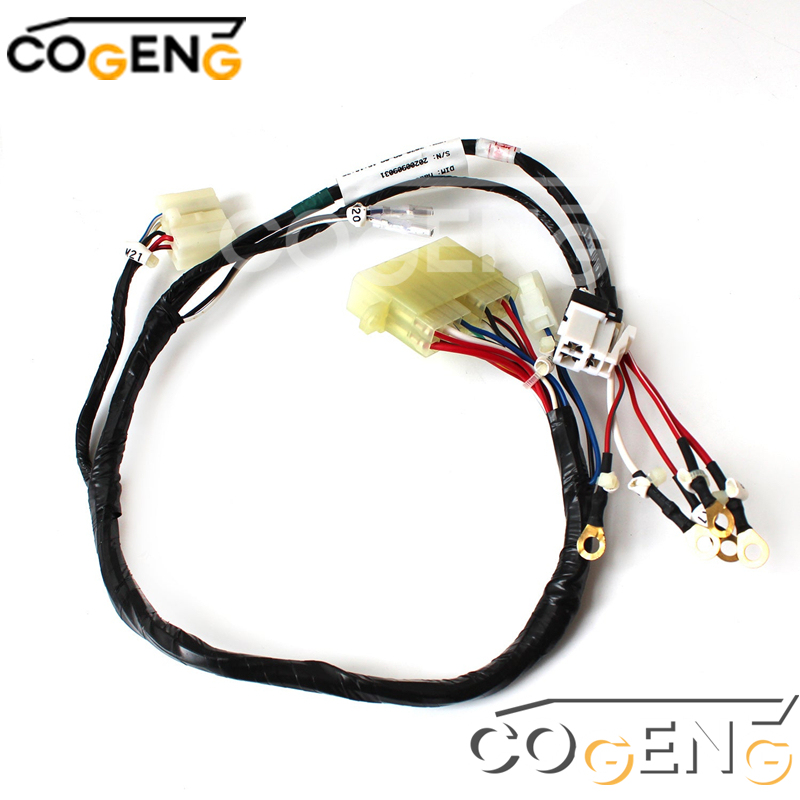

20Y-06-61210 Komatsu Wiring Harness 20Y0661210 PC400LC-6LK PC400HD-6LK
Product name: Komatsu Wiring Harness
Part No: 20Y-06-61210 20Y0661210
Model Number:For PC400LC-6LK PC400HD-6LK PC400LC-6LM PC400HD-6LM PW400MH-6
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Component |
Specification |
Application |
| COGENG Reference |
CG-KOM-SET-20Y25230-22860 |
Dash-6 Harness Pair |
| OEM Part Numbers |
20Y-06-25230 (Primary Main Harness)
20Y-06-22860 (Secondary Main Harness) |
Direct Replacement |
| Compatible Models |
Komatsu PC200-6, PC200LC-6, PC270-6 |
Dash-6 Generation |
| Machine Weight Range |
20-27 Ton Excavators |
Versatile Application |
| Wire Standard |
Oil-Resistant XLPE |
Generation-Specific Construction |
| Connector Rating |
IP66 (Dust Tight & Water Resistant) |
Protected Performance |
| Temperature Range |
-40°C to 125°C |
Standard Operating Range |
| System Voltage |
24V DC |
Dash-6 Electrical System |
| Quality Validation |
100% Paired Circuit Testing |
Compatibility Guaranteed |

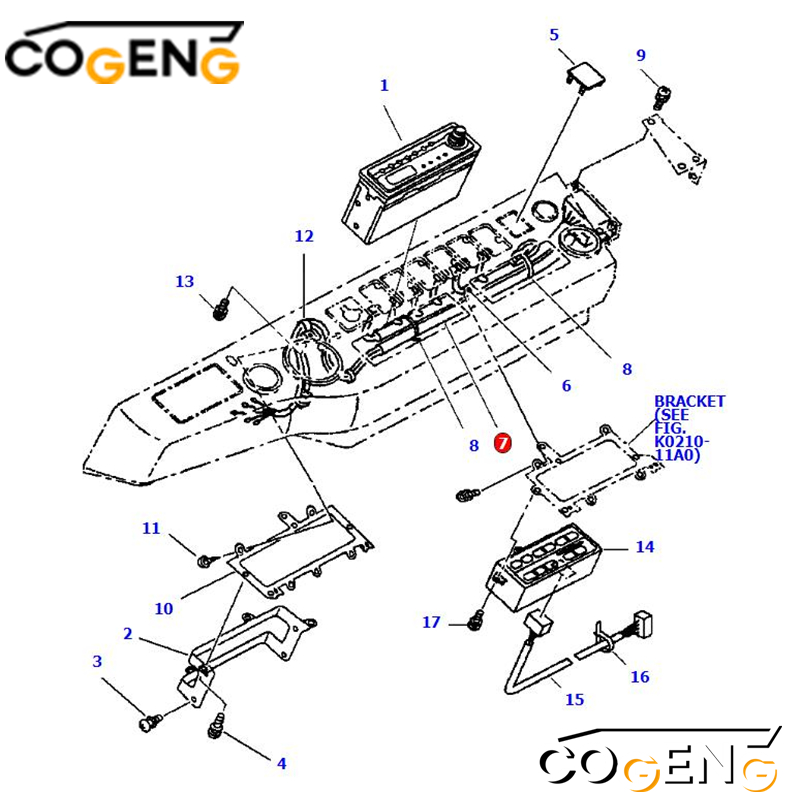

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
20Y-06-22741 |
RADIO |
1 |
| 2 |
20Y-06-23890 |
BRACKET |
1 |
| 3 |
01023-10510 |
SCREW |
4 |
| 4 |
01023-10510 |
SCREW |
3 |
| 5 |
20Y-06-23860 |
CAP |
1 |
| 6 |
20Y-06-27880 |
HARNESS, WIRING |
1 |
| 7 |
20Y-06-61210 |
HARNESS, WIRING |
1 |
| 8 |
08034-00414 |
STRAP, TIE |
2 |
| 9 |
01023-10408 |
SCREW |
3 |
| 10 |
20Y-06-23910 |
BRACKET |
1 |
| 11 |
01370-00512 |
SCREW |
5 |
| 12 |
20Y-06-23920 |
CLAMP |
1 |
| 13 |
01023-10408 |
SCREW |
1 |
| 14 |
203-979-6551 |
PANEL, AIR CONDITIONING |
1 |
| 15 |
203-979-6940 |
HARNESS, AIR CONDITIONING |
1 |
| 16 |
08034-20519 |
STRAP, TIE |
2 |
| 17 |
01023-10510 |
SCREW |
3 |
| 18 |
|
BRACKET (SEE FIG. K0210-11A0) |
1 |
Installation decomposition diagram
-
Complete machine power shutdown required
-
Install both harnesses as a matched set
-
Follow Dash-6 specific routing diagrams
-
Ensure proper connector engagement across all models
-
Verify system functionality post-installation
