20Y-06-42731 Komatsu Wiring Harness 20Y0642731 PC270-8 PC270LC
Product name: Komatsu Wiring Harness
Part No: 20Y-06-42731 20Y0642731
Model Number:For PC270-8 PC270LC PC200-8 PC200LC-8 PC220-8 PC220LC-8
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Component |
Specification |
Application |
| COGENG Reference |
CG-KOM-20Y0642731 |
Dash-8 Main Harness |
| OEM Part Number |
20Y-06-42731 |
Direct Replacement |
| Compatible Models |
Komatsu PC270-8, PC270LC-8 |
27-Ton Class Excavators |
| Configuration Support |
Standard & Long Undercarriage |
Versatile Application |
| Wire Standard |
Oil-Resistant XLPE |
Heavy-Duty Construction |
| Connector Rating |
IP67 (Dust Tight & Submersible) |
Maximum Protection |
| Temperature Range |
-40°C to 125°C |
Standard Operating Range |
| System Voltage |
24V DC |
Dash-8 Electrical System |
| Quality Validation |
100% Circuit Continuity Tested |
Reliability Assured |

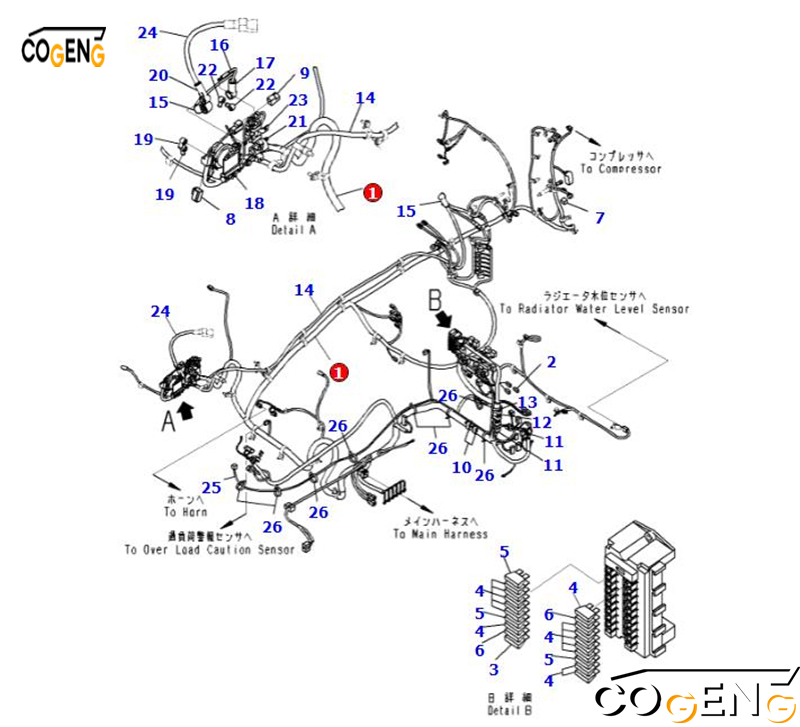

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
20Y-06-42731 |
Wiring Harness |
1 |
| 2 |
08020-20000 |
• Diode |
2 |
| 3 |
08041-00500 |
• Fuse, 5Amp. |
1 |
| 4 |
08041-01000 |
• Fuse, 10Amp. |
14 |
| 5 |
08041-02000 |
• Fuse, 20Amp. |
3 |
| 6 |
08041-03000 |
• Fuse, 30Amp. |
2 |
| 7 |
19M-06-31720 |
• Resistor |
1 |
| 8 |
20Y-06-31660 |
• Fusible Link, 30Amp. |
1 |
| 9 |
22U-06-11270 |
• Fusible Link, 65Amp. |
1 |
| 10 |
HM6400-0012 |
• F-Connector, Black |
2 |
| 10 |
HM6409-0071 |
• M-Connector, Black |
2 |
| 11 |
HM6400-0013 |
• F-Connector, Green |
2 |
| 11 |
HM6409-0072 |
• M-Connector, Green |
2 |
| 12 |
HM6440-0129 |
• F-Connector, Pink |
1 |
| 12 |
HM6440-0128 |
• M-Connector, Pink |
1 |
| 13 |
HM6400-0016 |
• F-Connector, Orange |
1 |
| 13 |
HM6409-0075 |
• M-Connector, Orange |
1 |
| 14 |
20Y-06-41283 |
Cable |
1 |
| 15 |
08038-00035 |
Cap, Terminal |
1 |
| 16 |
20Y-06-22872 |
Cable |
1 |
| 17 |
08038-06031 |
Cap |
1 |
| 18 |
08088-30000 |
Switch, Battery Relay |
1 |
| 19 |
08038-00519 |
Cap, Terminal |
2 |
| 20 |
08038-06031 |
Cap |
1 |
| 21 |
600-815-2170 |
Switch, Heater |
1 |
| 22 |
08038-00519 |
Cap, Terminal |
2 |
| 23 |
600-815-8941 |
Relay |
1 |
| 24 |
08028-CC065 |
Cable, Battery |
1 |
| 25 |
20Y-06-41561 |
Wiring Harness |
1 |
| 26 |
08034-20536 |
Band |
8 |
Installation decomposition diagram
-
Complete machine power shutdown required
-
Follow Dash-8 specific routing diagrams
-
Ensure proper connector engagement for all systems
-
Verify clearance for both standard and LC configurations
-
Perform comprehensive system diagnostics
