| Component | Specification | Application |
|---|---|---|
| COGENG Reference | CG-KOM-SET-20Y31612-31614 | Complete Wiring System |
| OEM Part Numbers | 20Y-06-31612 (Main Chassis) 20Y-06-31613 (Engine Compartment) 20Y-06-31614 (Control Systems) |
Direct Replacement |
| Compatible Models | Komatsu PC200-7, PC200LC-7 | 20-Ton Class Excavators |
| Machine Configurations | Standard & Long Undercarriage | Versatile Application |
| Wire Standard | Oil-Resistant XLPE | Medium-Duty Construction |

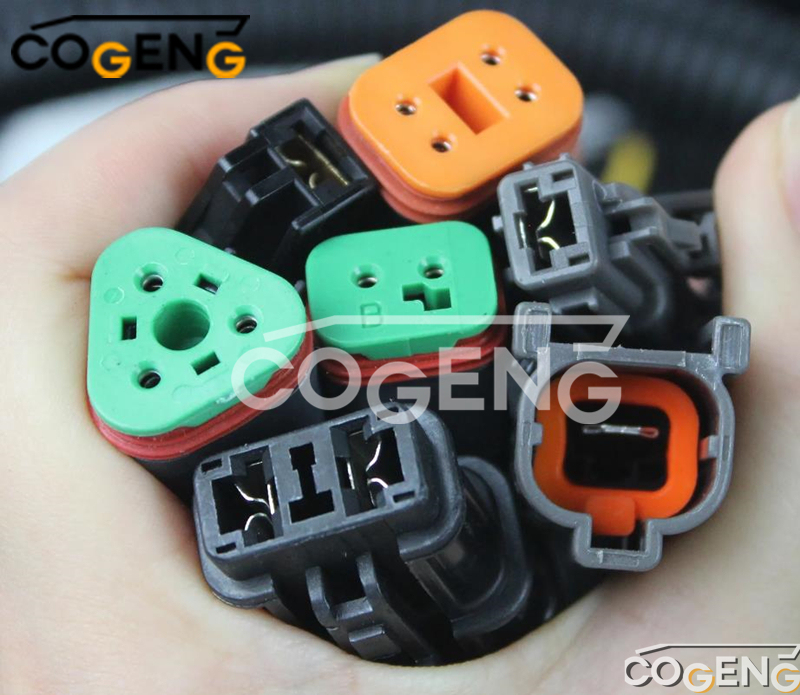

| Connector Rating | IP67 (Dust Tight & Submersible) | Maximum Protection |
| Temperature Range | -40°C to 125°C | Standard Operating Range |
| System Voltage | 24V DC | Excavator Electrical System |
| Quality Validation | 100% Individual & Integrated Testing | Reliability Assured |

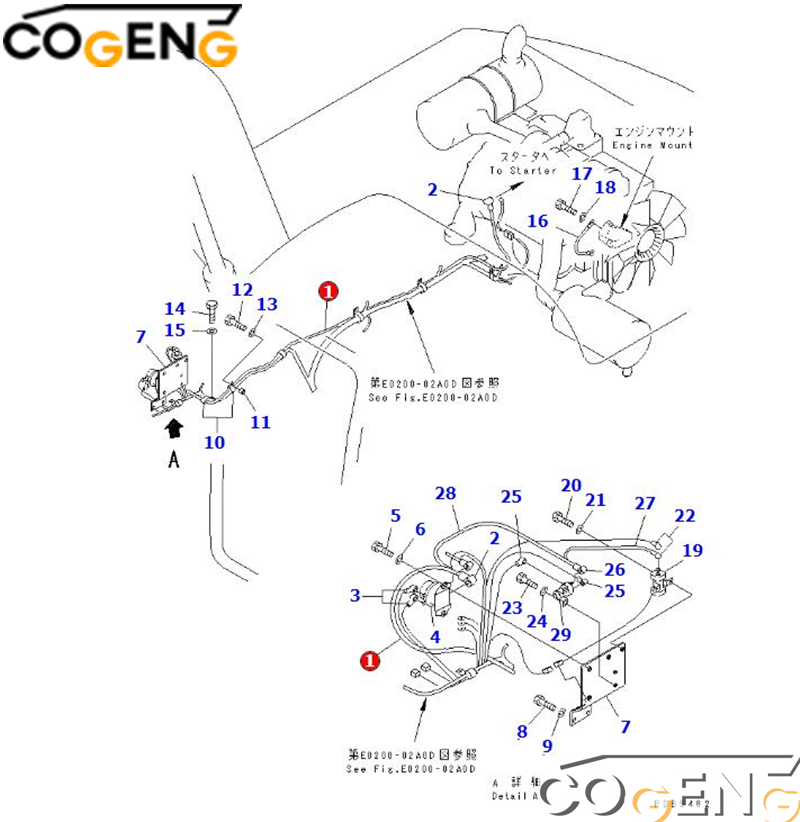

| NO | Number | Name | Qty |
| 1 | 20Y-06-31612 | WIRING HARNESS | 1 |
| 20Y-06-31613 | WIRING HARNESS | 1 | |
| 20Y-06-31614 | WIRING HARNESS | 1 | |
| 1 | 22U-06-11270 | • FUSIBLE LINK, 65A | 1 |
| 1 | 20Y-06-31660 | • FUSIBLE LINK, 30A | 1 |
| 2 | 20Y-62-22790 | • BAND, RED | 1 |
| 3 | 20Y-62-22830 | • BAND, WHITE | 1 |
| 4 | 04434-53412 | CLIP | 1 |
| 5 | 01010-81225 | BOLT | 1 |
| 6 | 01643-31232 | WASHER | 1 |
| 7 | 04434-51012 | CLIP | 1 |
| 8 | 01010-81225 | BOLT | 1 |
| 9 | 01643-31232 | WASHER | 1 |
| 10 | 04434-53412 | CLIP | 2 |
| 11 | 01010-81225 | BOLT | 2 |
| 12 | 01643-31232 | WASHER | 2 |
| 13 | 04434-52512 | CLIP | 1 |
| 14 | 01010-81225 | BOLT | 1 |
| 15 | 01643-31232 | WASHER | 1 |
| 16 | 04434-53412 | CLIP | 1 |
| 17 | 01010-81225 | BOLT | 1 |
| 18 | 01643-31232 | WASHER | 1 |
| 19 | 04434-51912 | CLIP | 1 |
| 20 | 04434-53412 | CLIP | 1 |
| 21 | 01010-81225 | BOLT | 1 |
| 22 | 01643-31232 | WASHER | 1 |
| 23 | 04434-51912 | CLIP | 1 |
| 24 | 04434-53412 | CLIP | 1 |
| 25 | 01010-81225 | BOLT | 1 |
| 26 | 01643-31232 | WASHER | 1 |
| 27 | 04434-51912 | CLIP | 1 |
| 28 | 04434-52712 | CLIP | 1 |
| 29 | 01010-81225 | BOLT | 1 |
| 30 | 01643-31232 | WASHER | 1 |
| 31 | 04434-52712 | CLIP | 1 |
| 32 | 01010-81225 | BOLT | 1 |
| 33 | 01643-31232 | WASHER | 1 |
| 34 | 04434-52712 | CLIP | 1 |
| 35 | 01010-81225 | BOLT | 1 |
| 36 | 01643-31232 | WASHER | 1 |
| 37 | 203-06-61730 | BRACKET | 1 |
| 38 | 01010-81225 | BOLT | 1 |
| 39 | 01643-31232 | WASHER | 1 |
| 40 | 04434-51912 | CLIP | 1 |
| 41 | 04434-51412 | CLIP | 1 |
| 42 | 01010-81225 | BOLT | 1 |
| 43 | 01643-31232 | WASHER | 1 |
| 44 | 04434-52112 | CLIP | 1 |
| 45 | 01010-81225 | BOLT | 1 |
| 46 | 01643-31232 | WASHER | 1 |
| 47 | 04434-52112 | CLIP | 1 |
| 48 | 01010-81225 | BOLT | 1 |
| 49 | 01643-31232 | WASHER | 1 |
| 50 | 04434-52112 | CLIP | 1 |
| 51 | 154-979-1480 | COLLAR | 1 |
| 52 | 01010-81275 | BOLT | 1 |
| 53 | 01643-31232 | WASHER | 1 |
| 54 | 04434-51912 | CLIP | 1 |
| 55 | 01010-81225 | BOLT | 1 |
| 56 | 01643-31232 | WASHER | 1 |
Complete power system shutdown mandatory
Recommended professional installation
Follow OEM routing for each harness component
System diagnostic testing post-installation
