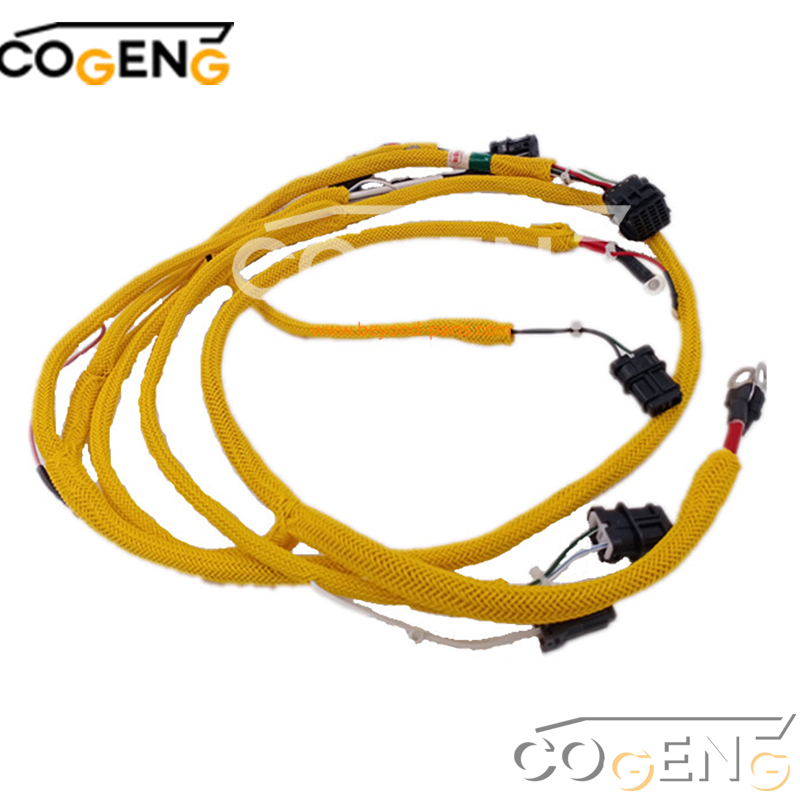

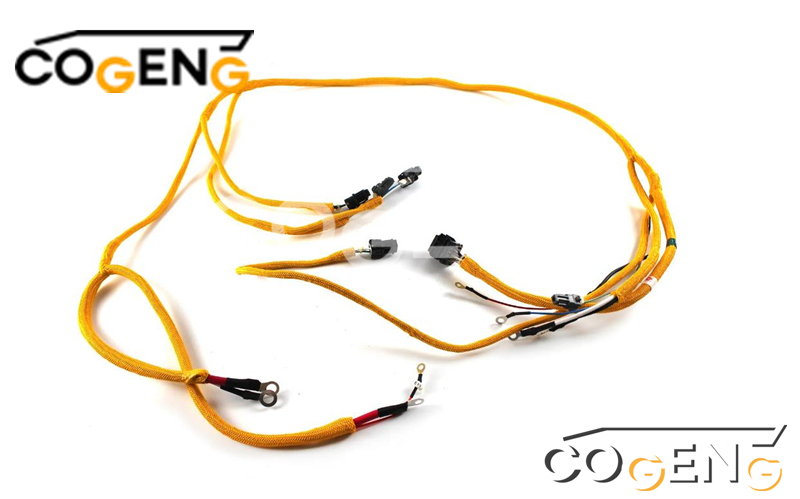

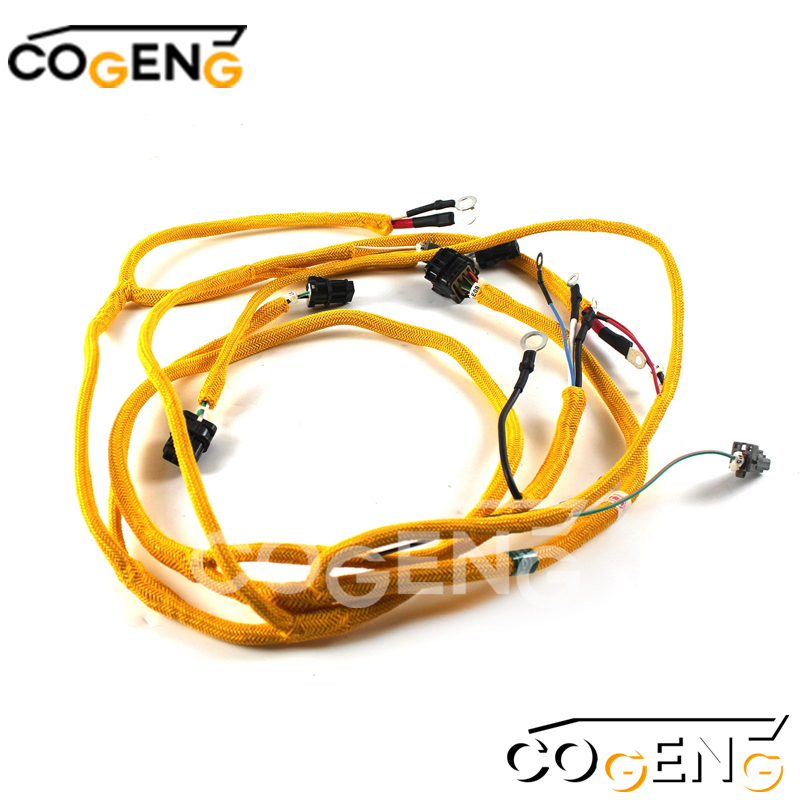

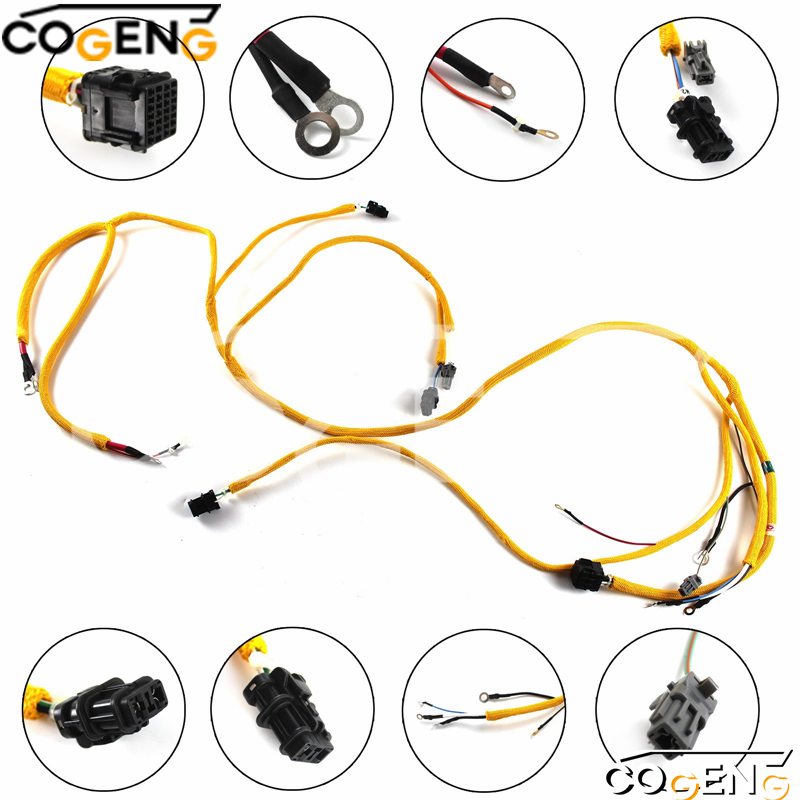

20Y-06-25230 20Y-06-22860 Komatsu Wiring Harness PC200-6 PC200LC-6 PC270-6
Product name: Komatsu Wiring Harness
Part No: 20Y-06-25230 20Y-06-22860 20Y0625230 20Y0622860
Model Number:For PC200-6S PC200-6H PC200-6Z PC200-6S PC200LC-6S PC200LC-6H PC200LC-6Z PC200-6 PC200LC-6 PC230-6 PC230LC-6 PC270-6 PC270LC-6 PC270LC-6LE
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Component |
Specification |
Application |
| COGENG Reference |
CG-KOM-SET-20Y25230-22860 |
Dash-6 Harness Pair |
| OEM Part Numbers |
20Y-06-25230 (Primary Main Harness)
20Y-06-22860 (Secondary Main Harness) |
Direct Replacement |
| Compatible Models |
Komatsu PC200-6, PC200LC-6, PC270-6 |
Dash-6 Generation |
| Machine Weight Range |
20-27 Ton Excavators |
Versatile Application |
| Wire Standard |
Oil-Resistant XLPE |
Generation-Specific Construction |
| Connector Rating |
IP66 (Dust Tight & Water Resistant) |
Protected Performance |
| Temperature Range |
-40°C to 125°C |
Standard Operating Range |
| System Voltage |
24V DC |
Dash-6 Electrical System |
| Quality Validation |
100% Paired Circuit Testing |
Compatibility Guaranteed |

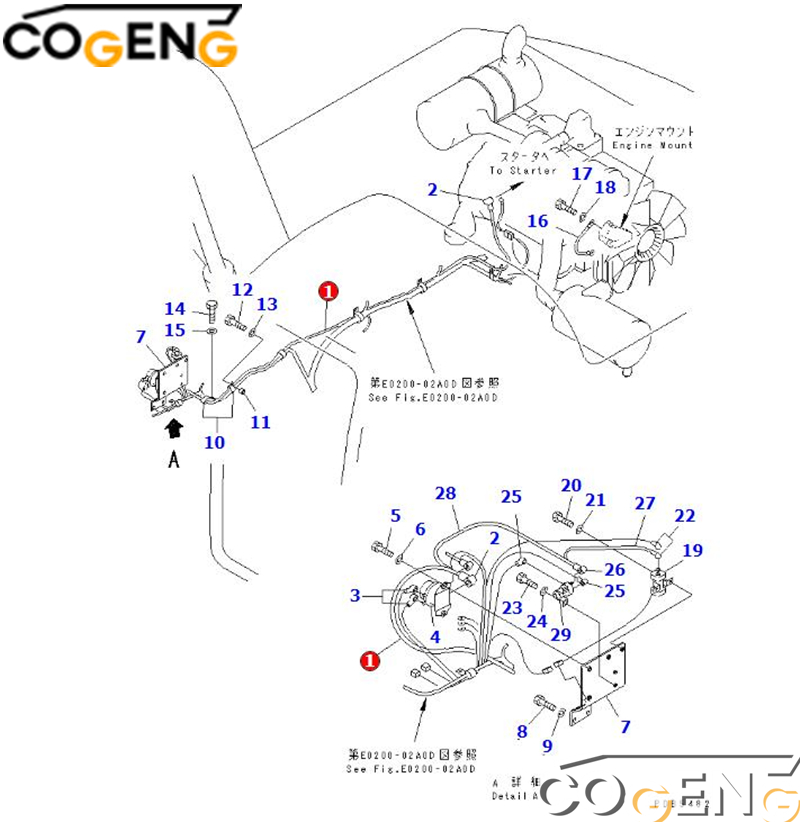

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
20Y-06-25230 |
CABLE |
1 |
|
20Y-06-22860 |
CABLE |
1 |
| 2 |
08038-00035 |
CAP |
2 |
| 3 |
08038-00519 |
CAP |
2 |
| 4 |
08088-30000 |
SWITCH |
1 |
| 5 |
01010-80830 |
BOLT |
2 |
| 6 |
01643-30823 |
WASHER |
2 |
| 7 |
20Y-06-22852 |
BRACKET |
1 |
| 8 |
01010-81225 |
BOLT |
2 |
| 9 |
01643-31232 |
WASHER |
2 |
| 10 |
141-06-11220 |
CLIP |
2 |
| 11 |
144-947-3490 |
SPACER |
1 |
| 12 |
01010-81245 |
BOLT |
1 |
| 13 |
01643-31232 |
WASHER |
1 |
| 14 |
01010-81225 |
BOLT |
1 |
| 15 |
01643-31232 |
WASHER |
1 |
| 16 |
08028-43030 |
CABLE |
1 |
| 17 |
01010-81020 |
BOLT |
2 |
| 18 |
01643-31032 |
WASHER |
2 |
| 19 |
600-815-8940 |
SWITCH |
1 |
| 19 |
203-06-59321 |
SWITCH |
1 |
| 20 |
01010-80820 |
BOLT |
2 |
| 21 |
01643-30823 |
WASHER |
2 |
| 22 |
08038-00519 |
CAP |
2 |
| 23 |
01010-80620 |
BOLT |
2 |
| 24 |
01643-30623 |
WASHER |
2 |
| 25 |
08038-00519 |
CAP |
2 |
| 26 |
08038-06031 |
CAP |
1 |
| 27 |
20Y-06-22871 |
CABLE |
1 |
| 28 |
20Y-06-22880 |
CABLE |
1 |
| 29 |
600-815-2170 |
SWITCH,HEATER |
1 |
Installation decomposition diagram
-
Complete machine power shutdown required
-
Install both harnesses as a matched set
-
Follow Dash-6 specific routing diagrams
-
Ensure proper connector engagement across all models
-
Verify system functionality post-installation
