COGENG 20Y-06-22713 (20Y0622713) Komatsu Wiring Harness | Direct OEM Replacement for Komatsu Equipment

Name: COGENG 20Y-06-22713 (20Y0622713) Komatsu Wiring Harness | Direct OEM Replacement for Komatsu Equipment
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol
Availability: InStock
Rating: 5 (1 reviews)

Product name: Komatsu Wiring Harness

Part No: 20Y-06-22713 20Y-06-22712 20Y-06-22711 20Y0622713 20Y0622712 20Y0622711

Model Number:For PC200 PC200-6 PC200LC-6 PC210-6

Material:Lron+Rubber

Packing:PP bag inside, carton box outside

Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P

MOQ:Acceptable trial order

Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)

Place of Origin:Guangdong, China

Brand name:COGENG

CertifiCATEEion:ISO9001

Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

Specification Category	Detailed Specification
COGENG Part Number	CG-KOM-20Y0622713
OEM Reference Number	20Y-06-22713
Construction Standard	Komatsu OEM Specifications
Wire Insulation Material	Oil-Resistant Cross-Linked Polyethylene (XLPE)
Connector Protection Rating	IP67 (Dust Tight & Submersible up to 1m)
Operating Temperature Range	-45°C to 135°C
System Voltage Rating	24V DC System
Wire Gauge Compliance	Meets Komatsu Original Specifications
Quality Verification	100% Circuit Continuity & Insulation Resistance Tested
Warranty Protection	18-Month Limited Warranty

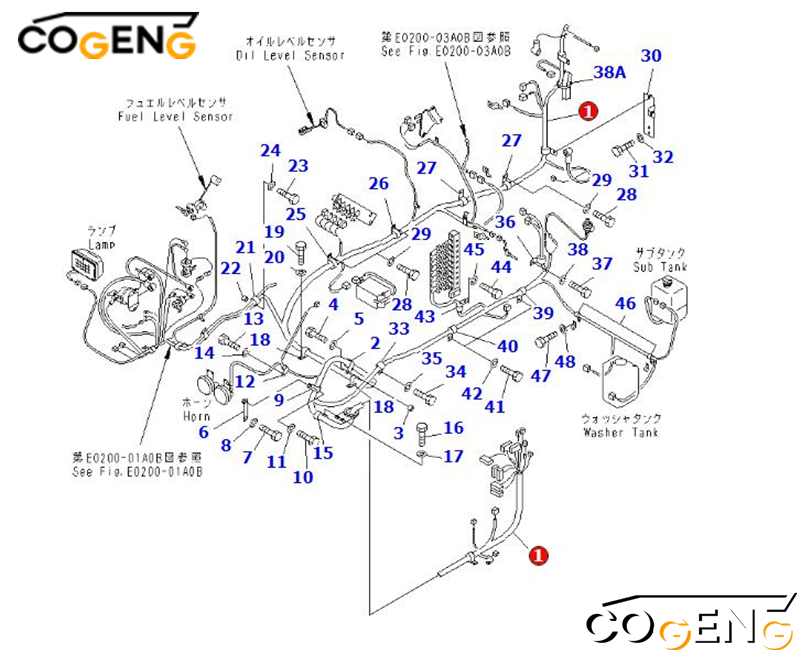

Decompose pictures

Parts list

NO	Number	Name	Qty
1	20Y-06-22713	WIRING HARNESS	1
	20Y-06-22712	WIRING HARNESS	1
	20Y-06-22711	WIRING HARNESS	1
	20Y-06-31660	• FUSIBLE LINK¤ 30A,(CN-M11)	1
	20Y-06-15150	• FUSIBLE LINK,(CN-M14)	1
	20Y-06-15150	• FUSIBLE LINK,(CN-M14)	2
	20Y-06-25240	• CONNECTOR	2
	20Y-06-25250	• CONNECTOR	2
	20Y-06-25260	• CONNECTOR	2
2	113-899-7950	CLIP	1
3	144-947-3490	SPACER	1
4	01010-81245	BOLT	1
5	01643-31232	WASHER	1
6	20Y-06-21240	PLATE	1
7	01010-81225	BOLT	1
8	01643-31232	WASHER	1
9	113-899-7950	CLIP	1
10	01010-81225	BOLT	1
11	01643-31232	WASHER	1
12	08036-01014	CLIP	1
13	01010-81225	BOLT	1
14	01643-31232	WASHER	1
15	113-899-7950	CLIP	1
16	01010-81230	BOLT	1
17	01643-31232	WASHER	1
18	113-899-7950	CLIP	2
19	01010-81225	BOLT	2
20	01643-31232	WASHER	2
21	113-899-7950	CLIP	1
22	144-947-3490	SPACER	1
23	01010-81245	BOLT	1
24	01643-31232	WASHER	1
25	208-06-19170	CLIP	1
26	113-899-7950	CLIP	1
27	04434-52712	CLIP	2
28	01010-81225	BOLT	4
29	01643-31232	WASHER	4
30	20Y-06-21532	BRACKET	1
31	01010-81225	BOLT	2
32	01643-31232	WASHER	2
33	04434-52212	CLIP	1
	08036-02514	CLIP	1
34	01010-81225	BOLT	1
35	01643-31232	WASHER	1
36	08036-01814	CLIP	1
37	01010-81225	BOLT	1
38	01643-31232	WASHER	1
38A	08034-00519	BAND	1
39	08036-01814	CLIP	1
40	08036-01814	CLIP	1
	04434-52212	CLIP	1
	08036-02514	CLIP	1
41	01010-81225	BOLT	2
42	01643-31232	WASHER	2
43	08036-01814	CLIP	1
44	01010-81225	BOLT	1
45	01643-31232	WASHER	1
46	08036-01414	CLIP	2
47	01010-81225	BOLT	2
48	01643-31232	WASHER	2

Installation decomposition diagram

outing diagrams for proper harness placement
Secure all mounting points and protective conduits
Ensure all connectors are fully engaged and locking mechanisms activated
Verify proper clearance from moving components and heat sources
Perform comprehensive system diagnostic check after installation
