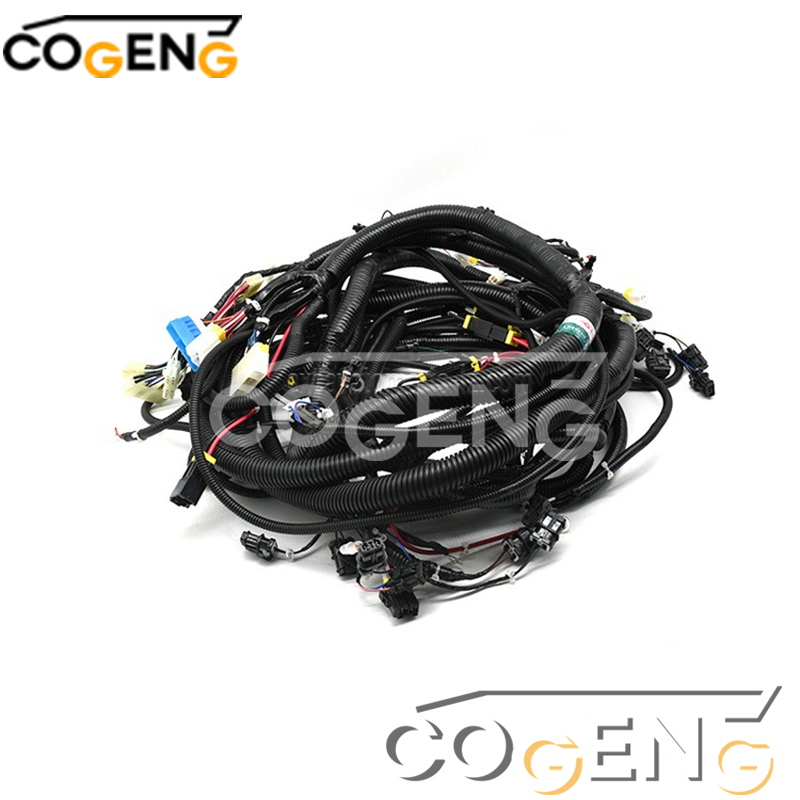

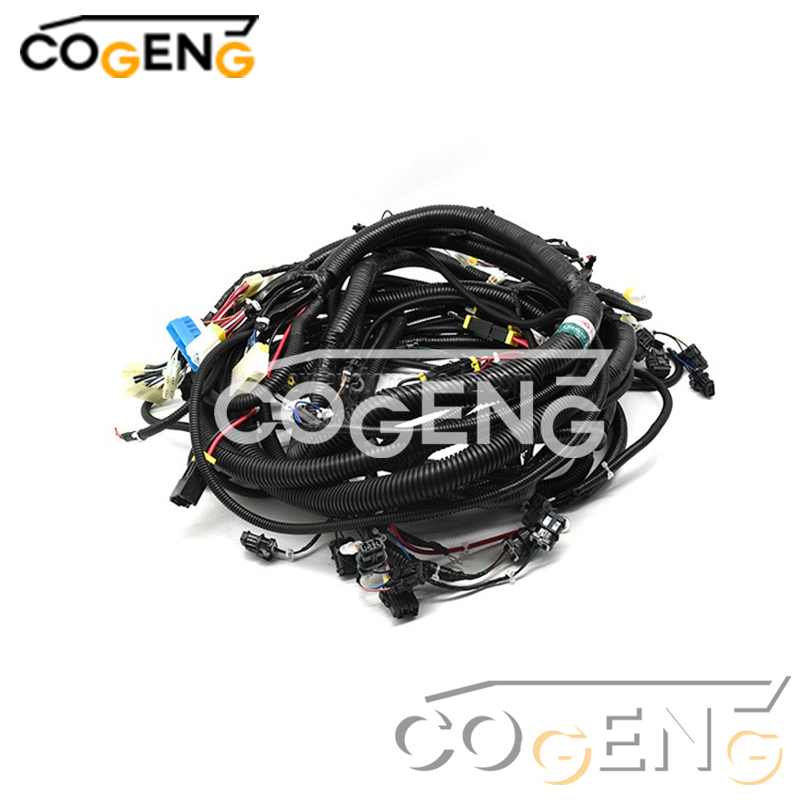

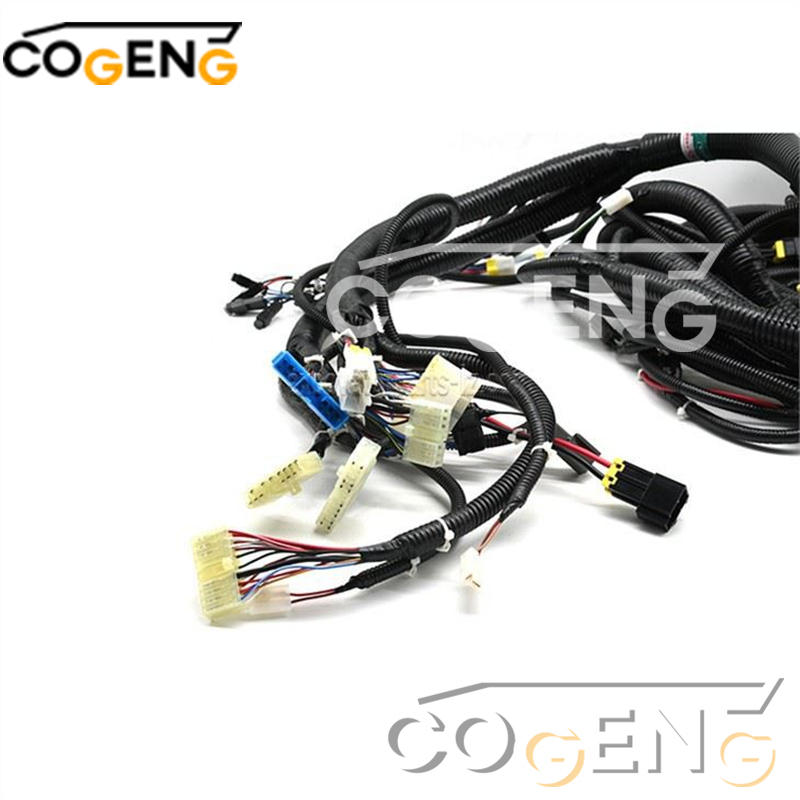

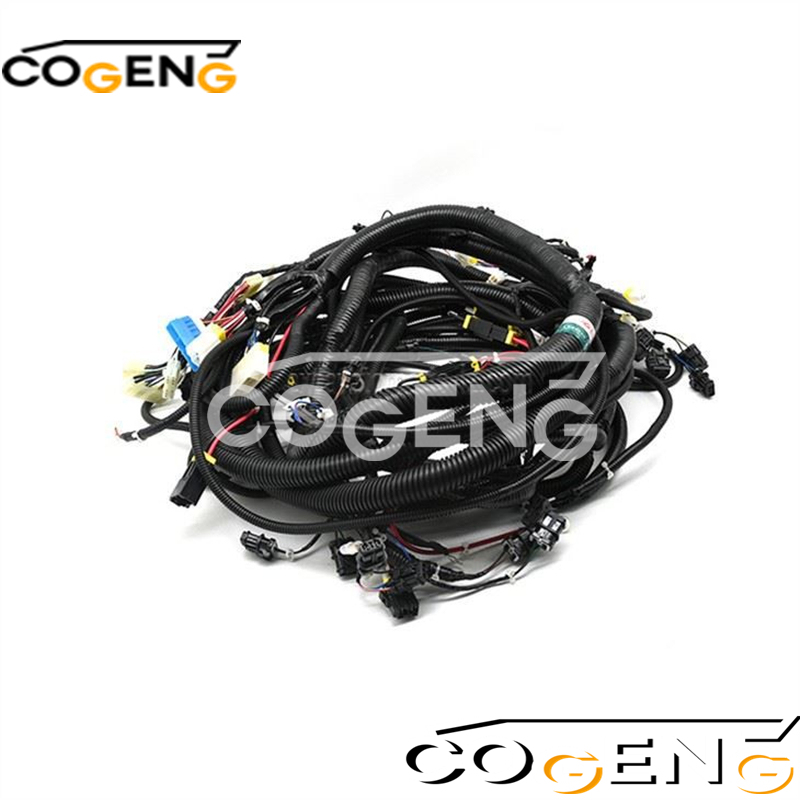

20Y-06-22581 Komatsu Wiring Harness 20Y0622581 PC120-6Z PC200-6Z PC220-6Z
Product name: Komatsu Wiring Harness
Part No: 20Y-06-22581 20Y0622581
Model Number:For PC120-6Z PC200-6Z PC220-6Z PC400LC-6Z PC450-6Z PC400ST-6Z PC400ST-6LC
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Category |
Specification |
Benefit |
| COGENG Part Number |
CG-KOM-20Y0622581 |
Easy Identification |
| OEM Reference |
20Y-06-22581 |
Direct Replacement |
| Compatible Models |
PC120-6Z, PC200-6Z, PC220-6Z |
Z-Series Range |
| Machine Weight Coverage |
12-22 Ton Special Applications |
Wide Capacity Range |
| Series Type |
Z-Series Special Applications |
Customized Design |
| Wire Insulation |
Enhanced Oil-Resistant XLPE |
Superior Durability |
| Connector Rating |
IP66 (Water & Dust Resistant) |
Enhanced Protection |
| Temperature Range |
-40°C to 125°C |
Wide Operating Range |
| Voltage Rating |
24V DC System |
Equipment Standard |
| Quality Validation |
100% Z-Series Testing |
Reliability Assured |
| Warranty Coverage |
18-Month Limited Warranty |
Customer Protection |

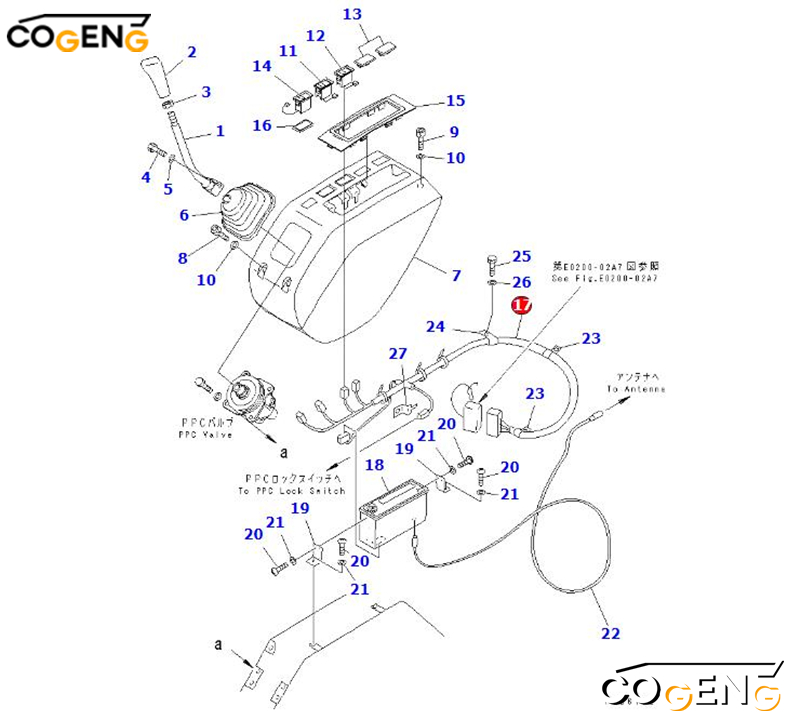

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
201-43-71131 |
LEVER,L.H. |
1 |
| 2 |
20T-43-71110 |
KNOB |
1 |
| 3 |
20T-43-71190 |
NUT |
1 |
| 4 |
01010-81030 |
BOLT |
1 |
| 5 |
01643-31032 |
WASHER |
1 |
| 6 |
20T-43-71160 |
BOOT |
1 |
| 7 |
201-54-73281 |
CONSOLE BOX |
1 |
| 8 |
20T-54-71570 |
BOLT |
2 |
| 9 |
20T-54-71550 |
BOLT |
2 |
| 10 |
01643-70823 |
WASHER |
4 |
| 11 |
201-06-71440 |
SWITCH |
1 |
| 12 |
201-06-71230 |
SWITCH |
1 |
| 13 |
201-54-73410 |
COVER |
2 |
| 14 |
207-06-61531 |
SWITCH ASS'Y |
1 |
| 15 |
201-54-73291 |
COVER |
1 |
| 16 |
201-54-73190 |
SPACER |
1 |
| 17 |
20Y-06-22581 |
WIRING HARNESS |
1 |
| 18 |
20Y-06-22720 |
RADIO |
1 |
| 19 |
201-54-73440 |
BRACKET |
2 |
| 20 |
01220-40510 |
SCREW |
6 |
| 21 |
01641-20508 |
WASHER |
6 |
| 22 |
08912-51600 |
CORD |
1 |
| 23 |
08036-02514 |
CLIP |
2 |
| 24 |
08036-01814 |
CLIP |
1 |
| 25 |
01010-81020 |
BOLT |
3 |
| 26 |
01643-31032 |
WASHER |
3 |
| 27 |
08051-00801 |
CLIP |
1 |
Installation decomposition diagram
-
Verify specific Z-Series model configuration before installation
-
Complete machine power shutdown required
-
Follow Z-Series specific routing diagrams
-
Ensure proper engagement of all specialized connectors
-
Perform comprehensive system diagnostics after installation
