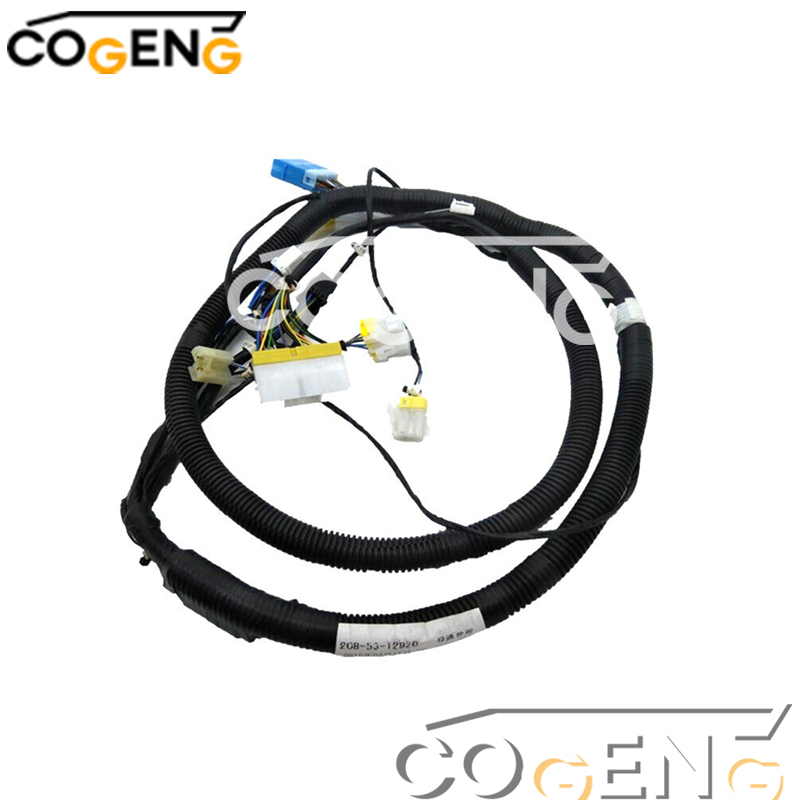

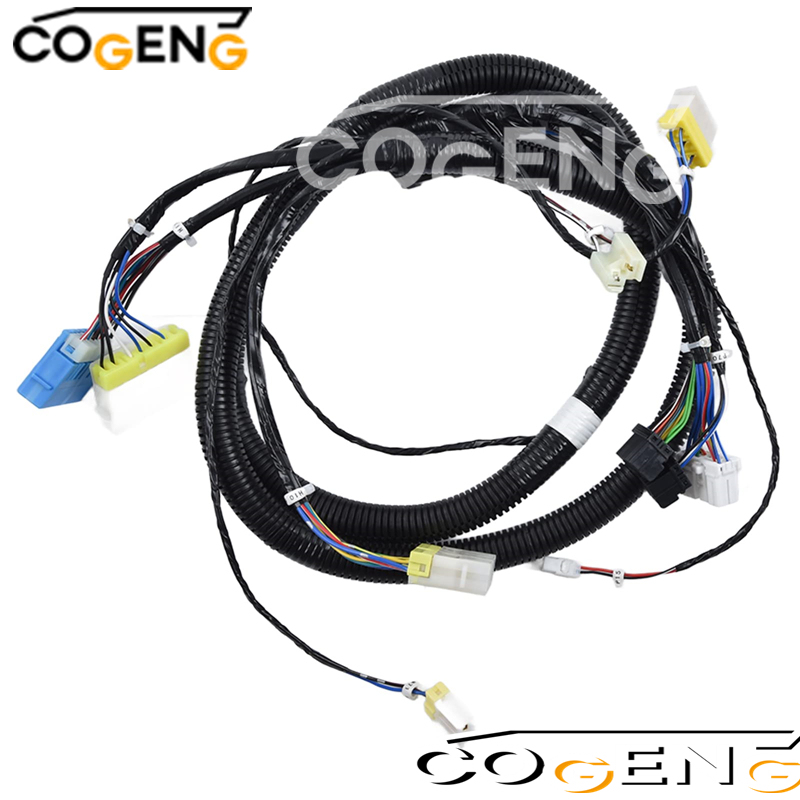

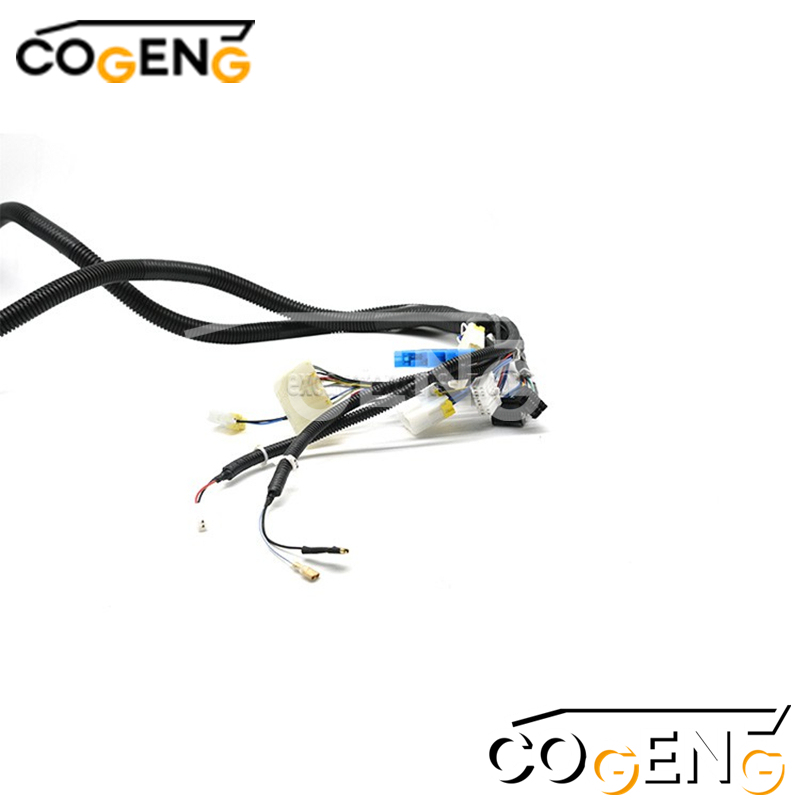

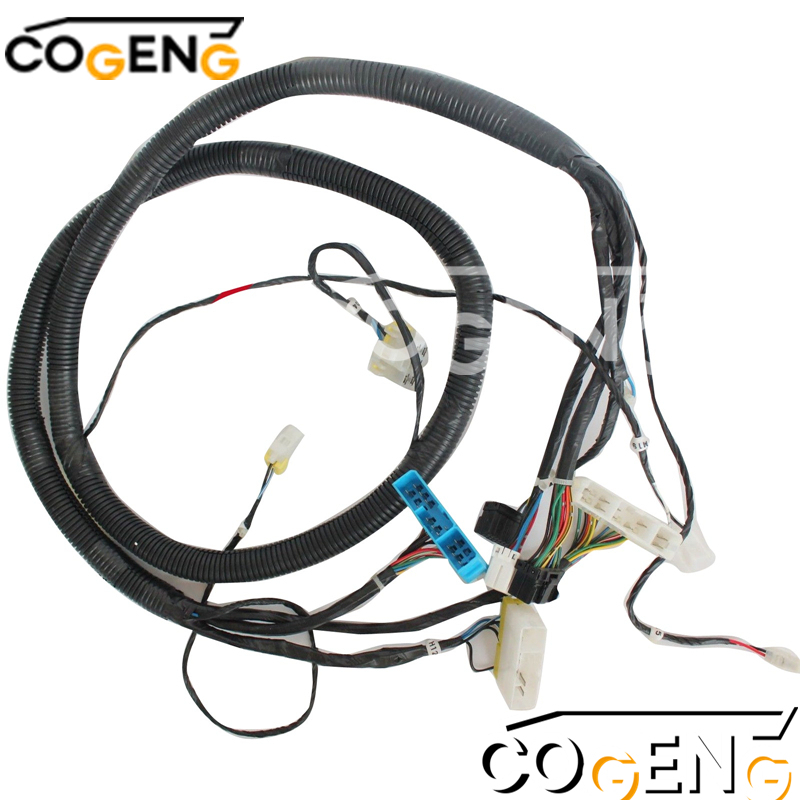

208-53-12920 Komatsu Wiring Harness PC210-7 PC220-7 PC360-7
Product name: Komatsu Wiring Harness
Part No: 208-53-12920 2085312920
Model Number:For PC360-7 PC400-7E0 PC400-7-M1 PC450LC-7-M1 PC130-7 PC160LC-7 PC200-7 PC200-7-AA PC220-7 PC210-7 PC200LC-7 PC210LC-7 PC270-7 PC270LC-7L PC360LC-7
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Specification Category |
Detailed Specification |
| COGENG Part Number |
CG-KOM-2085312920 |
| OEM Reference Number |
208-53-12920 |
| Compatible Models |
Komatsu PC210-7, PC220-7, PC360-7 Excavators |
| Machine Weight Range |
21-36 Ton Class Excavators |
| Wire Insulation Material |
Oil-Resistant Cross-Linked Polyethylene (XLPE) |
| Connector Protection Rating |
IP67 (Dust Tight & Submersible up to 1m) |
| Operating Temperature Range |
-40°C to 125°C |
| System Voltage Rating |
24V DC System |
| Quality Verification |
100% Circuit Continuity & Insulation Tested |
| Warranty Protection |
18-Month Limited Warranty |

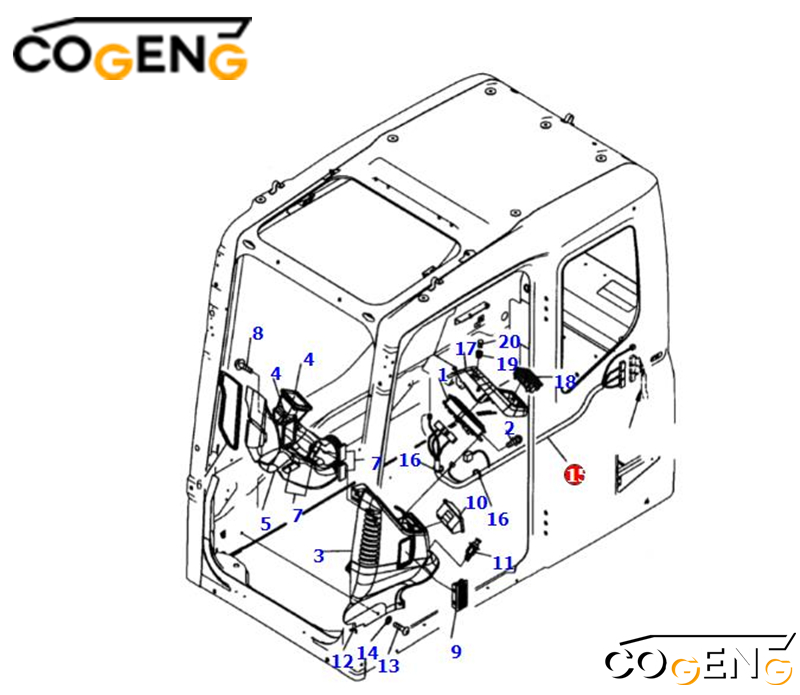

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
7835-12-3007 |
MONITOR |
1 |
|
7835-12-3006 |
MONITOR |
1 |
|
7835-12-3005 |
MONITOR |
1 |
|
7835-12-3003 |
MONITOR |
1 |
| 2 |
01023-10616 |
SCREW |
3 |
| 3 |
208-53-12152 |
COVER |
1 |
| 4 |
208-53-11941 |
SEAL |
2 |
| 5 |
208-53-12310 |
DUCT |
1 |
| 6 |
208-53-11920 |
SEAL |
1 |
| 7 |
208-53-12440 |
SEAL |
7 |
| 8 |
01435-00612 |
BOLT |
2 |
| 9 |
421-07-33870 |
GRILLE ASS'Y |
1 |
| 10 |
22U-54-25371 |
ASHTRAY |
1 |
| 11 |
20Y-06-23472 |
LIGHTER |
1 |
| 12 |
208-53-11850 |
GROMMET |
1 |
| 13 |
01245-00816 |
SCREW |
5 |
| 14 |
01643-70823 |
WASHER |
5 |
| 15 |
208-53-12920 |
WIRING HARNESS |
1 |
| 16 |
08034-20876 |
BAND |
2 |
| 17 |
20Y-54-65580 |
COVER ASS'Y |
1 |
| 18 |
201-979-7820 |
GRILLE |
1 |
| 19 |
20Y-54-65310 |
ADAPTER |
1 |
| 20 |
20Y-979-6161 |
SENSOR |
1 |
Installation decomposition diagram
-
Complete machine power shutdown required before installation
-
Follow model-specific OEM routing paths and mounting positions
-
Ensure all connectors are fully engaged and locking mechanisms secured
-
Verify proper harness routing away from heat sources and moving components
-
Perform comprehensive system diagnostic after installation
