208-06-76830 Komatsu Wiring Harness 2080676830 2080676831 PC450-8 PC430-8

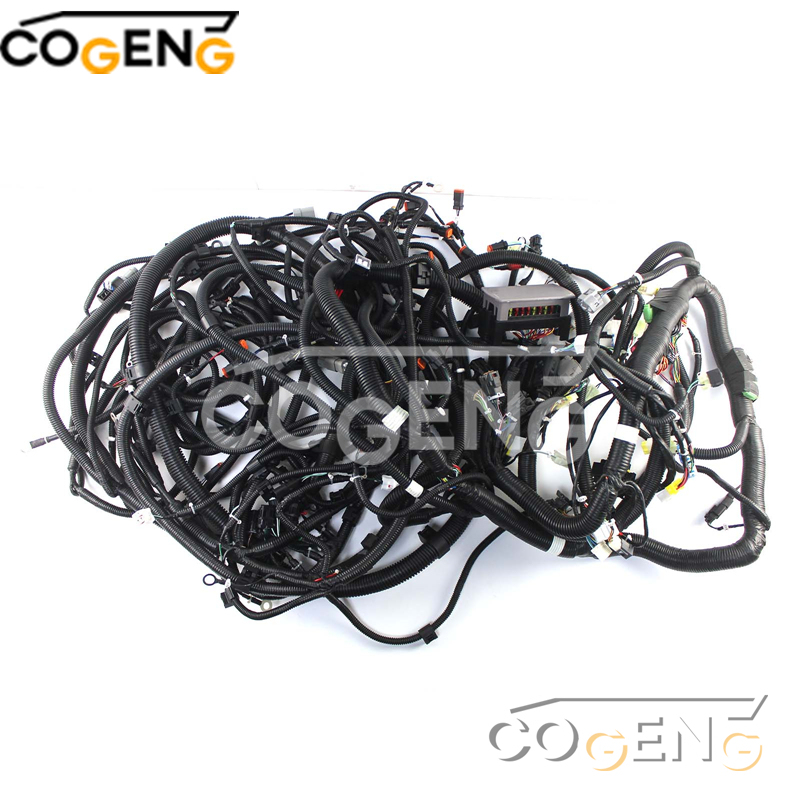

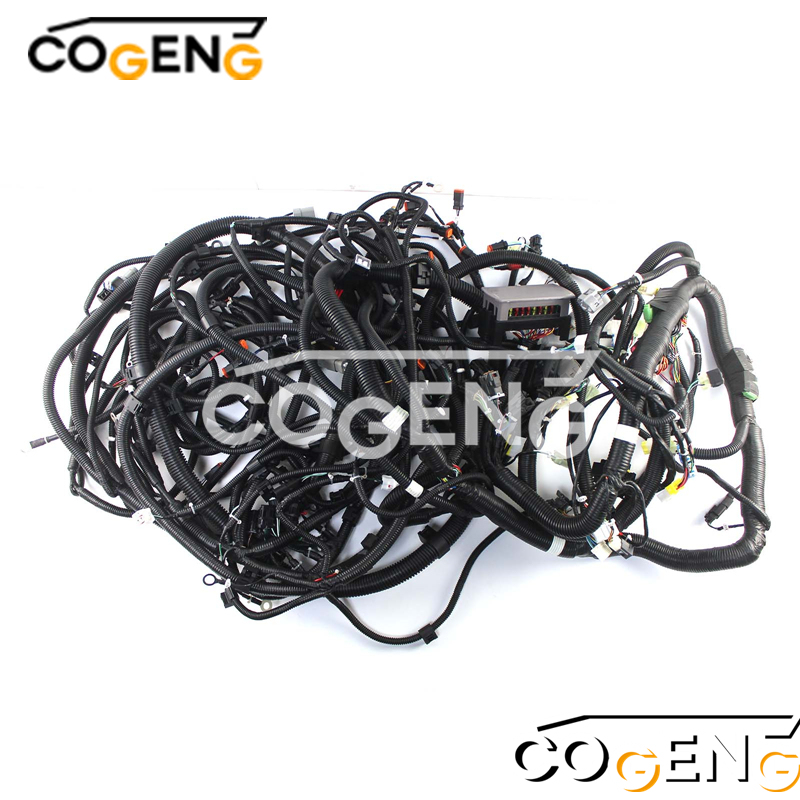

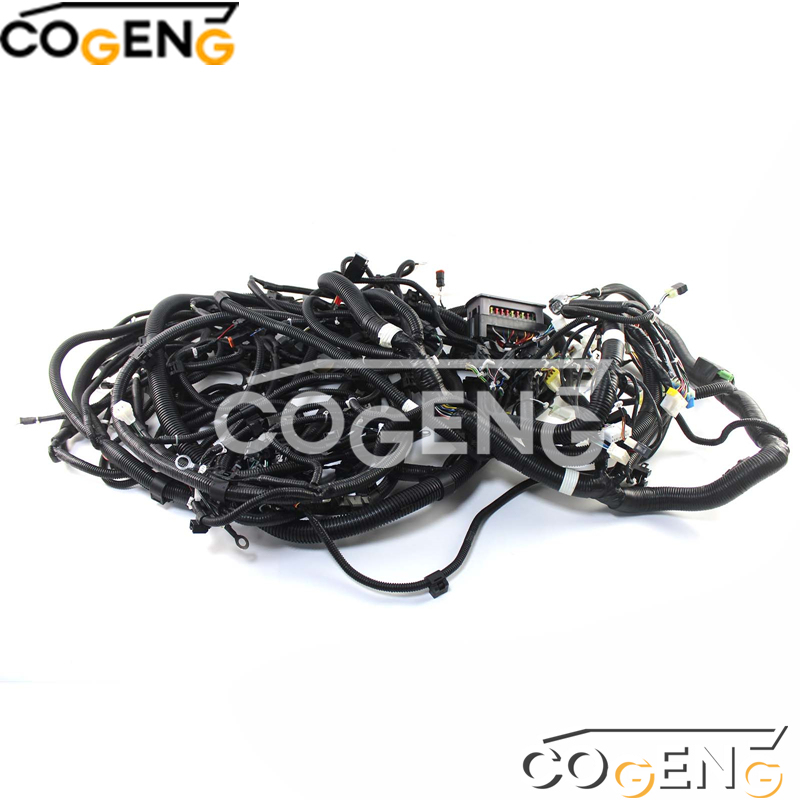

Product name: Komatsu Wiring Harness
Part No: 208-06-76830 208-06-76831 2080676830 2080676831
Model Number:For PC450-8 PC430-8
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Category |
Specification |
| COGENG Part Number |
CG-KOM-2080676830 |
| OEM Reference |
208-06-76830 |
| Construction Standard |
Komatsu OEM Specifications |
| Wire Insulation |
Oil-Resistant XLPE |

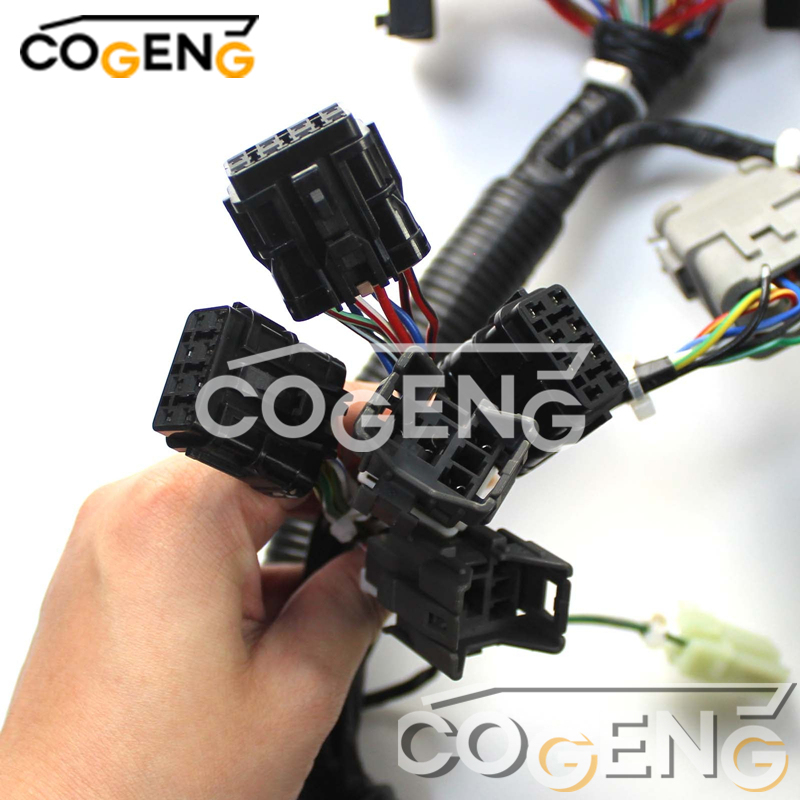

| Connector Rating |
IP67 (Waterproof & Dustproof) |
| Temperature Range |
-40°C to 125°C |
| Voltage Rating |
24V DC System |
| Quality Validation |
100% Circuit Testing |
| Warranty |
18-Month Limited Warranty |

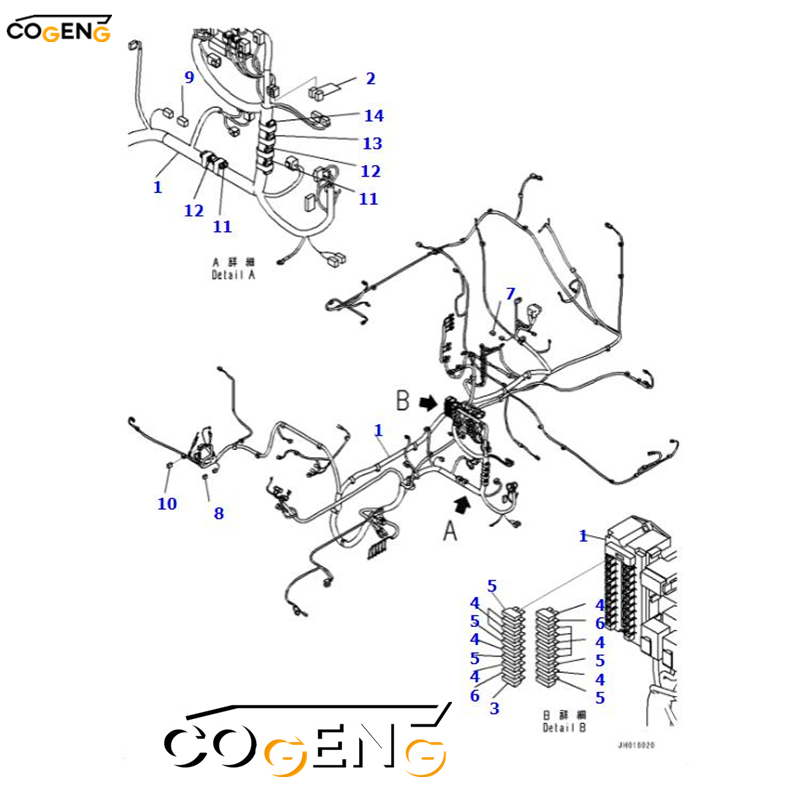

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
208-06-76831 |
WIRING HARNESS |
1 |
|
208-06-76830 |
WIRING HARNESS |
1 |
| 2 |
08020-20000 |
• DIODE |
2 |
| 3 |
08041-00500 |
• FUSE, 5AMP. |
1 |
| 4 |
08041-01000 |
• FUSE, 10AMP. |
12 |
| 5 |
08041-02000 |
• FUSE, 20AMP. |
5 |
| 6 |
08041-03000 |
• FUSE, 30AMP. |
2 |
| 7 |
19M-06-31720 |
• RESISTOR |
1 |
| 8 |
20Y-06-31660 |
• FUSIBLE LINK, 30AMP. |
1 |
| 9 |
20Y-06-43270 |
• RESISTOR |
1 |
| 10 |
22U-06-11270 |
• FUSIBLE LINK, 65AMP. |
1 |
| 11 |
HM6400-0012 |
• F-CONNECTOR, BLACK |
2 |
|
HM6409-0071 |
• M-CONNECTOR, BLACK |
2 |
| 12 |
HM6400-0013 |
• F-CONNECTOR, GREEN |
2 |
|
HM6409-0072 |
• M-CONNECTOR, GREEN |
2 |
| 13 |
HM6440-0129 |
• F-CONNECTOR, PINK |
1 |
|
HM6440-0128 |
• M-CONNECTOR, PINK |
1 |
| 14 |
HM6400-0016 |
• F-CONNECTOR, ORANGE |
1 |
|
HM6409-0075 |
• M-CONNECTOR, ORANGE |
1 |
Installation decomposition diagram
-
Disconnect all power sources before installation
-
Follow OEM routing paths and mounting positions
-
Ensure all connectors are fully engaged
-
Verify proper clearance from moving components
-
Test all electrical functions after installation
