208-06-71510 Komatsu Wiring Harness 2080671510 PC400-7 PC450-7
Product name: Komatsu Wiring Harness
Part No: 208-06-71510 2080671510
Model Number:For PC400-7 PC450-7 PC400-LC-7L PC200LC PC200LC-7L PC200LL-7L
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Component |
Specification |
Application |
| COGENG Reference |
CG-KOM-2080671510 |
Main Wiring Harness |
| OEM Part Number |
208-06-71510 |
Direct Replacement |
| Construction Standard |
Komatsu OEM Specifications |
Quality Assured |
| Wire Insulation |
Oil-Resistant XLPE |
Heavy-Duty Performance |
| Connector Rating |
IP67 Rated |
Maximum Protection |
| Temperature Range |
-40°C to 125°C |
Standard Operating Range |
| System Voltage |
24V DC |
Equipment Electrical System |
| Quality Validation |
100% Circuit Tested |
Reliability Guaranteed |
Here are some additional details about
208-06-71510 is the part number for the Wiring Harness of the Komatsu PC400-7 and PC450-7 excavators. The wiring harness is a key component of the electrical system, used to combine various wires and connectors to ensure the normal operation of the machine and the transmission of electrical signals.
The Komatsu PC400-7 and PC450-7 are large excavators equipped with complex electrical systems. The function of the wiring harness is to connect various electrical components (such as sensors, switches, lamps, etc.) to the main controller to achieve various functions and operations.
A wiring harness consists of multiple wires and connectors that are carefully designed and manufactured to ensure the transmission of electrical signals and the proper operation of the machine. Wiring bundles usually include main power wires, signal wires, ground wires, etc., which are securely bundled together and connected to the corresponding electrical components through connectors.
The 208-06-71510 wiring harness is designed and manufactured to Komatsu's high standards to ensure its quality and reliability. It uses high-quality wires and connectors, has good durability and anti-interference ability, and can operate stably in harsh working environments.
When installing the 208-06-71510 wiring harness, follow Komatsu's installation guide and operating manual. Correctly locating and connecting each wire and connector is key to ensuring the wiring harness works properly.
Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
208-06-71510 |
WIRING HARNESS |
1 |
| 2 |
08041-01000 |
• FUSE, 10A |
16 |
| 3 |
08041-02000 |
• FUSE, 20A |
4 |
| 4 |
04434-53411 |
CLIP |
3 |
| 5 |
195-33-11220 |
SPACER |
3 |
| 6 |
01010-81040 |
BOLT |
3 |
| 7 |
01643-31032 |
WASHER |
3 |
| 8 |
04434-51710 |
CLIP |
2 |
| 9 |
195-33-11220 |
SPACER |
2 |
| 10 |
01010-81040 |
BOLT |
2 |
| 11 |
01643-31032 |
WASHER |
2 |
| 12 |
01010-81016 |
BOLT |
1 |
| 12 |
01435-01016 |
BOLT |
1 |
| 13 |
01643-31032 |
WASHER |
1 |
| 14 |
04434-53411 |
CLIP |
1 |
| 15 |
01010-81020 |
BOLT |
1 |
| 16 |
01643-31032 |
WASHER |
1 |
| 17 |
08034-20519 |
BAND |
3 |
| 18 |
04434-52310 |
CLIP |
3 |
| 19 |
195-33-11220 |
SPACER |
3 |
| 19 |
144-874-7470 |
BOSS |
3 |
| 20 |
01010-81040 |
BOLT |
3 |
| 21 |
01643-31032 |
WASHER |
3 |
| 22 |
08193-30010 |
CLIP |
1 |
| 23 |
08028-43030 |
CABLE, GROUND |
1 |
| 24 |
01010-81020 |
BOLT |
1 |
| 25 |
01643-31032 |
WASHER |
1 |
| 26 |
04434-51910 |
CLIP |
1 |
| 27 |
01010-81020 |
BOLT |
1 |
| 28 |
01643-31032 |
WASHER |
1 |

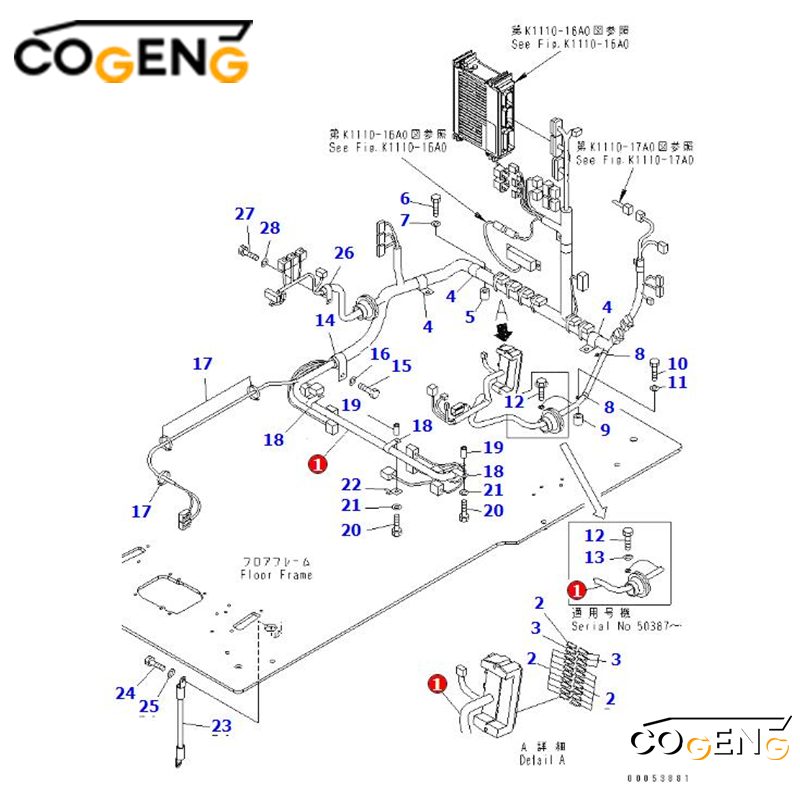

Installation decomposition diagram
-
Disconnect all power sources before installation
-
Follow OEM routing paths precisely
-
Secure all mounting points properly
-
Ensure connectors are fully engaged
-
Test system operation after installation
