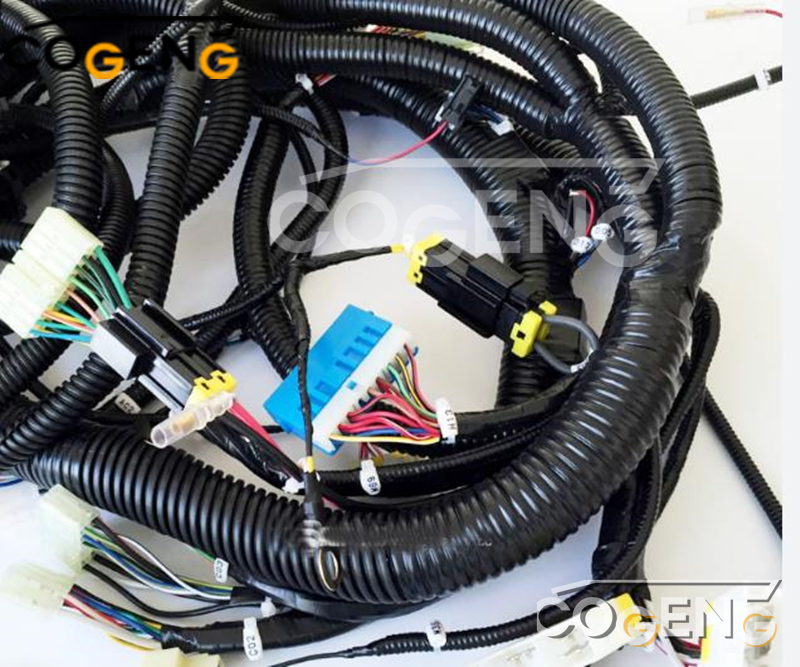

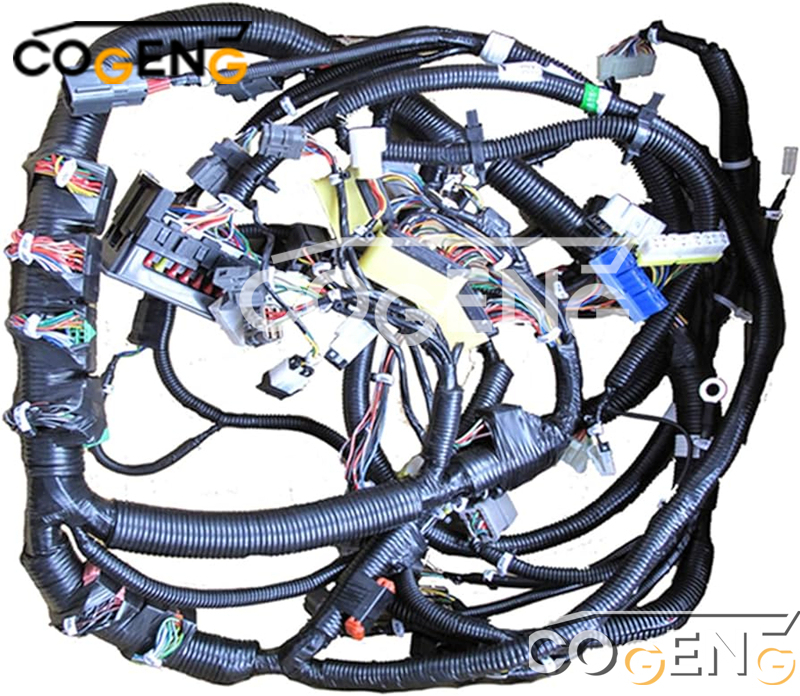

207-06-76511 Komatsu Wiring Harness 2070676511 PC350LC-8 PC300-8 PC350-8 PC350HD-8
Product name: Komatsu Wiring Harness
Part No: 207-06-76511 2070676511
Model Number:For PC350LC-8 PC300-8 PC350-8 PC350HD-8
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Category |
Specification |
| COGENG Part Number |
CG-KOM-2070676511 |
| OEM Reference |
207-06-76511 |
| Compatible Models |
PC300-8, PC350-8, PC350LC-8, PC350HD-8 |
| Machine Weight Class |
30-35 Ton Excavators |
| Wire Insulation |
Oil-Resistant XLPE |
| Connector Rating |
IP67 (Waterproof & Dustproof) |
| Temperature Range |
-40°C to 125°C |
| Voltage Rating |
24V DC System |
| Configuration Support |
Standard, LC, HD Versions |
| Quality Validation |
100% Circuit Testing |
| Warranty |
18-Month Limited Warranty |

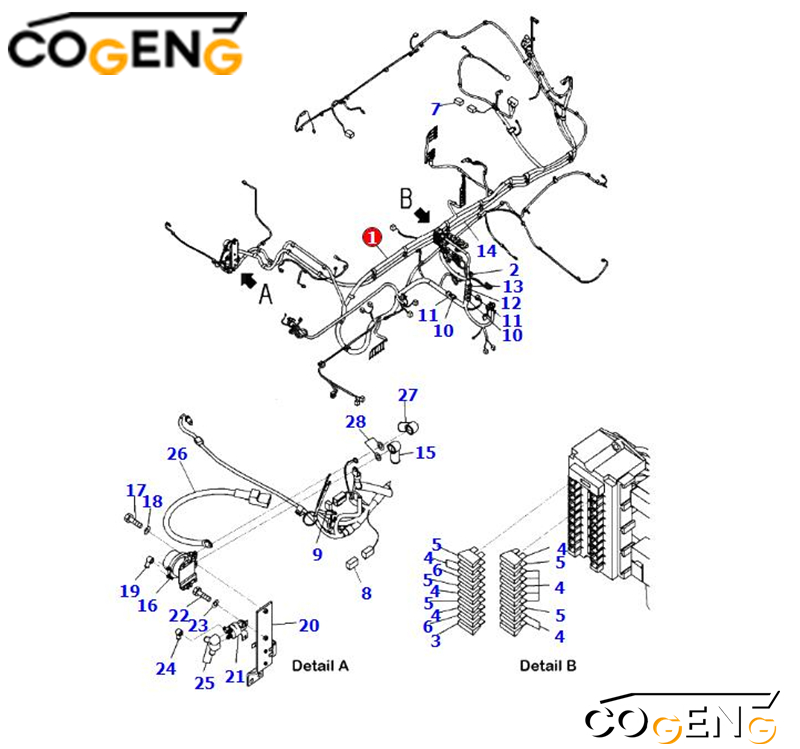

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
207-06-76511 |
WIRING HARNESS |
1 |
| 2 |
08020-20000 |
• DIODE |
2 |
| 3 |
08041-00500 |
• FUSE, 5 A |
1 |
| 4 |
08041-01000 |
• FUSE, 10 A |
12 |
| 5 |
08041-02000 |
• FUSE, 20 A |
5 |
| 6 |
08041-03000 |
• FUSE, 30 A |
2 |
| 7 |
19M-06-31720 |
• RESISTOR |
1 |
| 8 |
20Y-06-31660 |
• FUSIBLE LINK, 30 A |
1 |
| 9 |
22U-06-11270 |
• FUSIBLE LINK, 65 A |
1 |
| 10 |
HM6400-0012 |
• F-CONNECTOR, BLACK |
2 |
|
HM6409-0071 |
• M-CONNECTOR, BLACK |
2 |
| 11 |
HM6400-0013 |
• F-CONNECTOR, GREEN |
2 |
|
HM6409-0072 |
• M-CONNECTOR, GREEN |
2 |
| 12 |
HM6440-0129 |
• F-CONNECTOR, PINK |
1 |
|
HM6440-0128 |
• M-CONNECTOR, PINK |
1 |
| 13 |
HM6400-0016 |
• F-CONNECTOR, ORANGE |
1 |
|
HM6409-0075 |
• M-CONNECTOR, ORANGE |
1 |
| 14 |
207-06-75140 |
CABLE |
1 |
| 15 |
08038-00035 |
CAP |
1 |
| 16 |
08088-30000 |
SWITCH |
1 |
| 17 |
01010-80830 |
BOLT |
2 |
| 18 |
01643-30823 |
WASHER |
2 |
| 19 |
08038-00519 |
CAP |
2 |
| 20 |
207-06-75122 |
BRACKET |
1 |
| 21 |
600-815-2170 |
SWITCH |
1 |
| 22 |
01010-80616 |
BOLT |
2 |
| 23 |
01643-30623 |
WASHER |
2 |
| 24 |
08038-00519 |
CAP |
1 |
| 25 |
08038-02027 |
CAP |
2 |
| 26 |
08028-CD065 |
CABLE |
1 |
| 27 |
08038-00035 |
CAP |
1 |
| 28 |
01643-30823 |
WASHER |
2 |
Installation decomposition diagram
-
Complete machine power shutdown required
-
Follow model-specific OEM routing diagrams
-
Ensure proper connector engagement for all configurations
-
Verify clearance for LC and HD specific components
-
Perform comprehensive system diagnostics
