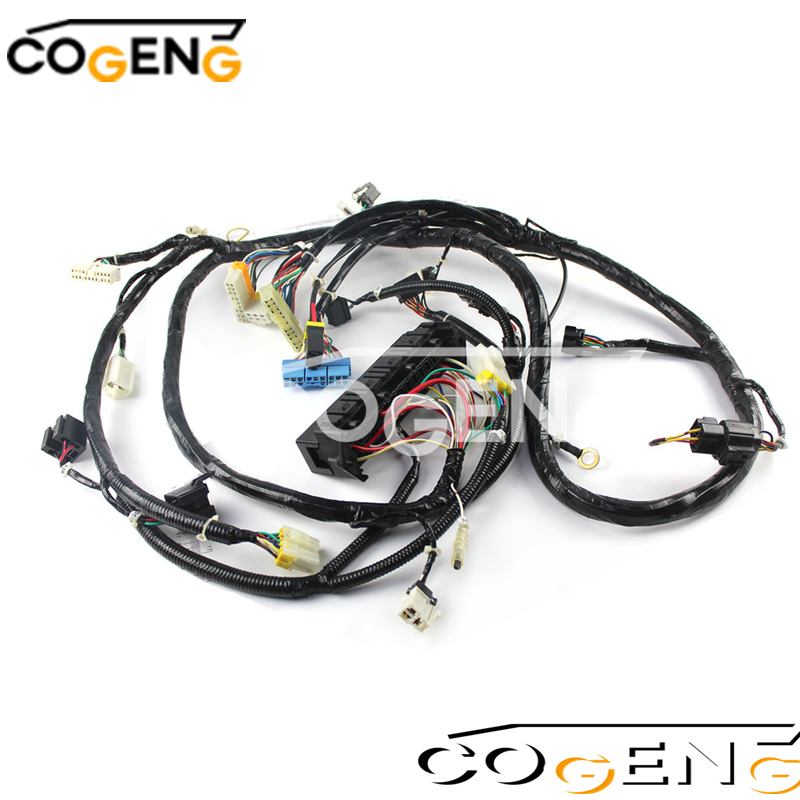

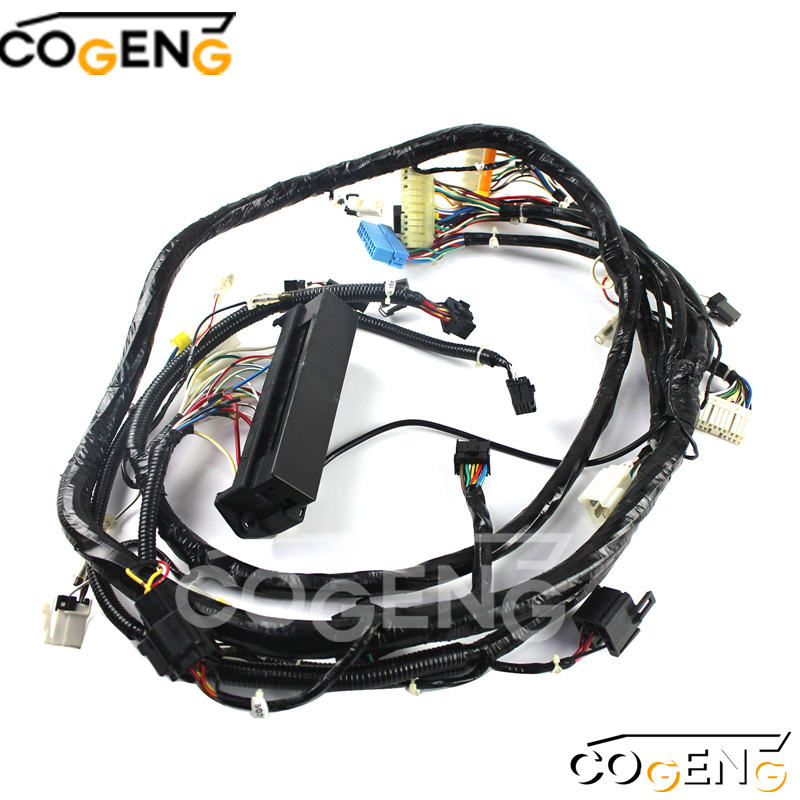

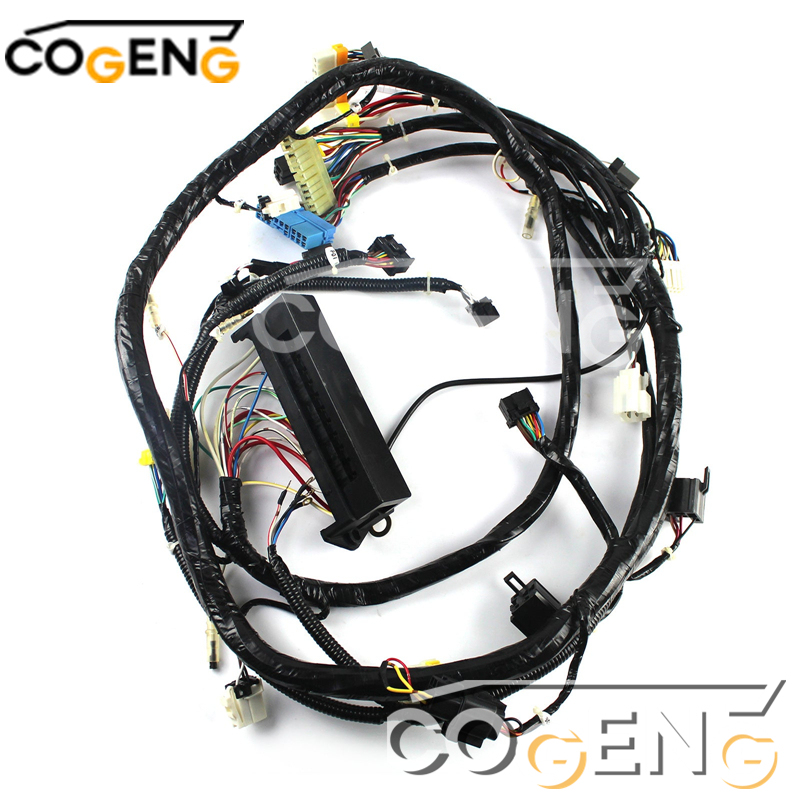

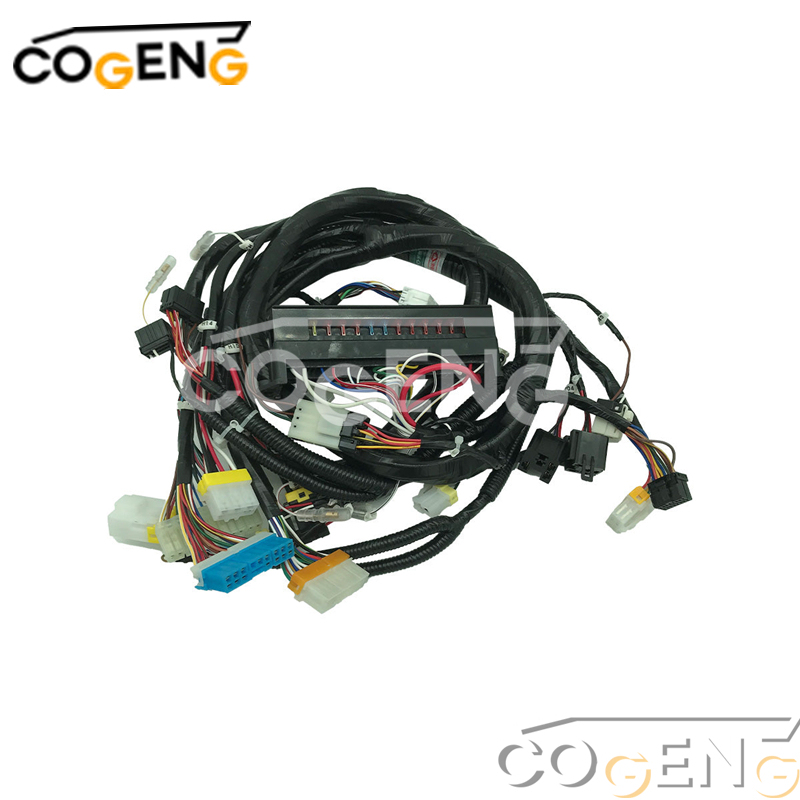

207-06-68120 Komatsu Wiring Harness PC300LC-6LC PC400LC-6
Product name: Komatsu Wiring Harness
Part No: 207-06-68120 2070668120
Model Number:For PC300LC-6LC PC400LC-6 PC300HD-6LC PC400HD-6LC
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Component |
Specification |
Application |
| COGENG Reference |
CG-KOM-2070668120 |
LC Series Main Harness |
| OEM Part Number |
207-06-68120 |
Direct Replacement |
| Compatible Models |
Komatsu PC300LC-6, PC400LC-6 |
Long Undercarriage Excavators |
| Machine Weight Range |
30-40 Ton LC Models |
Extended Crawler Applications |
| Wire Standard |
Oil-Resistant XLPE |
Heavy-Duty Construction |
| Connector Rating |
IP66 (Dust Tight & Water Resistant) |
Protected Performance |
| Temperature Range |
-40°C to 125°C |
Extreme Environmental Conditions |
| System Voltage |
24V DC |
Standard Excavator Electrical System |
| Quality Validation |
100% Circuit Continuity Tested |
Reliability Assurance |

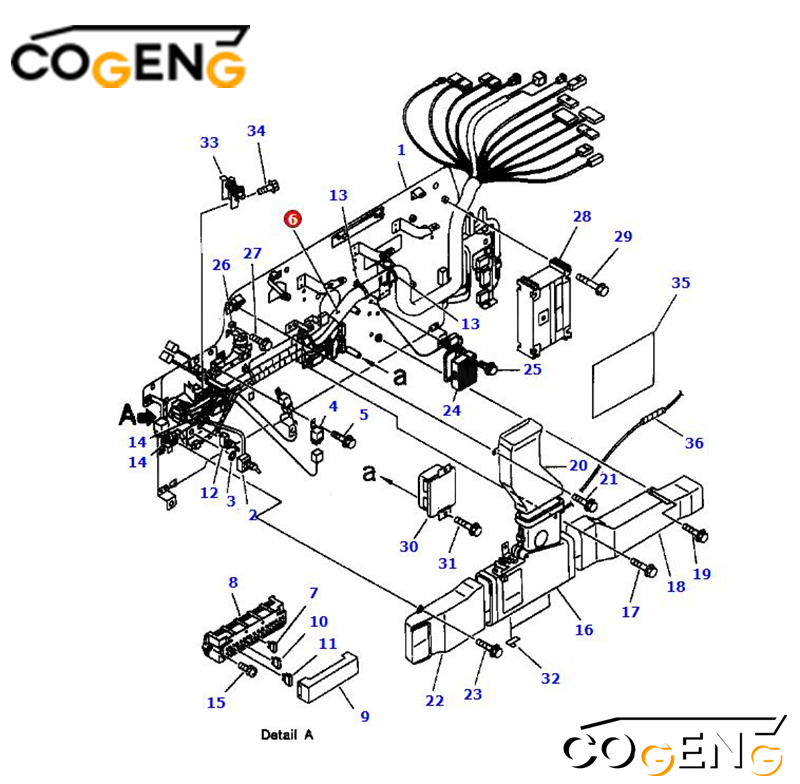

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
207-06-61510 |
BASE |
1 |
| 2 |
20Y-06-24120 |
SWITCH ASSEMBLY |
1 |
| 3 |
01641-21223 |
WASHER |
2 |
| 4 |
569-06-61960 |
RELAY |
2 |
| 5 |
01435-00610 |
BOLT |
2 |
| 6 |
207-06-68120 |
HARNESS, WIRING |
1 |
| 7 |
205-06-73180 |
• FUSE, 15A |
3 |
| 8 |
283-06-16110 |
• BOX |
1 |
| 9 |
195-Z11-2290 |
• COVER |
1 |
| 10 |
283-06-16190 |
• FUSE, 10A |
14 |
| 11 |
22W-06-13160 |
• FUSE |
2 |
| 12 |
20Y-06-24130 |
• SWITCH |
1 |
| 13 |
20Y-06-21460 |
CLIP |
2 |
| 14 |
20Y-06-23960 |
CLIP |
2 |
| 15 |
01023-10625 |
SCREW |
2 |
| 16 |
20Y-979-2130 |
BOX ASSEMBLY |
1 |
| 17 |
01435-01016 |
BOLT |
2 |
| 18 |
20Y-979-2221 |
DUCT |
1 |
| 19 |
01435-00610 |
BOLT |
1 |
| 20 |
20Y-979-2231 |
DUCT |
1 |
| 21 |
01435-00610 |
BOLT |
2 |
| 22 |
20Y-979-2242 |
DUCT |
1 |
| 23 |
01435-00610 |
BOLT |
1 |
| 24 |
207-06-61170 |
REGISTOR |
1 |
| 25 |
01435-00820 |
BOLT |
2 |
| 26 |
203-06-56230 |
BUZZER ASSEMBLY |
1 |
| 27 |
01435-00610 |
BOLT |
1 |
| 28 |
7834-20-4001 |
CONTROLLER, GOVERNOR AND PUMP |
1 |
| 29 |
01435-00880 |
BOLT |
3 |
| 30 |
20Y-06-23640 |
CONTROLLER |
1 |
| 31 |
01435-00630 |
BOLT |
2 |
| 32 |
08051-00801 |
CLIP |
2 |
| 33 |
20Y-06-23521 |
LOCK |
1 |
| 34 |
01435-00820 |
BOLT |
2 |
| 35 |
20Y-06-24220 |
SHEET |
1 |
| 36 |
08017-30701 |
CONDUIT |
1 |
Installation decomposition diagram
-
Complete machine power shutdown mandatory
-
Follow LC model specific routing paths
-
Ensure proper clearance for extended undercarriage components
-
Verify all model-specific electrical connections
-
Conduct post-installation system diagnostics
