| Category | Specification |
|---|---|
| COGENG Set Number | CG-KOM-SET-20761241-61242-61151 |
| OEM References | 207-06-61241, 207-06-61242, 207-06-61151 |
| Set Components | 3 Complete Harness Assemblies |
| Wire Insulation | Oil-Resistant XLPE |
| Connector Rating | IP67 (Waterproof & Dustproof) |
| Temperature Range | -40°C to 125°C |
| Voltage Rating | 24V DC System |
| Quality Validation | 100% Individual & Integrated Testing |
| Warranty Coverage | 18-Month Limited Warranty |

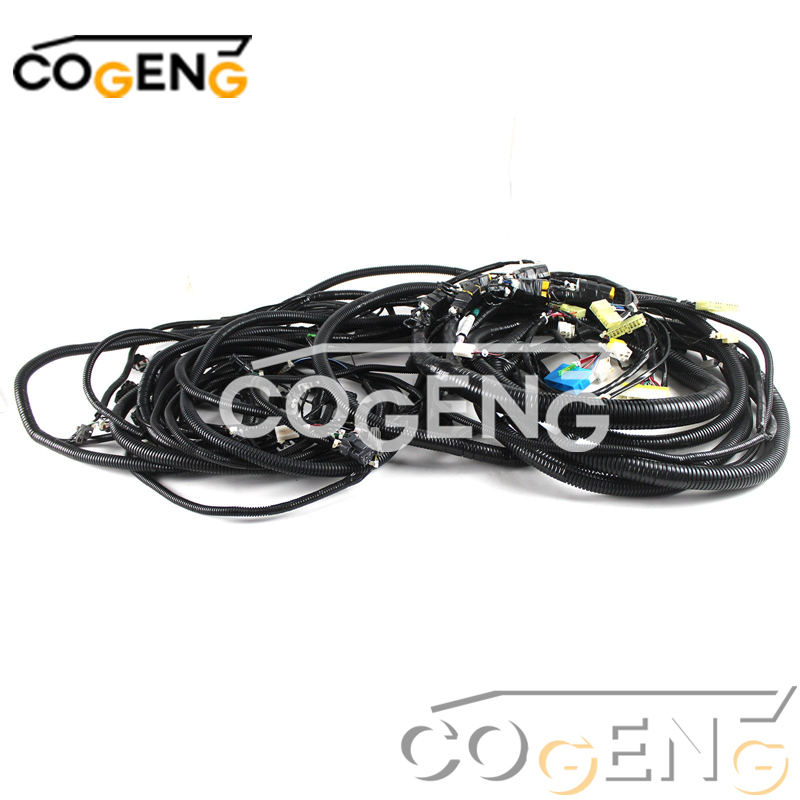

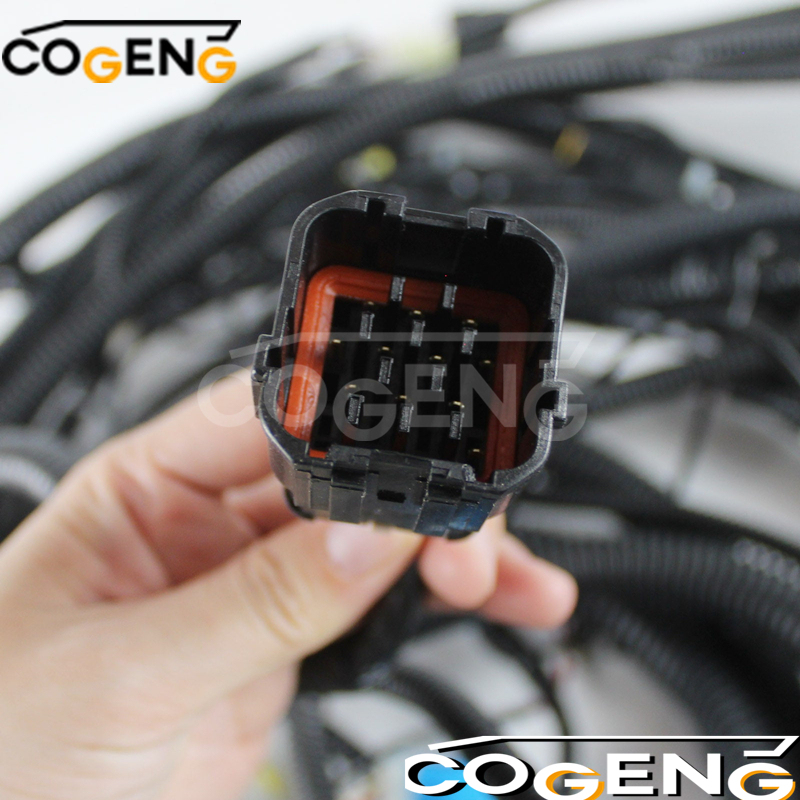

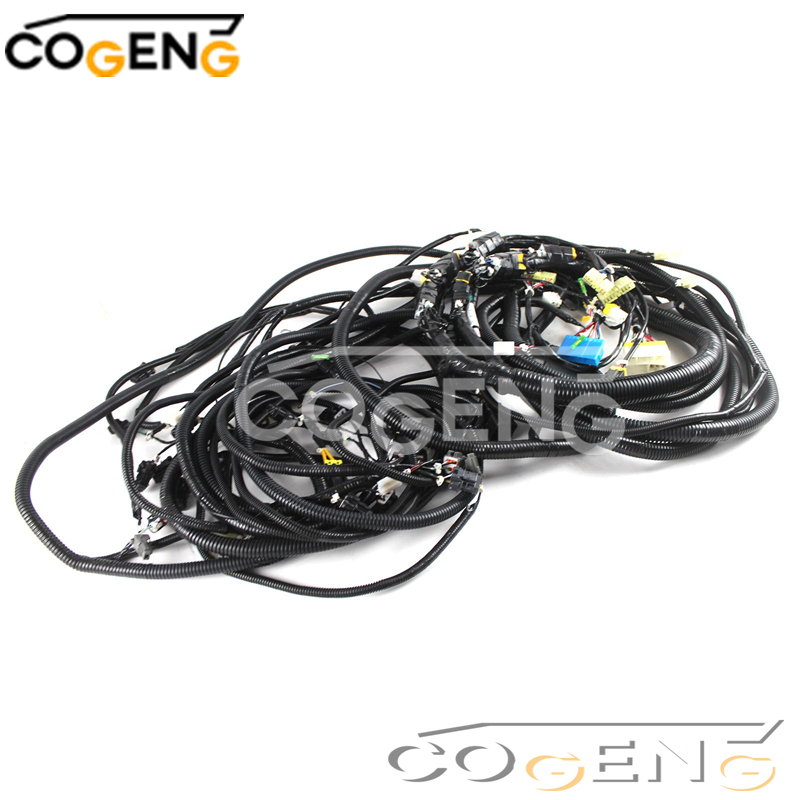

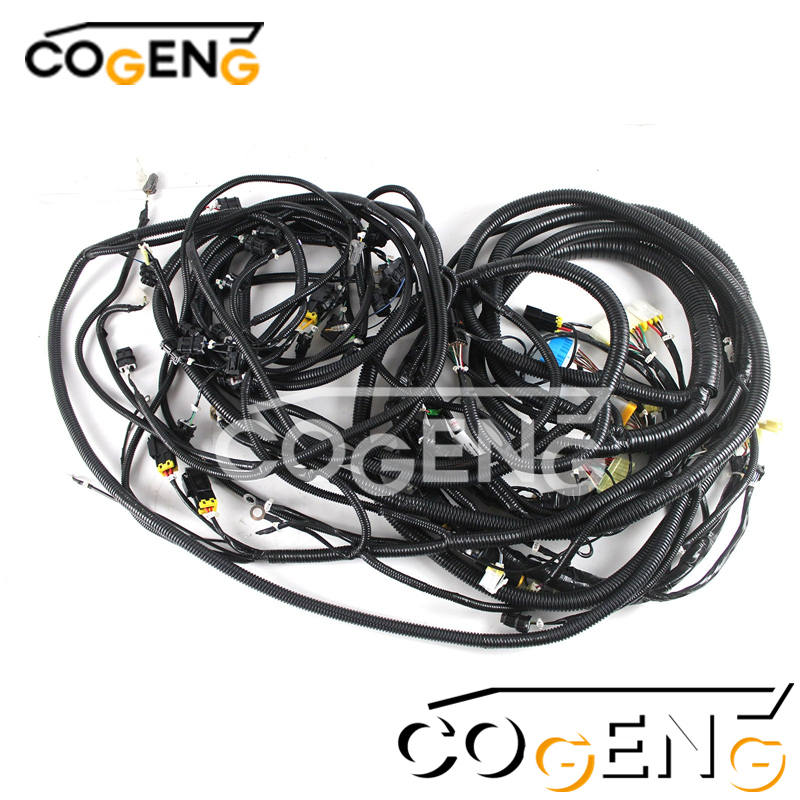

Multi-Part Number Coverage: Directly replaces the discontinued/superseded Komatsu Part Numbers 207-06-61151, 207-06-61241, and 207-06-61242, ensuring broad compatibility across specific serial number ranges.
Intended Application: Primarily functions as a Main Wiring Harness or Engine Control Harness for Dash-6 series, critical for overall machine control and power distribution.
Robust Construction: Features high-specification wiring, durable insulation, and resilient connectors built to withstand the rigorous vibrations, temperature extremes, and chemical exposure typical of a Komatsu engine and chassis environment.
PC300/PC350-6 Compatibility: Essential for restoring electrical function in heavy excavators, notably the PC300-6 and PC350-6 models (please verify specific serial number range for exact fitment).
Guaranteed Electrical Integrity: Each harness is subjected to thorough continuity and resistance testing by COGENG to guarantee reliable signal transfer and prevent system errors or intermittent faults.

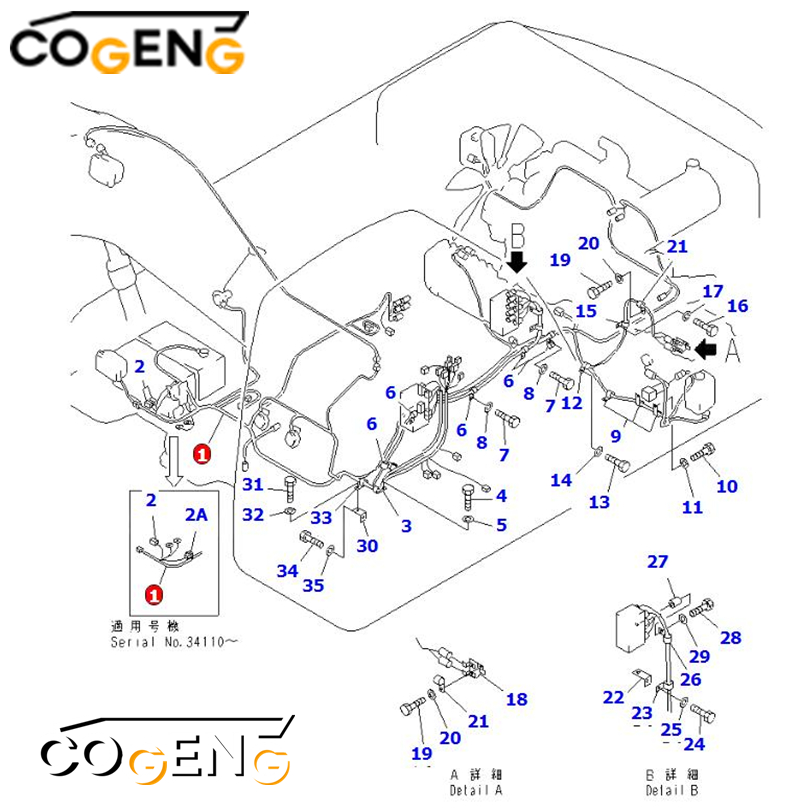

| NO | Number | Name | Qty |
| 1 | 207-06-61241 | WIRING HARNESS | 1 |
| 207-06-61242 | WIRING HARNESS | 1 | |
| 207-06-61151 | WIRING HARNESS | 1 | |
| 2 | 20Y-06-15150 | • FUSIBLE LINK | 1 |
| 20Y-06-15150 | • FUSIBLE LINK | 2 | |
| 2A | 20Y-06-31660 | • FUSIBLE LINK¤ 30A | 1 |
| 3 | 113-899-7950 | CLIP | 1 |
| 4 | 01010-81225 | BOLT | 1 |
| 01010-51225 | BOLT | 1 | |
| 5 | 01643-31232 | WASHER | 1 |
| 6 | 08036-01814 | CLIP | 5 |
| 7 | 01010-81225 | BOLT | 5 |
| 01010-51225 | BOLT | 5 | |
| 8 | 01643-31232 | WASHER | 5 |
| 9 | 08036-01414 | CLIP | 3 |
| 10 | 01010-81225 | BOLT | 3 |
| 01010-51225 | BOLT | 3 | |
| 11 | 01643-31232 | WASHER | 3 |
| 12 | 08036-01814 | CLIP | 1 |
| 13 | 01010-81225 | BOLT | 1 |
| 01010-51225 | BOLT | 1 | |
| 14 | 01643-31232 | WASHER | 1 |
| 15 | 08036-00814 | CLIP | 1 |
| 16 | 01010-81225 | BOLT | 1 |
| 01010-51225 | BOLT | 1 | |
| 17 | 01643-31232 | WASHER | 1 |
| 18 | 20Y-06-21521 | BRACKET | 1 |
| 19 | 01010-81020 | BOLT | 2 |
| 01010-51020 | BOLT | 2 | |
| 20 | 01643-31032 | WASHER | 2 |
| 21 | 08036-00814 | CLIP | 2 |
| 22 | 17M-49-15260 | BRACKET | 1 |
| 23 | 04434-51712 | CLIP | 1 |
| 24 | 01010-81225 | BOLT | 1 |
| 01010-51225 | BOLT | 1 | |
| 25 | 01643-31232 | WASHER | 1 |
| 26 | 08036-01414 | CLIP | 1 |
| 27 | 195-979-3570 | COLLAR | 1 |
| 28 | 01010-81085 | BOLT | 1 |
| 01010-51085 | BOLT | 1 | |
| 29 | 01643-31032 | WASHER | 1 |
| 30 | 17M-49-15260 | BRACKET | 1 |
| 31 | 01010-81225 | BOLT | 1 |
| 01010-51225 | BOLT | 1 | |
| 32 | 01643-31232 | WASHER | 1 |
| 33 | 113-899-7950 | CLIP | 1 |
| 34 | 01010-81225 | BOLT | 1 |
| 01010-51225 | BOLT | 1 | |
| 35 | 01643-31232 | WASHER | 1 |
Complete power system shutdown required before installation
Install all three harnesses as complete set for optimal performance
Follow OEM routing diagrams for each component
Ensure all inter-harness connections are properly engaged
Perform comprehensive system diagnostics after installation
