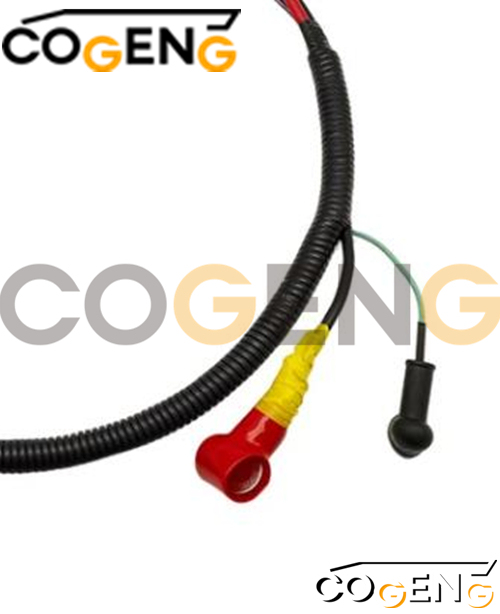

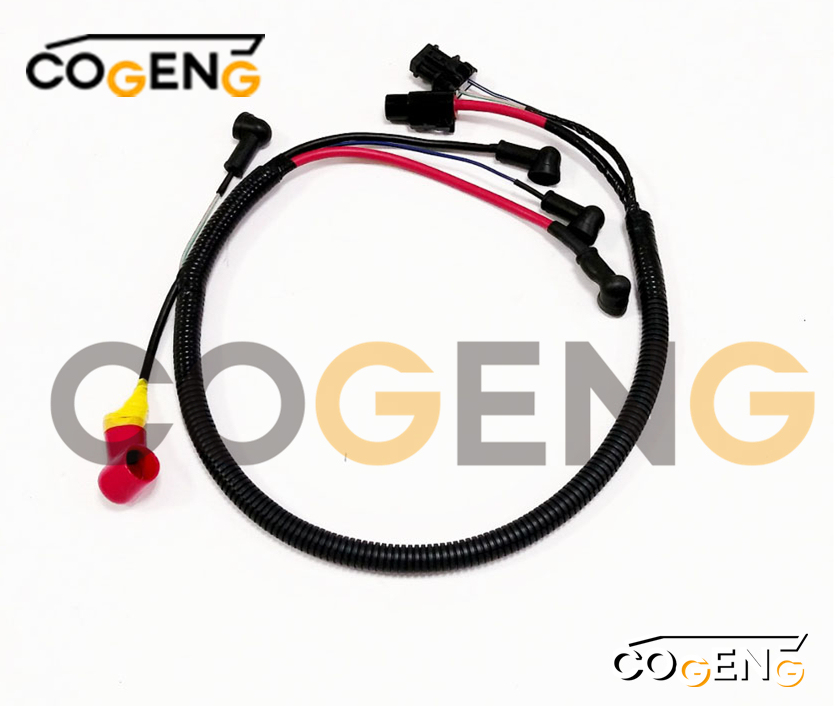

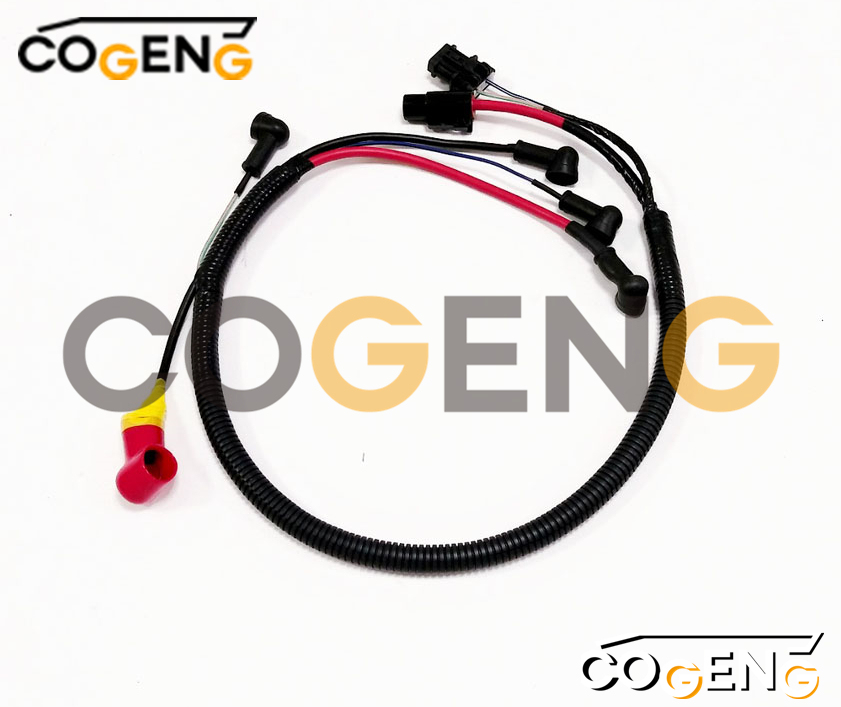

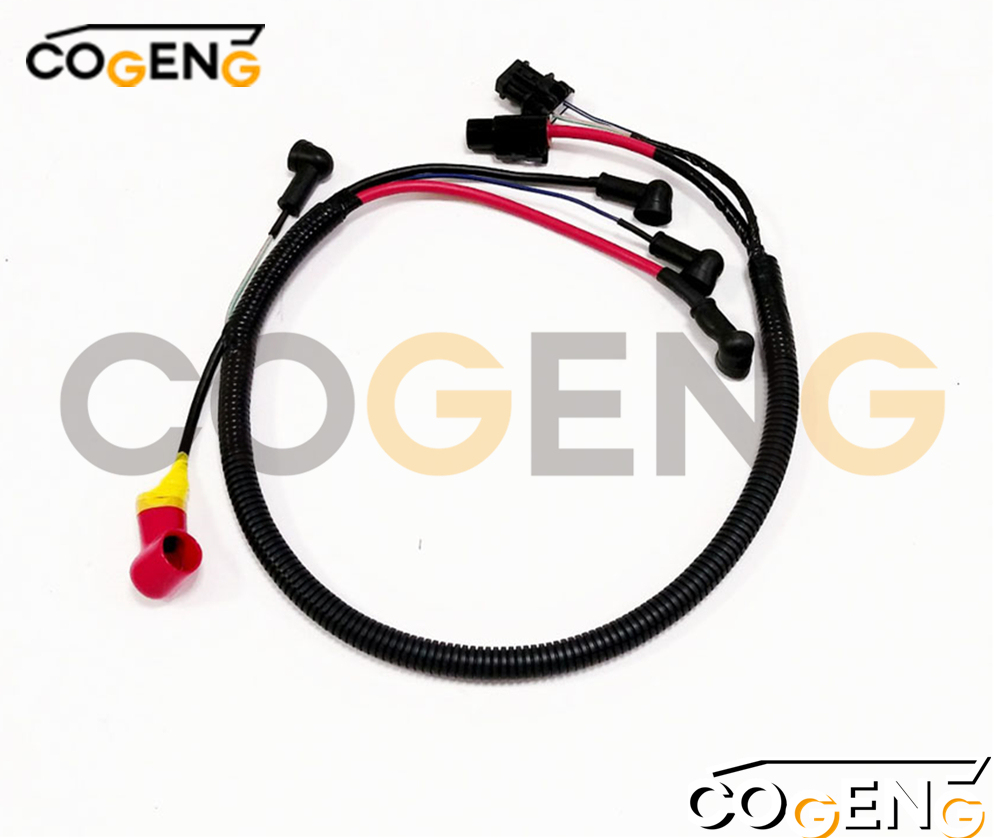

203-06-71141 203-06-71142 KOMATSU Wiring Harness PC130-7 PC130-7K PC130F-7
Product name: KOMATSU Wiring Harness
Part No:203-06-71141 2030671142 20306711421 2030671142
Model Number:For PC130-7 PC130-7K PC130F-7
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Specification Category |
Technical Specifications |
| Compatible Machine Models |
Komatsu PC130-7, PC130-7K, PC130F-7 Excavators |
| COGENG Part Number |
CG-KOM-PC130-PMH14 |
| Replaces OEM Part Numbers |
203-06-71141, 203-06-71142 |
| Product Name |
Pro Series Main Wiring Harness Assembly |
| Application Scope |
Complete excavator electrical system integration |
| Wire Specifications |
XLPO insulation (-40°C to 150°C), oil/fuel/abrasion/chemical resistant |
| Connector System |
IP67 rated sealed connectors, OEM-specification compliant |
| Quality Assurance |
9-stage testing protocol including thermal cycling and vibration testing |
| Warranty Coverage |
3,000-hour professional warranty |
Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
203-06-71141 |
WIRING HARNESS |
1 |
|
203-06-71142 |
WIRING HARNESS |
1 |
| 2 |
08038-00519 |
CAP |
4 |
| 3 |
01010-81020 |
BOLT |
1 |
| 4 |
01643-31032 |
WASHER |
1 |
| 5 |
04434-51410 |
CLIP |
1 |
| 6 |
6152-51-5520 |
SPACER |
1 |
| 7 |
01010-81070 |
BOLT |
1 |
| 8 |
01643-31032 |
WASHER |
1 |
| 9 |
04434-52112 |
CLIP |
1 |
| 10 |
07095-20314 |
CUSHION |
1 |
| 11 |
195-979-3570 |
COLLAR |
1 |
| 12 |
01010-81295 |
BOLT |
1 |
| 13 |
01643-31232 |
WASHER |
1 |
| 14 |
203-06-71152 |
CABLE |
1 |
| 14 |
203-06-71151 |
CABLE |
1 |
| 15 |
04434-51410 |
CLIP |
2 |
| 16 |
01010-81020 |
BOLT |
2 |
| 17 |
01643-31032 |
WASHER |
2 |
| 18 |
08034-20519 |
BAND |
1 |
| 19 |
04434-50610 |
CLIP |
1 |
| 20 |
01010-81020 |
BOLT |
1 |
| 21 |
01643-31032 |
WASHER |
1 |
| 22 |
08038-00519 |
CAP |
1 |

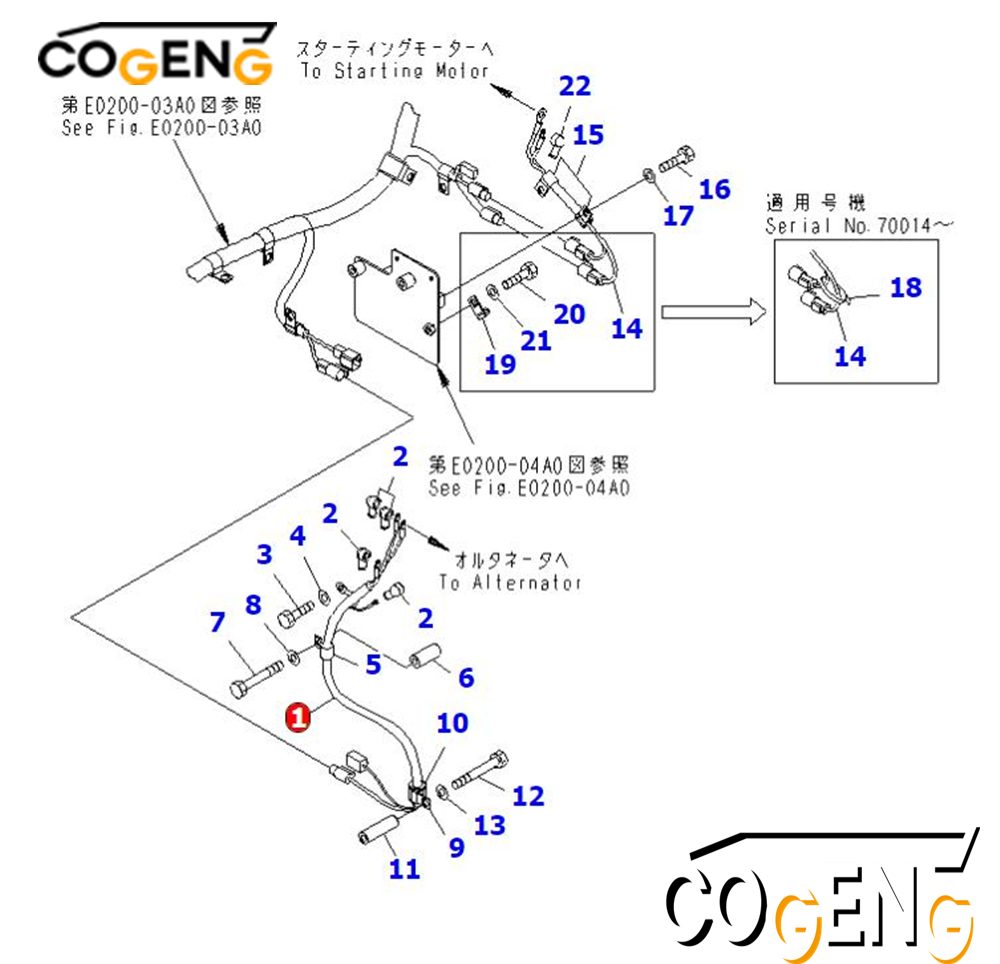

Installation decomposition diagram
Frequently Asked Questions
A. When will get the items after I place order?
Q. Once your payment is confirmed,? ?we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?
A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.
A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.
A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?
A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.
A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.
A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
