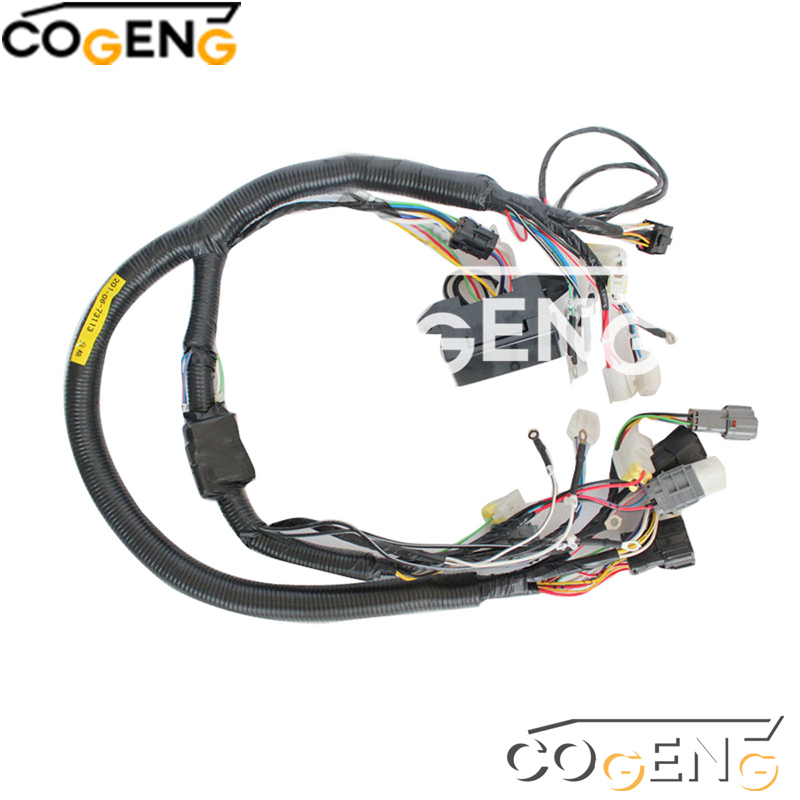

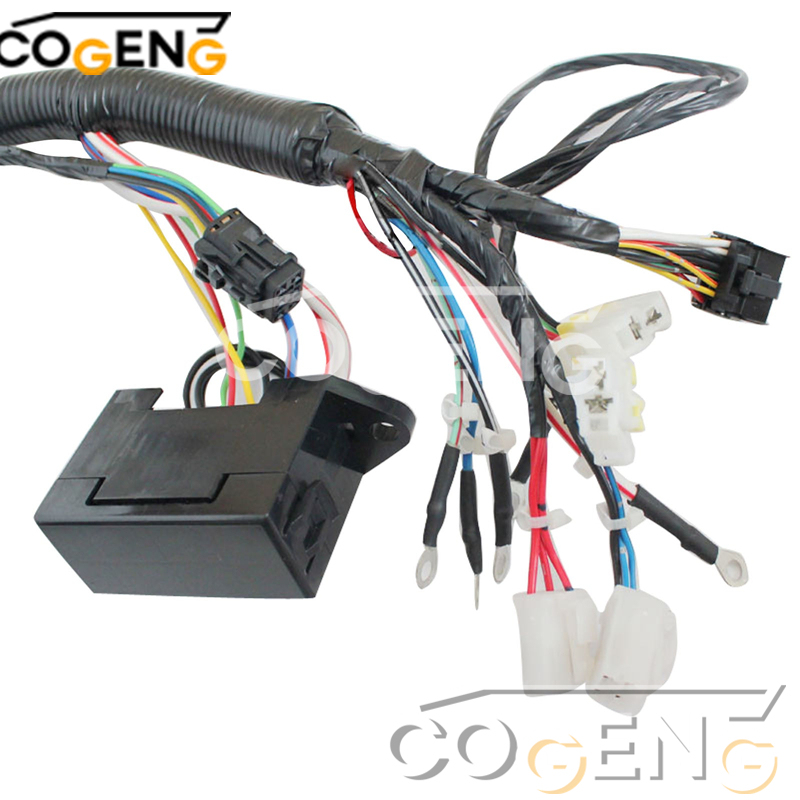

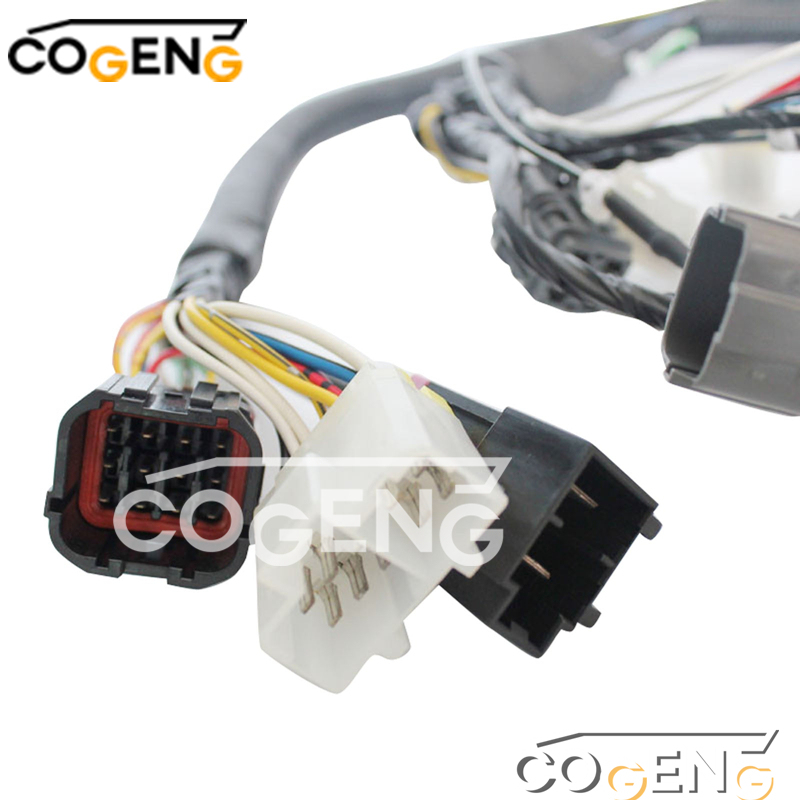

201-06-73110 201-06-73112 Komatsu Wiring Harness 2010673110 2010673112 PC70-7 PC60-7
Product name: Komatsu Wiring Harness
Part No: 201-06-73110 201-06-73112 2010673110 2010673112
Model Number:For PC70-7 PC60-7
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Category |
Specification |
| COGENG Set Number |
CG-KOM-SET-20173110-73112 |
| OEM References |
201-06-73110 & 201-06-73112 |
| Compatible Models |
PC70-7, PC60-7 Mini Excavators |
| Machine Weight Class |
6-7 Ton Compact Excavators |
| Wire Insulation |
Oil-Resistant XLPE |
| Connector Rating |
IP66 (Water & Dust Resistant) |
| Temperature Range |
-30°C to 105°C |
| Voltage Rating |
12V/24V DC System |
| Design Feature |
Compact Space-Saving Design |
| Quality Validation |
100% Paired Circuit Testing |
| Warranty |
18-Month Limited Warranty |

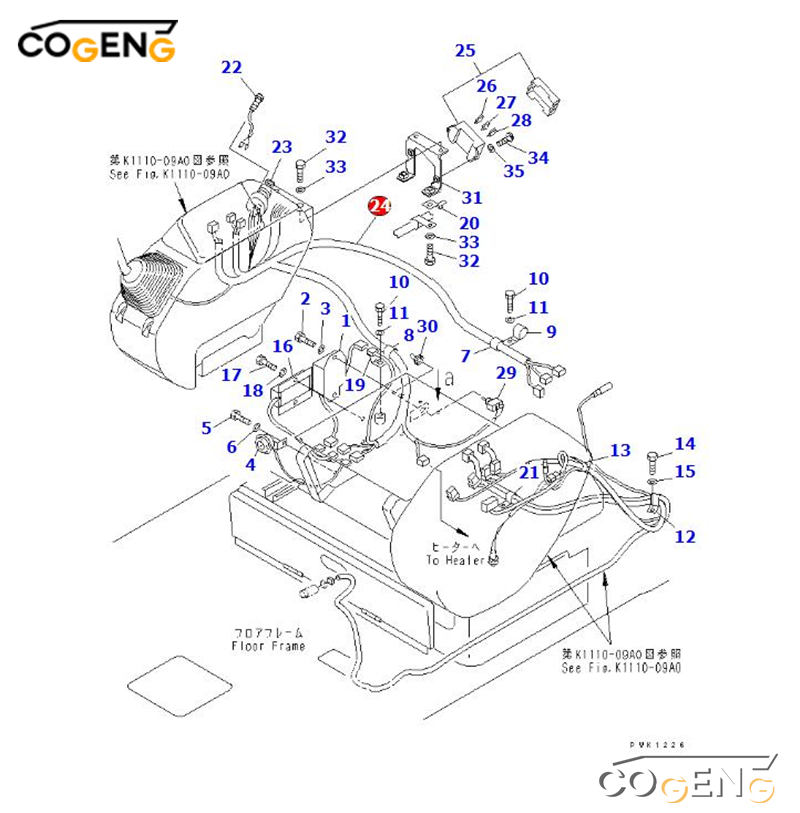

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
21W-06-21712 |
CONTROLLER ASS'Y,DECEL |
1 |
| 2 |
01010-80820 |
BOLT |
2 |
| 3 |
01643-30823 |
WASHER |
2 |
| 4 |
203-06-56230 |
BUZZER ASS'Y,ALARM |
1 |
| 5 |
01010-80616 |
BOLT |
1 |
| 6 |
01643-30623 |
WASHER |
1 |
| 7 |
08036-02514 |
CLIP |
1 |
| 8 |
08036-01814 |
CLIP |
1 |
| 9 |
08036-12514 |
CLIP |
1 |
| 10 |
01010-81020 |
BOLT |
2 |
| 11 |
01643-31032 |
WASHER |
2 |
| 12 |
08036-02514 |
CLIP |
1 |
| 13 |
08036-01814 |
CLIP |
1 |
| 14 |
01010-81020 |
BOLT |
3 |
| 15 |
01643-31032 |
WASHER |
3 |
| 16 |
201-06-71240 |
CONTROLLER |
1 |
| 17 |
01010-80820 |
BOLT |
2 |
| 18 |
01643-30823 |
WASHER |
2 |
| 19 |
08053-01512 |
CLIP |
1 |
| 20 |
08053-00910 |
CLIP |
1 |
| 21 |
08036-02514 |
CLIP |
1 |
| 22 |
21W-06-21310 |
LAMP |
1 |
| 23 |
08086-20000 |
SWITCH,STARTING |
1 |
| 24 |
201-06-73110 |
WIRING HARNESS |
1 |
|
08020-00000 |
• DIODE |
2 |
| 25 |
205-06-71480 |
• FUSE BOX |
1 |
| 26 |
283-06-16190 |
• FUSE¤ 10A |
4 |
| 27 |
205-06-73180 |
• FUSE¤ 15A |
3 |
| 28 |
22W-06-13160 |
• FUSE¤ 20A |
2 |
| 29 |
203-06-41570 |
• SWITCH,SWING REDUNDANCY |
1 |
| 30 |
203-06-41680 |
• CAP |
1 |
| 31 |
201-06-73310 |
BRACKET |
1 |
| 32 |
01010-80820 |
BOLT |
2 |
| 33 |
01643-30823 |
WASHER |
2 |
| 34 |
01220-30616 |
SCREW |
2 |
| 35 |
01641-20608 |
WASHER |
2 |
Installation decomposition diagram
-
Disconnect battery and power sources before installation
-
Follow compact model specific routing paths
-
Ensure proper connector engagement in tight spaces
-
Verify clearance in compact engine compartment
-
Test all electrical functions after installation
Frequently Asked Questions
A. When will get the items after I place order?
Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order.
A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.
A. How can you guarantee the quality?
Q. We will 100% test the goods before delivery. We also support video inspection.
A. How long will it take to delivery to my address?
Q. The normal delivery time is 3-7 days, depending on which country you are in.?
A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.
A: What's package? Can you give me the package according my requirement?
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.
A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
