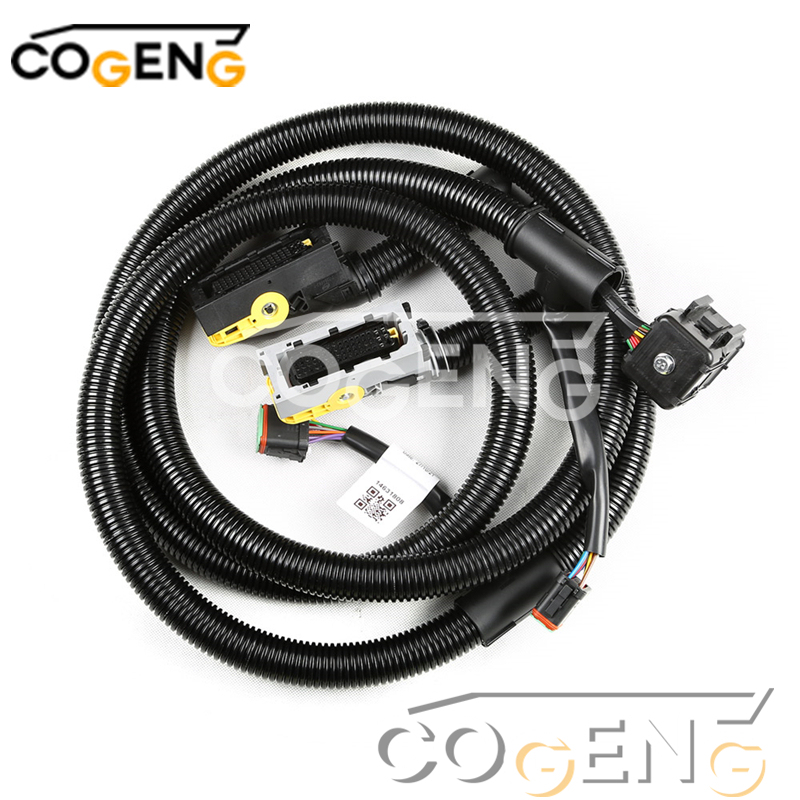

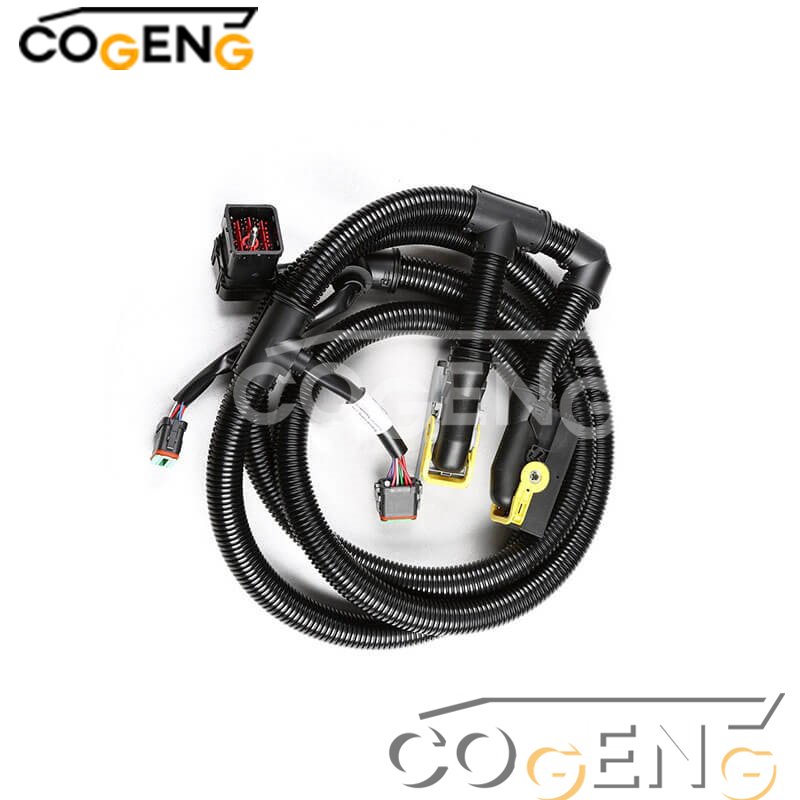

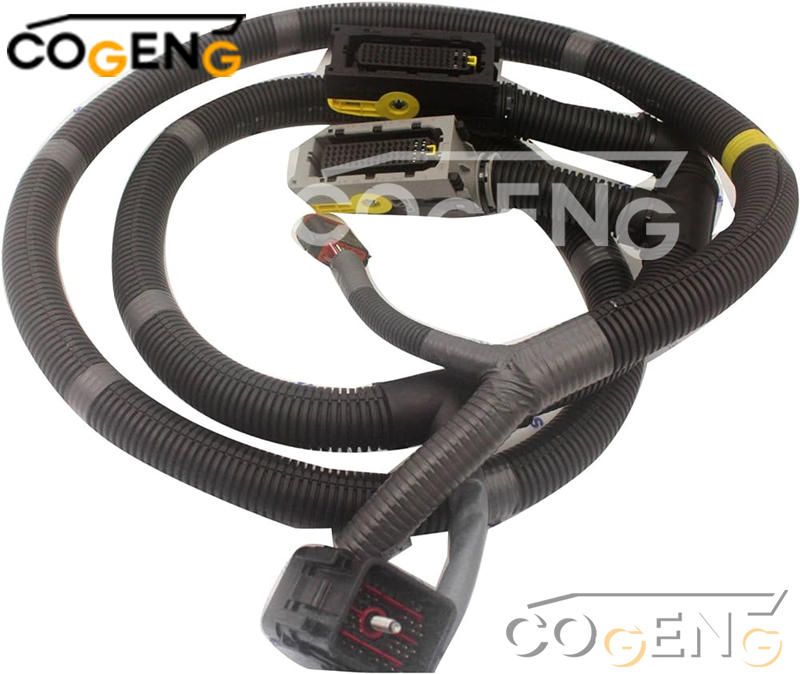

COGENG VOE14631808 & VOE14631794 (14631808 & 14631794) Volvo Wiring Harness Set | Direct OEM Replacement for Volvo Equipment

Name: COGENG VOE14631808 & VOE14631794 (14631808 & 14631794) Volvo Wiring Harness Set | Direct OEM Replacement for Volvo Equipment
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol
Availability: InStock
Rating: 5 (1 reviews)

Product name: Volvo Wiring Harness

Part No: VOE14631808 VOE14631794 14631808 14631794

Model Number:For EC210 EC240 EC290 EC300D

GET A QUOTE

Add to Quote List View Quote List

Desciption

Attribute	Specification
COGENG Set Number	CG-VWH-1463-SET
Individual COGENG Numbers	CG-VWH-14631808 (Main Harness) CG-VWH-14631794 (Secondary Harness)
Replaces OEM Numbers	VOE14631808, 14631808 VOE14631794, 14631794
Product Name	Volvo Matched Wiring Harness Set
Application	Volvo Excavator Models: EC210, EC240, EC290, EC250D, EC300D
Harness Types	Main Engine Harness & Secondary System Harness
Connector Type	OEM-Specification IP67 Sealed Connectors
Wire Insulation	High-Temperature XLPE (150°C Rating)
Protection System	Double-Wall Convoluted Tubing + Abrasion-Resistant Sleeving
Quality Standard	ISO 9001:2015, Exceeds Volvo OEM Specifications
Warranty	COGENG Limited 24-Month Warranty

Decompose pictures

Parts list

NO	Number	Name	Qty
1	VOE14607675	Cable harness	1
	VOE14612632	Cable harness
	VOE14625882	Wiring harness	1
	VOE14631807	Wiring harness	1
	VOE14640517	Wiring harness	1
	VOE14674574	Wiring harness	1
	VOE14691040	Wiring harness	1
	VOE14698182	Wiring harness	1
	VOE14701802	Wiring harness	1
	VOE14569877	•Fuse	2
	VOE14529132	•Diode	10
	VOE14592316	•Fuse	2
	VOE14592315	•Fuse	1
	SA9879-11400	•Fuse	1
	VOE13969162	•Fuse	1
	VOE978999	•Fuse	2
	VOE14593716	•Fuse	2
	VOE969164	•Fuse	2
1A	VOE992454	•Fuse	1
2	VOE14631808	Wiring harness	1
3	VOE14540283	Wiring harness	1
4	VOE946471	Flangescrew	29
5	VOE946441	Flangescrew	22
6	VOE14510985	Grommet	1
7	SA9751-15016	Grommet	2
8	VOE14511453	Grommet	1
9	VOE14510011	Clip	6
10	VOE14529064	Grommet	2
11	VOE14529099	Bracket	2
12	VOE14529100	Bracket	2
13	VOE14539461	Clip	6
14	VOE14881250	Terminal	1
15	VOE60113865	Washer	3
16	VOE13949997	Clamp	2
17	VOE14529331	Grommet	1
18	VOE946173	Flangescrew	2
19	VOE14634748	Grommet	3
20	VOE14500291	Clip	12
21	VOE14500293	Clip	2
22	VOE14500292	Clip	6
23	VOE14500291	Clip	2
24	VOE14500295	Clip	4
25	VOE14500298	Clip	5
26	VOE14500297	Clip	7
27	VOE14547764	Clip	4
28	VOE14507451	Clip	1
29	VOE14522575	Clip	3
30	VOE983303	Hexagon nut	1
31	VOE955921	Spring washer	1
32	VOE993868	Hexagon nut	2
33	VOE60113297	Washer	2
34	VOE60110190	Six point socket screw	2

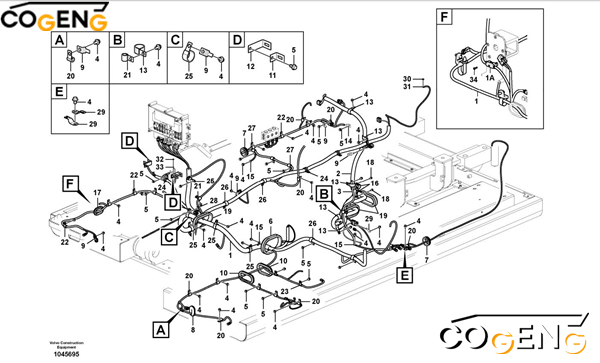

Installation decomposition diagram

The part number 14631808 appears to be associated with a wiring harness. A wiring harness is a collection of wires, cables, and connectors that are bundled together to provide electrical connections between various components in a system or equipment.
