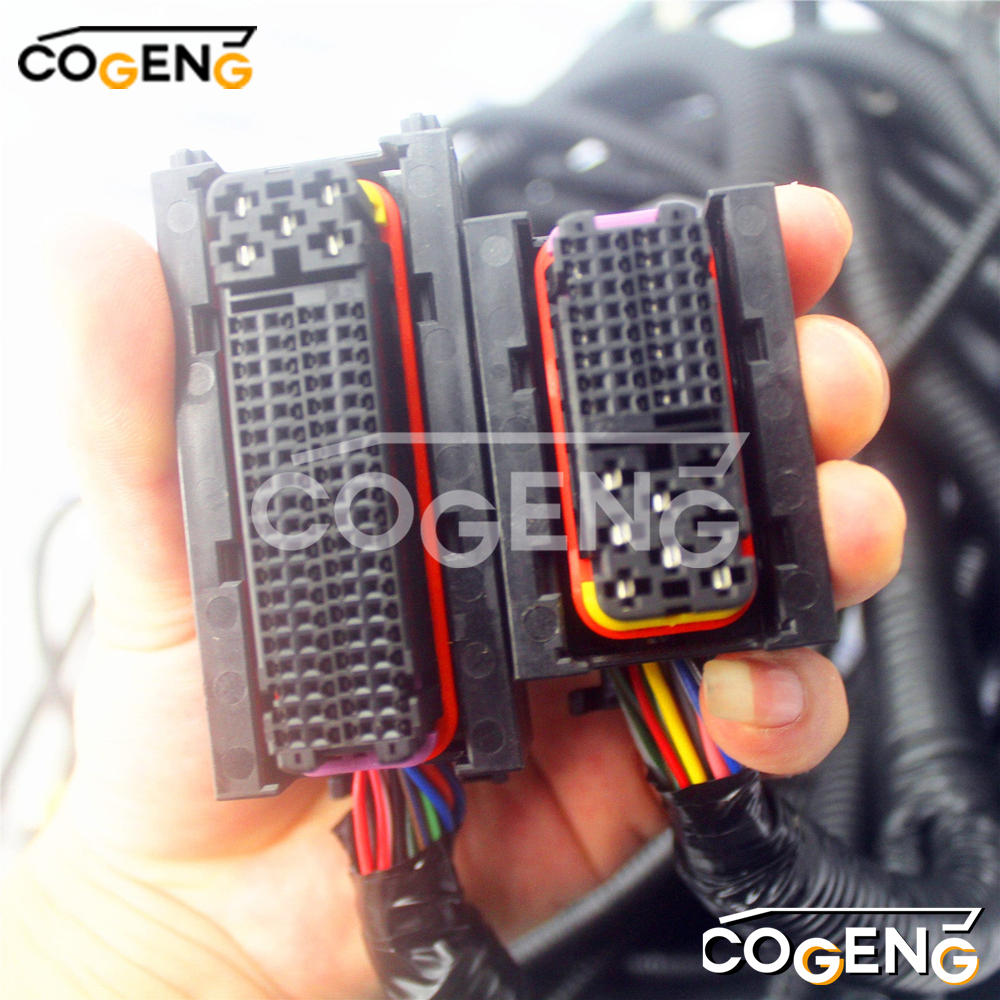

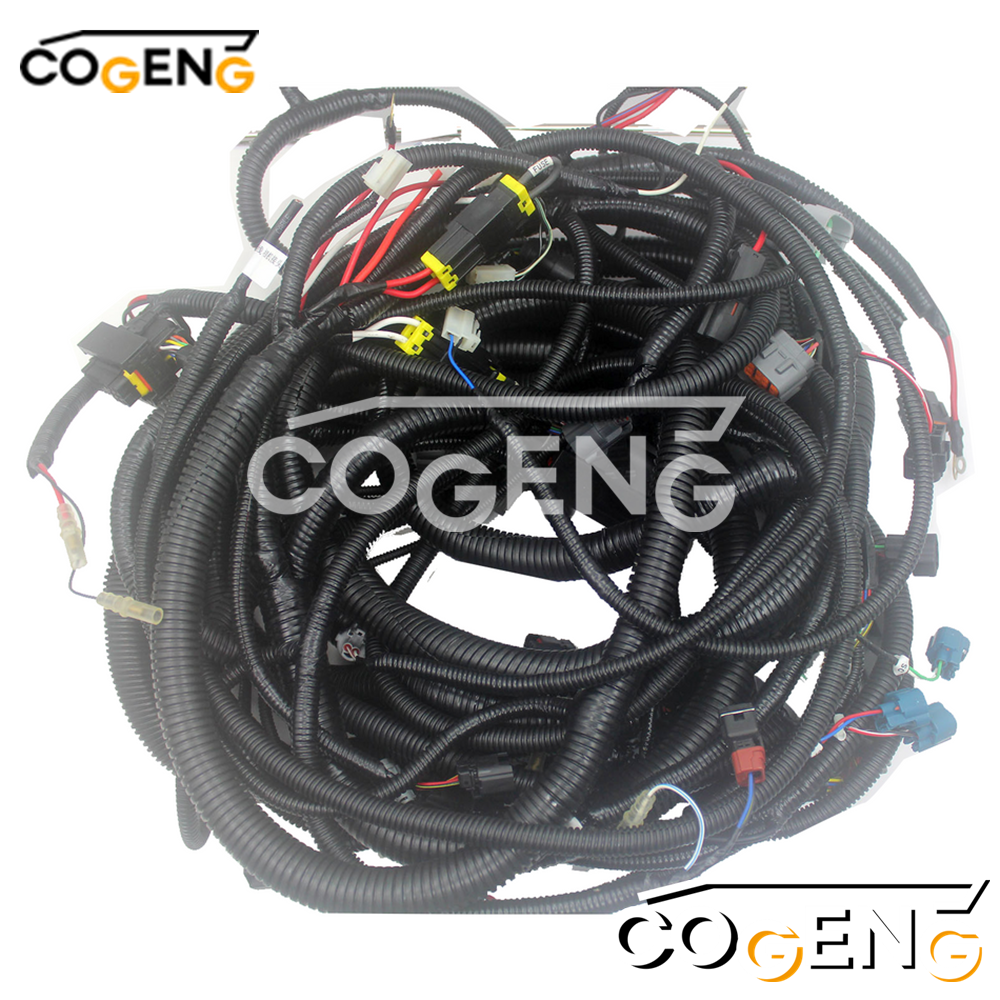

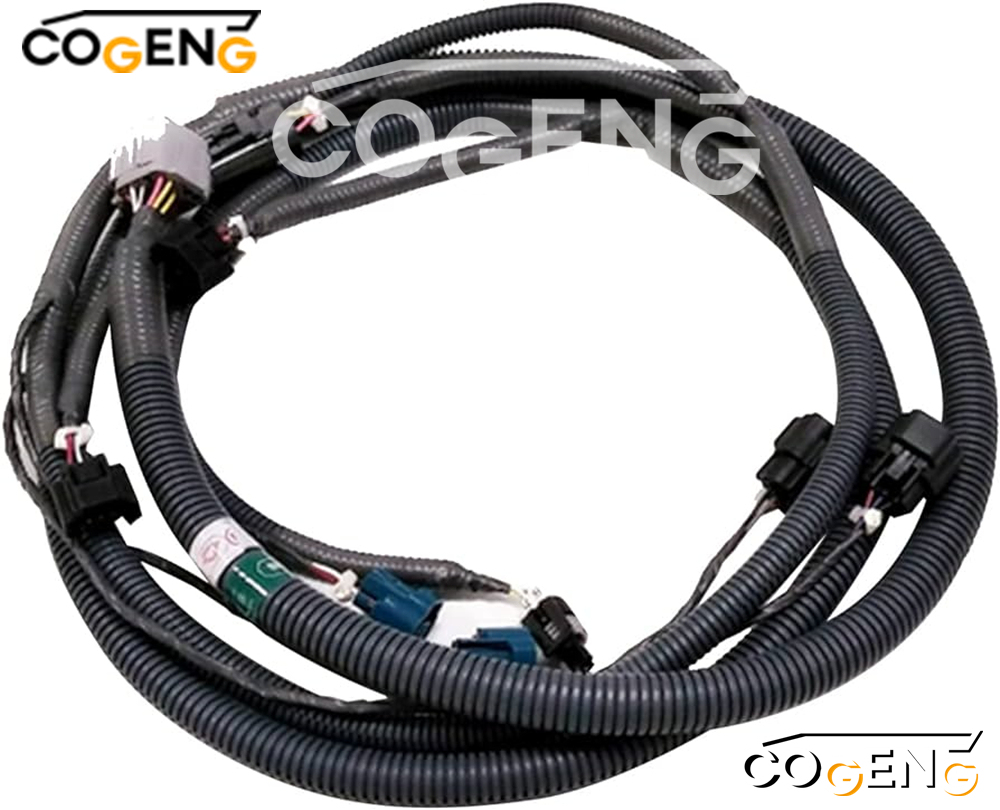

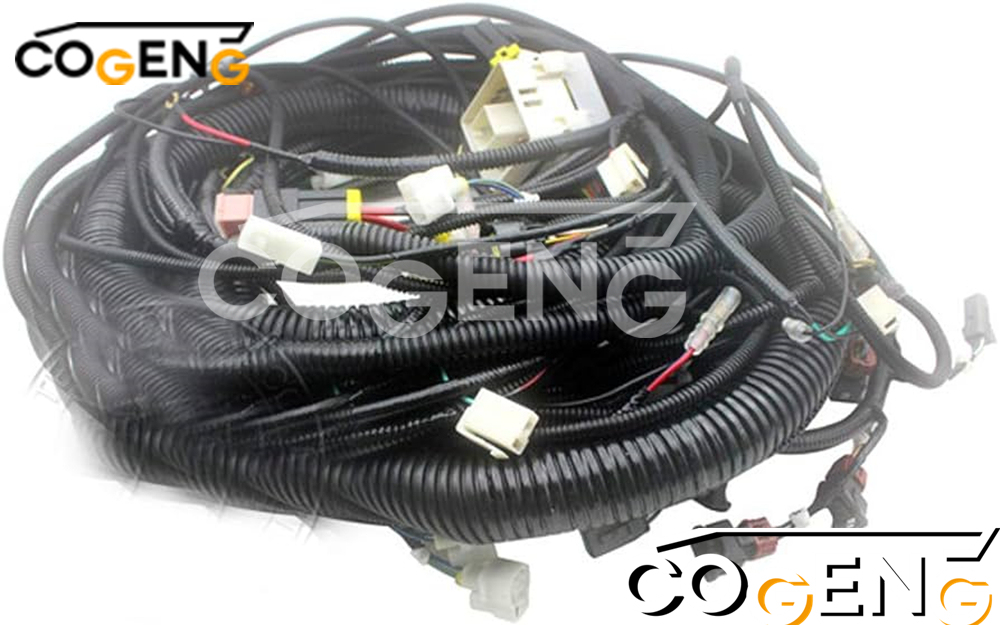

| Category | Specification |
|---|---|
| COGENG Set Number | CG-HIT-SET-0005470-0006542 |
| OEM References | 0005470 & 0006542 |
| Compatible Models | ZAXIS450LC-3, ZAXIS850LC-3 |
| Machine Weight Range | 45-85 Ton Large Excavators |
| Application Environment | Mining & Heavy Construction |
| Wire Insulation | Heavy-Duty Oil-Resistant XLPE |
| Connector Rating | IP67 (Waterproof & Dustproof) |
| Temperature Range | -40°C to 135°C |
| Voltage Rating | 24V DC System |
| Quality Validation | 100% Paired Circuit Testing |
| Warranty Coverage | 18-Month Limited Warranty |

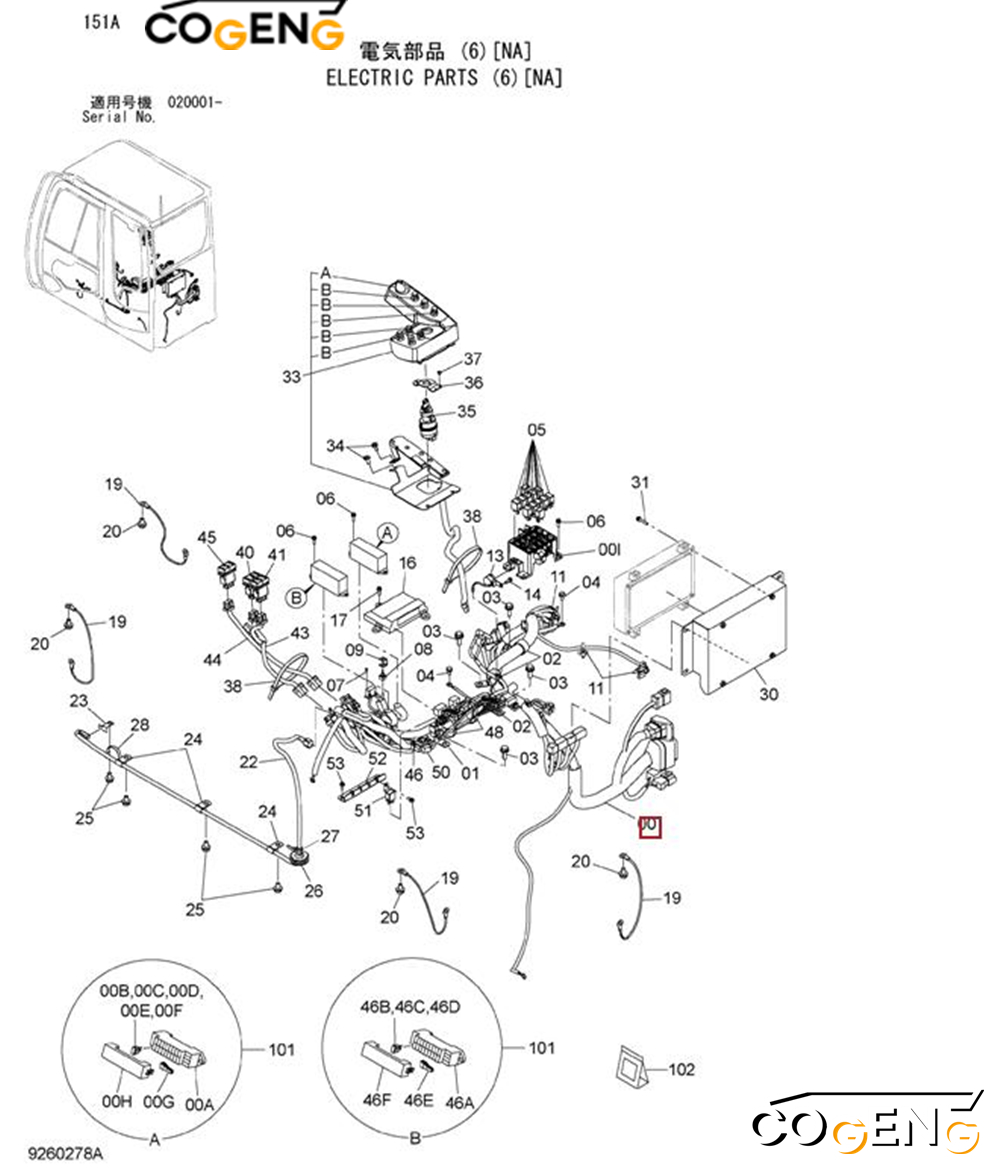

| NO | Number | Name | Qty |
| 00 | 0005470 | HARNESS | 1 |
| 00 | 0006542 | HARNESS | 1 |
| 00A | 4456735 | BOX;FUSE | 1 |
| 00B | 4428910 | FUSE(5A) | 8 |
| 00C | 4428911 | FUSE(10A) | 8 |
| 00D | 4438015 | FUSE(15A) | 1 |
| 00E | 4436736 | FUSE(20A) | 2 |
| 00F | 4639136 | FUSE(30A) | 1 |
| 00G | 4436737 | PULLER | 1 |
| 00H | 4648583 | COVER | 1 |
| 00I | 4427429 | BOX-RELAY | 1 |
| 00J | 4456778 | DIO DE | 4 |
| 01 | 4192035 | CLIP(28) | 2 |
| 02 | 4190264 | CLIP(35) | 3 |
| 03 | J271030 | BOLT | 5 |
| 03A | J901030 | BOLT | 1 |
| 03B | J222010 | WASHER | 1 |
| 04 | ]260816 | BOLT | 2 |
| 04A | ]900816 | BOLT | 1 |
| 04B | A590108 | WASHER | 1 |
| 05 | 4436534 | RELAY | 12 |
| 06 | ]460620 | SCREW | 8 |
| 07 | ]460310 | SCREW | 2 |
| 08 | 4359384 | SWITCH | 1 |
| 09 | 4367375 | BRACKET | 1 |
| 11 | 4254600 | CLIP | 3 |
| 13 | 4297188 | BUZZER | 1 |
| 14 | ]460620 | SCREW | 1 |
| 16 | 4631129 | CONTROLLER | 1 |
| 17 | ]460620 | SCREW | 3 |
| 19 | 4464075 | HARNESS | 4 |
| 20 | J271020 | BOLT | 4 |
| 20A | ]901020 | BOLT | 1 |
| 20B | J222010 | WASHER | 1 |
| 22 | 4640410 | HARNESS | 1 |
| 23 | 4257159 | BRACKET | 1 |
| 24 | 4190261 | CLIP | 3 |
| 25 | ]271020 | BOLT;SEMS | 4 |
| 25A | ]901020 | BOLT | 1 |
| 25B | ]222010 | WASHER | 1 |
| 26 | 4638604 | BUSHING | 1 |
| 27 | 4055311 | CLIP（L=140) | 1 |
| 28 | 4055312 | CLIP(L=250) | 1 |
| 30 | 7049302 | COVER | 1 |
Complete machine power shutdown and isolation required
Install both harnesses as matched set for optimal performance
Follow large excavator specific routing diagrams
Ensure proper engagement of all high-current connectors
Perform comprehensive system diagnostics after installation
